Highlights
- CNC lead screw lathe for precision metalworking
- Conventional and CNC operation in one machine
- nccad BASIC CNC controller with 2D turning software
- Extremely quiet operation through electronically controlled drive technology
- Precision cast iron machine bed with hardened and ground guideways
- Suitable for workshops, industry, education and training environments
Machine Description

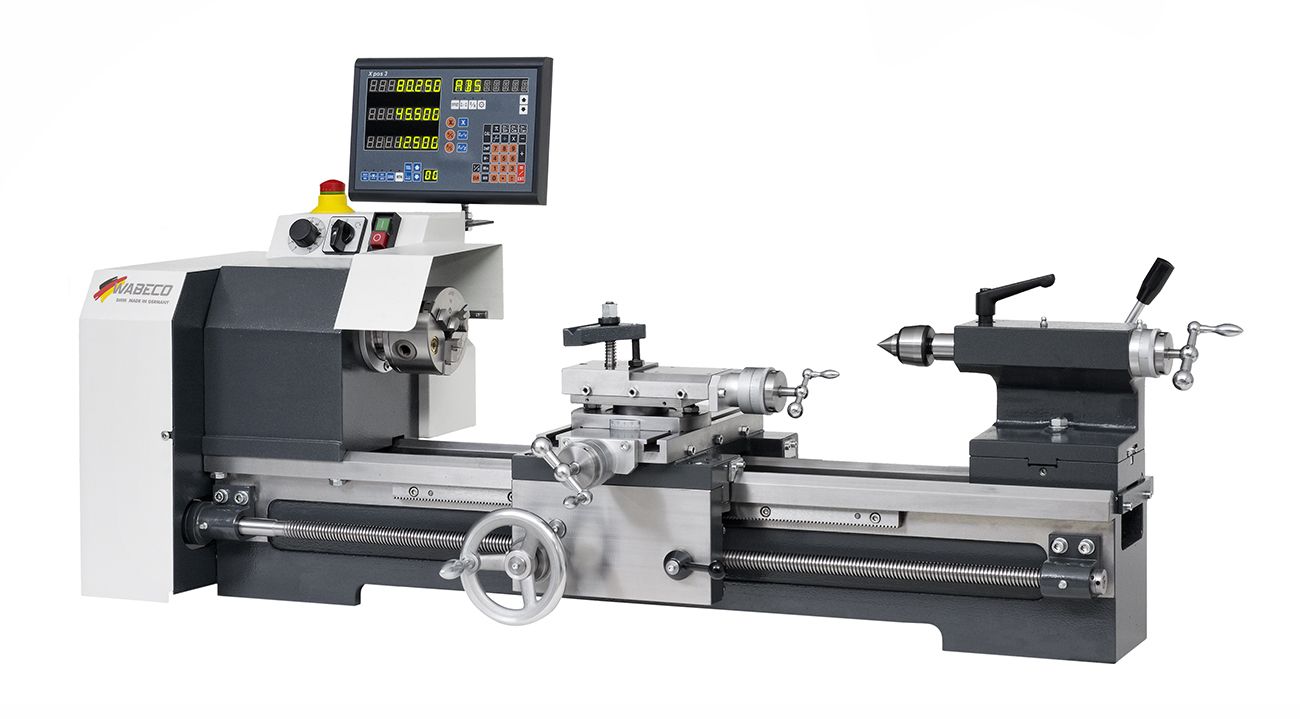

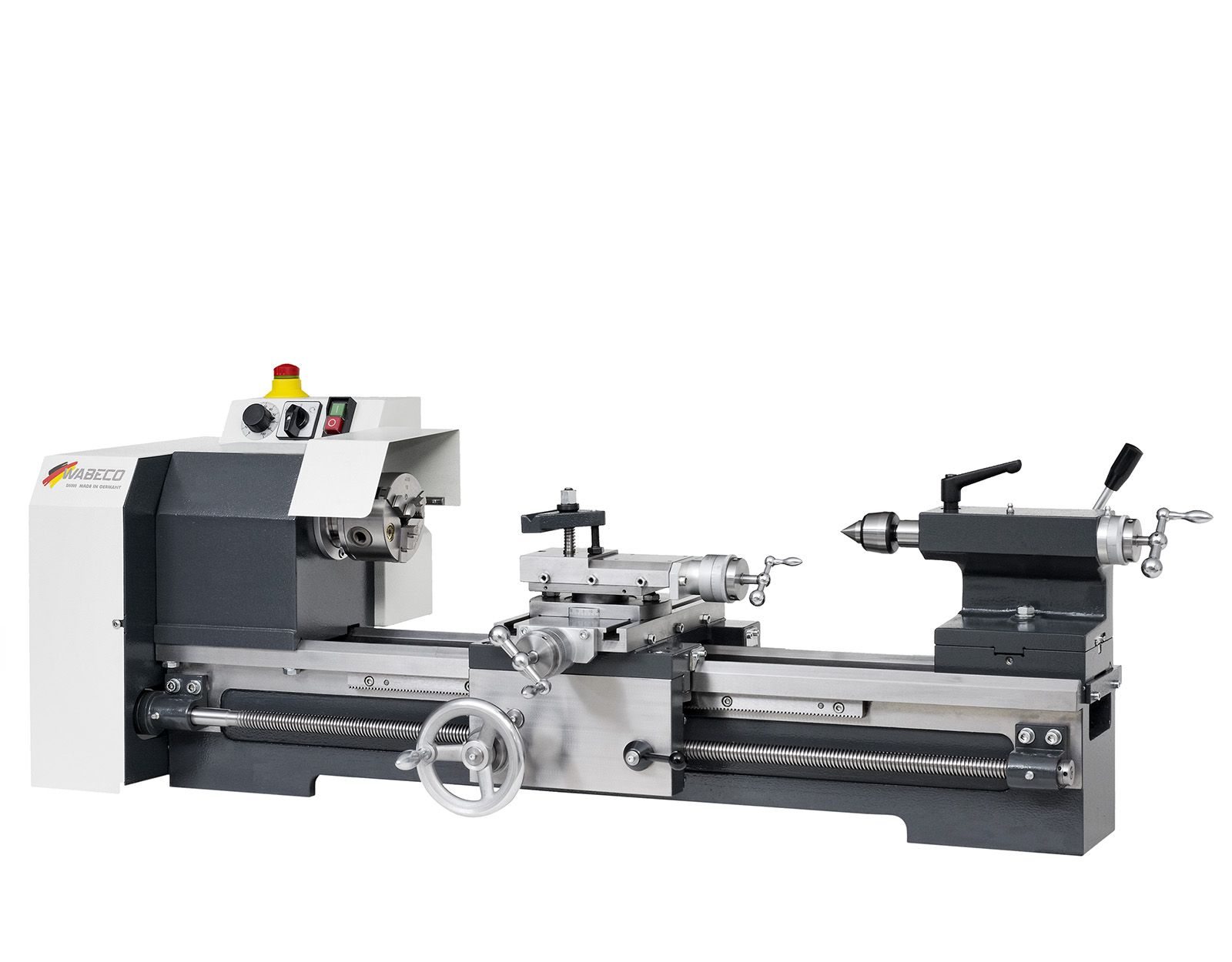

The CC-D6000 Basic is a CNC-capable lead screw lathe equipped with the nccad BASIC controller and 2D turning software. The machine supports simultaneous movement of two axes through interpolation, allowing accurate CNC turning operations.
The system requires an external PC for program creation, administration and data storage. CNC programs can be created independently on multiple PCs and then transferred to the machine as required.
A key advantage of the CC-D6000 Basic is its ability to operate both conventionally and under CNC control, providing flexibility for training, prototyping and production environments.
Please note that thread cutting is only available during conventional operation and is not supported in CNC mode.
Machine Construction
Prismatic Cast Iron Bed
The machine bed is manufactured from diagonally ribbed grey cast iron and features inductively hardened and precision-ground guideways for maximum rigidity and long-term accuracy.
Headstock
- Grey cast iron headstock housing
- Hand-scraped V-guide system
- Precision adjustable DIN tapered roller spindle bearings
- Right and left spindle rotation
- High torque performance throughout the speed range
- Spindle bore: 20 mm
- Spindle taper: MT3
- Spindle nose diameter: 70 mm (DIN 6350)
Tailstock
- Quick-adjust tailstock design
- Lateral adjustment: ±10 mm
- MT2 Morse taper sleeve
- Sleeve travel: 65 mm
- Scale ring accuracy: 0.1 mm

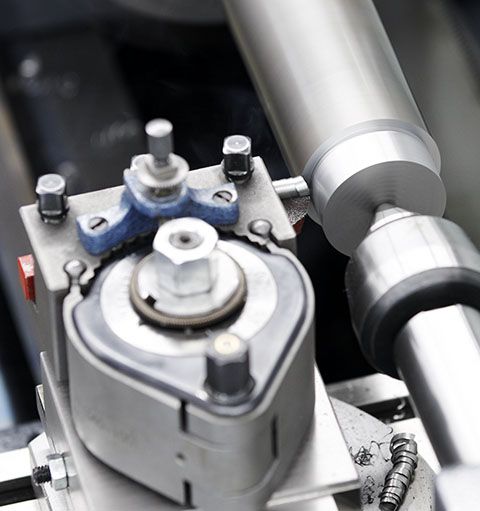

Tool Slide
- Universally adjustable compound slide
- Adjustable dovetail guideways
- Cross slide travel: 140 mm
- Longitudinal slide travel: 60 mm
- 360° swivelling compound slide
- Maximum tool height: 20 mm
- Integrated chip scrapers protect guideways from contamination
Thread Cutting & Feed System
The machine includes a lead screw drive with change gear quadrant for conventional thread cutting applications.
- Metric threads: 0.25 – 7.0 mm pitch
- Imperial threads: 10 – 40 TPI
- Left and right-hand thread capability
- Automatic longitudinal feed rates: 0.085 and 0.16 mm/rev
- Integrated overload clutch protects the feed system from damage
Drive Technology
The machine uses maintenance-free stepper motors and advanced spindle electronics featuring multiple fault monitoring functions.
The electronically controlled spindle drive provides exceptionally quiet operation and high torque, even at lower spindle speeds, making it suitable for machining difficult materials.
Dimensions & Weight
- Machine dimensions: 1230 x 510 x 470 mm
- Machine weight: 172 kg
Safety Information
When operated in CNC mode, the machine should be installed within a suitable machine safety enclosure to comply with industrial safety requirements. Users should always ensure compliance with applicable local safety regulations.
