CC-D6200 HS BASIC

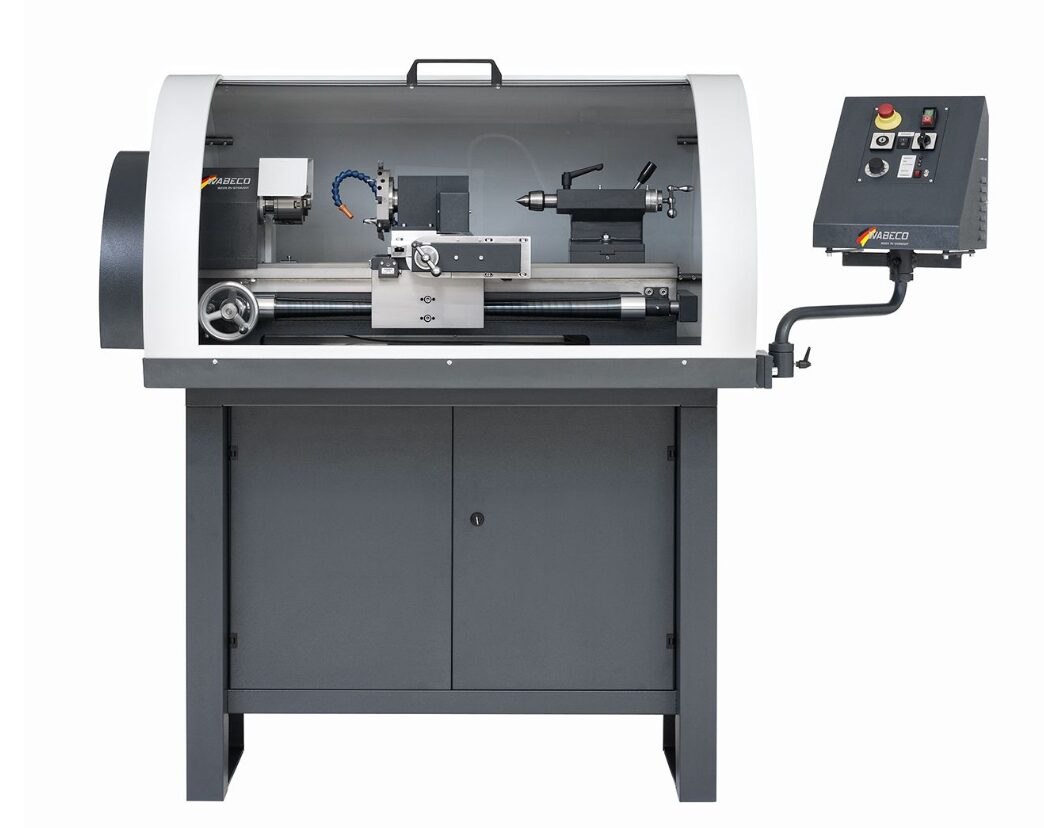

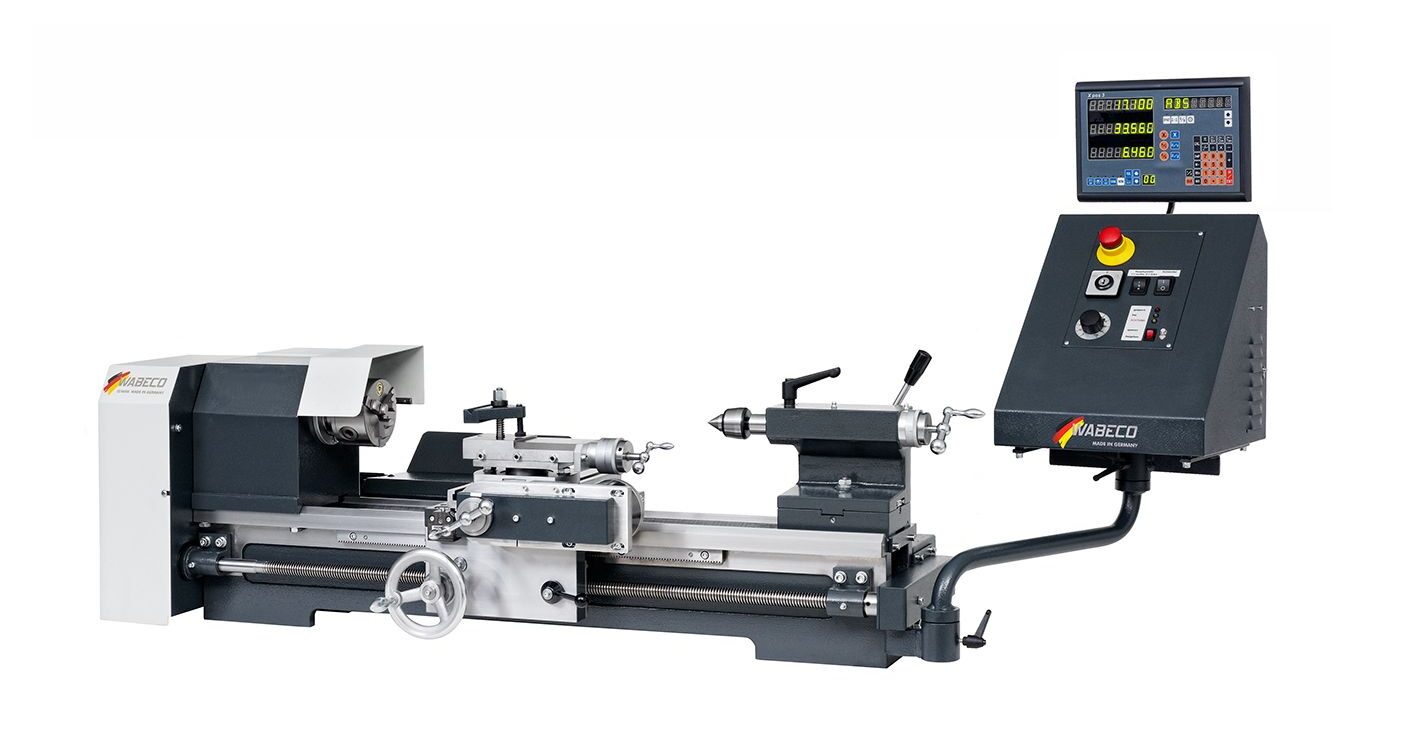

The WABECO CC-D6200 HS BASIC is a high-speed CNC lathe designed for precision metalworking in workshops, educational environments, research facilities and light industrial applications. Featuring a robust cast iron construction, powerful 2.5 kW spindle drive and CNC control through the nccad BASIC system, the machine offers reliable and accurate turning performance for a wide range of machining tasks.

Highlights & Features

Highlights

High-speed CNC lathe with nccad BASIC controller and turning software
Powerful 2.5 kW servo-driven spindle system
Spindle speed range from 50 to 5000 rpm
Robust prismatic cast iron machine bed
Precision trapezoidal feed screws
Centre distance of 600 mm
Centre height of 135 mm
Suitable for conventional and CNC turning operations

Machine Description

The CC-D6200 HS BASIC is a compact and versatile CNC lathe designed to provide precise and reliable turning performance. Built around a rigid cast iron machine bed and equipped with high-performance stepper motors, the machine combines traditional turning capabilities with CNC control for enhanced productivity and accuracy. The machine utilises the nccad BASIC control system and turning software, making it suitable for educational environments, prototype development, small-batch manufacturing and precision engineering applications.

Machine Construction

Prismatic Cast Iron Bed The machine bed is manufactured from diagonally ribbed grey cast iron, providing excellent rigidity, vibration damping and machining stability. This robust construction supports precise turning operations and long-term reliability. Feed Screw System The CC-D6200 HS BASIC is equipped with precision trapezoidal feed screws that provide smooth and dependable axis movement for CNC machining applications. Main Spindle Assembly The spindle system features a generous 30 mm spindle bore and is designed to deliver high-speed machining performance while maintaining excellent accuracy and rigidity.

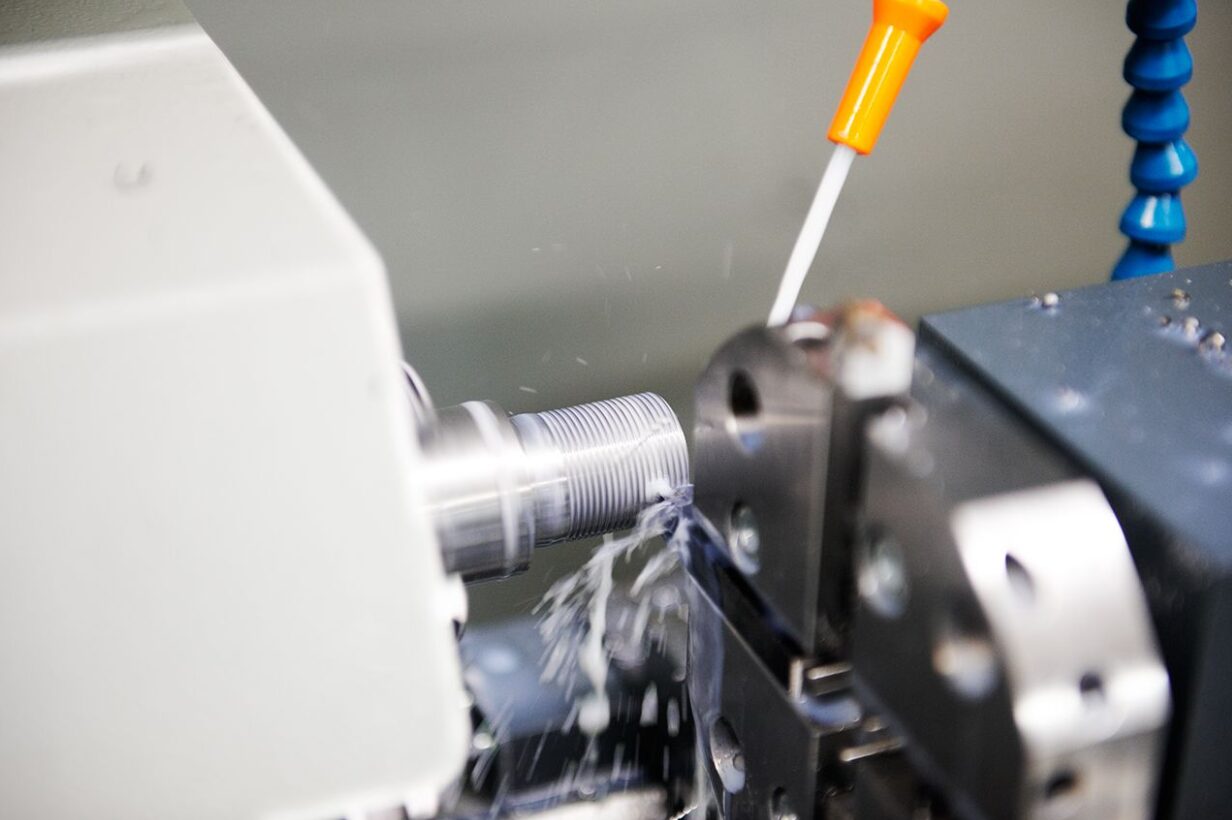

Lead Screw Drive & Thread Cutting

The machine includes a lead screw drive with change gear quadrant for automatic feed functions.

Automatic feed rate: 0.085 mm/rev
Tumbler gear for left and right-hand thread cutting
Thread cutting available during conventional operation

CNC Drive Technology

High-Performance Stepper Motors The machine uses maintenance-free high-performance stepper motors on both the X and Z axes.

High acceleration capability
High feed rates
Strong holding torque
Reliable positioning performance

Limit Switch Protection Mechanical limit switches are installed on both the X and Z axes to ensure safe machine operation and protect against over-travel.

Dimensions & Weight

Machine dimensions: 1230 x 630 x 470 mm
Machine weight: 199 kg

Equipment, Options & Controls

Standard Equipment

nccad BASIC controller and turning software
3-jaw chuck Ø125 mm
Prismatic cast iron bed
High-performance spindle drive
High-performance stepper motors
Lead screw drive system
Mechanical limit switches

Optional Accessories

Ball Screws Optional ball screw upgrades are available to improve positioning accuracy and CNC performance. Lead Screw Cover Protects the lead screw system from chips, coolant and contaminants. Quick-Action Collet Chuck Provides fast and accurate workpiece clamping for production applications. Machine Safety Cabin Available for improved operator safety and compliance with workplace safety requirements. Machine Base Cabinet Provides a stable and practical machine mounting solution with integrated storage. Digital Measuring System (DRO) Optional position readout and optical scales improve measurement accuracy and operator convenience. 5C Collet Chuck Supports rapid and accurate workpiece clamping for precision turning operations.

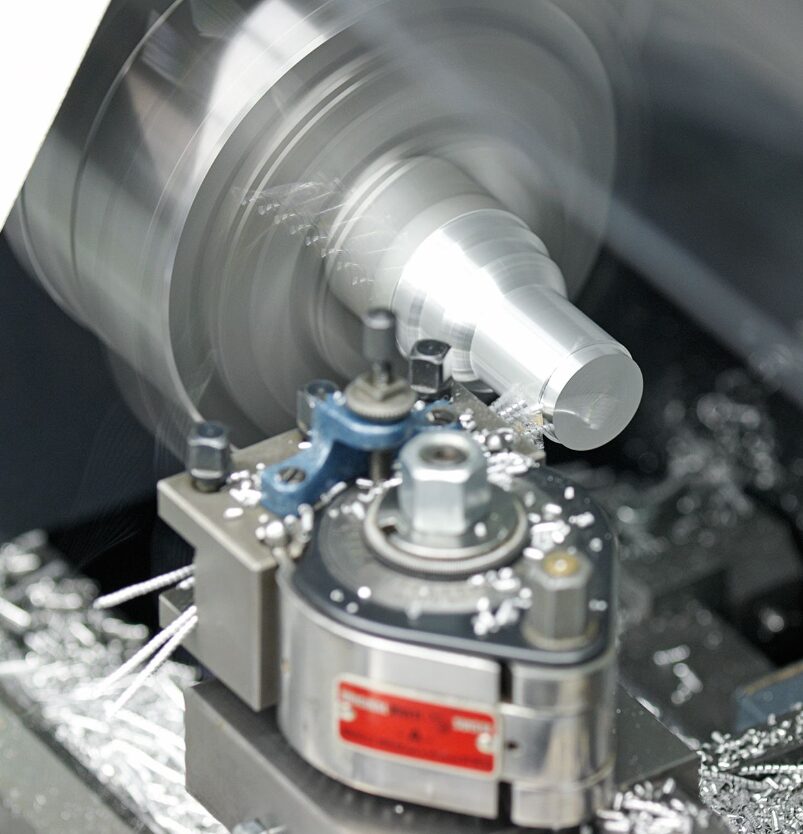

Applications & Workpieces

Applications & Performance

The CC-D6200 HS BASIC is suitable for precision turning applications in engineering workshops, educational institutions, training centres and prototype development environments. Its combination of robust cast iron construction, high-speed spindle performance, CNC control and compact footprint makes it an ideal solution for users requiring accurate and reliable turning capabilities without sacrificing workshop space.

Technical Specifications

Technical Data

Working Range

Centre distance: 600 mm
Centre height: 135 mm
Maximum turning diameter over cross slide: 170 mm
Maximum turning diameter over bed: 270 mm
Bed width: 180 mm

Machine Accuracy

Spindle nose runout accuracy: 0.005 mm
Cylindrical turning accuracy (100 mm cantilever): 0.01 mm
Cylindrical turning accuracy (300 mm between centres): ±0.015 mm

Main Drive Motor

Servo motor with frequency converter
Power supply: 230 V, 50/60 Hz
Motor power: 2.5 kW
Speed range: 50 – 5000 rpm
Electronically variable spindle speed control

Main Spindle

Main spindle bore: Ø30 mm
Spindle nose diameter: Ø70 mm
Manufactured in accordance with DIN 6350

Rapid Traverse Speed

X-axis: 30 – 500 mm/min
Z-axis: 30 – 500 mm/min
