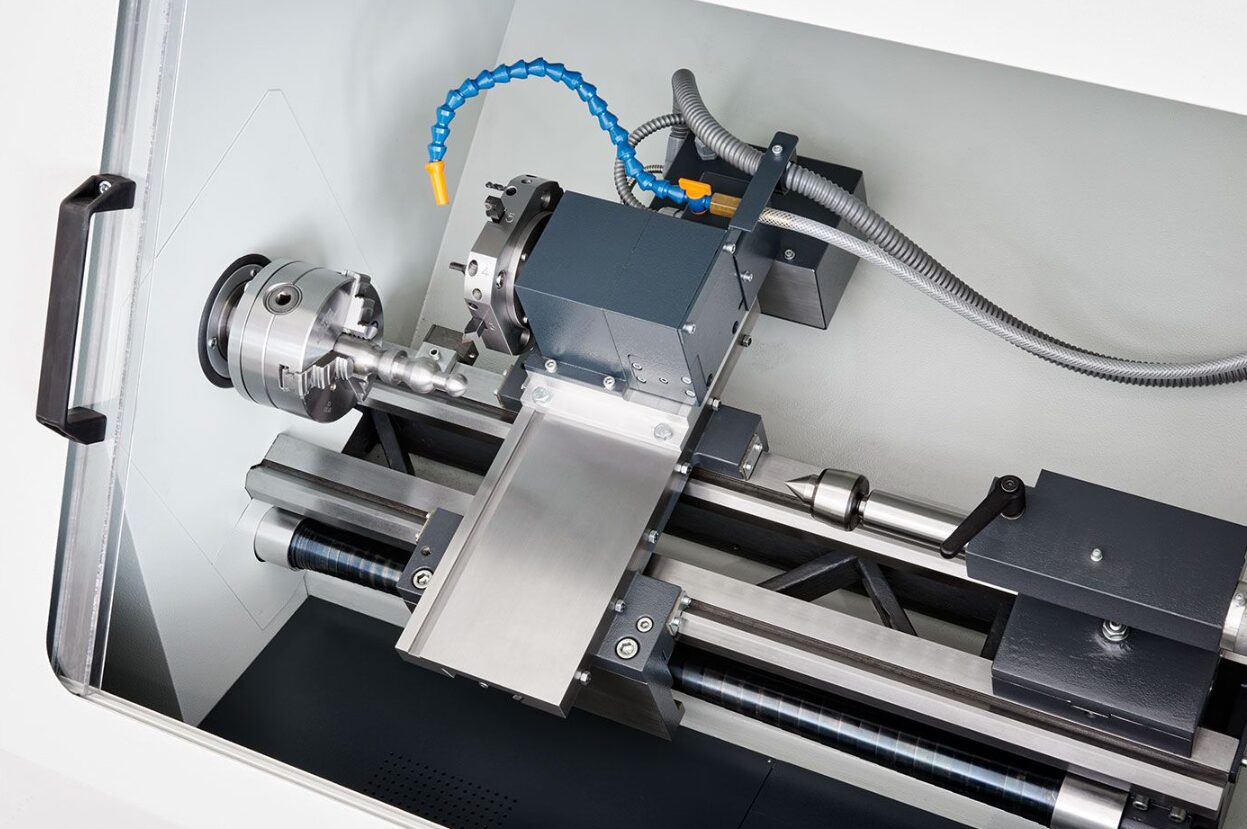

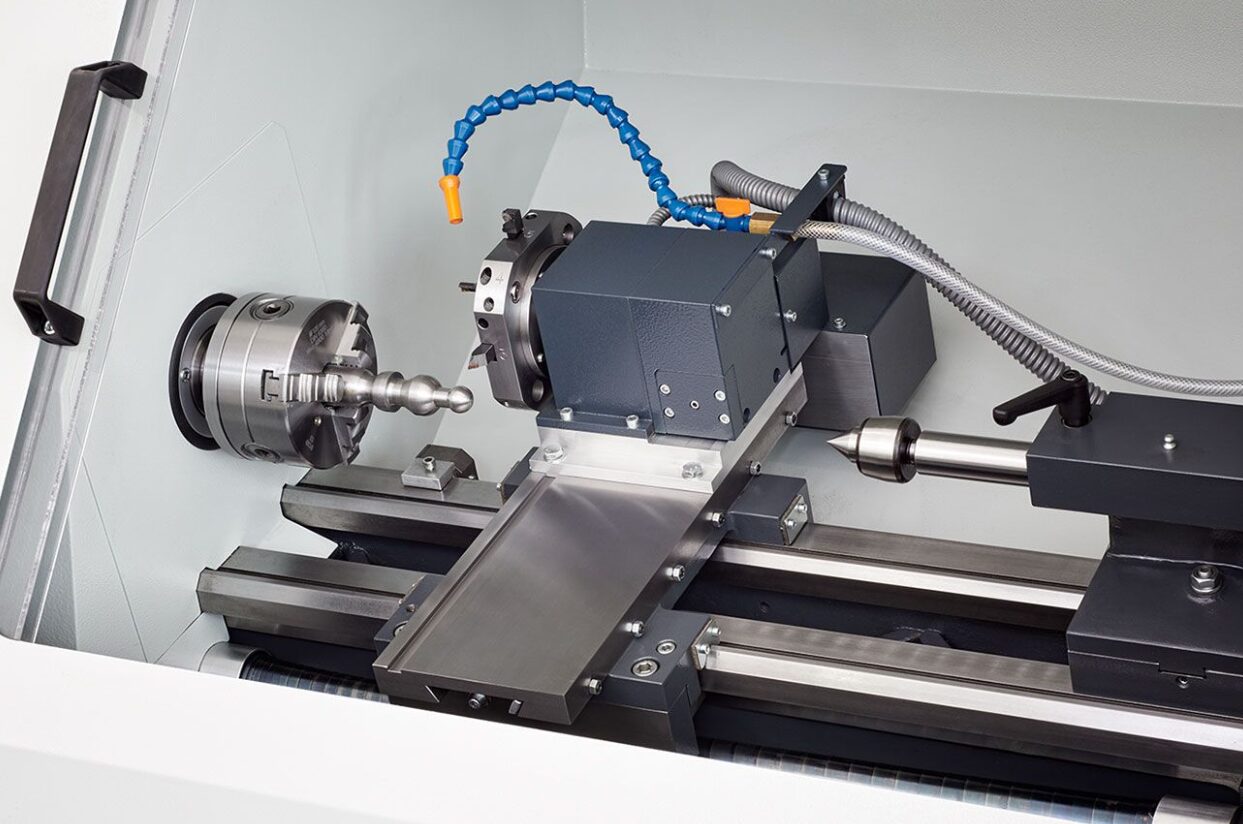

The CC-D6800 HS PROFI combines a rigid slant bed design with precision ball screws and a high-speed servo spindle to deliver exceptional machining accuracy and repeatability. The enclosed safety cabin, integrated coolant system and automated 8-position tool turret provide an efficient CNC turning solution for demanding workshop and production environments.
The diagonally ribbed grey cast iron bed is inductively hardened and precision ground to provide excellent rigidity, vibration damping and long-term accuracy. The slant bed design improves chip evacuation and operator access while maintaining maximum structural stability.
The brushless 2.5 kW servo motor with frequency converter delivers high torque throughout the speed range while allowing infinitely variable spindle speeds from 50 to 5000 rpm. The innovative belt drive ensures exceptionally quiet operation and smooth machining performance.

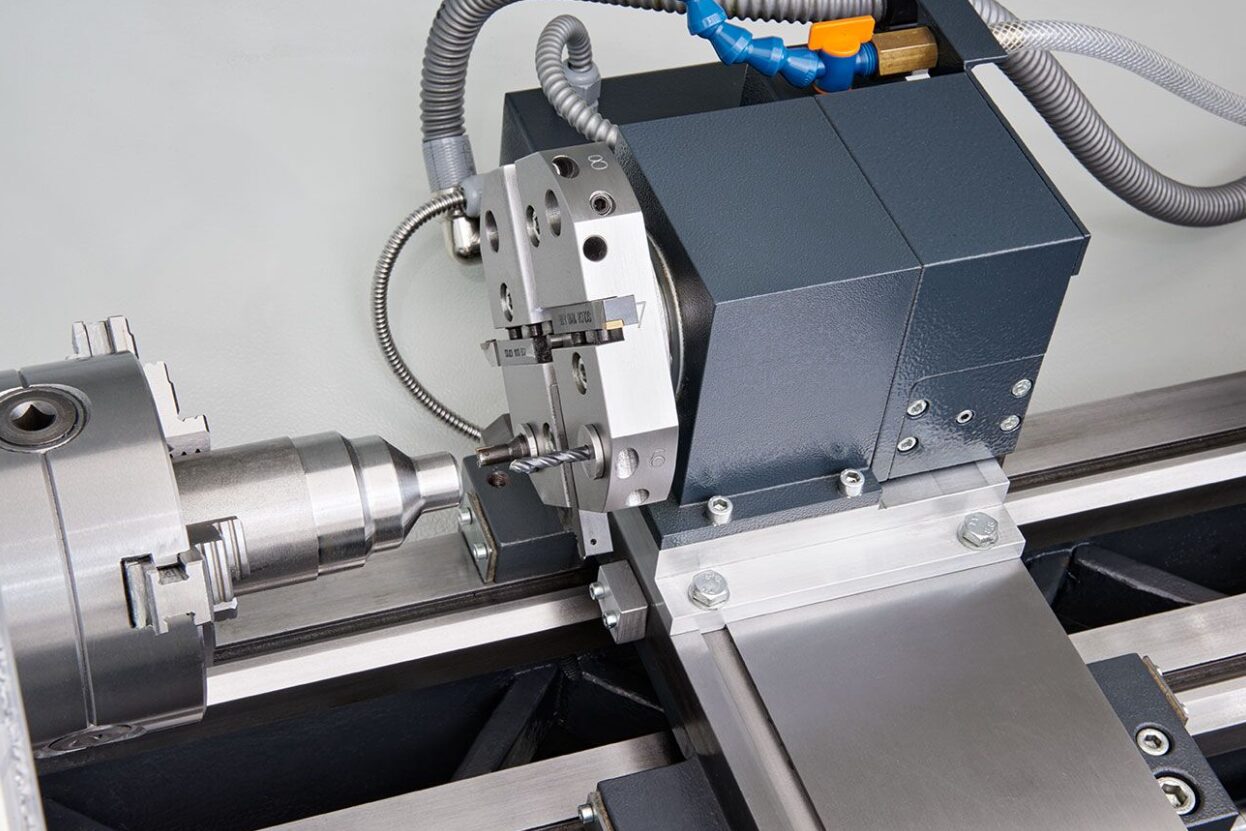

The automated 8-position CNC tool turret accommodates four external and four internal tools, enabling fast tool changes and efficient multi-operation machining without manual intervention.

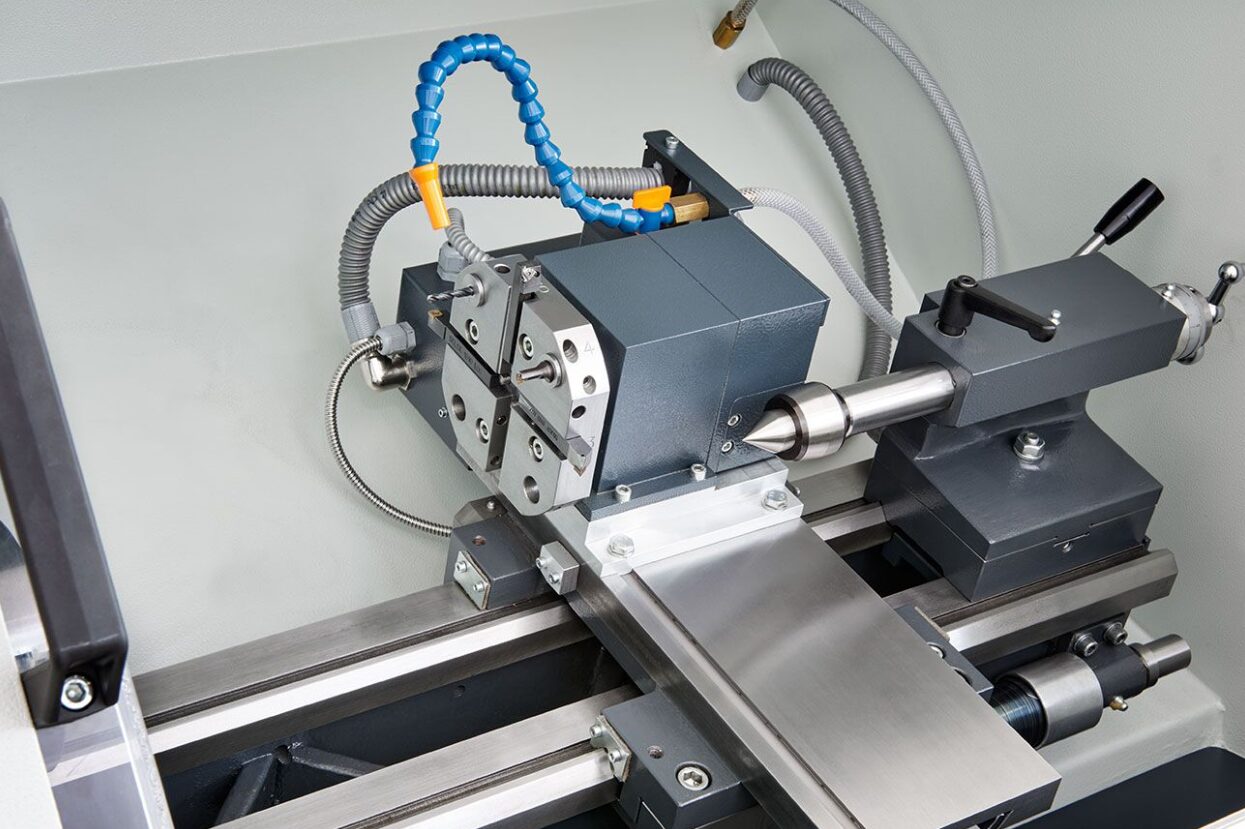

The quick-adjust tailstock features an MT2 Morse taper quill with 65 mm travel and ±10 mm lateral adjustment, allowing accurate support of longer workpieces while maintaining machining precision.
Thread cutting is fully supported in CNC mode, allowing accurate production of threaded components while benefiting from the precision of the CNC drive system.
The CC-D6800 HS PROFI comes equipped with a rigid slant bed featuring a prismatic cast iron bed, precision ball screws, an 8-position CNC tool turret, fully enclosed safety cabin with integrated coolant system, 125 mm three-jaw chuck and MT2 live centre. The machine is controlled using the nccad PROFI CNC controller and turning software, allowing both CNC and manual machining operations.
A heavy-duty machine base cabinet provides a stable installation platform together with additional storage for tooling and accessories.
Electronic HandwheelAn optional electronic handwheel provides improved manual control during setup, positioning and program verification.
5C Collet ChuckAn optional 5C collet chuck allows fast, accurate clamping of smaller workpieces while improving repeatability during production.
The machine is supplied with the nccad PROFI CNC controller and turning software, providing intuitive programming, precise machine control and efficient production of both one-off components and small batch runs. The integrated machine control panel combines CNC functions with machine operation for straightforward setup and machining.
