Highlights
- Made in Germany precision milling machine
- ISO30 spindle taper (DIN 2080)
- 1.4 kW variable speed spindle drive
- Spindle speed range from 140 to 3000 rpm
- Precision dovetail guides on all axes
- X-axis travel: 500 mm
- Y-axis travel: 150 mm
- Z-axis travel: 280 mm
- 700 x 180 mm clamping table

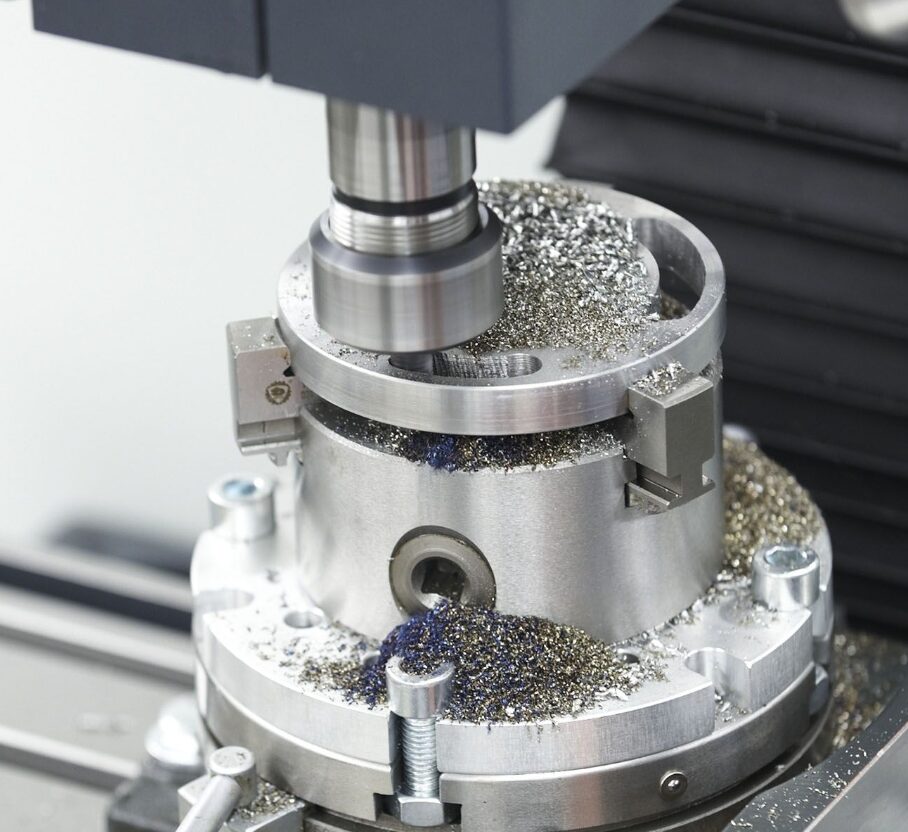

- Suitable for milling and drilling operations

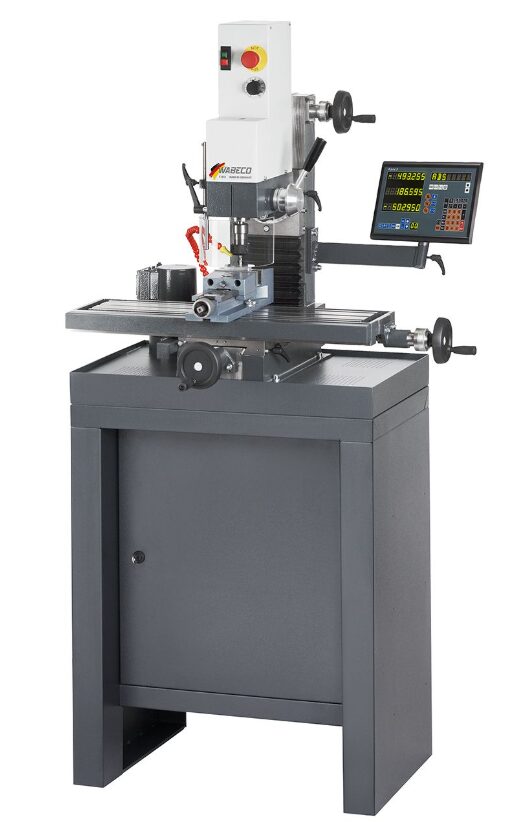

Machine Description
The F1210 ISO30 is a versatile vertical milling machine designed for precision machining applications. Its rigid cast iron construction, precision guideways and electronically controlled spindle provide outstanding machining performance across a wide range of materials.
The machine is equally suited to milling and drilling operations thanks to its precision quill with drilling depth stop, making it an ideal solution for workshops requiring flexibility, accuracy and reliability.
Machine Construction
Dovetail Guides
Precision dovetail guideways are fitted to all axes and can be adjusted for backlash-free operation. This provides excellent rigidity, machining accuracy and long-term reliability.
Protective folding bellows help prevent contamination of the guideways and moving components.
Feed Screws
Trapezoidal thread spindles are fitted as standard on all axes and feature adjustable bronze double nuts for precise positioning and long service life.
Optional ball screws are available for applications requiring higher positioning accuracy, reduced wear and backlash-free operation.
Cast Iron Construction
The Z-column and machine base are manufactured from ribbed grey cast iron, providing exceptional vibration damping, rigidity and machining stability.

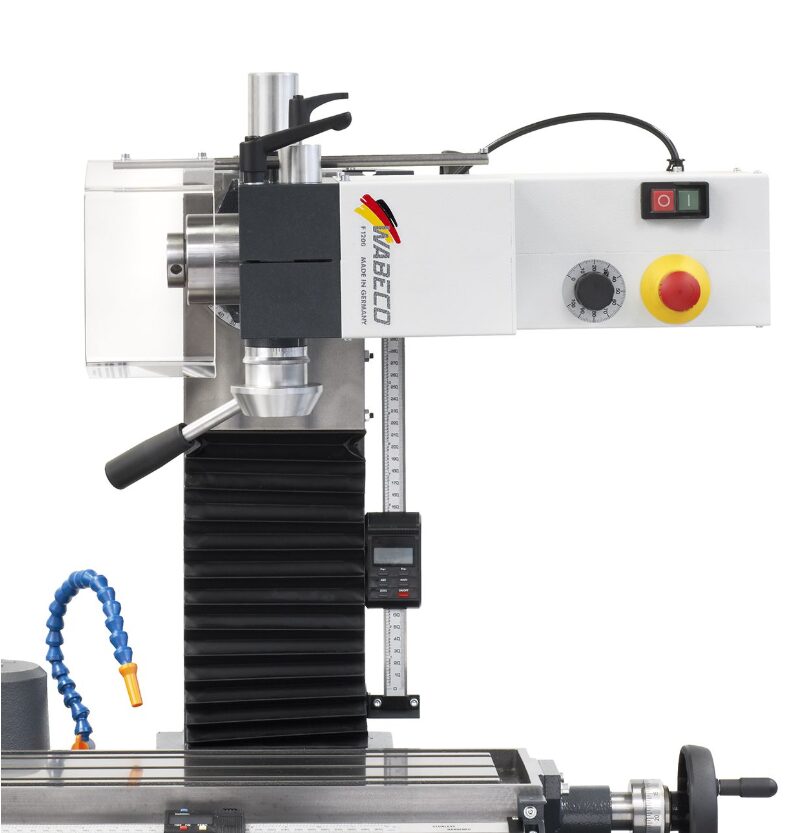

Milling Head

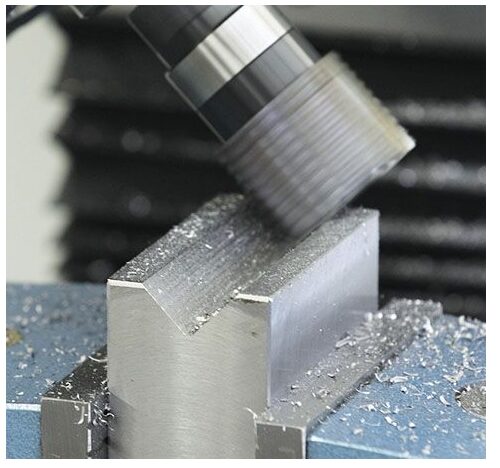

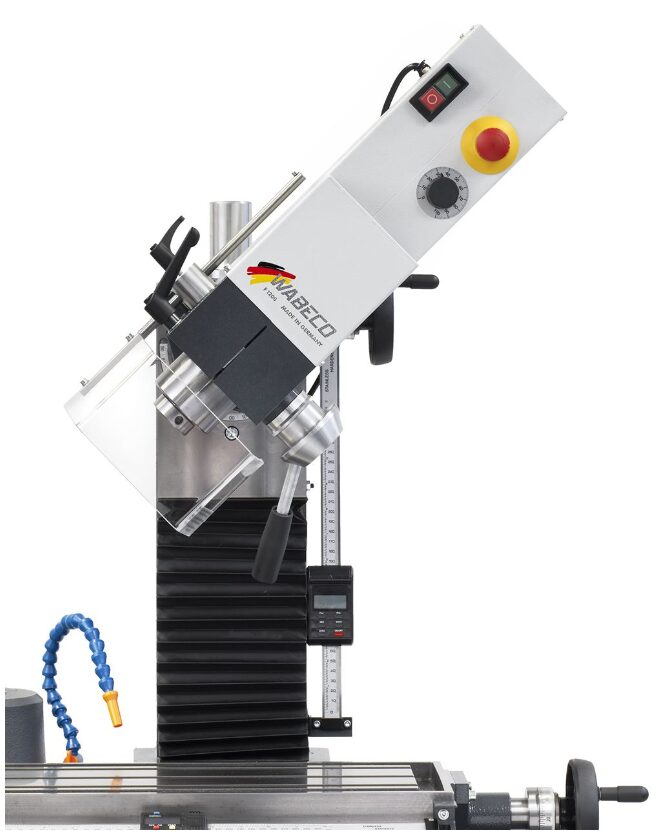

The milling head can be swivelled through 90° in either direction, allowing machining angles from -90° to +90°.
- Swivelling range: -90° to +90°
- Large angle scale for accurate positioning
- Hardened locating pin for precise vertical alignment
- Integrated protective guard
Quill & Spindle System
The machine features a precision drilling and milling quill with a 55 mm stroke and integrated drilling depth stop.
A wide toothed belt drive ensures smooth, quiet operation and slip-free power transmission between the motor and spindle.
The integrated tool clamping and ejection system allows quick and efficient tool changes without additional equipment.
Machine Features
- Fine feed control on the Z-axis
- Axis locking system for improved surface finish
- Quiet belt-driven spindle system
- Optional clockwise and counter-clockwise spindle rotation for thread cutting
- Manufactured to DIN 8615 precision standards
- 5-year manufacturer warranty (excluding wear parts)
- Long-term spare parts availability
Dimensions & Weight
- Machine dimensions: 900 x 625 x 700 mm
- Machine weight: 101 kg
