Highlights
- Made in Germany precision milling machine
- High-speed spindle with speeds up to 7,500 rpm
- Powerful 2.5 kW brushless servo motor
- ISO30 spindle taper (DIN 2080)
- Precision dovetail guides on all axes
- X-axis travel: 500 mm
- Y-axis travel: 150 mm
- Z-axis travel: 280 mm
- 700 x 180 mm clamping table

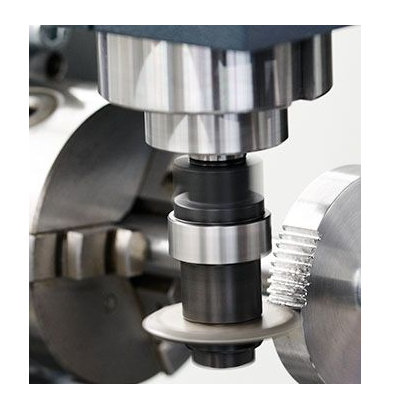

- Ideal for milling, drilling and engraving applications
Machine Description

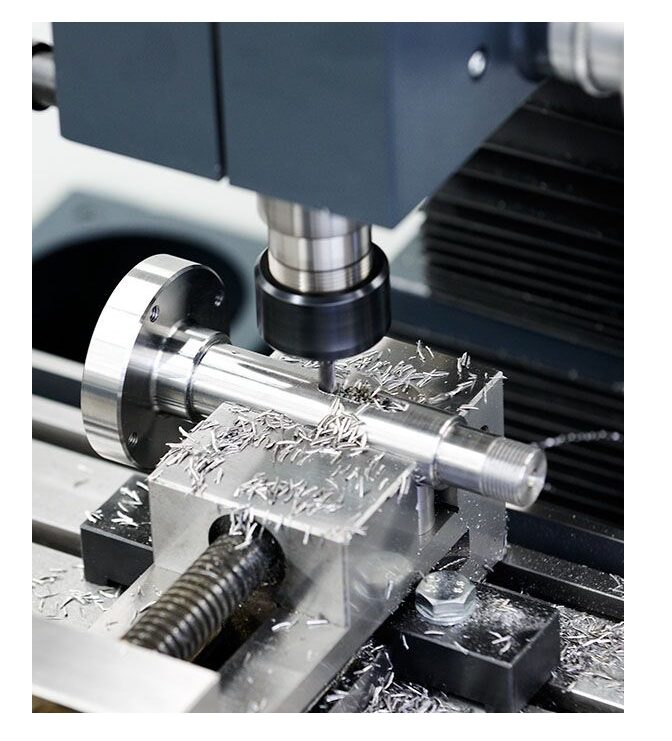

The F1220 HS ISO30 is designed for users requiring high spindle speeds, exceptional rigidity and advanced machining performance. Its high-speed servo-driven spindle makes it particularly suitable for smaller tooling, fine finishing operations, engraving work and precision component manufacture.

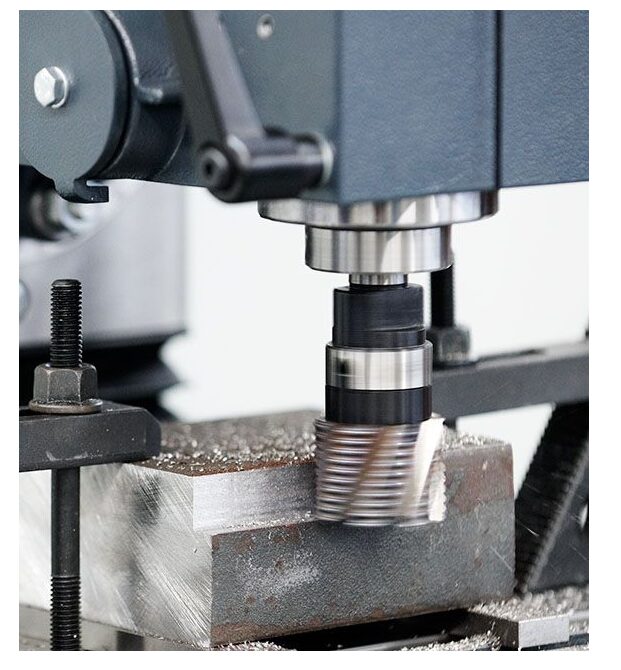

The ISO30 spindle taper provides greater tooling stability and rigidity than smaller spindle systems, making the machine ideal for demanding milling applications where precision and surface finish are critical.
Machine Construction
Dovetail Guides
Precision dovetail guideways are fitted to all axes and can be adjusted for backlash-free operation, ensuring excellent rigidity, machining accuracy and long-term reliability.

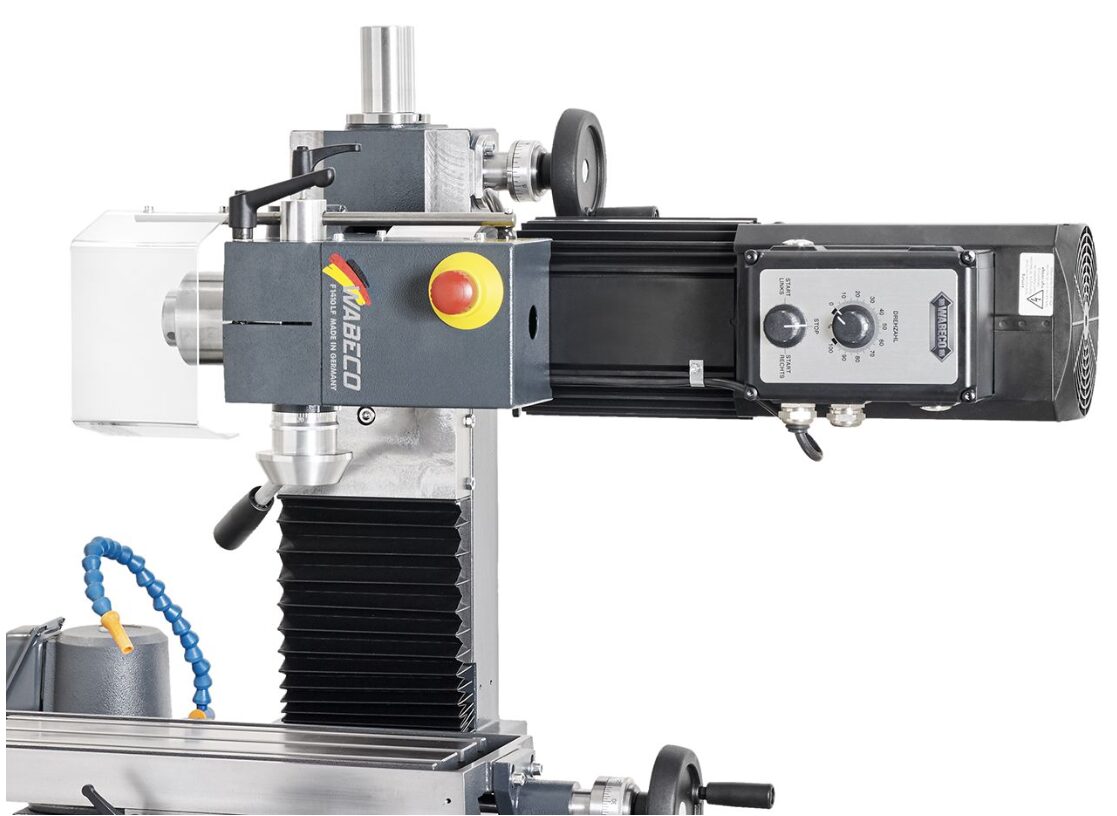

Protective folding bellows help prevent contamination of guideways and moving components.
Feed Screws
Trapezoidal thread spindles are fitted as standard on all axes and feature adjustable bronze double nuts for accurate positioning and long service life.
Optional ball screws are available for applications requiring even greater positioning accuracy, minimal wear and backlash-free operation.
Cast Iron Construction
The Z-column and machine base are manufactured from ribbed grey cast iron, providing excellent vibration damping, rigidity and machining stability.
Milling Head

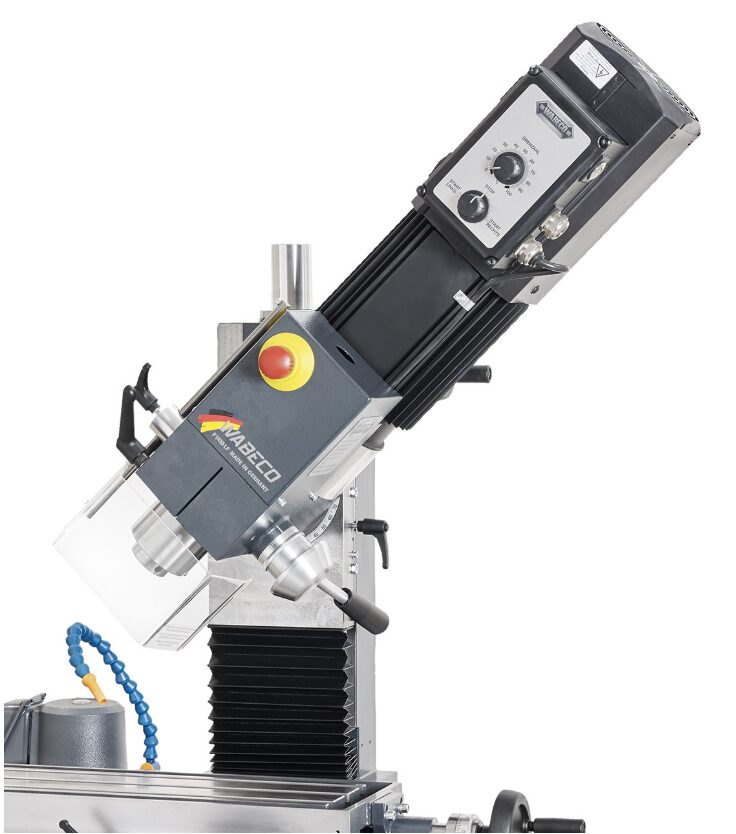

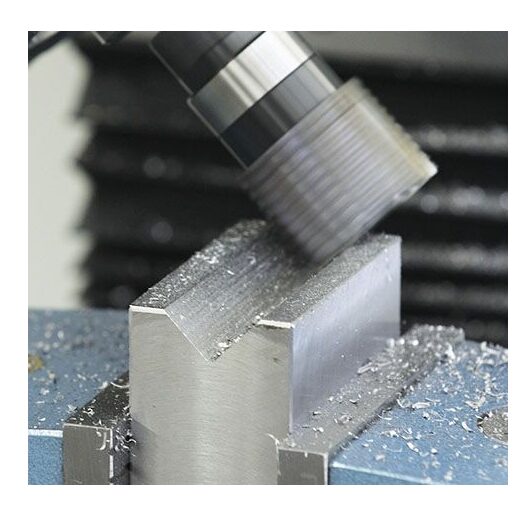

The milling head can be swivelled through 90° in either direction, allowing machining angles from -90° to +90°.
- Swivelling range: -90° to +90°
- Large angle scale for accurate positioning
- Hardened locating pin for precise vertical alignment
- Integrated protective guard
Quill & Spindle System

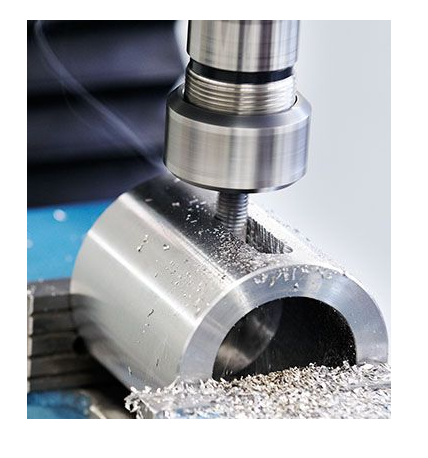

The machine features a precision drilling and milling quill with a 55 mm stroke and integrated drilling depth stop.
A wide toothed belt drive ensures smooth, quiet operation and slip-free power transmission between the motor and spindle.
The integrated tool clamping and ejection system allows quick and efficient tool changes without additional equipment.
Machine Features
- Fine feed control on the Z-axis
- Axis locking system for improved surface finish
- Quiet belt-driven spindle system
- Ideal for engraving and small tool machining
- Manufactured to DIN 8615 precision standards
Dimensions & Weight
- Machine dimensions: 900 x 625 x 900 mm
- Machine weight: 112 kg
Demonstration Machine
This demonstration machine is approximately four weeks old and has been geometrically inspected and supplied with a test report. As demonstration machines are unique items, availability is subject to prior sale.
