Highlights
- Made in Germany precision milling machine
- High-speed spindle with speeds up to 7,500 rpm
- Powerful 2.5 kW brushless servo motor
- MT2 spindle taper with M10 drawbar thread
- Precision dovetail guides on all axes
- X-axis travel: 500 mm
- Y-axis travel: 150 mm
- Z-axis travel: 280 mm
- 700 x 180 mm clamping table
- Ideal for milling, drilling and engraving applications
Machine Description
The F1220 HS MT2 is designed for users requiring high spindle speeds and exceptional machining performance. Its servo-driven spindle system makes it particularly suitable for small tooling, fine finishing operations, detailed engraving work and precision component manufacture.
Combining robust German engineering with precision guideways and a powerful high-speed drive system, the machine delivers excellent accuracy, reliability and versatility across a wide range of machining applications.
Machine Construction
Dovetail Guides
Precision dovetail guideways are fitted to all axes and can be adjusted for backlash-free operation, ensuring excellent rigidity, machining accuracy and long-term reliability.
Protective folding bellows help prevent contamination of guideways and moving components.
Feed Screws
Trapezoidal thread spindles are fitted as standard on all axes and feature adjustable bronze double nuts for accurate positioning and long service life.
Optional ball screws are available for applications requiring enhanced positioning accuracy, reduced wear and backlash-free operation.
Cast Iron Construction
The Z-column and machine base are manufactured from ribbed grey cast iron, providing excellent vibration damping, rigidity and machining stability.

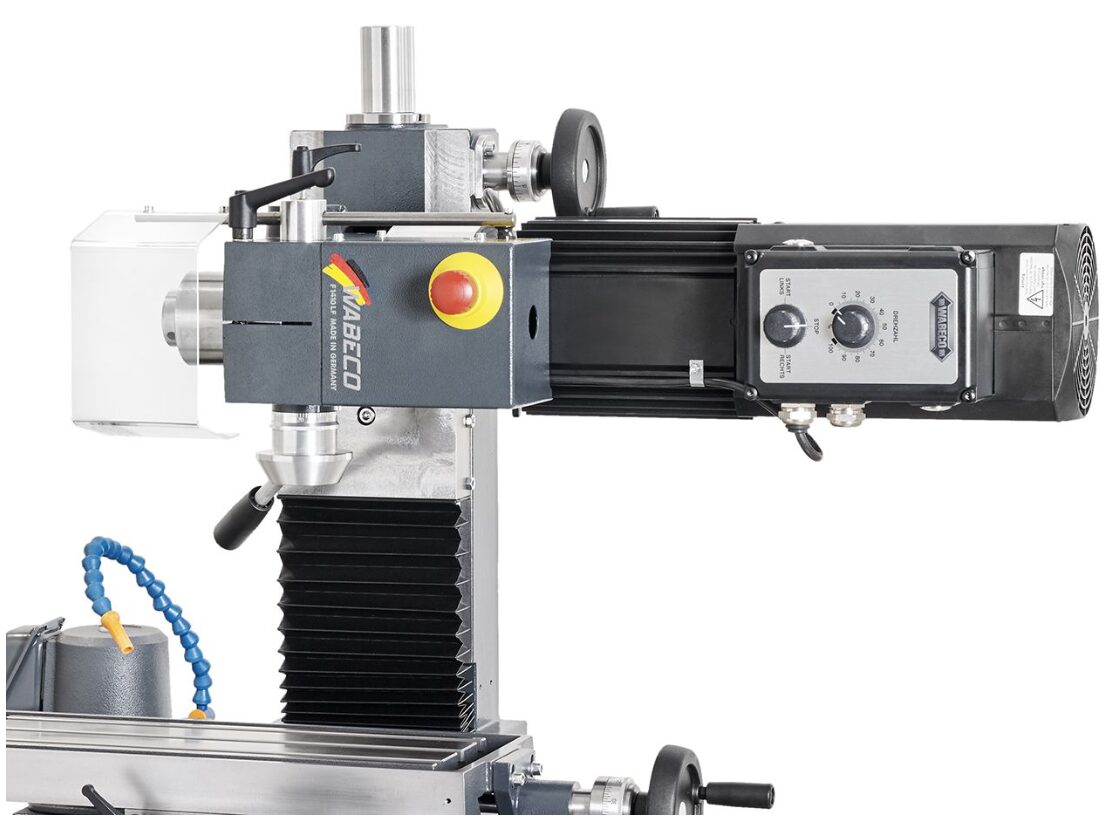

Milling Head

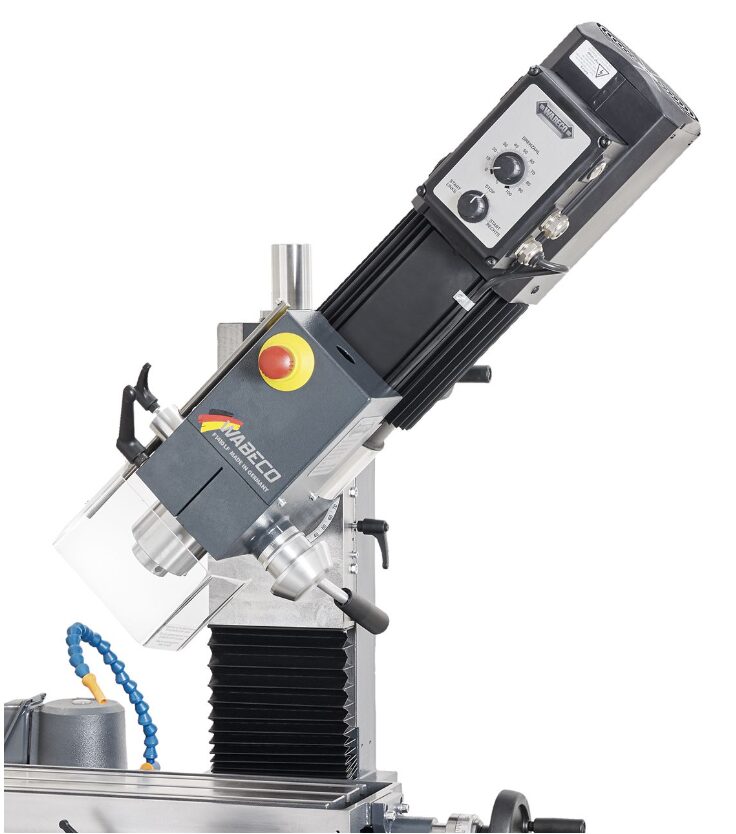

The milling head can be swivelled through 90° in either direction, allowing machining angles from -90° to +90°.
- Swivelling range: -90° to +90°
- Large angle scale for accurate positioning
- Hardened locating pin for precise vertical alignment
- Integrated protective guard
Quill & Spindle System
The machine features a precision drilling and milling quill with a 55 mm stroke and integrated drilling depth stop.
A wide toothed belt drive ensures smooth, quiet operation and slip-free power transmission between the motor and spindle.
The integrated tool clamping and ejection system allows quick and efficient tool changes without additional equipment.
Machine Features
- Fine feed control on the Z-axis
- Axis locking system for improved surface finish
- Quiet belt-driven spindle system
- Ideal for engraving and small tool machining
- Manufactured to DIN 8615 precision standards
- 5-year manufacturer warranty (excluding wear parts)
- Long-term spare parts availability
Dimensions & Weight
- Machine dimensions: 900 x 625 x 900 mm
- Machine weight: 112 kg
