Highlights
- Made in Germany precision milling machine
- Maintenance-free linear guides on all axes
- ISO30 spindle taper (DIN 2080)
- 1.4 kW variable speed spindle drive
- Spindle speed range from 140 to 3000 rpm
- X-axis travel: 500 mm
- Y-axis travel: 200 mm
- Z-axis travel: 280 mm
- 700 x 180 mm clamping table
- Ideal for precision milling and drilling applications
Machine Description

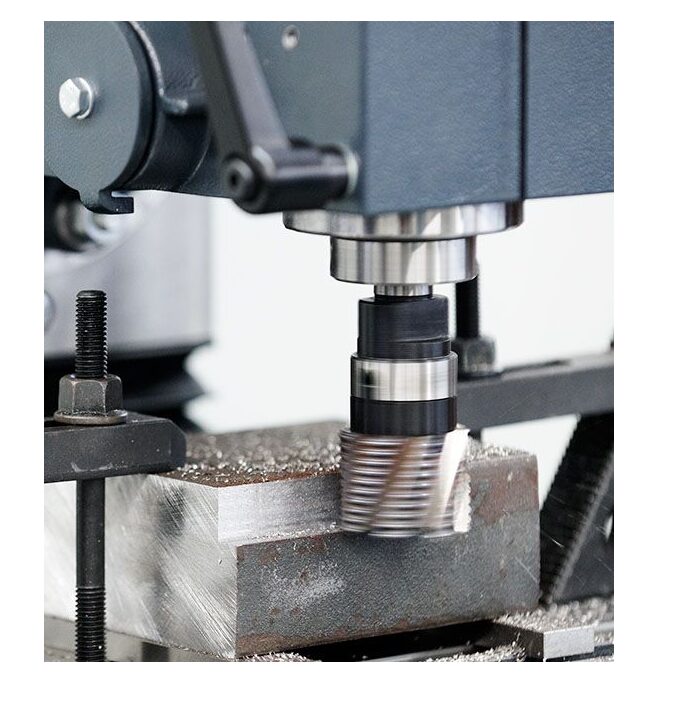

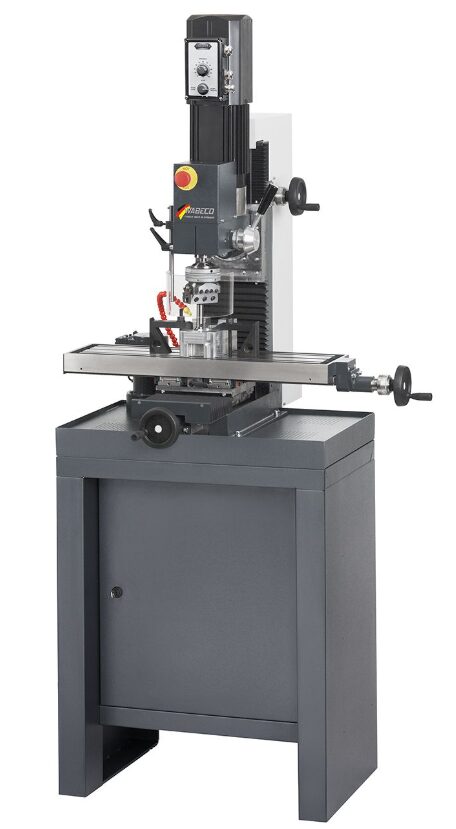

The F1410 LF ISO30 combines precision linear guide technology with a rigid ISO30 spindle system to deliver exceptional machining accuracy, smooth axis movement and superior tooling stability. The increased Y-axis travel of 200 mm provides greater flexibility when machining larger workpieces and complex components.
Its versatile design makes the machine suitable for both milling and drilling operations, while the robust spindle assembly and precision guideways ensure consistently accurate machining results.
Machine Construction
Linear Guides

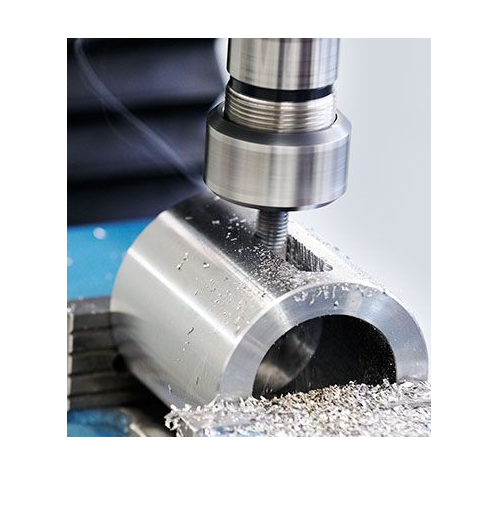

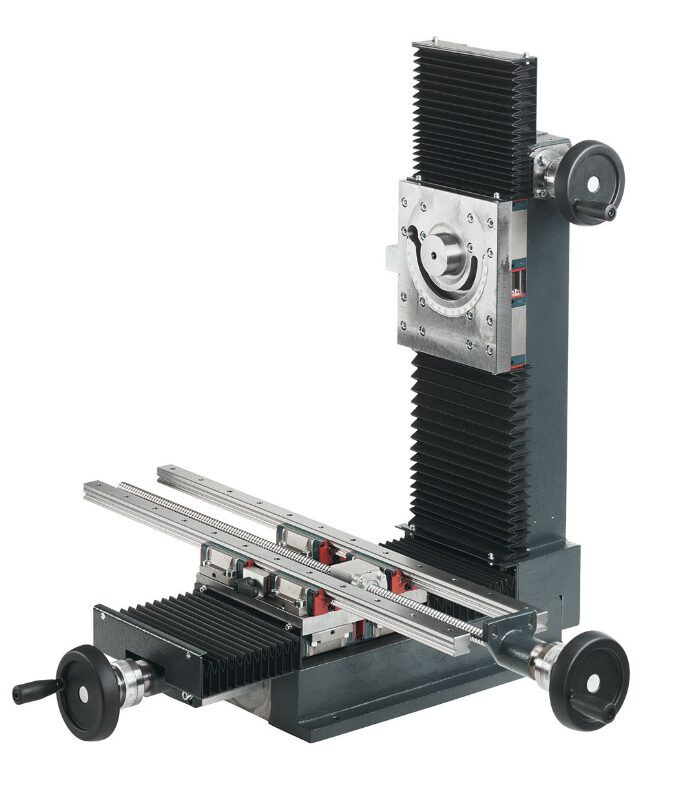

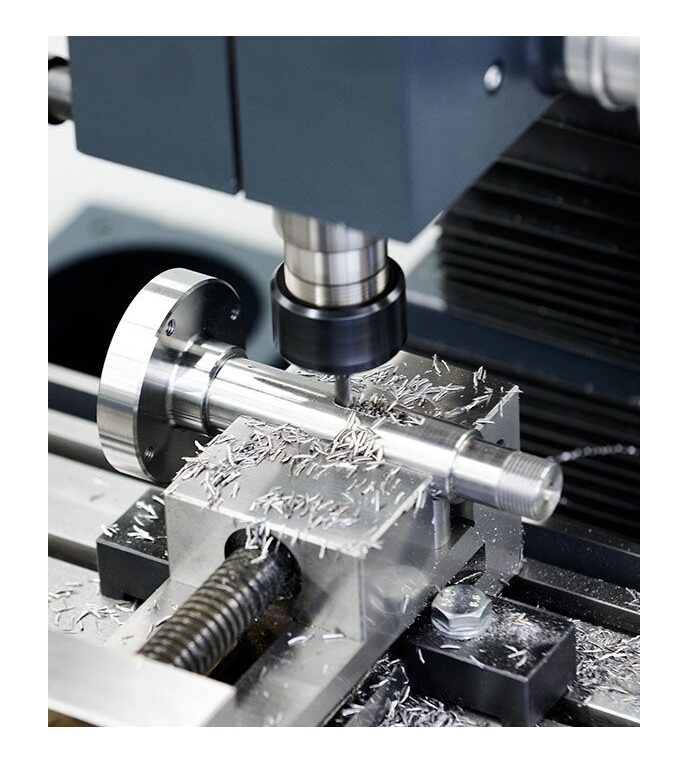

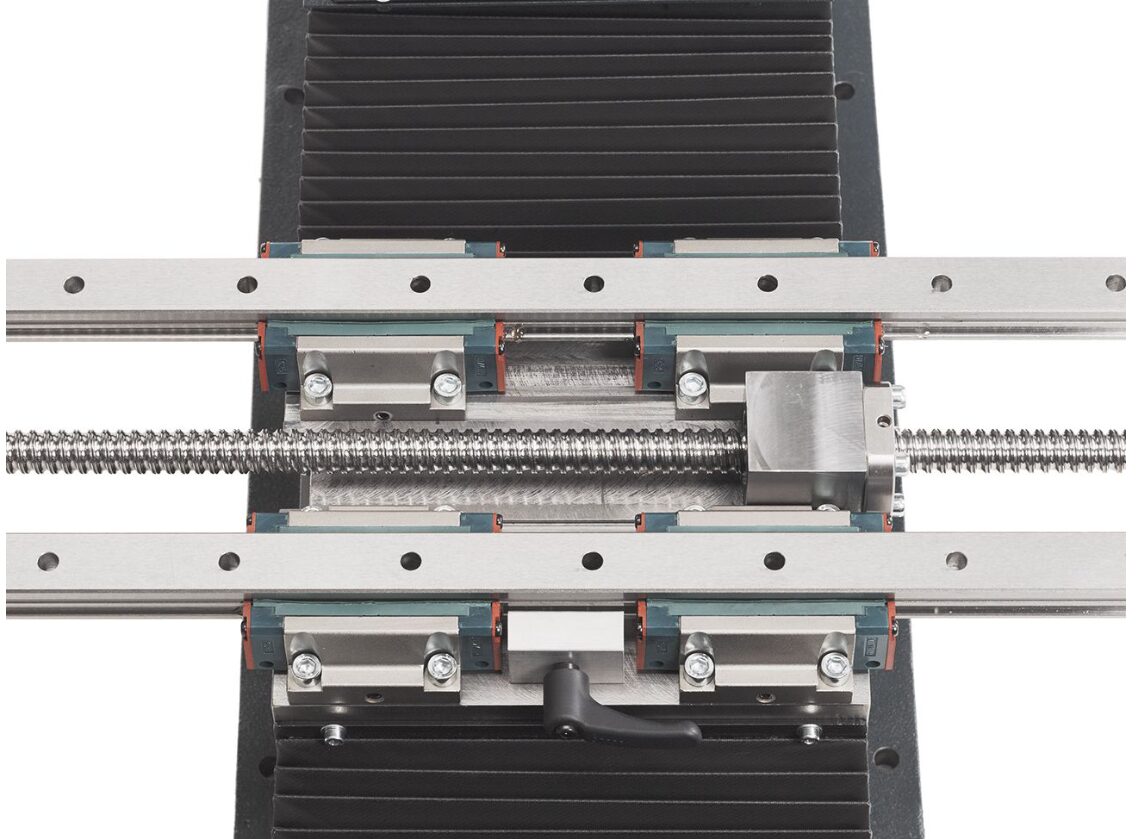

The F1410 LF ISO30 features hardened and ground linear guideways on all axes with precision ball guide systems. These maintenance-free guides provide outstanding rigidity, smooth movement and exceptional positioning accuracy.
Four protective folding bellows help shield the guideways from contamination and machining debris, supporting long-term reliability and performance.
Feed Screws
Trapezoidal thread spindles are fitted as standard on all axes and feature adjustable bronze double nuts for accurate positioning and long service life.
Optional ball screws are available for applications requiring even greater positioning accuracy, reduced wear and backlash-free operation.
A counterbalance system on the Z-axis further improves movement quality and machining precision.
Cast Iron Construction
The Z-column and machine base are manufactured from ribbed grey cast iron, providing excellent vibration damping, rigidity and machining stability.
Milling Head

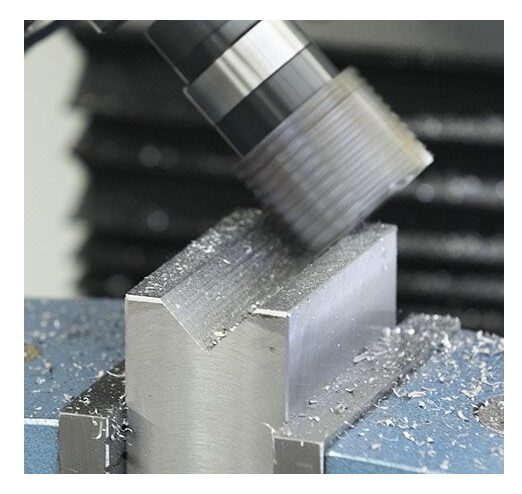

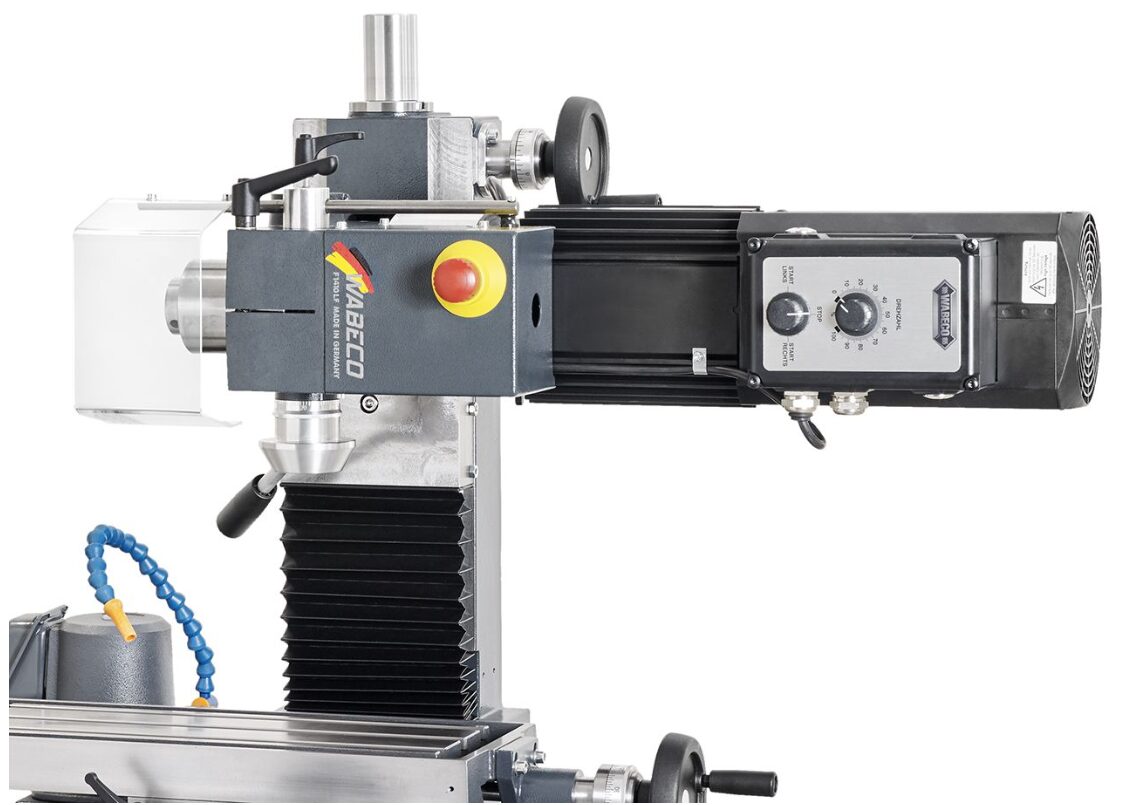

The milling head can be swivelled through 90° in either direction, allowing machining angles from -90° to +90°.
- Swivelling range: -90° to +90°
- Large angle scale for accurate positioning
- Hardened locating pin for precise vertical alignment
- Integrated protective guard

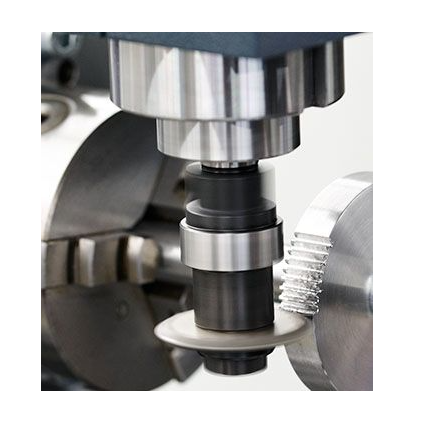

Quill & Spindle System
The machine features a precision drilling and milling quill with a 55 mm stroke and integrated drilling depth stop.
A wide toothed belt drive ensures smooth, quiet operation and slip-free power transmission between the motor and spindle.
The integrated tool clamping and ejection system allows quick and efficient tool changes without additional equipment.
Machine Features
- Fine feed control on the Z-axis
- Axis locking system for improved surface finish
- Quiet belt-driven spindle system
- ISO30 tooling system for increased rigidity and tooling stability
- Optional clockwise and counter-clockwise spindle rotation for thread cutting
- Manufactured to DIN 8615 precision standards
Dimensions & Weight
- Machine dimensions: 940 x 890 x 770 mm
- Machine weight: 118 kg
Demonstration Machine
This demonstration machine is approximately four weeks old and has been geometrically inspected and supplied with a test report. As demonstration machines are unique items, availability is subject to prior sale.
