CNC Control
The machine is supplied with the nccad BASIC CNC controller, providing reliable CNC operation while allowing the machine to be used conventionally whenever required.
- nccad BASIC CNC software
- Conventional manual operation
- CNC machining capability
- Simple transition between manual and CNC modes
Main Drive Motor
The electronically controlled spindle drive delivers smooth speed adjustment with consistent torque across the entire speed range, making it suitable for both heavy cutting and precision machining.
- 1.4 kW single-phase motor
- 230 V, 50/60 Hz power supply
- Electronically variable speed from 140–3,000 rpm
- Closed-loop speed control
- Overload protection
- High torque throughout the speed range
- Potentiometer speed adjustment

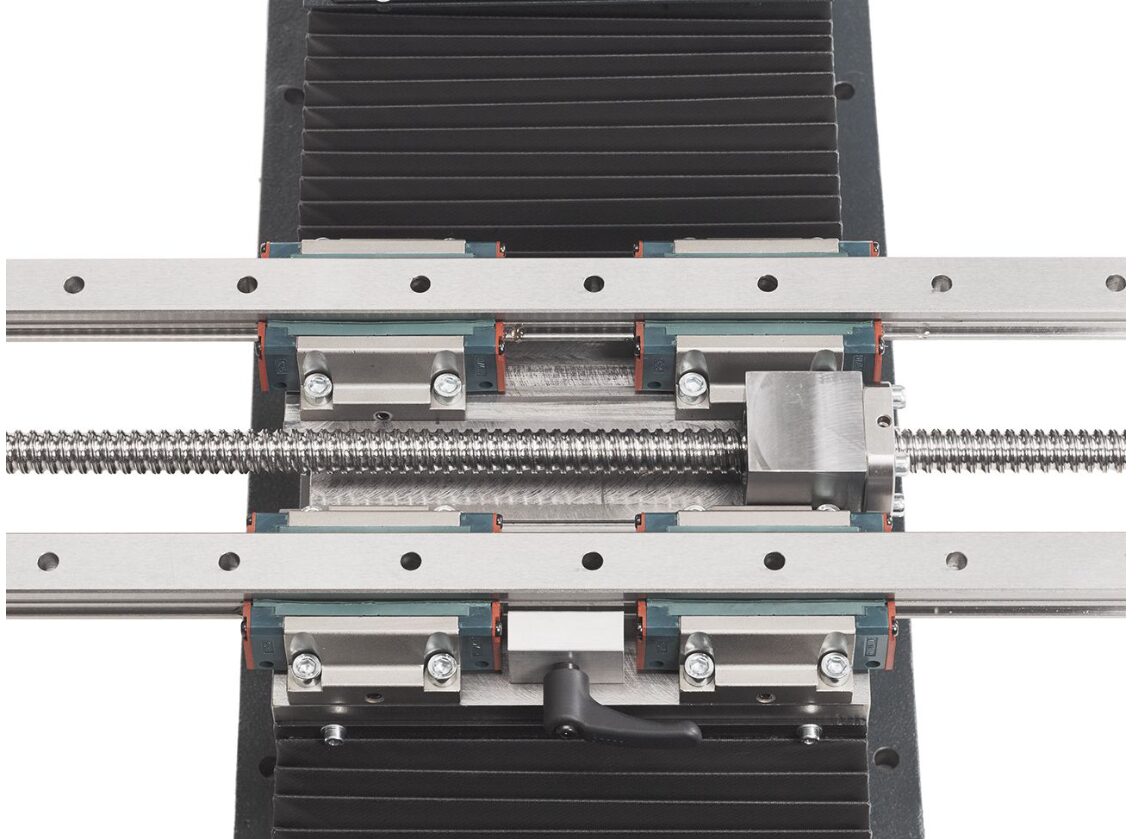

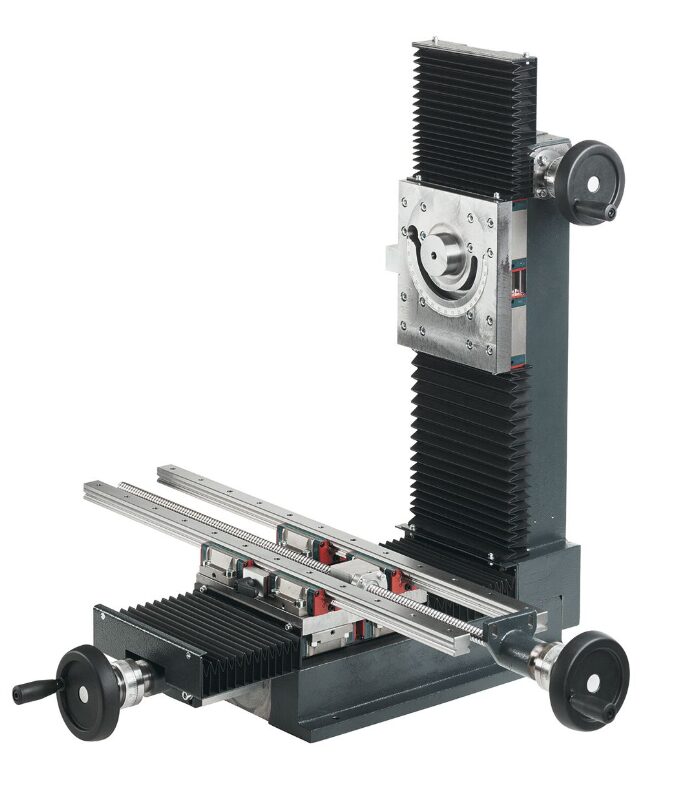

Linear Guideways
Maintenance-free linear guideways provide excellent rigidity, smooth movement and outstanding positioning accuracy across every axis.
- Linear guideways on all axes
- Maintenance-free operation
- Hardened and ground guideways
- Preloaded ball guide system
- High rigidity
- Excellent machining accuracy
- Four protective bellows
Feed Screws
Precision trapezoidal thread spindles with adjustable bronze double nuts provide accurate positioning and long-term reliability.
- Trapezoidal thread spindles on all axes
- Adjustable bronze double nuts
- Scale ring accuracy of 0.05 mm
Optional Ball Screws
- Higher positioning accuracy
- Wear-resistant design
- Long service life
- Backlash-free operation
- Higher rapid traverse speeds
- Suitable for synchronous and climb milling
- Counterbalance adjustment on the Z-axis
Spindle and Tool Holder
The precision MT2 spindle is supported by adjustable anti-friction bearings and driven via a wide toothed belt for quiet, smooth and reliable operation.
- MT2 tool holder with M10 drawbar thread
- True spindle run-out accuracy of 0.01 mm
- Wide toothed belt drive
- Precision anti-friction spindle bearings
- Quick tool clamping and release system

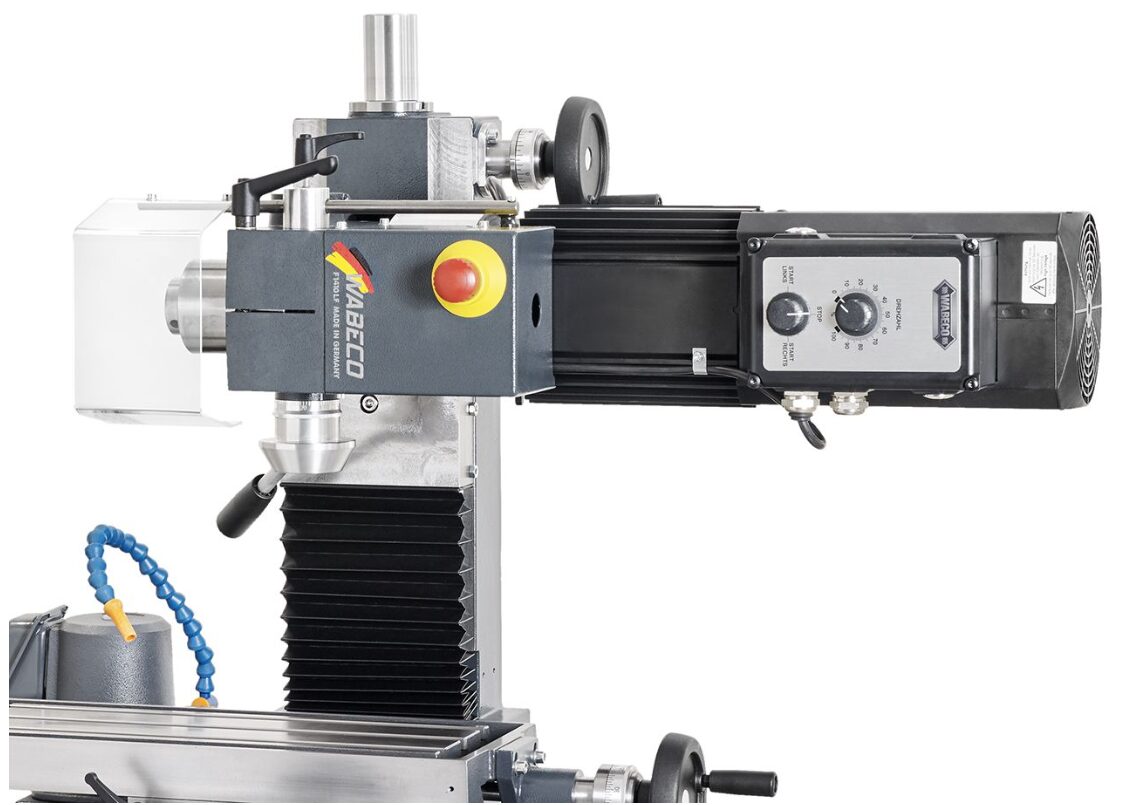

Milling Head

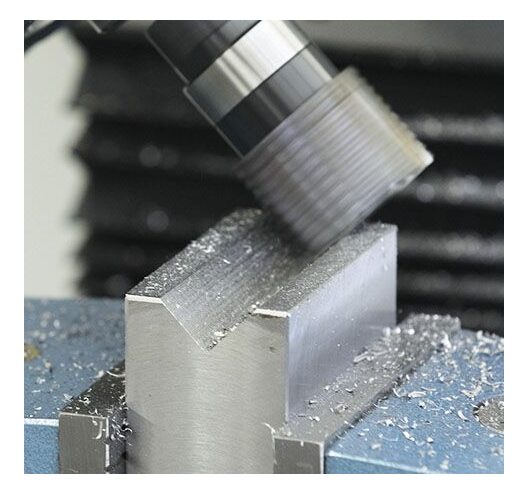

- Swivels from -90° to +90°
- Large angle scale for accurate positioning
- Precision locating pin for vertical alignment
- Protective spindle guard
Quill and Fine Feed
- 55 mm quill travel
- Integrated drilling depth stop
- Full-surface quill clamping
- Fine feed on the Z-axis

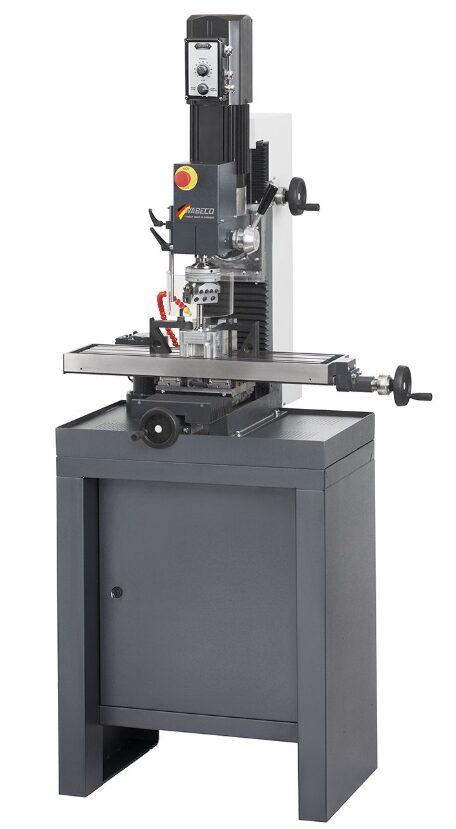

Machine Construction
- Rigid ribbed grey cast iron column and base
- Axis locking system for improved surface finish
- Manufactured to DIN 8615 precision standards
High-Performance Stepper Motors
The CNC system uses maintenance-free stepper motors to provide accurate positioning and reliable axis movement.
- Installed on X, Y and Z axes
- Maintenance-free operation
- High feed and acceleration rates
- High holding torque
Machine Control Panel
- Integrated machine operating controls
- Designed for both CNC and manual operation
Limit Switches
- Mechanical limit switches on X, Y and Z axes
- Improved operational safety
Warranty
- 2-year warranty (excluding wearing parts)
- Long-term spare parts availability guaranteed
