CNC Control
The machine is supplied with the nccad PROFI CNC controller and milling software, allowing seamless operation in both manual and CNC modes.
- nccad PROFI CNC controller and milling software
- Manual and CNC operation
- Easy transition between operating modes
- Suitable for training and production environments
Main Drive Motor
The powerful brushless servo motor delivers exceptional speed, torque and precision, making it ideal for both heavy machining and high-speed applications such as engraving.
- 2.5 kW servo motor with frequency converter
- 230 V, 50/60 Hz
- Electronically infinitely variable speed from 100–7,500 rpm
- Brushless design
- Clockwise and counter-clockwise spindle rotation
- Suitable for thread cutting
- Closed-loop speed control
- Overload protection
- High torque throughout the speed range
- Speed adjustment via potentiometer

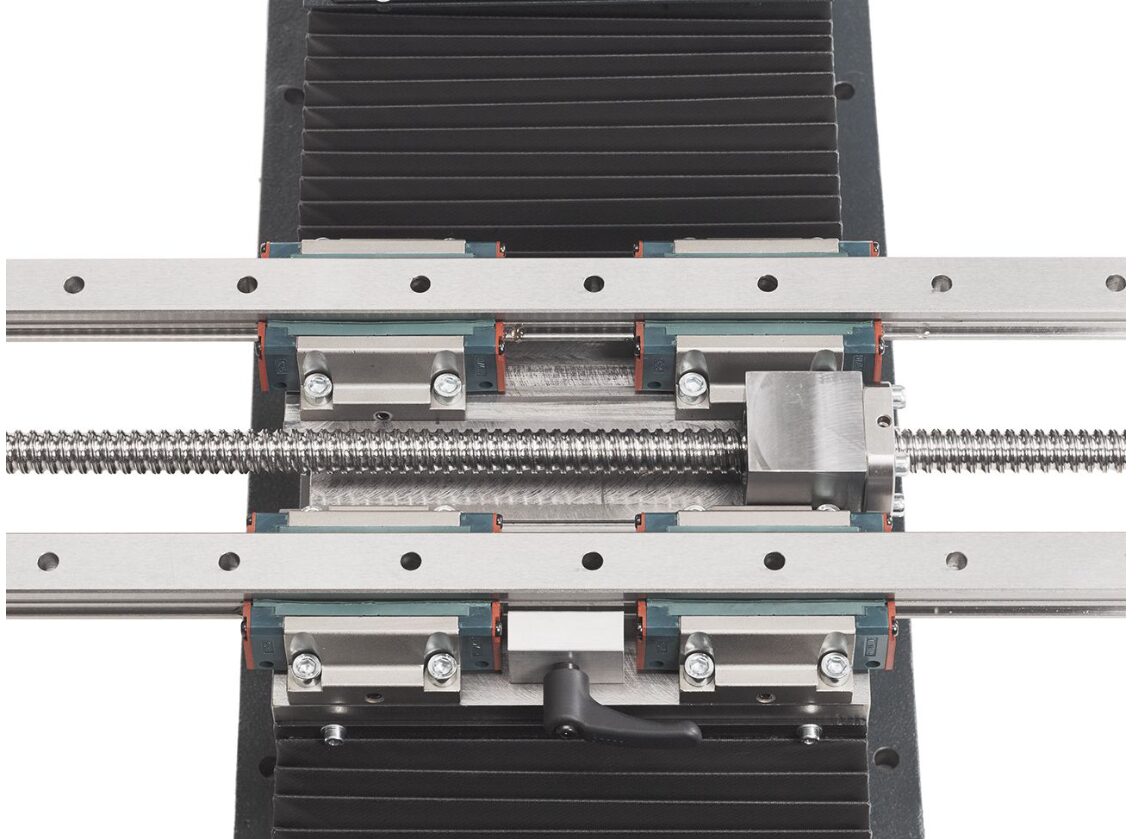

Linear Guides
Maintenance-free linear guideways provide smooth movement, outstanding rigidity and excellent machining accuracy across all axes.
- Linear guides on all axes
- Maintenance-free operation
- Hardened and ground guideways
- Backlash-free ball guides
- High precision and rigidity
- Excellent workpiece accuracy
- Four folding bellows for guide protection
Ball Screws
Precision ball screws provide outstanding positioning accuracy, higher rapid traverse speeds and backlash-free movement for demanding CNC applications.
- Ball screws on all axes
- High precision pitch and positioning accuracy
- Wear-free operation
- Long service life
- Backlash-free performance
- Higher travel speeds
- Suitable for synchronous and climb milling
- Reading accuracy of scale rings: 0.05 mm
- Counterbalance adjustment on the Z-axis
Tool Holder
- ISO30 steep taper (DIN 2080)
- M12 tightening thread
- Tool spindle run-out accuracy: 0.01 mm

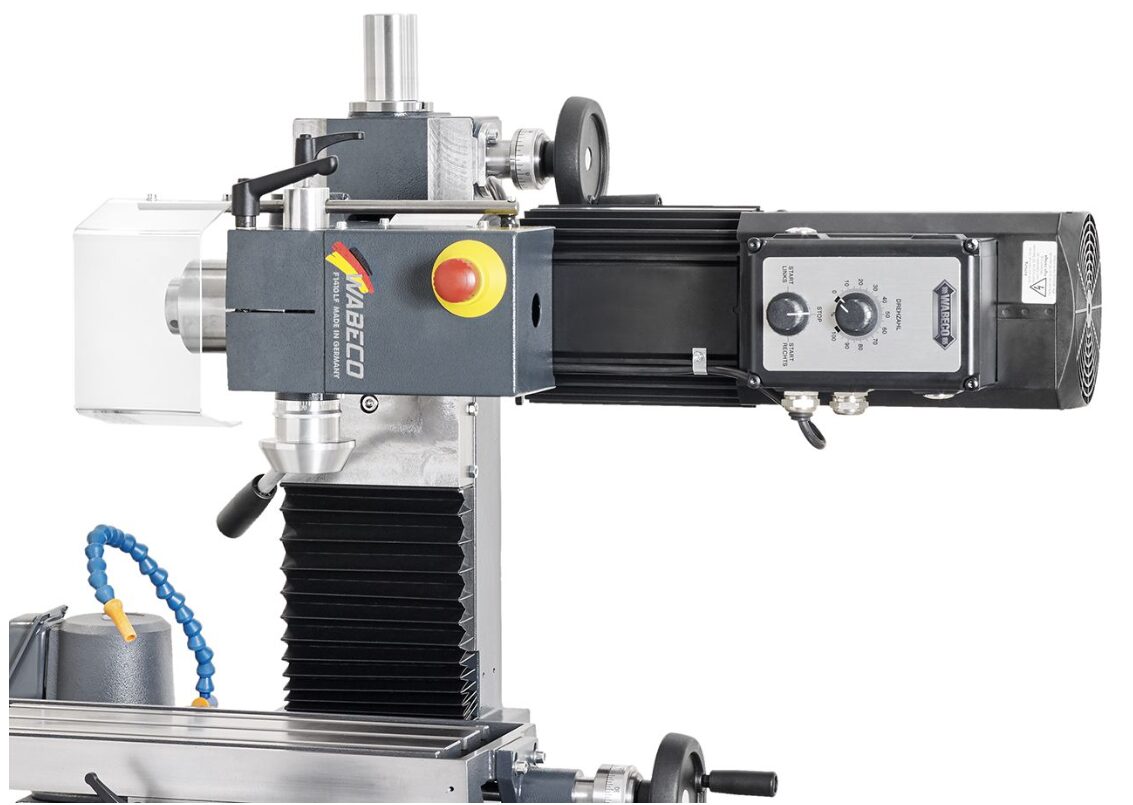

Milling Head
- Swivels from -90° to +90°
- Large angle scale for accurate positioning
- Precision locating pin for vertical alignment
- Protective hood
Quill Stroke
- 55 mm quill stroke
- Integrated drilling depth stop
- Full-surface quill clamping
- Reading accuracy: 0.1 mm
Tool Spindle
- Large anti-friction spindle bearings
- Wide toothed belt drive
- Smooth, quiet and slip-free operation
- Quick tool clamping and ejecting system

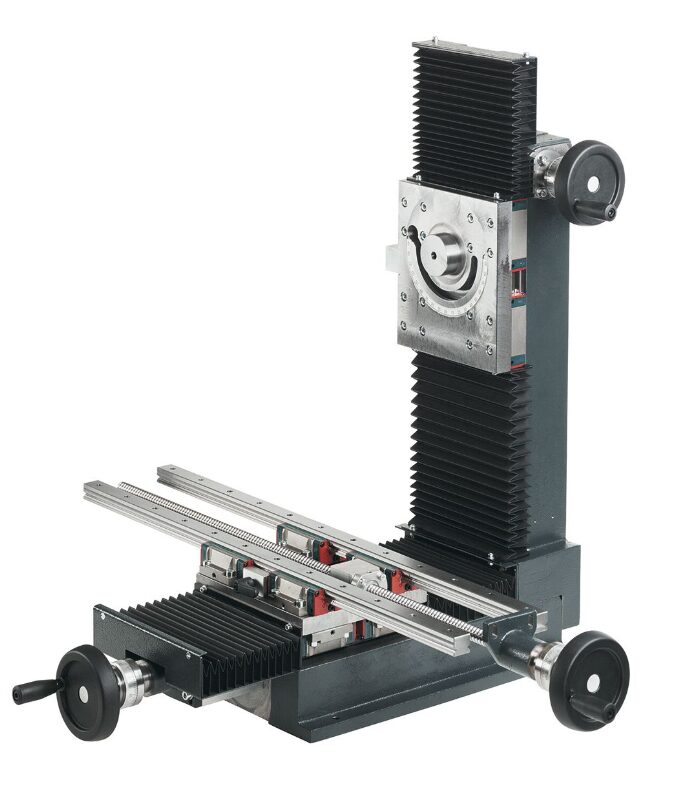

Machine Construction
- Ribbed grey cast iron Z-column and base plate
- Fine feed on the Z-axis
- Axis locking system for improved surface finish
- Manufactured to DIN 8615 precision standards
High-Performance Stepper Motors
- Installed on X, Y and Z axes
- Maintenance-free operation
- High feed and acceleration values
- High holding torque
Machine Control Panel
- Integrated machine operating controls
- Designed for both CNC and manual operation
Limit Switches
- Mechanical limit switches on X, Y and Z axes
- Improved positioning accuracy and operational safety
Warranty
- 2-year warranty (excluding wearing parts)
- Long-term spare parts availability guaranteed
