Highlights
- Made in Germany precision lathe
- Rigid prismatic cast iron bed with hardened guideways
- 2.5 kW brushless servo motor
- Variable spindle speed: 50 – 5000 rpm
- Main spindle bore: 30 mm
- Centre distance: 600 mm
- Centre height: 135 mm
- Maximum turning diameter: 270 mm
- 3-jaw chuck Ø125 mm included
- Ideal for precision and high-speed machining applications
Machine Description

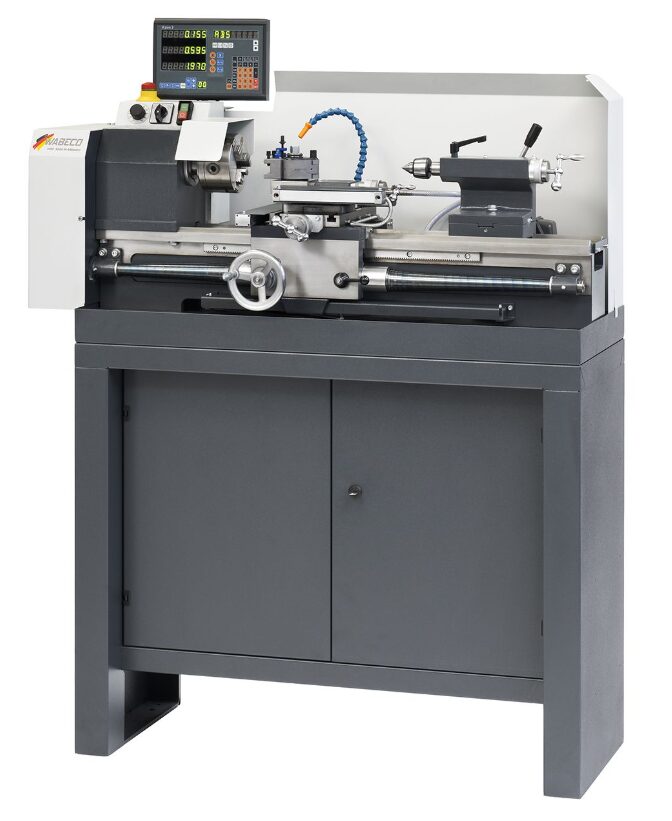

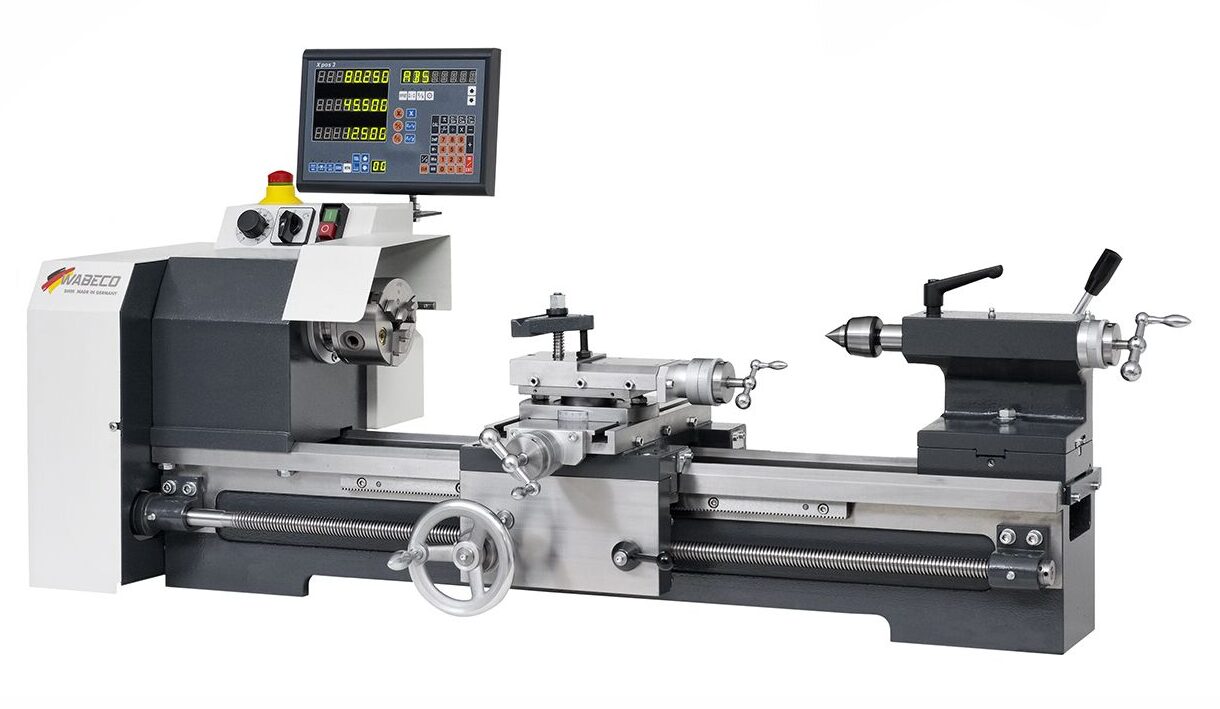

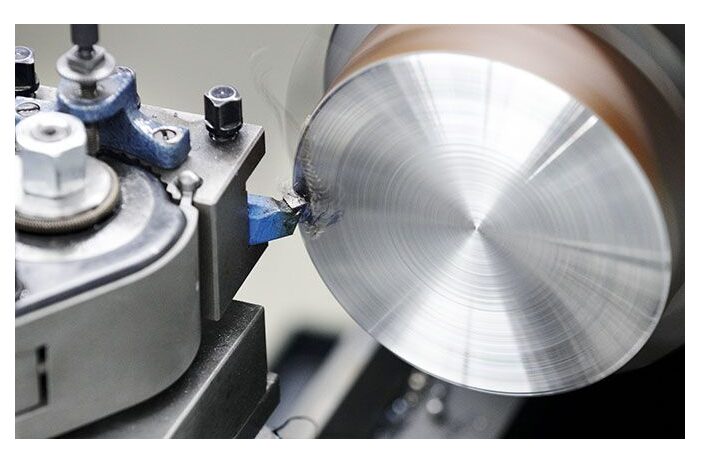

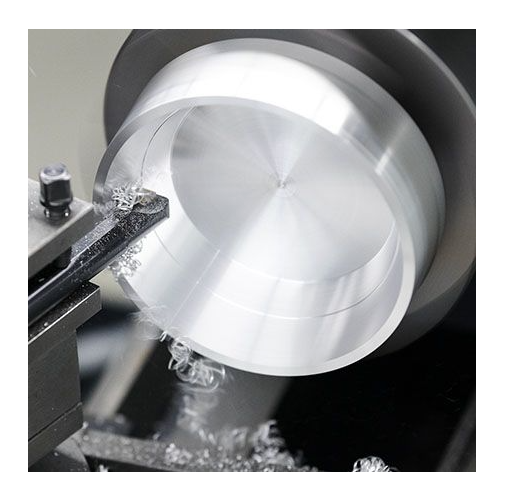

The WABECO D6200 HS combines the proven rigidity of the D6000 platform with a high-performance servo spindle drive capable of speeds up to 5,000 rpm. This makes the machine particularly suitable for machining smaller workpieces, fine finishing operations and applications requiring higher cutting speeds.
The robust cast iron construction, precision spindle system and professional lead screw drive ensure excellent machining accuracy and long-term reliability.
Prismatic Cast Iron Bed
The D6200 HS features a heavy-duty prismatic bed manufactured from diagonally ribbed grey cast iron. The guideways are inductively hardened and precision ground to provide outstanding wear resistance, rigidity and machining accuracy.
- Diagonally ribbed grey cast iron construction
- Inductively hardened guideways
- Precision-ground sliding surfaces
- Excellent vibration damping and stability
- 180 mm bed width for increased rigidity
Lead Screw & Feed System
The machine is equipped with trapezoidal thread spindles and a precision lead screw drive system for accurate feed control and thread cutting operations.
- Automatic longitudinal feed: 0.085 mm/rev
- Secondary automatic feed: 0.16 mm/rev
- Tumbler gear for left and right-hand threads
- Integrated overload clutch protection
- Thread cutting preparation as standard
Optional change gears enable the production of metric threads from 0.25 mm to 7.0 mm pitch and imperial threads from 10 to 40 TPI.
Headstock & Drive System
The cast iron headstock incorporates a hand-scraped V-guide system and two adjustable precision DIN tapered roller bearings for maximum spindle stability and accuracy.
The innovative belt drive system ensures exceptionally quiet operation while providing smooth and efficient power transmission.

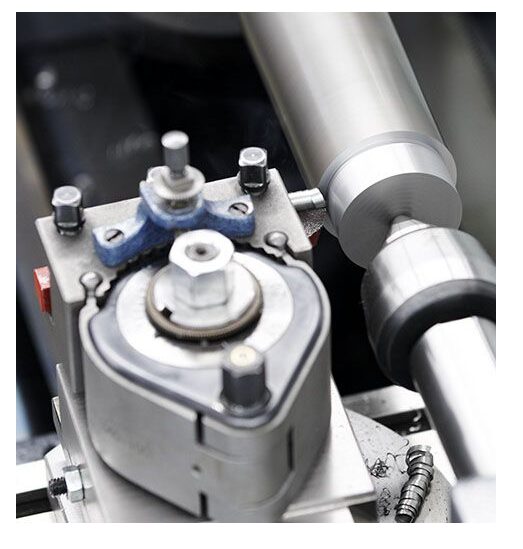

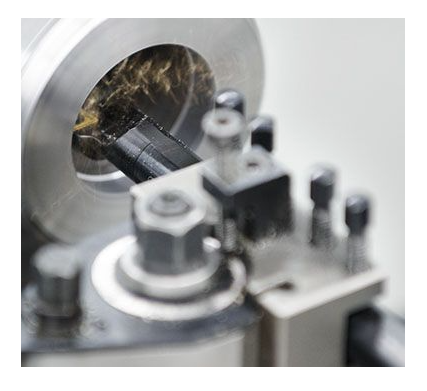

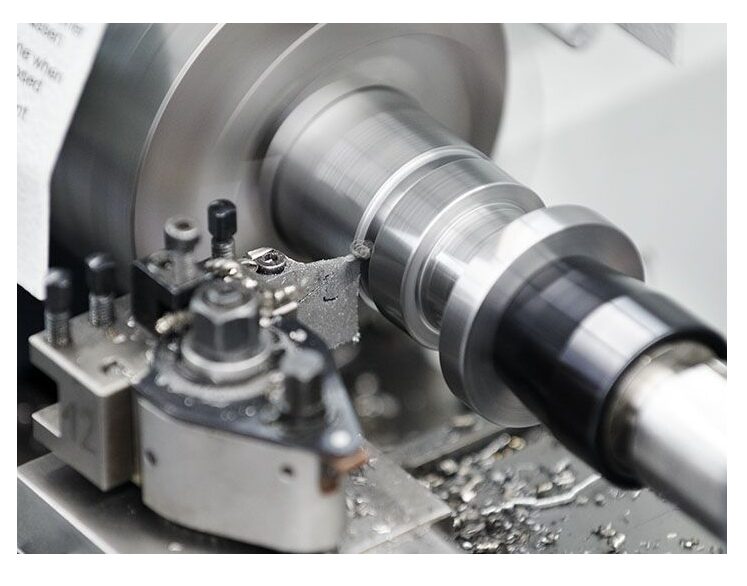

Tool Slide Assembly
The precision tool slide system features adjustable dovetail guideways with backlash-free adjustment and finely graduated handwheels for accurate machining control.
- Cross slide travel: 140 mm
- Longitudinal slide travel: 60 mm
- 360° swivelling compound slide
- Maximum tool height: 20 mm
- Scale ring accuracy: 0.05 mm
- Integrated swarf protection scrapers

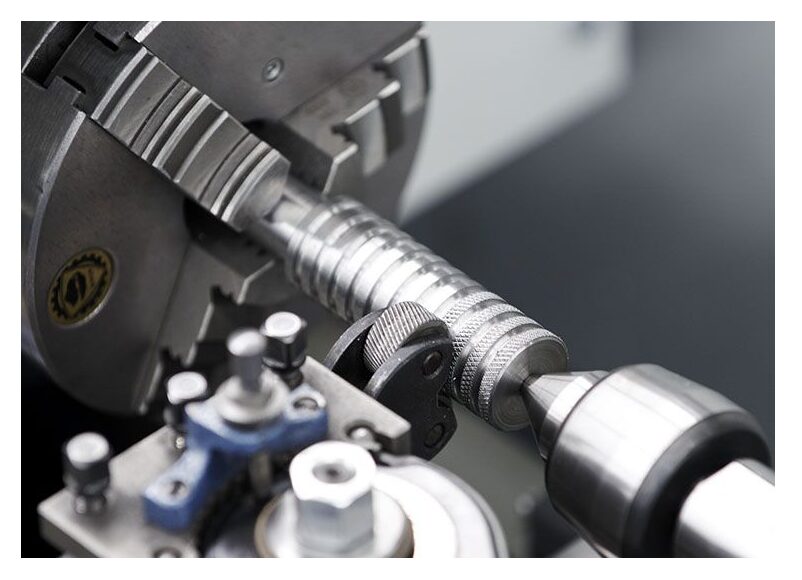

Tailstock
The tailstock provides rapid positioning and precision adjustment for supporting longer workpieces and drilling operations.
- MT2 Morse taper quill
- Quill travel: 65 mm
- Lateral adjustment: ±10 mm
- Scale ring accuracy: 0.1 mm
- Quick adjustment system
Machine Accuracy
- Spindle nose runout: 0.005 mm
- Cylindrical turning at 100 mm cantilever: 0.01 mm
- Cylindrical turning over 300 mm between centres: ±0.015 mm
- Manufactured to DIN 8606 standards
Dimensions & Weight
- Machine dimensions: 1200 x 630 x 470 mm
- Machine weight: 177 kg
Warranty & Support
- 5-year manufacturer warranty (excluding wear parts)
- Long-term spare parts availability guaranteed
