Highlights
- 1,000 mm distance between centres
- 200 mm centre height
- 50 mm spindle bore
- Maximum spindle speed of 3,000 rpm
- 5.3 kW spindle drive
- Toolmaker precision to DIN 8605 standards
- Digital display for X, Z and Zo axes
- Tailstock adjustable off-centre for taper turning
- Induction-hardened and ground guideways
- Electric chuck guard with safety interlock
Machine Overview
The Emcomat 20 D is engineered for professional turning applications requiring high levels of precision and repeatability. Its rigid machine construction, hardened guideways and large spindle capacity make it ideal for producing larger precision components while maintaining excellent machining accuracy.
Designed to meet Toolmaker Precision DIN 8605 standards, the machine provides the performance required for prototype development, precision engineering, maintenance operations and small-series production.

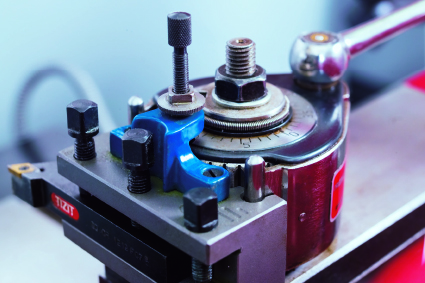

Machine Construction

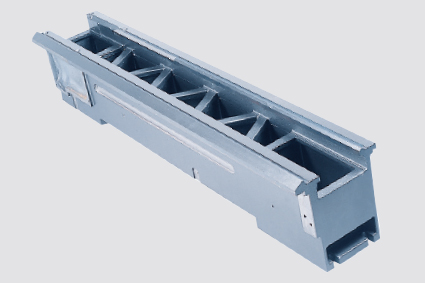

The Emcomat 20 D is built around a rigid diagonally ribbed machine bed that provides excellent stability while promoting efficient chip evacuation during machining.
- Diagonally ribbed cast iron machine bed
- Induction-hardened guideways
- Precision-ground sliding surfaces
- Exceptional rigidity and stability
- Designed for long-term accuracy
Precision Guideways
The hardened and ground guideways ensure smooth axis movement and reliable machining accuracy, even during demanding turning operations.
- Induction-hardened guideways
- Precision-ground surfaces
- Improved wear resistance
- Consistent machining performance
Main Spindle System
The powerful spindle system combines high torque and precision operation, making it suitable for a wide range of materials and machining tasks.
- 50 mm spindle bore for larger workpieces
- DIN 55029 spindle nose
- Maximum spindle speed of 3,000 rpm
- 5.3 kW drive motor
- Suitable for precision and production turning

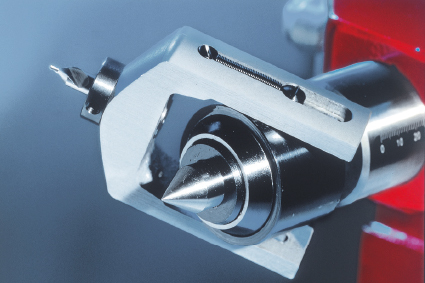

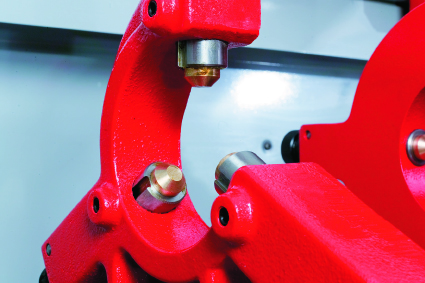

Tailstock Features
The heavy-duty tailstock provides secure support for longer workpieces and can be adjusted off-centre to facilitate taper turning operations.
- Large 50 mm quill diameter
- MT3 Morse taper
- 120 mm quill travel
- Off-centre taper turning capability
- Excellent support for long components
Digital Position Display

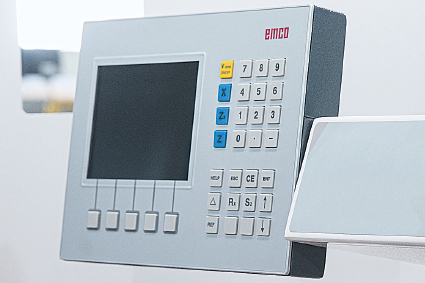

The integrated EMCO 3-axis digital display provides precise position monitoring and advanced machining support functions.
- Continuous display of X, Z and Zo axes
- Position accuracy of 0.001 mm
- Colour TFT display
- Linear scale or encoder feedback system
- Multi-language interface
Display Functions
- Constant cutting speed support
- Storage for 999 tools
- Storage for 999 reference points
- Home position functionality
- Remaining travel display
- Metric and imperial operation
- Radius and diameter display
- Single and cumulative Z-axis display

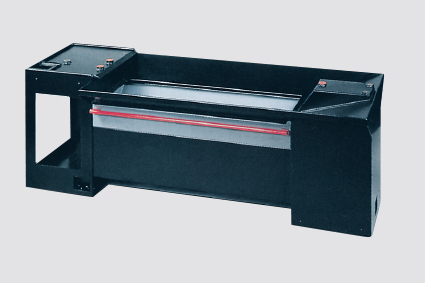

Machine Stand
The heavy-duty machine stand provides outstanding vibration damping and incorporates practical features for coolant drainage and easy cleaning.
- Rigid vibration-absorbing construction
- Integrated coolant drainage channels
- Sloped collection trays
- Easy maintenance and cleaning
Safety Features
Operator safety is enhanced through electrically monitored safety systems and protective guarding.

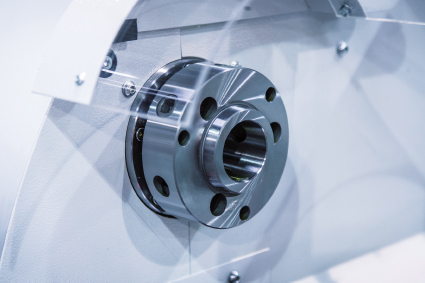

- Electric chuck guard with limit switch
- Monitored wheel covers
- Electrical safety interlock system
- Improved operator protection during machining
Typical Components Produced

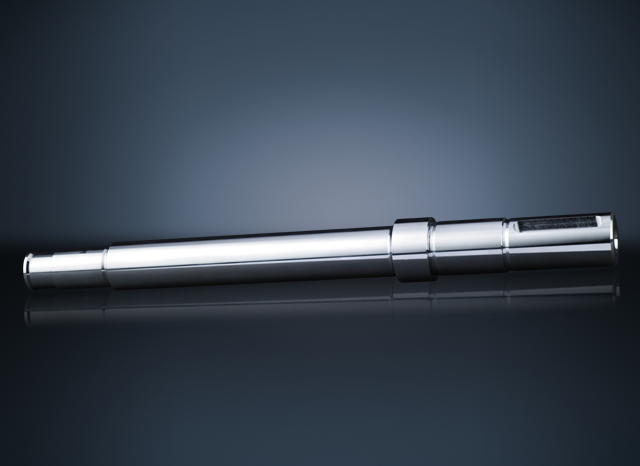

- Drive shafts

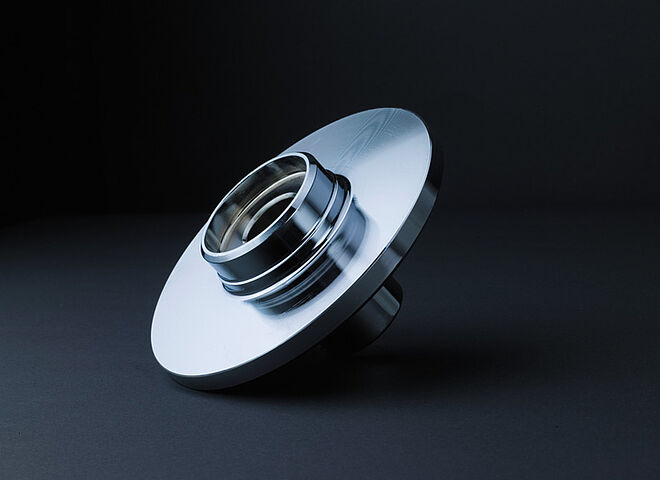

- Steel flanges

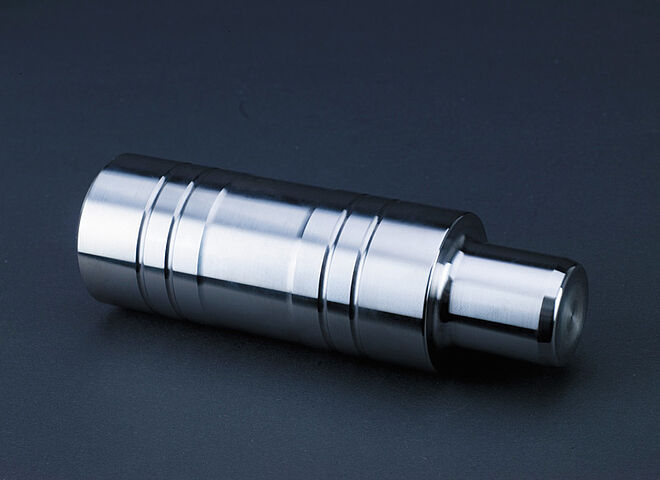

- Connecting sleeves
- Prototype components
- Precision engineering parts
Dimensions and Weight
- Machine dimensions: 1,650–1,950 x 1,060 x 1,635 mm
- Machine weight: 865 kg
Summary
The Emcomat 20 D is a high-precision toolroom lathe designed for demanding engineering applications. Featuring a 50 mm spindle bore, 5.3 kW spindle drive, 1,000 mm distance between centres and advanced digital positioning technology, it offers the precision, capacity and reliability required for professional machining, prototype development and small-scale production environments.
