Highlights
- 600 x 400 x 400 mm axis travels
- Vertical and horizontal milling capability
- Rigid vibration-damping cast iron machine frame
- 13 kW spindle drive
- Spindle speed range from 10 to 5,000 rpm
- Precision linear guideways on all axes

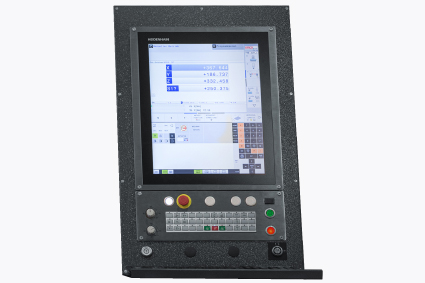

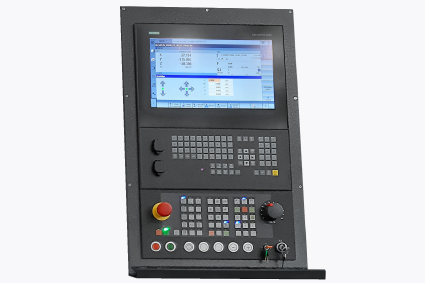

- Sinumerik 828D or Heidenhain TNC 620 control options
- Automatic feed in X, Y and Z axes
- Integrated coolant system
- Suitable for production, toolmaking and training applications
Machine Overview
The Emcomat FB-600 MC combines the versatility of a universal milling machine with the precision and productivity of CNC control technology. Designed for demanding machining applications, the machine offers both vertical and horizontal milling operations, making it suitable for a wide range of manufacturing requirements.
Its compact footprint, robust cast iron construction and advanced CNC controls make it an ideal solution for workshops, educational establishments, prototype development and small series production.
Machine Construction
The FB-600 MC is built around a highly stable cast iron machine stand designed to minimise vibration and maximise machining accuracy.
- Compact cast iron machine base
- Excellent vibration damping characteristics
- Hardened and ground shafts and gears
- Integrated spindle brake
- Fully enclosed safety guards
Linear Guide Technology
Precision linear guideways ensure smooth movement and accurate positioning throughout the machine's working envelope.
- Linear guideways on X, Y and Z axes
- High positioning accuracy
- Reduced friction and wear
- Excellent rigidity under load
Vertical and Horizontal Milling Capability
The FB-600 MC offers outstanding flexibility through its ability to switch between vertical and horizontal milling operations.

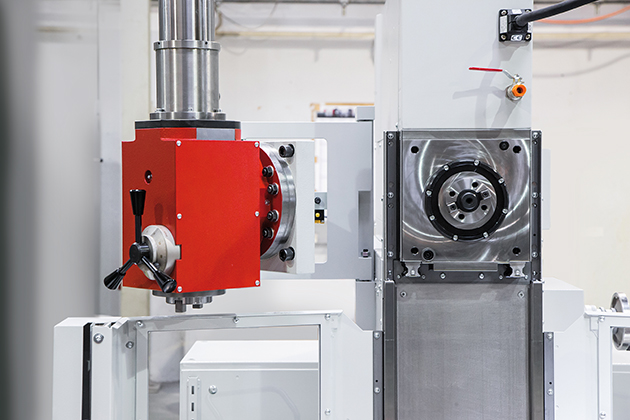

Vertical Milling

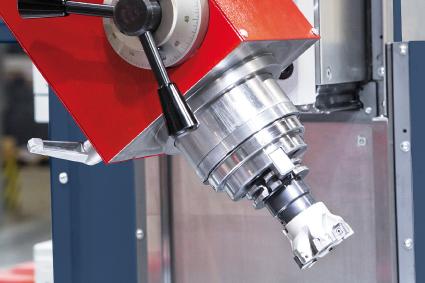

- Swivelling vertical milling head
- Quill function for drilling operations
- Suitable for complex angular machining
- End switch controlled swivelling mechanism

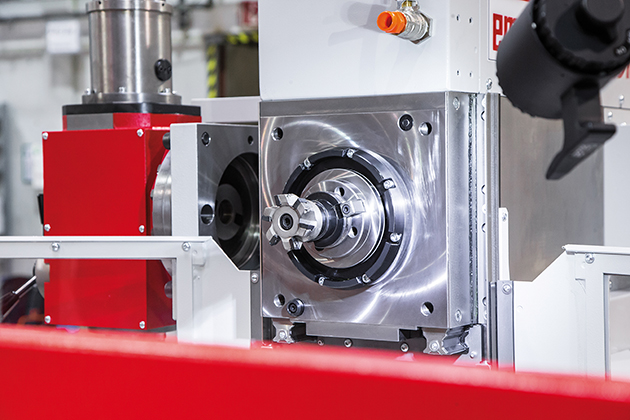

Horizontal Milling
- Horizontal milling spindle
- DIN 69871 SK40 spindle interface
- Ideal for heavy-duty milling applications
Safety Features

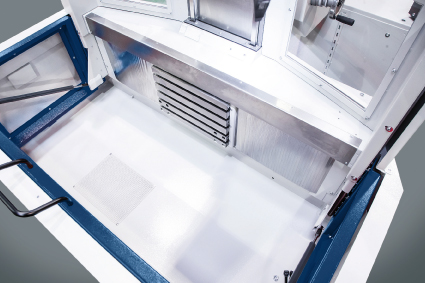

- Retractable workspace guard

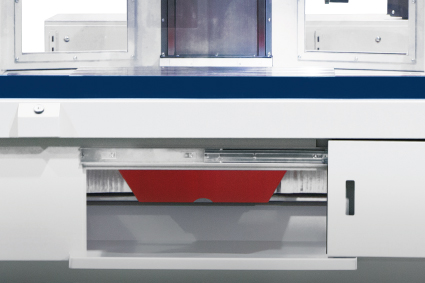

- Large front chip shield
- Protective machine covers
- Spindle brake system
- Mechanical safety handwheels with scale rings
Feed System
- Stepless automatic feed in X, Y and Z axes
- Feed rates from 10 to 2,000 mm/min
- Rapid traverse speed up to 5,000 mm/min
- High feed force for demanding machining operations
Coolant System
An integrated coolant system supports efficient machining, improved tool life and enhanced surface finishes during extended production runs.
Typical Components Produced

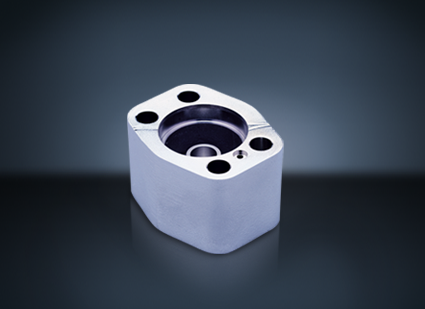

- Brass distributors

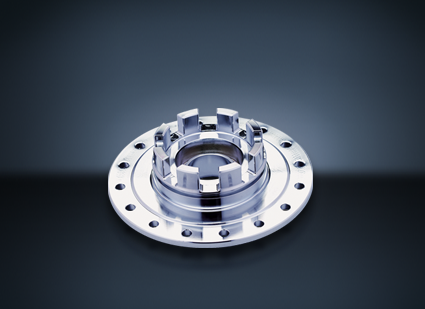

- Steel wheel hubs

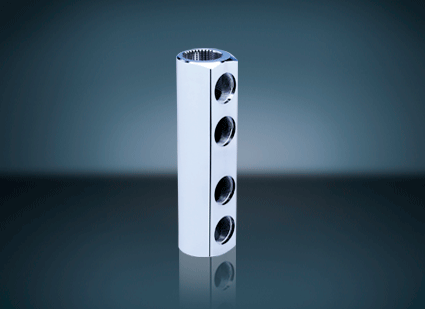

- Steel plungers
- Precision machined components
- Prototype and development parts

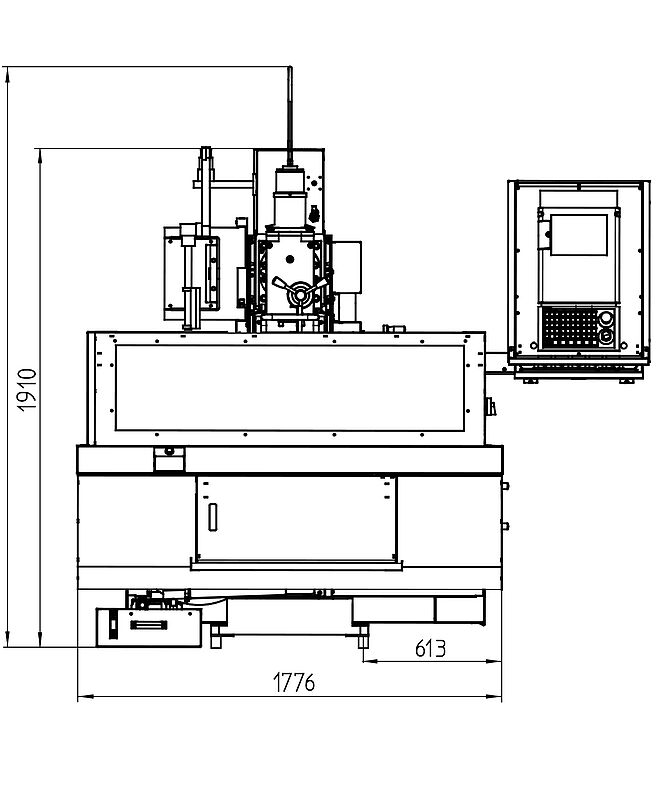

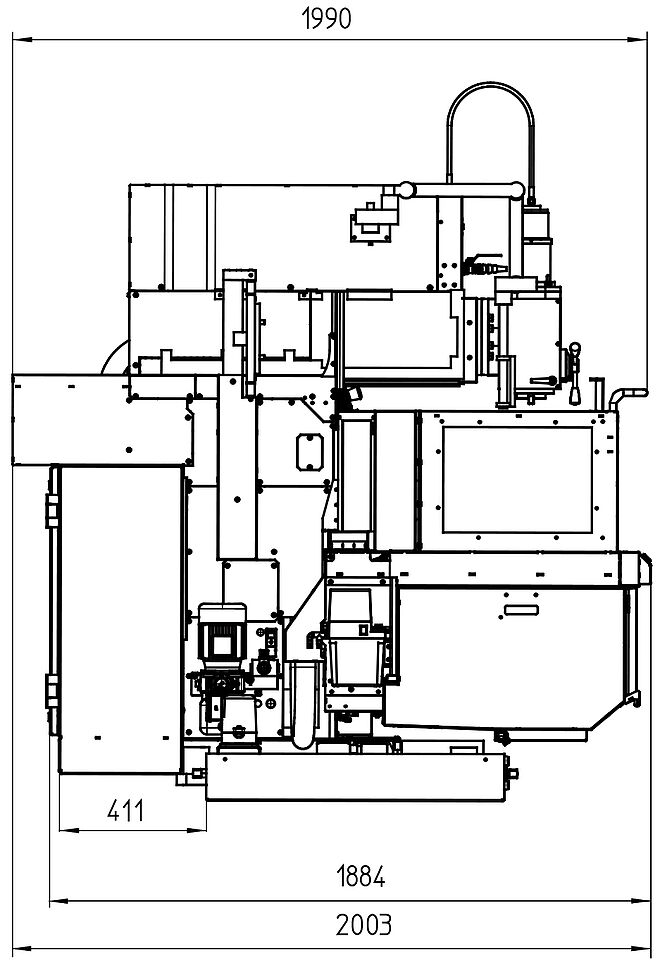

Dimensions and Weight
- Machine dimensions: 2,100 x 2,190 x 1,990 mm
- Machine weight: 2,370 kg
Summary
The Emcomat FB-600 MC is a versatile and highly capable CNC milling machine that combines rigid cast iron construction, advanced CNC controls and both vertical and horizontal machining capabilities. Its precision linear guideways, powerful 13 kW spindle and comprehensive machining functions make it an excellent choice for professional manufacturing, toolmaking, education and prototype production.
