The EMCO Emcomill E350 is a compact and highly precise CNC milling machine designed for efficient machining of small to medium production batches. Combining excellent thermal stability, advanced Siemens control technology and high-speed machining capability, the Emcomill E350 delivers outstanding accuracy, flexibility and value for modern manufacturing environments.
Equipment
The Emcomill E350 is equipped with a mechanical spindle, a 20-position tool magazine and a fast dual-arm automatic tool changer. An optional dividing unit is available to provide 4th-axis machining capability. The machine is powered by Siemens CNC control technology with integrated JobShop programming software for efficient and user-friendly operation.
Technical Data
Work Area
- Travel in X/Y/Z: 350 / 250 / 300 mm
- Distance spindle nose: 120 – 420 mm
- Rapid traverse speeds X/Y/Z: 24 / 24 / 24 m/min
- Clamping area: 520 x 300 mm
- Maximum table load: 100 kg
Tool Change System
- Number of tool stations: 20
- Tool changing time (tool-to-tool): 2.5 seconds
- Maximum tool diameter: 63 (80) mm
- Maximum tool length: 200 mm
Milling Spindle
- Maximum speed: 10000 rpm
- Maximum drive power: 6.8 kW (S1)
- Maximum torque: 34 Nm (S6 60%)
General Data
- Dimensions (L x W x H): 1600 x 1700 x 2200 mm
- Machine weight: 1970 kg
Highlights
The Emcomill E350 offers excellent thermal stability and machining precision within a compact machine footprint. Advanced Siemens control technology combined with ShopMill programming software provides efficient and user-friendly CNC operation. The machine delivers exceptional value for money while maintaining premium European manufacturing quality.
Tool Change System
The fast automatic dual-arm tool changer enables rapid tool changes in just 2.5 seconds, improving machining efficiency and reducing non-productive time.

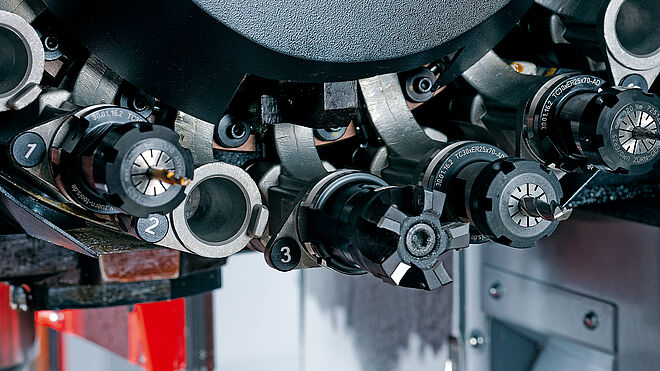

Drum-Type Magazine
The integrated drum-type magazine provides 20 tool positions for flexible machining operations and efficient multi-tool production workflows.

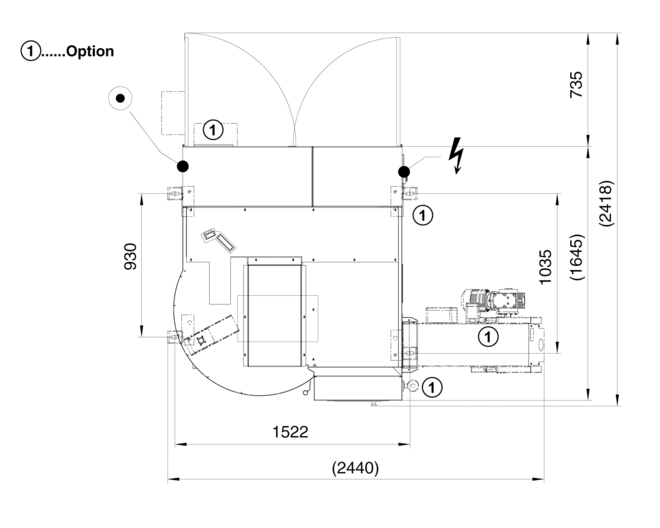

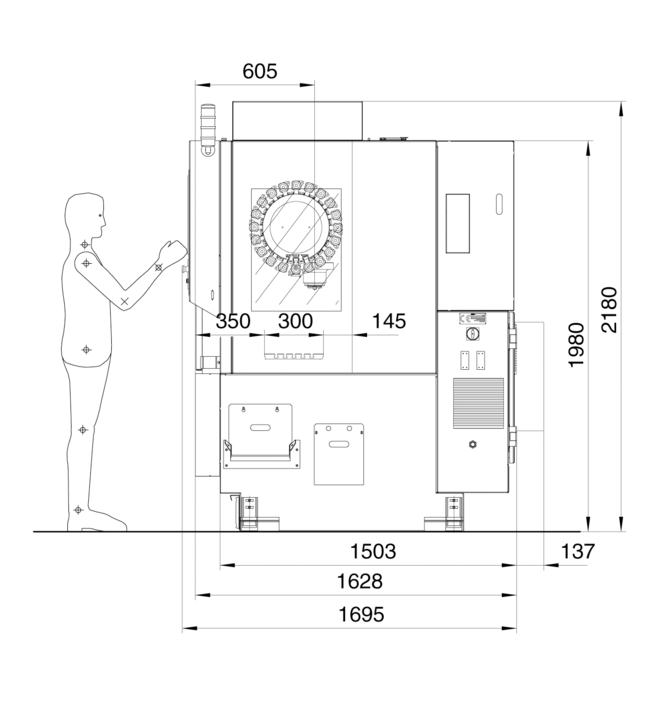

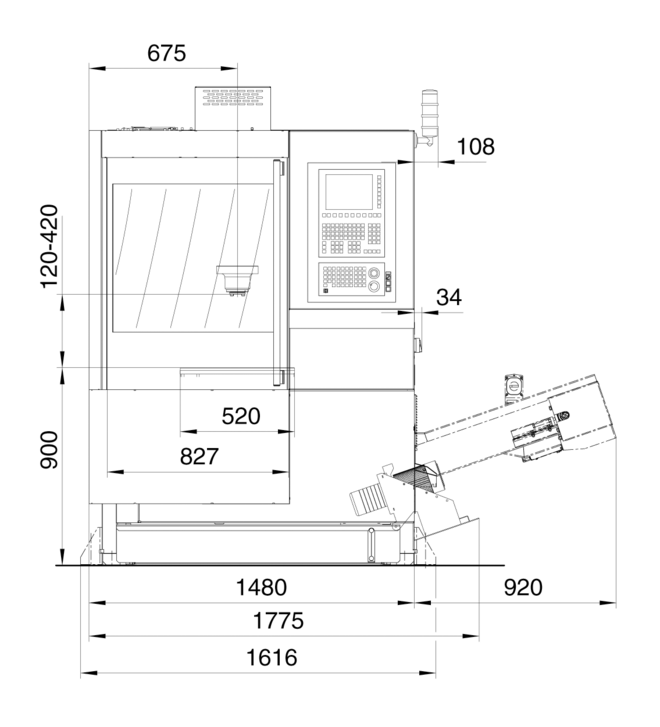

Overall Dimensions & Work Space
The compact machine layout provides an efficient and practical machining area suitable for workshops with limited floor space while maintaining excellent accessibility and productivity.
Workpieces
The Emcomill E350 is ideal for machining small to medium batch production components across a wide range of industries and applications.

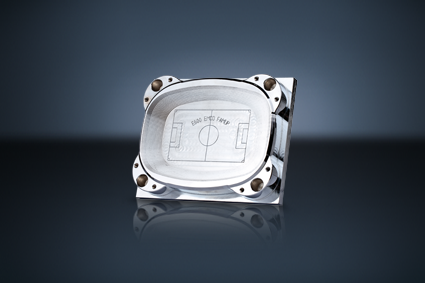

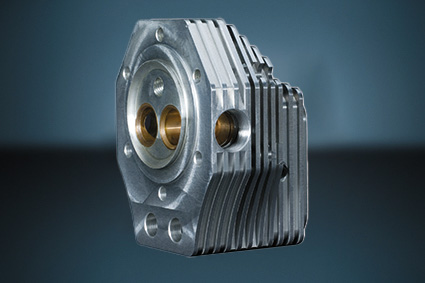

Typical workpieces include steel cylinder heads and precision-machined demonstration components.
Options & Accessories

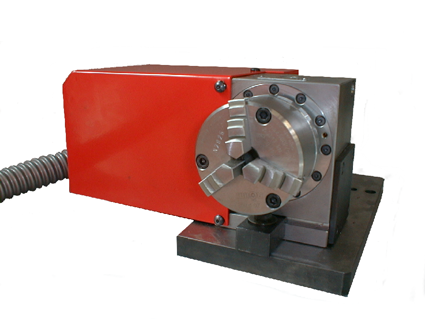

Dividing Unit
An optional dividing head provides 4th-axis machining capability for more complex milling applications and multi-sided component production.

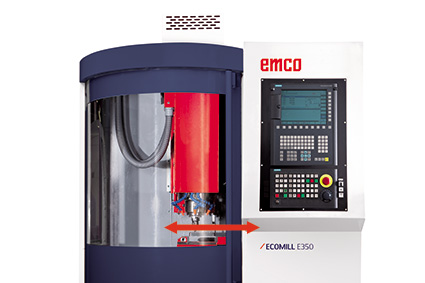

Automatic Door
An optional automatic door system improves production efficiency and supports integration into automated manufacturing workflows.

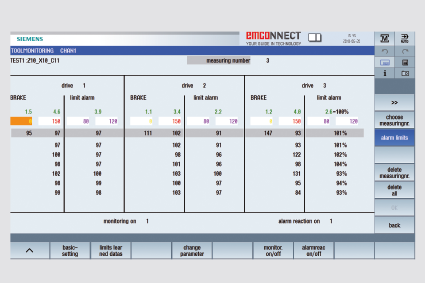

EMCO Tool Breakage Monitoring System
The integrated monitoring system evaluates axis drive motor loads to detect excessive wear, broken tooling or missing tools for improved process reliability and production safety.

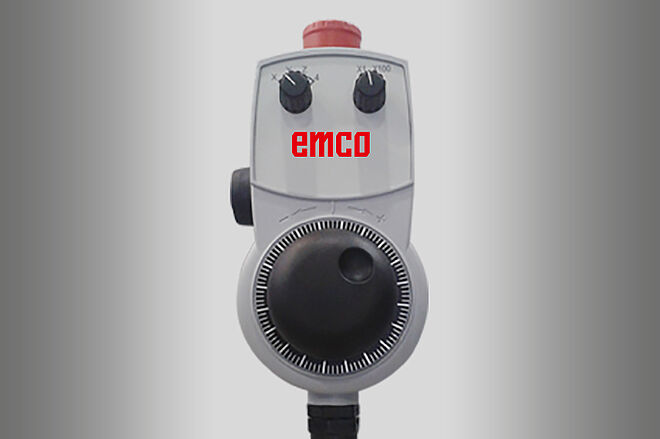

Electronic Hand Wheel
The optional electronic hand wheel allows manual movement and positioning of the machine axes for setup and adjustment operations.
Software & Control

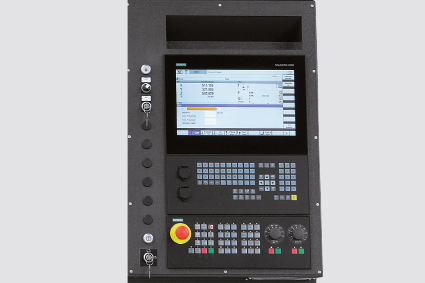

Sinumerik 828D with ShopMill
The Siemens Sinumerik 828D CNC system delivers exceptional machining precision, speed and flexibility. Integrated ShopMill conversational programming and advanced CNC functionality support efficient production of both single parts and larger production batches.
Advanced Surface technology improves path and velocity control, enabling the machine to meet the demands of highly accurate mould, die and precision milling applications.
