The EMCO Emcoturn E25 is a compact and highly precise CNC turning centre designed for efficient small-part production across a wide range of industries. Combining advanced drive and control technology with a compact footprint, the E25 delivers exceptional machining performance, accuracy and reliability for both single components and larger production runs.

Equipment

The Emcoturn E25 features a main spindle with a large speed range, a 12-station VDI16 tool turret, driven tools, and a C-axis for the main spindle. The machine is equipped with a manual tailstock with automatic quill functionality and benefits from state-of-the-art drive and control technology. Control options include the Siemens Sinumerik 828D or Fanuc 0i-TD with dialogue programming systems.

Technical Data

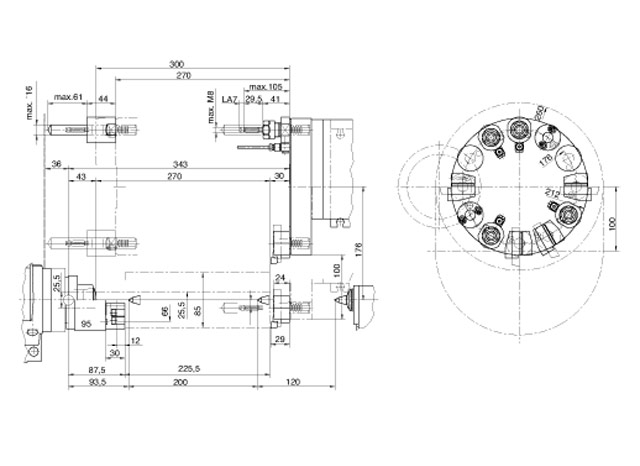

Work Area

• Travel in X/Z: 100 / 300 mm
• Bar diameter: 25.5 mm
• Maximum turning diameter: 85 mm
• Swing over bed: 250 mm
• Distance between centres: 405 mm
• Rapid traverse speeds X/Z: 15 / 24 m/min

Main Spindle

• Maximum speed: 6300 rpm
• Spindle nose: Ø70 mm h5
• Maximum drive power: 5.5 kW
• Maximum torque: 35 Nm

Tailstock

• Quill travel: 120 mm
• Automatic travel: 200 mm

Tool Turret

• VDI size: 16
• Number of tool stations: 12
• Driven tools: 6
• Maximum speed: 6000 rpm
• Maximum drive power: 1.2 kW
• Maximum torque: 4 Nm

General Data

• Dimensions (L x W x H): 1700 x 1270 x 1820 mm
• Machine weight: 1400 kg

Highlights

The Emcoturn E25 is designed with extremely compact machine dimensions while maintaining excellent machining capability. Prestressed roller guideways across all axes ensure smooth and accurate movement, while dynamic servo motors provide efficient and economical machining performance. The precision headstock delivers excellent concentricity properties for high-quality finished components.

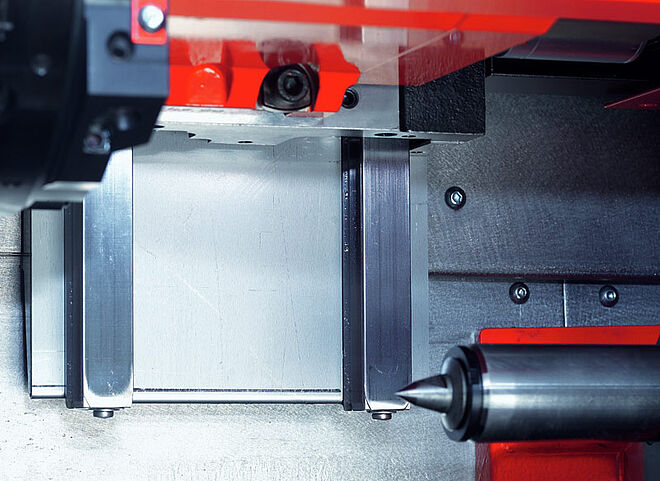

Roller Guides

The machine features high-precision roller guideways designed to improve rigidity, accuracy and long-term machining stability.

Bar Stock Diameter

The E25 supports bar stock diameters up to 25.5 mm, making it ideal for compact precision turned components.

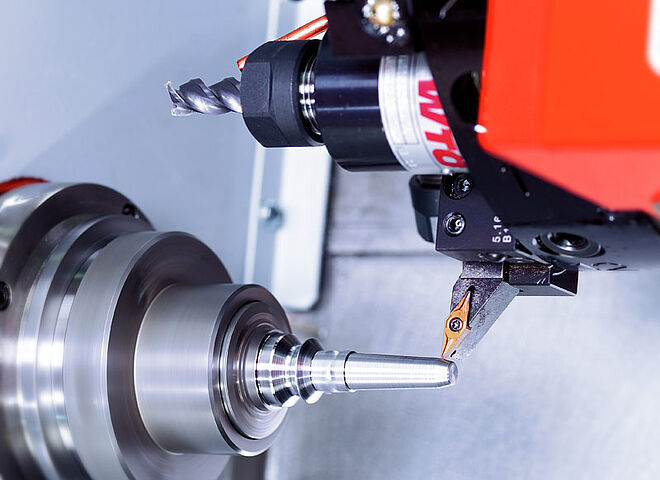

Turret

The 12-station VDI16 turret allows for flexible tooling configurations and supports driven tools for enhanced machining capability.

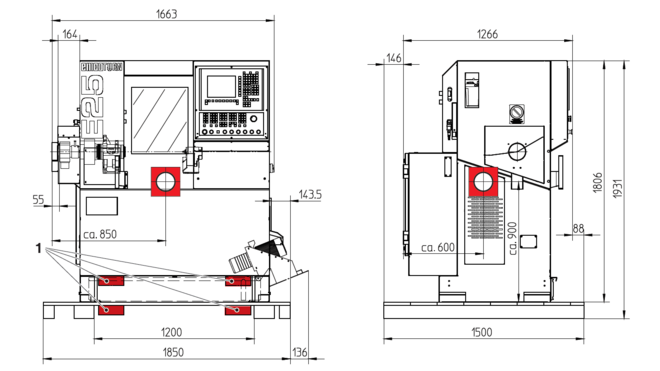

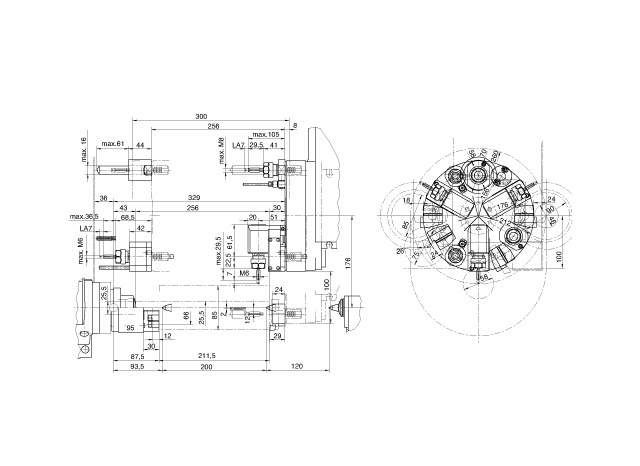

Overall Dimensions & Work Space

The compact footprint of the Emcoturn E25 makes it suitable for workshops where space efficiency is important, while still providing a generous and practical machining area.

Workpieces

The Emcoturn E25 is suitable for manufacturing a wide range of precision components including hydraulic components, pneumatic components, medical engineering parts, fixing systems and materials engineering applications.

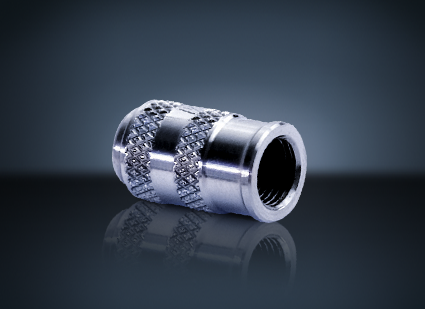

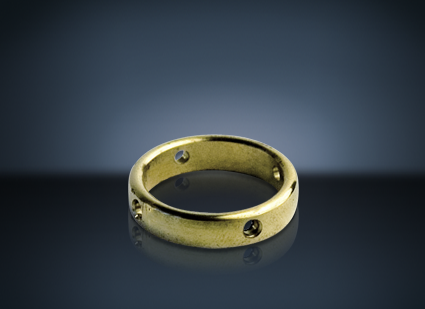

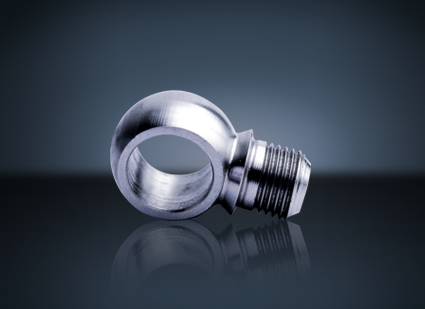

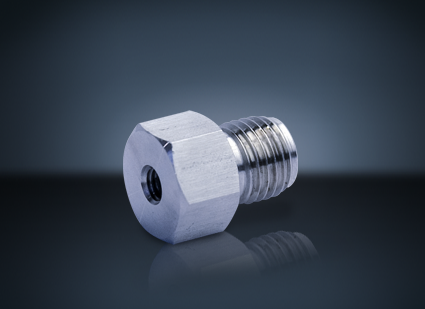

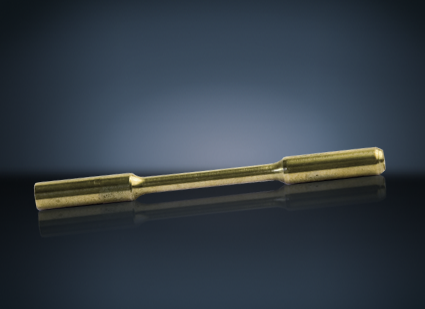

Example workpieces include precision rings, valve caps, plugs, fittings and tensile test components manufactured from materials such as gold, stainless steel and brass.

Versions

Emcoturn E25 T-FANUC

Flexible base version without driven tools and without tailstock.

Emcoturn E25 TM-FANUC

Includes driven tools and C-axis functionality without tailstock.

Emcoturn E25 TC-FANUC

Supplied with tailstock but without driven tools.

Emcoturn E25 TCM-FANUC

Fully equipped version including driven tools, C-axis and tailstock.

Options & Accessories

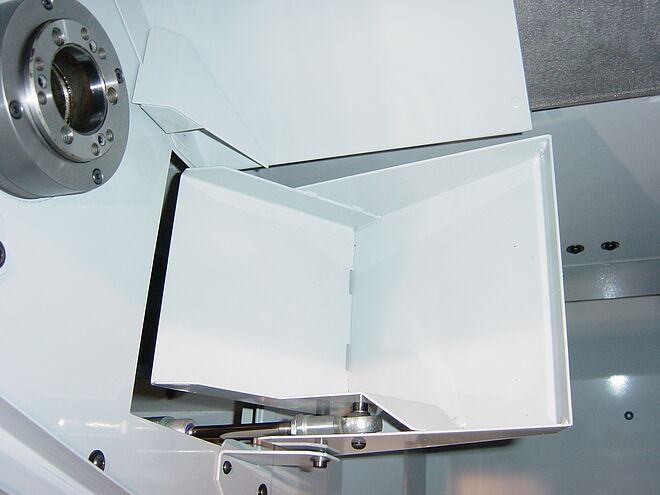

Part Catcher

Pneumatically operated finished-part catcher with collection box below the main spindle. Suitable for components up to 120 mm long and 25 mm diameter.

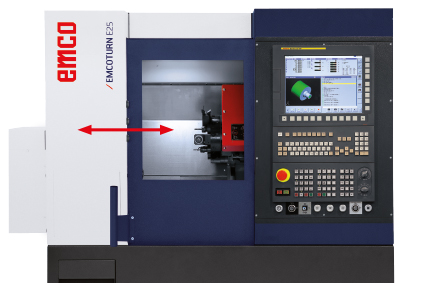

Automatic Door

Automatic door system designed to support manual workpiece loading and improve workflow efficiency.

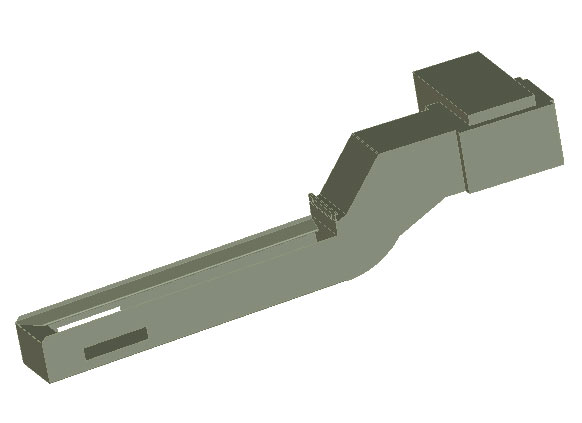

Chip Conveyor

Chain feeding chip conveyor with 500 mm discharge height suitable for long steel shavings and wet or dry machining applications.

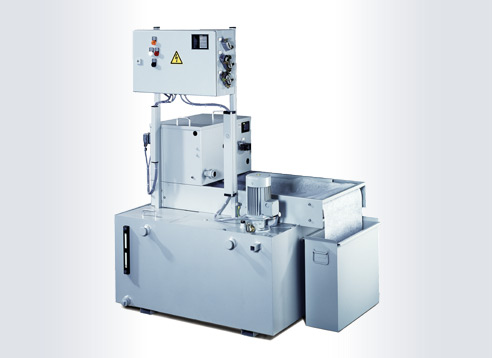

High Pressure Coolant System

6-bar high-pressure coolant pump system including interface and software integration.

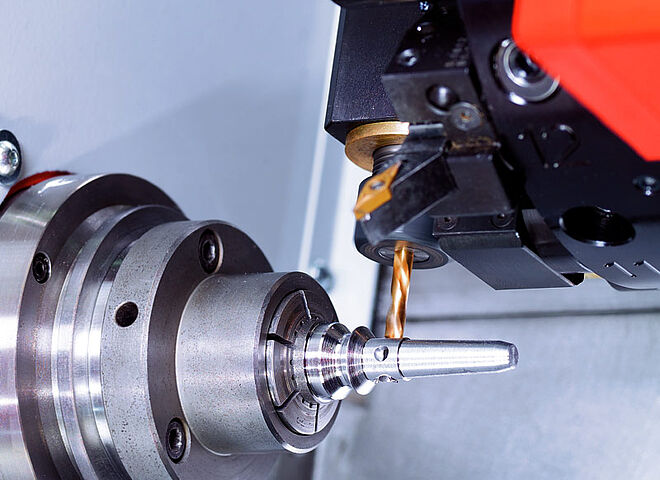

Tool Holder Packages

A range of tool holder packages are available for both stationary and driven tooling applications.

Software & Control

Sinumerik 828D with ShopTurn

The Siemens Sinumerik 828D control system combines high machining performance with exceptional accuracy and ease of use. Advanced CNC functionality, integrated ShopTurn programming and powerful kinematic transformations allow efficient programming and production of both simple and complex turned parts.

Fanuc 0i-TF

The Fanuc 0i-TF control offers excellent reliability, productivity and ease of operation for compact high-end turning machines. Features include high-speed machining, nano smoothing technology, MANUAL GUIDE i programming, 3D simulation and full compatibility with older Fanuc CNC systems, supported by long-term spare parts availability.
