Milling
CNC

EUROMOD MP

The isel EuroMod is a highly versatile CNC milling machine designed for precision machining, automation and laser applications across a wide range of industries. Combining a compact footprint, rigid machine construction and maintenance-free servo motor technology, the EuroMod delivers reliable and highly accurate machining performance for research, training, prototype development and industrial production environments.
euromod

Highlights

  • High stability in the X-axis
  • Large clearance height for increased machining flexibility
  • Movable Y-axis for efficient material changeover
  • Available in three machine sizes

Details

CNC Machine Universal CNC machine – EuroMod Industries & Areas of Application
  • Research & Development
  • Education and training
  • Mould and prototype construction
  • Medical technology
Suitable Materials
  • Brass
  • Foams
  • EVA foam
  • Aluminium
  • Plastics
  • Wood
Machine Type Universal CNC machine Applications
  • Automation
  • Milling
  • Laser processing

Features

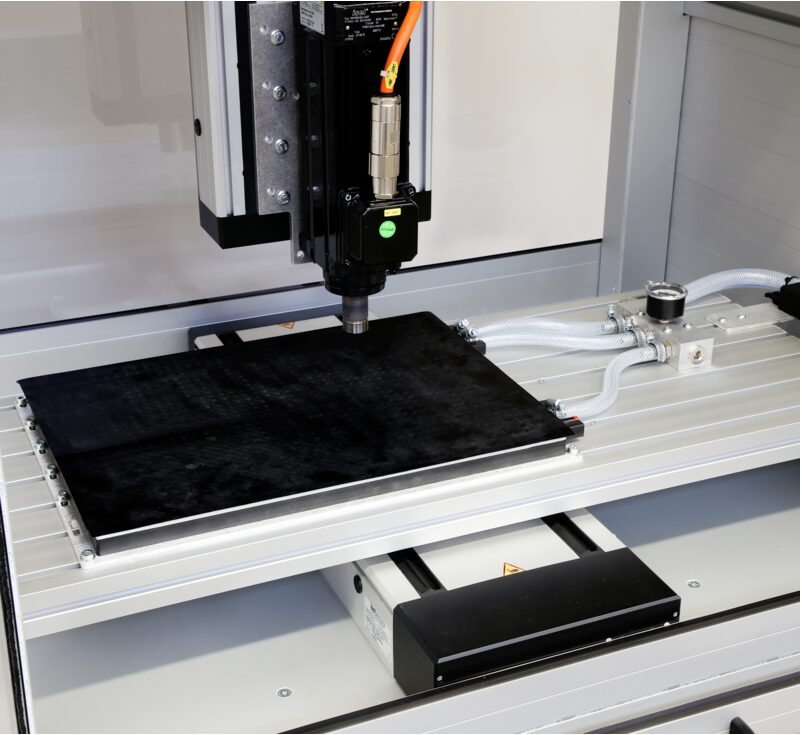

The EuroMod is equipped with a powerful isel CNC control system using maintenance-free servo motors for precise and reliable operation. High-quality LES linear units with precision steel ball screw drives provide smooth axis movement and excellent positioning accuracy. The machine includes a height-adjustable CNC operating panel, a network-compatible Windows control PC and a practical parallel sliding door system for convenient machine access. Workpieces are securely clamped using a face-milled T-slot plate system, allowing flexible fixture and workholding configurations.

Machine Design

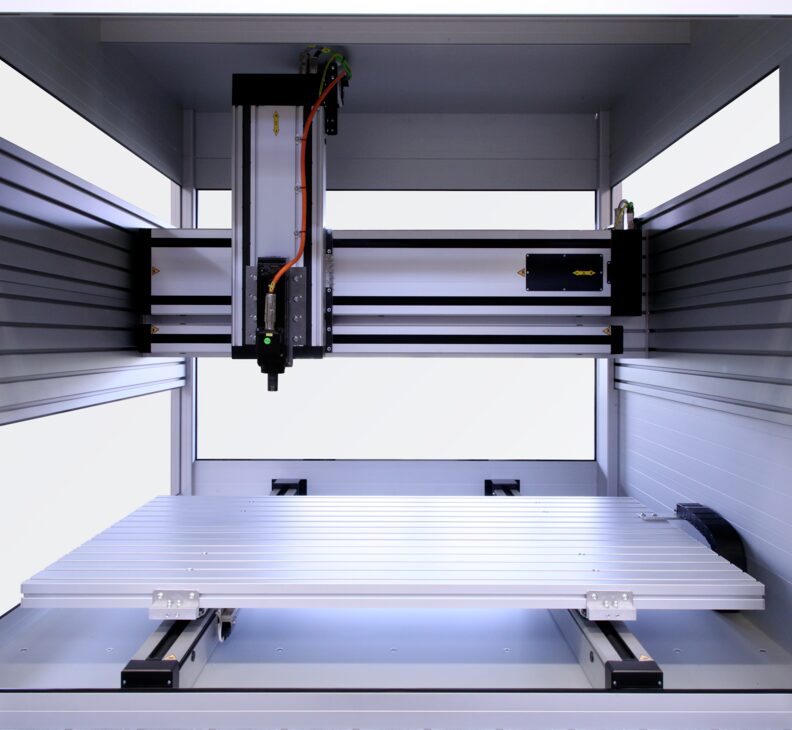

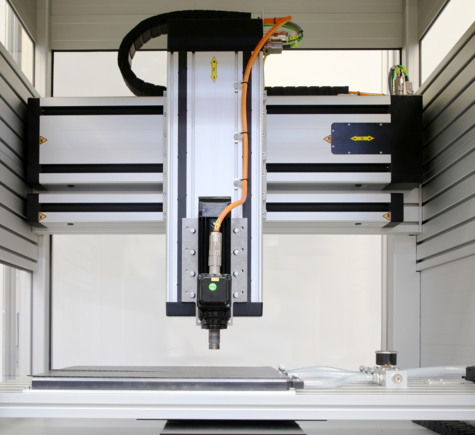

The EuroMod CNC milling machine is designed as a ready-to-connect CNC system offering high operating convenience and compact machine dimensions. The machine structure uses stable and low-vibration aluminium-steel connections combined with backlash-free ball screw systems on all linear axes to provide excellent machining precision and stability. Particular attention has been given to minimising floor space requirements while maintaining a large working area and generous clearance height. The maintenance-free servo motors are optimally matched to the mechanical structure, power electronics and CNC control system to deliver smooth and highly dynamic machining performance. The machine supports both standard 3-axis machining and advanced 3+2-axis machining when fitted with an optional rotary swivel unit.

Options & Accessories

Milling Spindles A wide range of iSA milling spindles and water-cooled high-frequency milling spindles are available for different machining applications and material requirements. Tool Changing Systems Optional round and linear tool changing stations support automated multi-tool machining processes. Cooling Systems Optional cooling spray systems and Cool-Min cold air cooling systems improve machining performance and tool life. Automatic Tool Length Measurement An optional automatic tool measurement system improves setup accuracy and machining efficiency. Milling Cutter Breakage Control An optional tool breakage monitoring system improves process reliability and production safety. Electronic Handwheel An optional electronic handwheel allows manual axis movement and precise setup adjustments. Pneumatic Sliding Door An optional pneumatic sliding door system improves accessibility and supports automated production environments. Rotation Units Optional rotary units enable advanced 3+2-axis machining applications. Safety Light Curtain An optional safety light curtain system enhances operator safety during machine operation. Closed or Light-Tight Bonnet Optional enclosed or light-tight bonnet systems are available for laser processing applications. Bonnet Attachment An optional bonnet extension increases gantry clearance for taller workpieces and applications. Workpiece Clamping Systems Various optional clamping systems are available including hand lever fixtures and vacuum clamping tables. Extraction Systems Optional extraction systems help maintain a cleaner working environment during machining and laser processing operations. LED Machine Room Lighting Optional LED lighting improves visibility within the machining area. RAL Colour Selection Custom RAL colour configurations are available to suit specific workshop or branding requirements. PC Control Panel An optional PC control panel with free PCI slots allows integration of additional external PCI hardware systems. Interface Customisations Optional interface customisations enable integration with external systems and specialised applications. CAD/CAM Software Optional CAD/CAM software solutions are available to support programming and machining workflows.

Applications & Performance

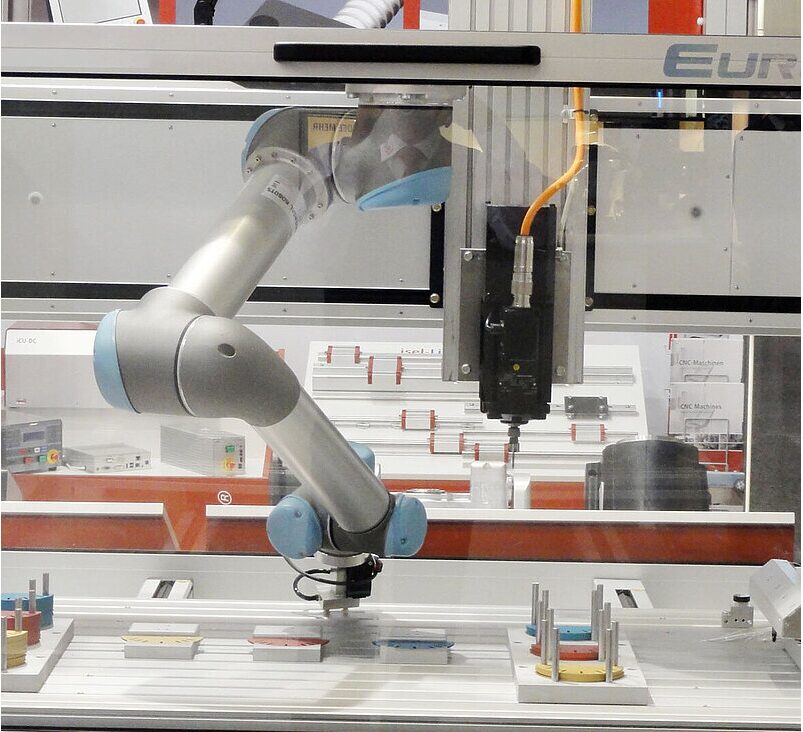

The EuroMod is suitable for a wide range of machining, automation and laser processing applications across research, training, prototype development and industrial production environments. Its modular design, compact footprint and extensive accessory range make it a highly flexible CNC solution for both standard machining tasks and customised production applications.
N/A

Product Gallery

PDF Downloads

20250625-01 Flyer EuroMod en

More product information

View on Manufacturer Website
