Highlights
- Made in Germany precision milling machine
- Rigid dovetail guideways on all axes
- MT2 spindle taper with M10 drawbar thread
- 1.4 kW variable speed motor
- Spindle speed range: 140 – 3000 rpm
- X-axis travel: 260 mm
- Y-axis travel: 150 mm
- Z-axis travel: 280 mm
- 450 x 180 mm clamping table

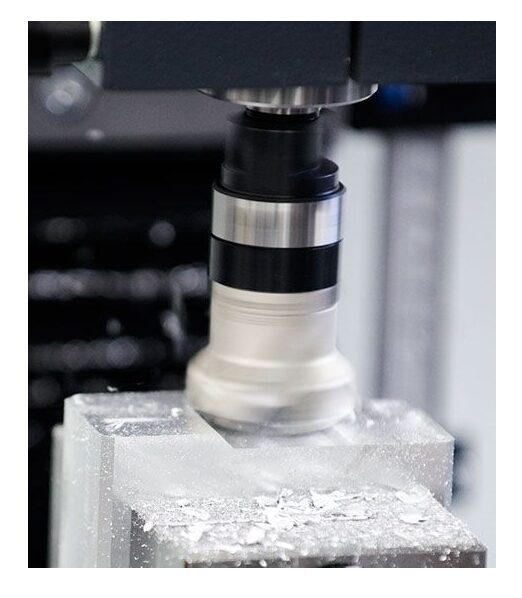

- Suitable for milling and precision drilling operations
Machine Description

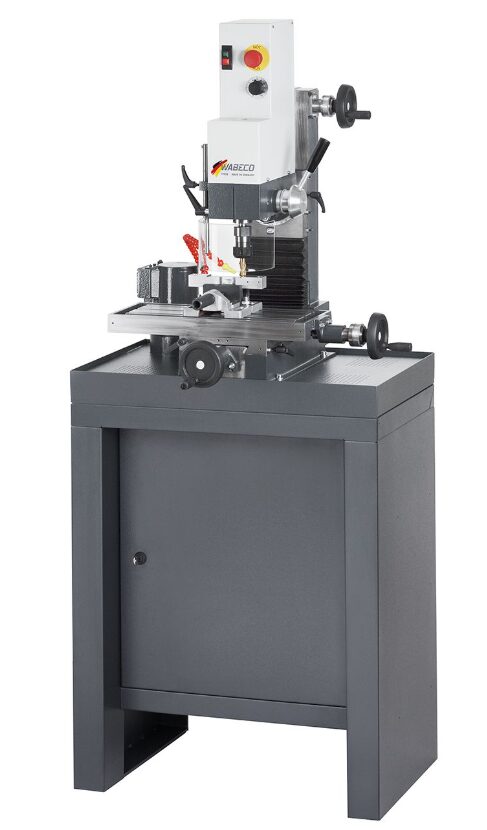

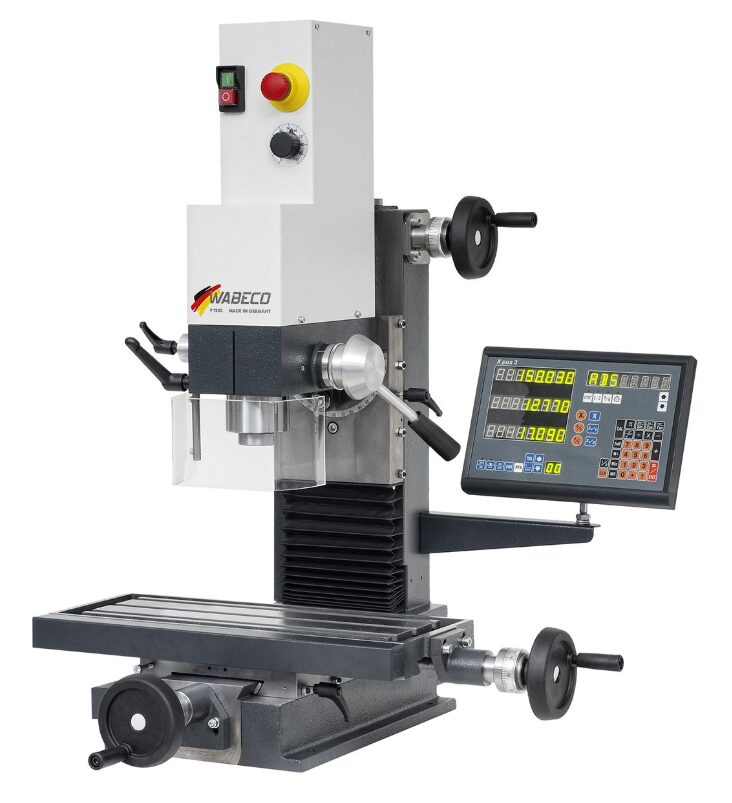

The WABECO F1200 MT2 is a versatile vertical milling machine designed for precision machining tasks in professional workshops, educational facilities and model engineering environments.
Its compact footprint, robust cast iron construction and precision guide system provide excellent rigidity and machining accuracy while maintaining ease of operation.
Dovetail Guideways
The F1200 MT2 features precision dovetail guideways on all axes, providing excellent rigidity and machining accuracy.
- Dovetail guideways on X, Y and Z axes
- Backlash-free adjustable design
- High workpiece accuracy
- Two protective bellows for guideway protection
Feed Screw System
The machine is equipped with precision trapezoidal thread spindles on all axes for accurate manual positioning and feed control.
- Trapezoidal feed screws on all axes
- Adjustable bronze double nuts
- Scale ring accuracy: 0.05 mm
Optional ball screw upgrades are available, providing increased positioning accuracy, backlash-free movement and longer service life.
Spindle & Tool Holder
The MT2 spindle system offers reliable tool holding and excellent running accuracy for milling and drilling applications.
- MT2 spindle taper
- M10 drawbar thread
- Spindle runout accuracy: 0.01 mm
- Optional clockwise and counter-clockwise rotation
- Suitable for thread-cutting applications

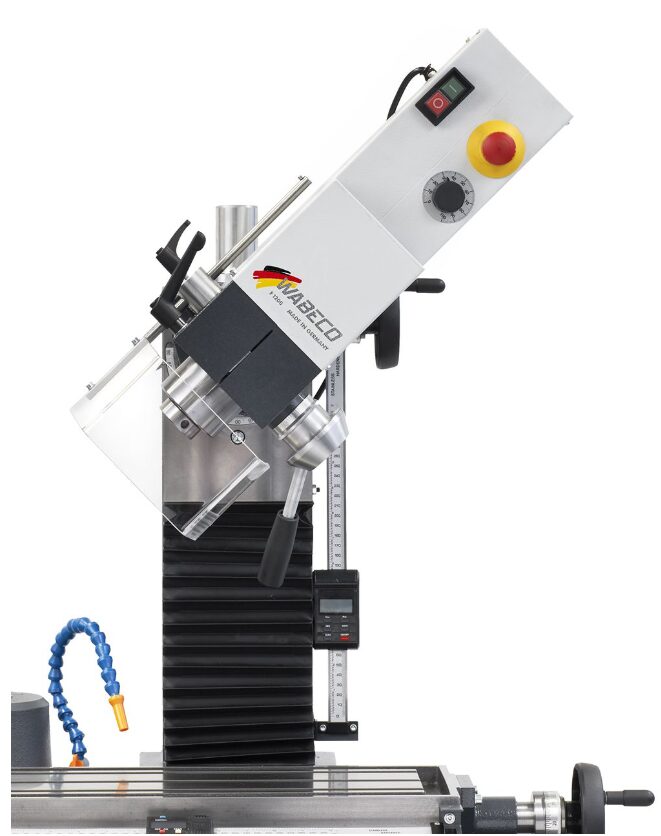

Milling Head
The versatile milling head can be positioned at multiple angles to accommodate a wide range of machining operations.
- Swivels from -90° to +90°
- Large angle scale for easy positioning
- Hardened and ground locating pin system
- Integrated safety guard
Quill & Fine Feed System
The precision quill system makes the machine particularly suitable for drilling as well as milling operations.
- 55 mm quill stroke
- Drilling depth stop
- Full-surface quill clamping system
- Fine feed mechanism on the Z-axis
- Quill scale accuracy: 0.1 mm
Machine Construction
The machine is manufactured from high-quality ribbed grey cast iron to maximise rigidity and vibration damping.
- Cast iron column and base
- Precision anti-friction spindle bearings
- Wide toothed belt drive
- Smooth and quiet operation
- Axis locking system for improved surface finish
Machine Accuracy
- Manufactured to DIN 8615 standards
- Spindle runout accuracy: 0.01 mm
- Scale ring accuracy: 0.05 mm
- Quill scale accuracy: 0.1 mm
Dimensions & Weight
- Machine dimensions: 650 x 625 x 700 mm
- Machine weight: 85 kg
Demonstration Machine
This demonstration machine is approximately four weeks old and has been geometrically inspected and supplied with a test report. As demonstration machines are individual items, availability is subject to prior sale.
Warranty & Support
- 5-year manufacturer warranty (excluding wear parts)
- Long-term spare parts availability guaranteed
