Highlights
- Made in Germany precision milling machine
- High-speed 2.5 kW servo motor drive
- Variable spindle speed range: 100 – 7,500 rpm
- ISO30 spindle taper (DIN 2080)
- Rigid dovetail guideways on all axes
- X-axis travel: 260 mm
- Y-axis travel: 150 mm
- Z-axis travel: 280 mm
- 450 x 180 mm clamping table
- Ideal for milling, drilling, engraving and high-speed machining
Machine Description

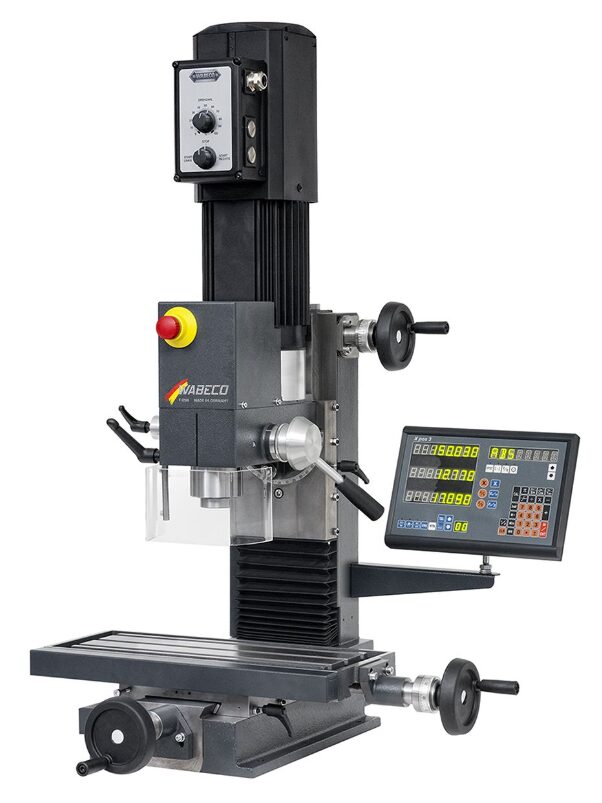

The WABECO F1202 HS ISO30 combines compact dimensions with exceptional spindle performance and machining accuracy. Its high-speed servo motor delivers smooth, consistent power across the entire speed range, making it particularly effective for small tooling, precision machining and engraving applications.
The ISO30 spindle taper provides increased rigidity and professional tooling compatibility, making the machine suitable for more demanding milling operations while maintaining outstanding precision.
Dovetail Guideways
The machine incorporates precision dovetail guideways on all axes to ensure excellent rigidity, smooth movement and repeatable machining accuracy.
- Dovetail guideways on X, Y and Z axes
- Backlash-free adjustable design
- High machining precision
- Two protective bellows for guideway protection
Feed Screw System
Precision trapezoidal thread spindles provide accurate positioning and dependable performance.
- Trapezoidal feed screws on all axes
- Adjustable bronze double nuts
- Scale ring accuracy: 0.05 mm
Optional ball screw upgrades are available for enhanced positioning accuracy, minimal backlash and extended service life.
Spindle & Tool Holder
The ISO30 spindle system provides exceptional rigidity and compatibility with a wide range of professional milling tooling.
- ISO30 spindle taper (DIN 2080)
- M12 drawbar thread
- Spindle runout accuracy: 0.01 mm
- Clockwise and counter-clockwise spindle rotation
- Suitable for thread-cutting applications

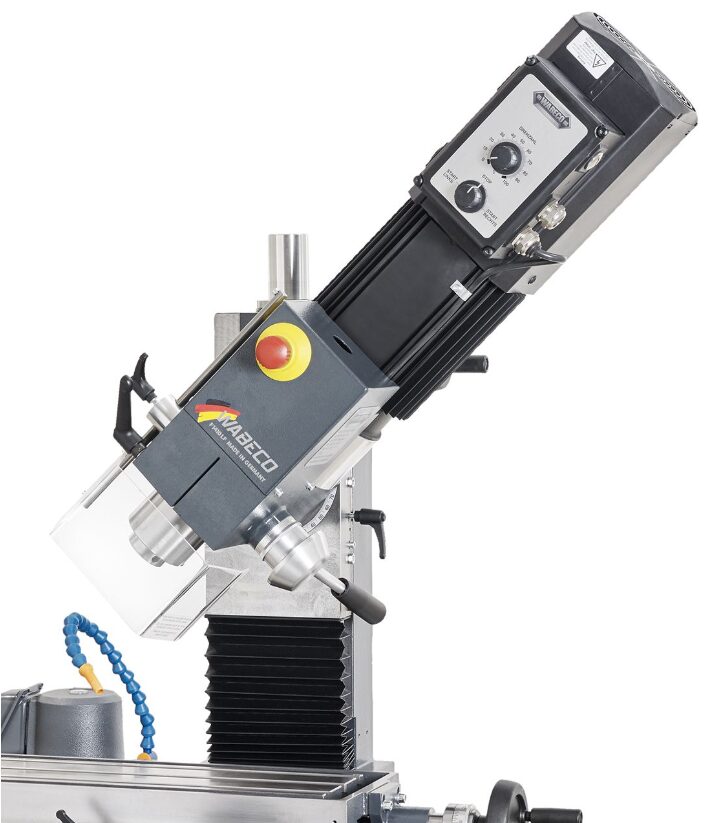

Milling Head
The versatile milling head can be positioned to suit a variety of machining operations.
- Swivels from -90° to +90°
- Large, easy-to-read angle scale
- Precision locating pin system
- Integrated safety guard
Quill & Fine Feed System
The precision quill assembly allows accurate drilling and controlled milling operations.
- 55 mm quill stroke
- Integrated drilling depth stop
- Full-surface quill clamping system
- Fine feed mechanism on the Z-axis
- Quill scale accuracy: 0.1 mm
Machine Construction
The F1202 HS ISO30 is built using a robust ribbed grey cast iron structure for maximum rigidity and vibration damping.
- Cast iron column and base
- Precision anti-friction spindle bearings
- Wide toothed belt drive
- Smooth and quiet operation
- Axis locking system for improved surface finish
Machine Accuracy
- Manufactured to DIN 8615 standards
- Spindle runout accuracy: 0.01 mm
- Scale ring accuracy: 0.05 mm
- Quill scale accuracy: 0.1 mm
Dimensions & Weight
- Machine dimensions: 650 x 625 x 900 mm
- Machine weight: 96 kg
Demonstration Machine
This demonstration machine is approximately four weeks old and has been geometrically inspected and supplied with a test report. As demonstration machines are individual items, availability is subject to prior sale.
Warranty & Support
- 5-year manufacturer warranty (excluding wear parts)
- Long-term spare parts availability guaranteed
