Highlights
- Made in Germany precision milling machine
- High-speed 2.5 kW servo motor drive
- Variable spindle speed range: 100 – 7,500 rpm
- MT2 spindle taper with M10 drawbar thread
- Rigid dovetail guideways on all axes
- X-axis travel: 260 mm
- Y-axis travel: 150 mm
- Z-axis travel: 280 mm
- 450 x 180 mm clamping table

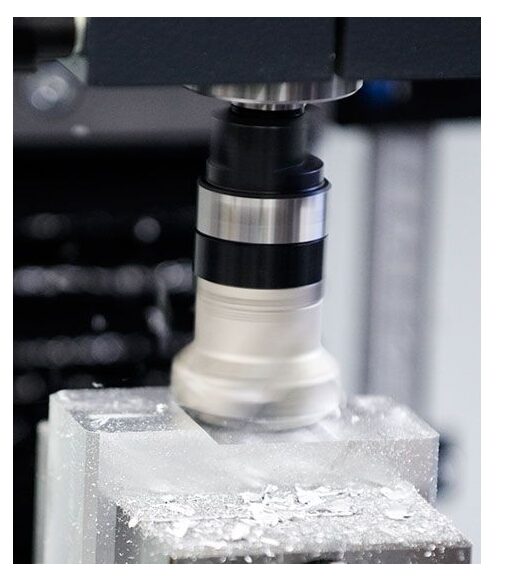

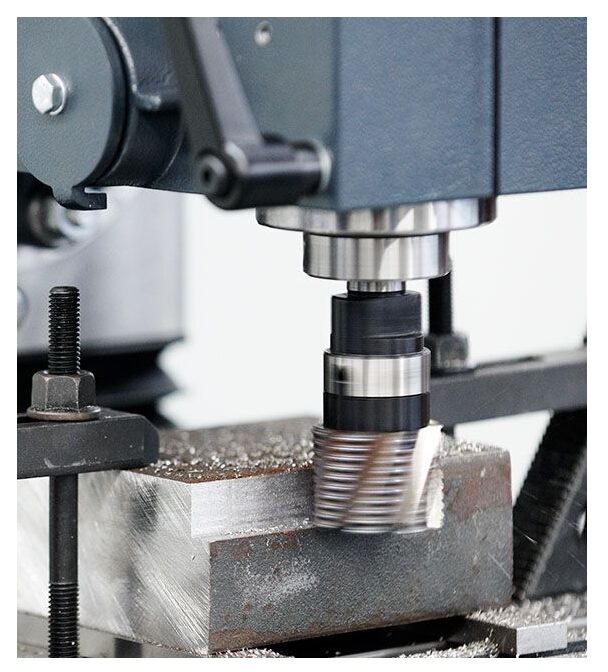

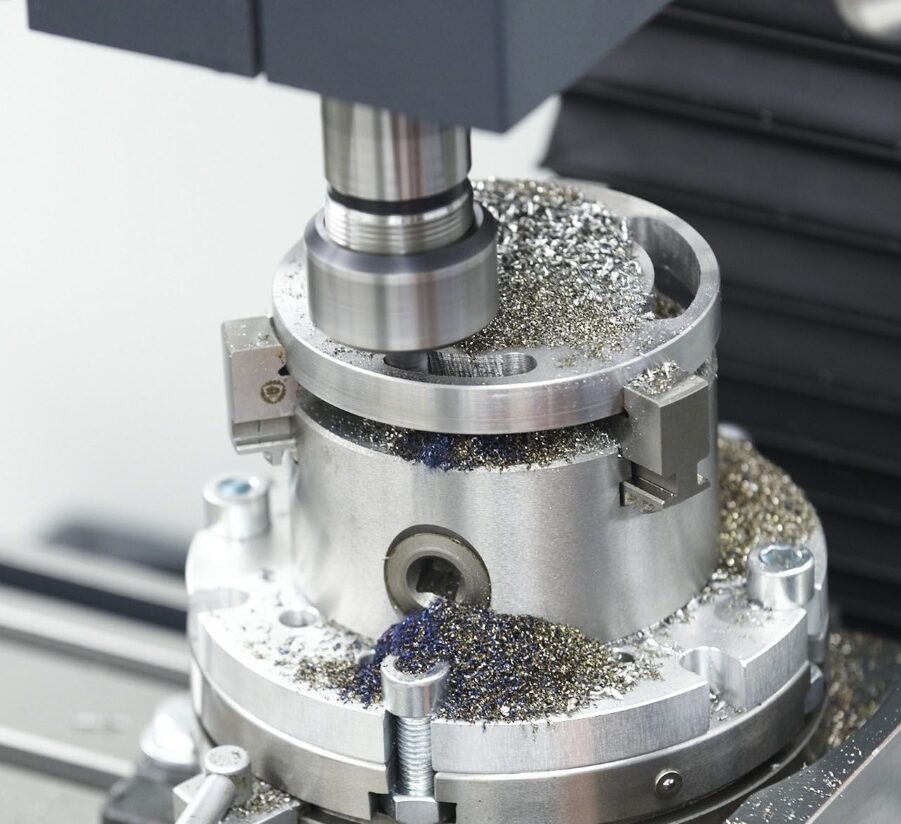

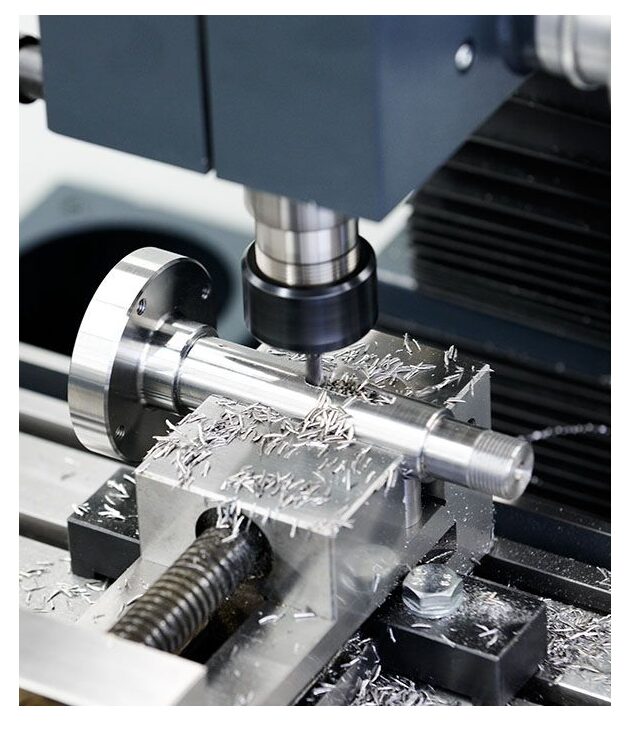

- Suitable for milling, drilling, engraving and precision machining
Machine Description

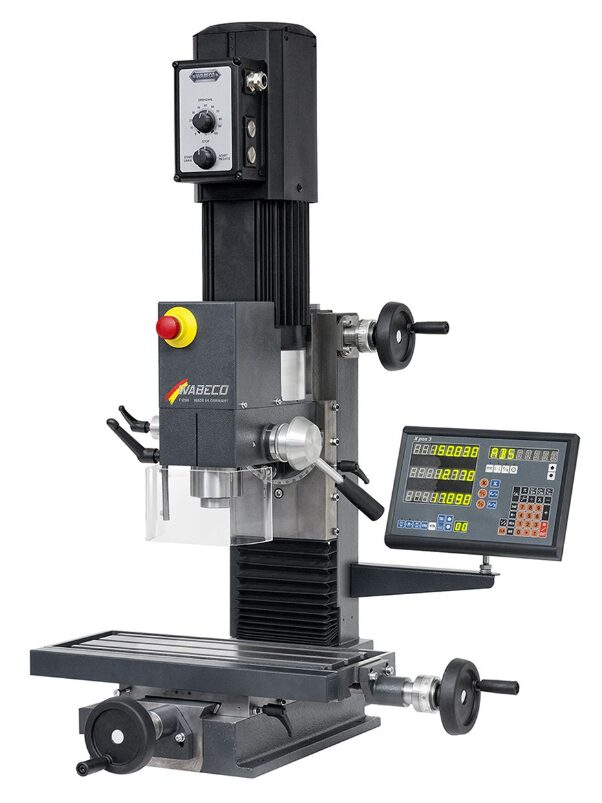

The WABECO F1202 HS MT2 combines compact dimensions with high spindle speeds and exceptional machining accuracy. Its high-performance servo motor provides smooth power delivery across the entire speed range, making it particularly suitable for small tooling, fine-detail machining and engraving applications.
Built with robust cast iron construction and precision dovetail guideways, the machine delivers outstanding rigidity and repeatability for professional workshops, educational environments, model engineering and research applications.
Dovetail Guideways
The machine features precision dovetail guideways on all axes for excellent rigidity and machining accuracy.
- Dovetail guideways on X, Y and Z axes
- Backlash-free adjustable design
- High machining precision
- Two protective bellows for guideway protection
Feed Screw System
Precision trapezoidal thread spindles ensure accurate positioning and dependable long-term performance.
- Trapezoidal feed screws on all axes
- Adjustable bronze double nuts
- Scale ring accuracy: 0.05 mm
Optional ball screw upgrades are available for enhanced positioning accuracy, minimal backlash and extended service life.
Spindle & Tool Holder
The MT2 spindle system provides reliable tooling support for drilling and milling applications.
- MT2 spindle taper
- M10 drawbar thread
- Spindle runout accuracy: 0.01 mm
- Clockwise and counter-clockwise spindle rotation
- Suitable for thread-cutting operations

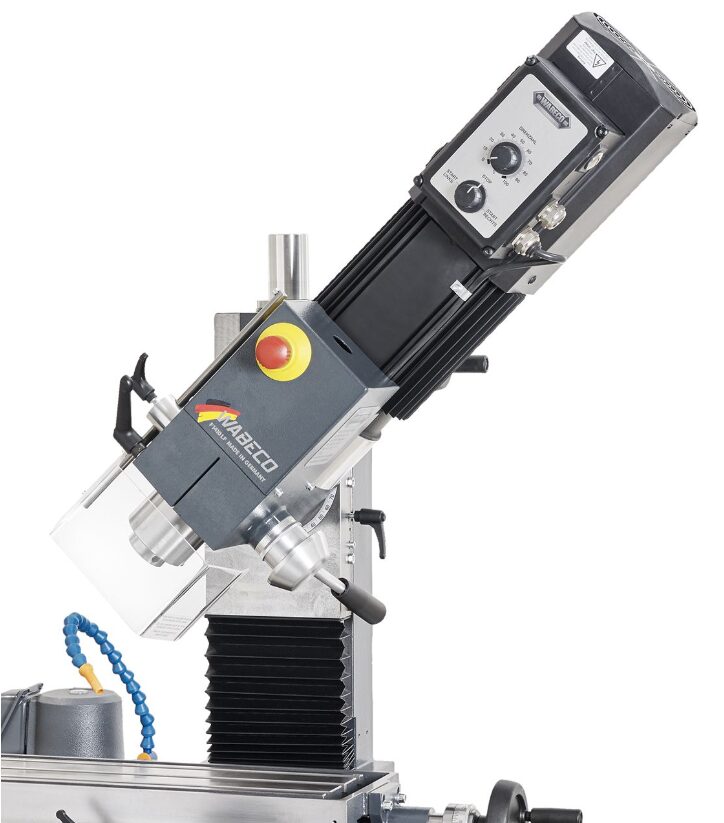

Milling Head

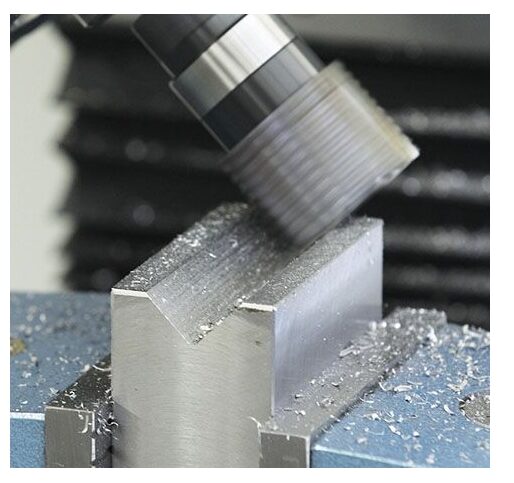

The swivelling milling head provides flexibility for angular machining operations.
- Swivels from -90° to +90°
- Large, easy-to-read angle scale
- Precision locating pin system
- Integrated protective guard
Quill & Fine Feed System
The precision quill assembly enables accurate drilling and fine milling operations.
- 55 mm quill stroke
- Integrated drilling depth stop
- Full-surface quill clamping system
- Fine feed mechanism on the Z-axis
- Quill scale accuracy: 0.1 mm
Machine Construction
The F1202 HS MT2 is built around a rigid cast iron structure for excellent stability and vibration damping.
- Ribbed grey cast iron column and base
- Precision anti-friction spindle bearings
- Wide toothed belt drive
- Smooth and quiet operation
- Axis locking system for improved surface finish
Machine Accuracy
- Manufactured to DIN 8615 standards
- Spindle runout accuracy: 0.01 mm
- Scale ring accuracy: 0.05 mm
- Quill scale accuracy: 0.1 mm
Dimensions & Weight
- Machine dimensions: 650 x 625 x 900 mm
- Machine weight: 96 kg
Demonstration Machine
This demonstration machine is approximately four weeks old and has been geometrically inspected and supplied with a test report. As demonstration machines are individual items, availability is subject to prior sale.
Warranty & Support
- 5-year manufacturer warranty (excluding wear parts)
- Long-term spare parts availability guaranteed
