Highlights
- Made in Germany precision milling machine
- Powerful 2.5 kW brushless servo motor
- Variable spindle speed range from 100 to 7500 rpm
- Industrial ISO30 spindle taper
- 500 mm X-axis travel
- Rigid dovetail guideways on all axes
- 700 x 180 mm clamping table

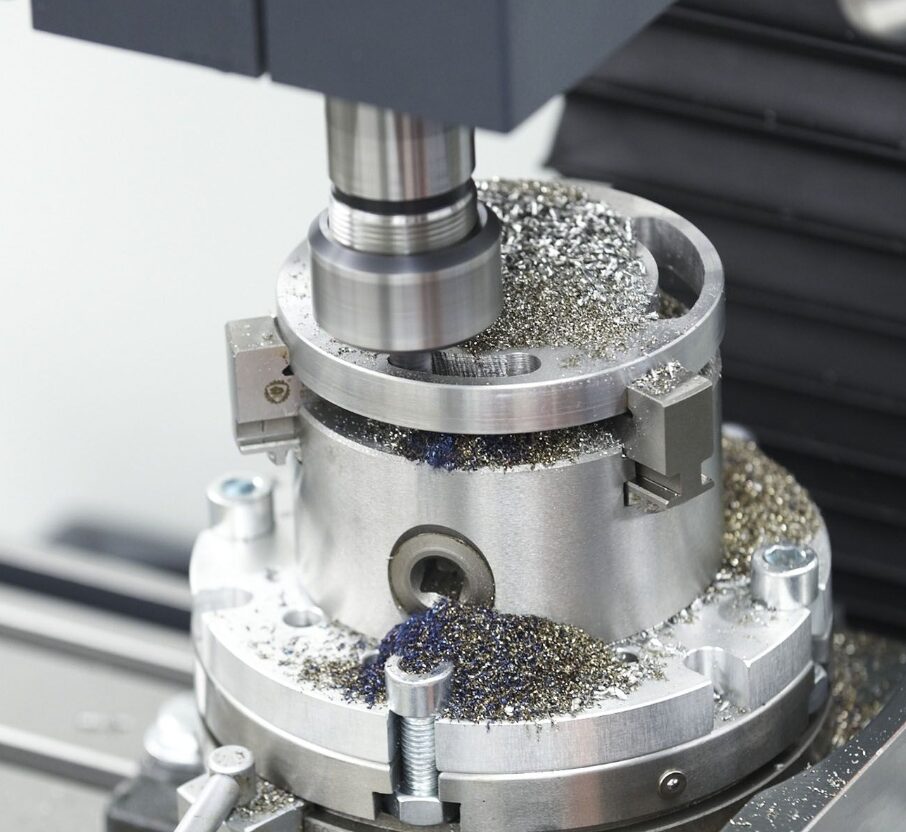

- Ideal for milling, drilling, engraving and precision machining
- Forward and reverse spindle rotation for thread cutting

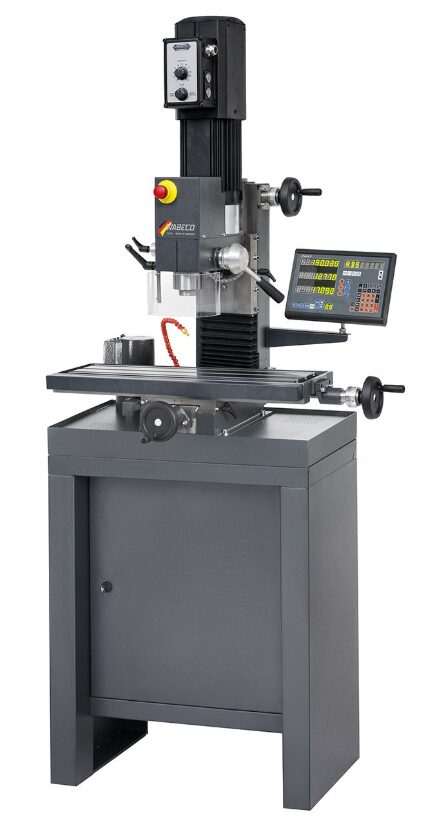

Machine Description
The WABECO F1220 HS ISO30 has been designed for users who require greater spindle rigidity, increased tooling capability and exceptional machining accuracy. The industrial ISO30 spindle system provides excellent tool holding performance while the high-speed servo motor allows the machine to tackle everything from heavy-duty milling operations to fine engraving work.
Built to WABECO's renowned German engineering standards, the machine offers long-term reliability, outstanding precision and exceptional machining performance.
Dovetail Guideways
The precision dovetail guideway system ensures rigidity, smooth movement and outstanding machining accuracy.
- Dovetail guideways on X, Y and Z axes
- Adjustable backlash-free design
- Excellent rigidity and stability
- Two protective bellows for guideway protection
Feed Screw System
Precision trapezoidal thread spindles provide reliable positioning and smooth operation.
- Trapezoidal feed screws on all axes
- Adjustable bronze double nuts
- Scale ring accuracy: 0.05 mm
Optional ball screw upgrades are available for applications requiring enhanced positioning accuracy, reduced backlash and greater efficiency.

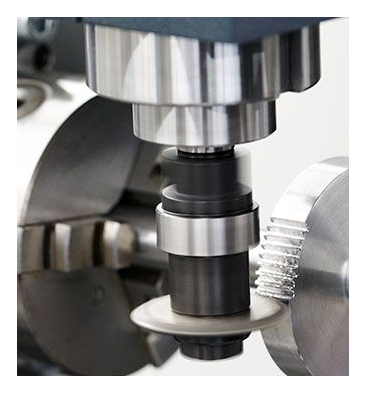

ISO30 Spindle System
The industrial ISO30 spindle taper provides increased rigidity and excellent compatibility with professional tooling systems.
- ISO30 taper spindle (DIN 2080)
- M12 drawbar thread
- Spindle runout accuracy: 0.01 mm
- Forward and reverse spindle rotation
- Suitable for thread cutting applications

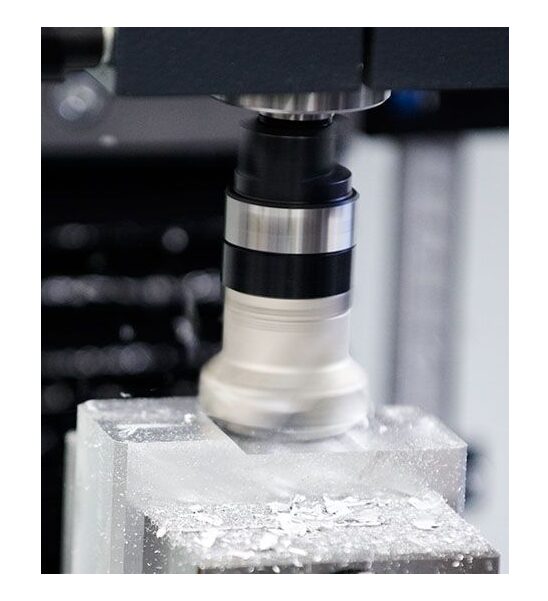

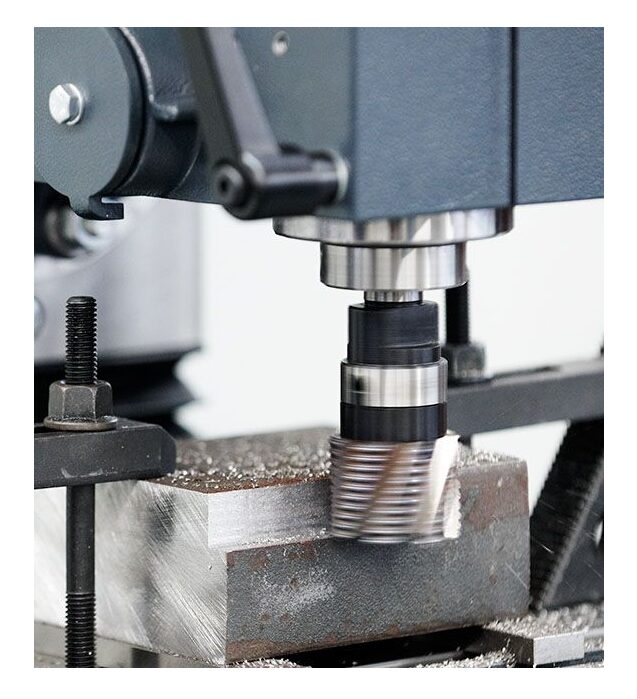

High-Speed Performance
The high-speed spindle system delivers exceptional versatility across a wide range of machining applications.
- Variable spindle speeds from 100 to 7500 rpm
- Excellent low-speed torque characteristics
- Suitable for difficult-to-machine materials
- Ideal for engraving, precision milling and fine detail work

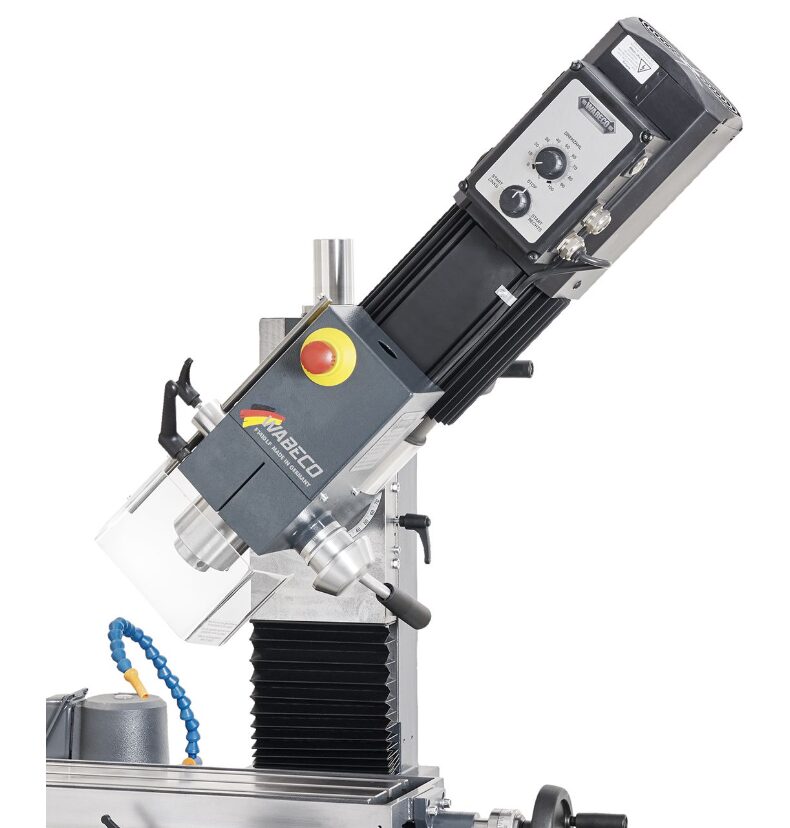

Milling Head
- Head swivels from -90° to +90°
- Large angle scale for accurate positioning
- Precision indexing system
- Integrated safety guard

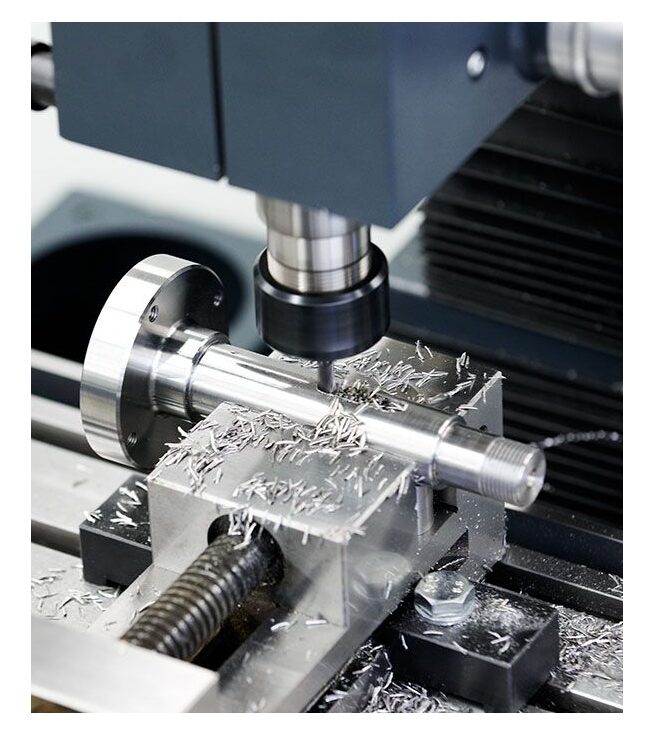

Quill & Fine Feed System
The integrated quill system enhances both drilling and milling operations.
- 55 mm quill stroke
- Built-in drilling depth stop
- Full-surface quill clamping
- Fine Z-axis feed mechanism
- Quill scale accuracy: 0.1 mm
Machine Construction
Constructed from high-quality ribbed grey cast iron, the F1220 HS ISO30 provides excellent vibration damping and machining stability.
- Heavy-duty cast iron column and base
- Precision spindle bearing arrangement
- Wide toothed belt drive system
- Quiet and smooth operation
- Axis locking system for improved surface finish quality
Machine Accuracy
- Manufactured to DIN 8615 standards
- Spindle runout accuracy: 0.01 mm
- Scale ring accuracy: 0.05 mm
- Quill scale accuracy: 0.1 mm
Dimensions & Weight
- Machine dimensions: 900 x 625 x 900 mm
- Machine weight: 112 kg
Demonstration Machine
This demonstration machine is approximately four weeks old and has been geometrically measured and supplied with a test report. As demonstration machines are individual units, availability is subject to prior sale.
Warranty & Support
- 5-year manufacturer warranty (excluding wear parts)
- Long-term spare parts availability guaranteed
