Highlights
- Made in Germany precision milling machine
- Maintenance-free linear guideways on all axes
- Industrial ISO30 spindle taper
- 1.4 kW electronically controlled drive motor
- Variable spindle speed range from 140 to 3000 rpm
- 500 mm X-axis travel
- 200 mm Y-axis travel
- 700 x 180 mm clamping table

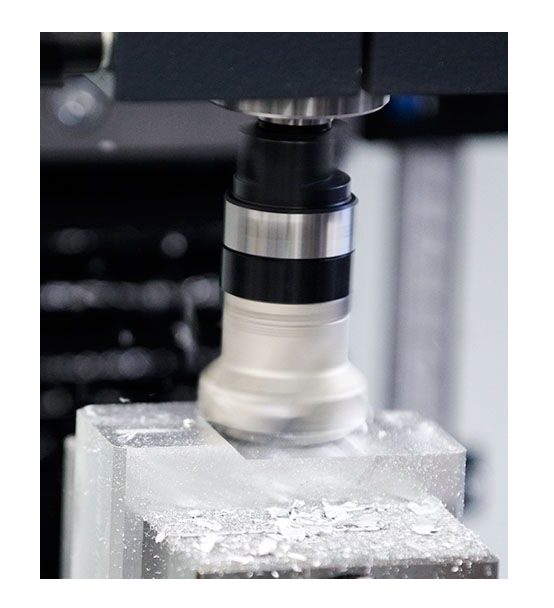

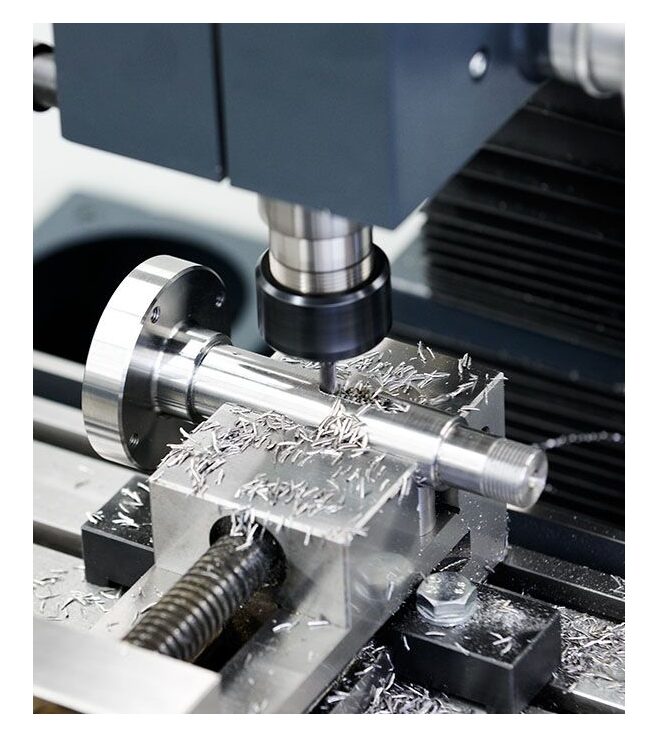

- Suitable for milling, drilling and precision machining applications

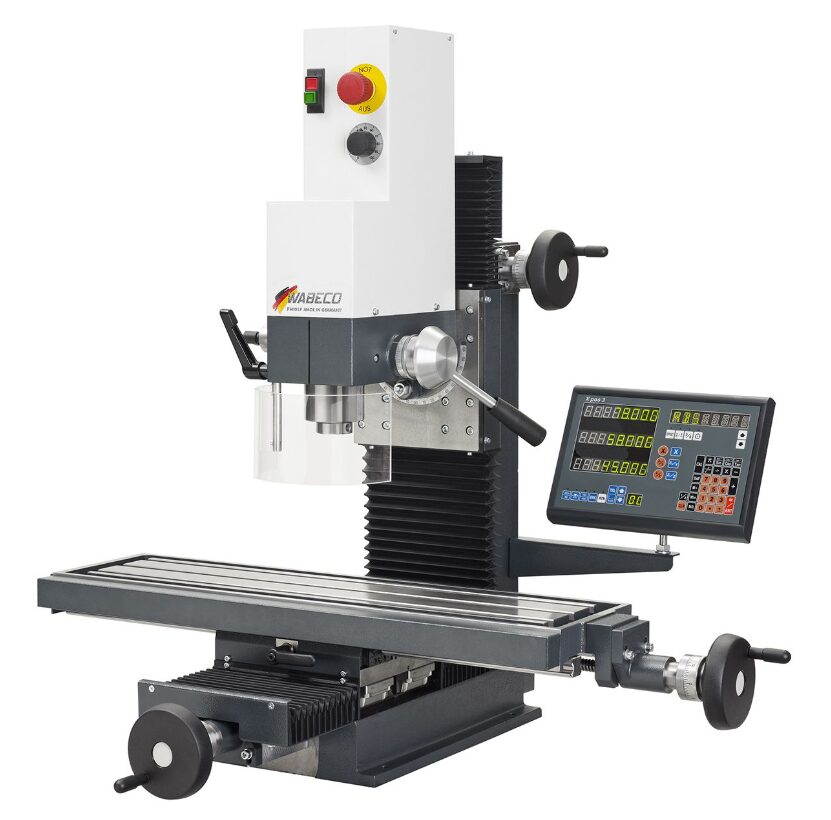

Machine Description
The WABECO F1410 LF ISO30 has been developed for users requiring enhanced rigidity, superior positioning accuracy and increased machining capacity. The advanced linear guideway system offers smooth, backlash-free movement and exceptional precision, while the ISO30 spindle provides excellent tooling stability for demanding machining operations.
Manufactured entirely in Germany, the F1410 LF ISO30 delivers exceptional quality, reliability and long-term performance.

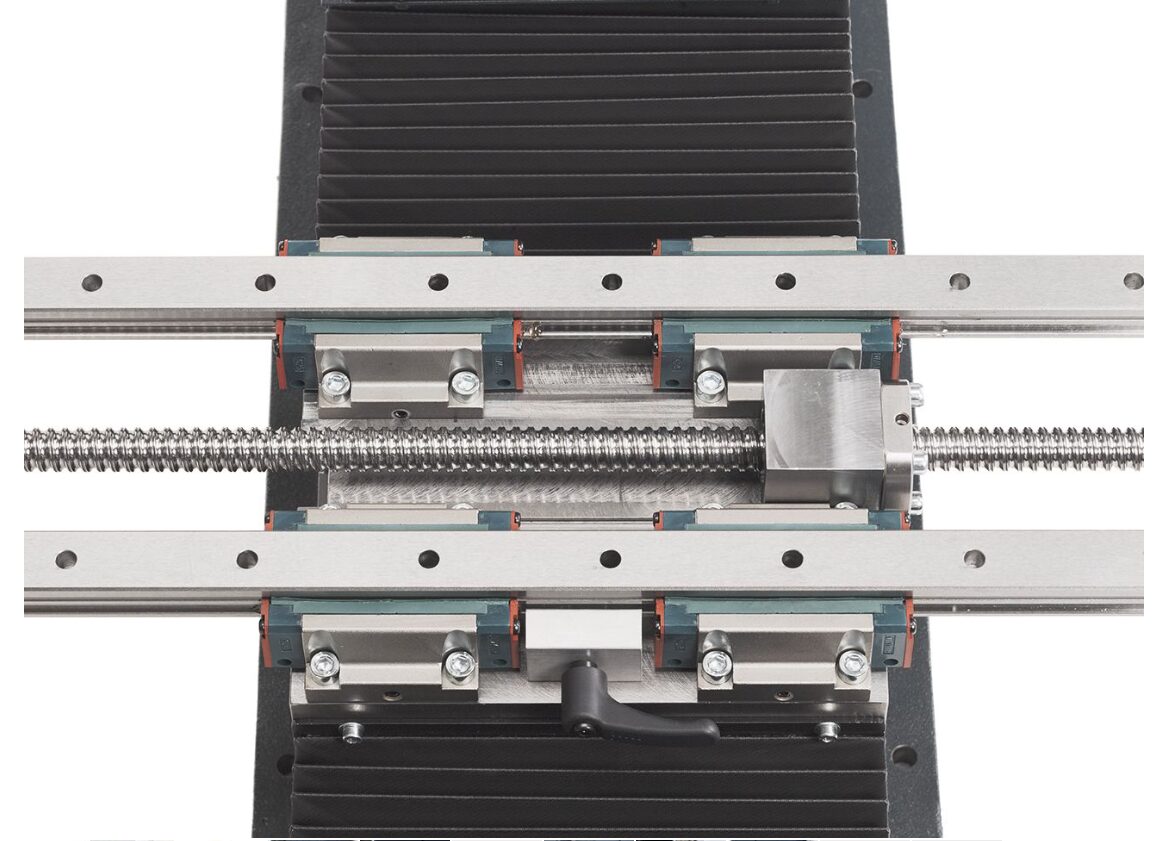

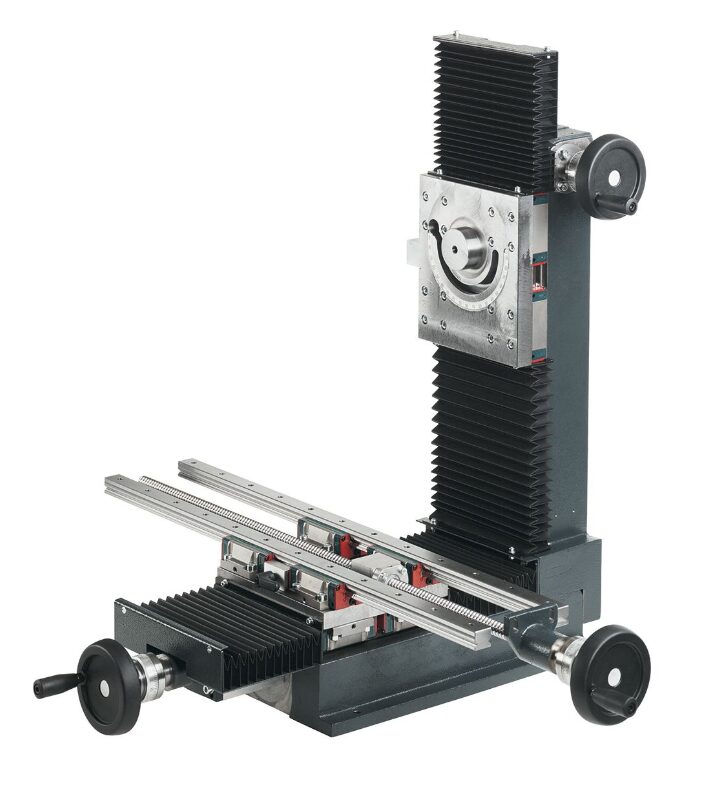

Linear Guideway System
The advanced linear guideway system provides exceptional rigidity, precision and maintenance-free operation.
- Linear guideways on all axes
- Hardened and ground guide rails
- Backlash-free ball guide system
- High rigidity and positioning accuracy
- Four protective bellows for guide protection
Feed Screw System
Precision trapezoidal thread spindles provide accurate positioning and reliable long-term operation.
- Trapezoidal feed screws on all axes
- Adjustable bronze double nuts
- Scale ring accuracy: 0.05 mm
- Z-axis counterbalance adjustment system
Optional ball screw upgrades are available for applications requiring maximum positioning accuracy and reduced backlash.

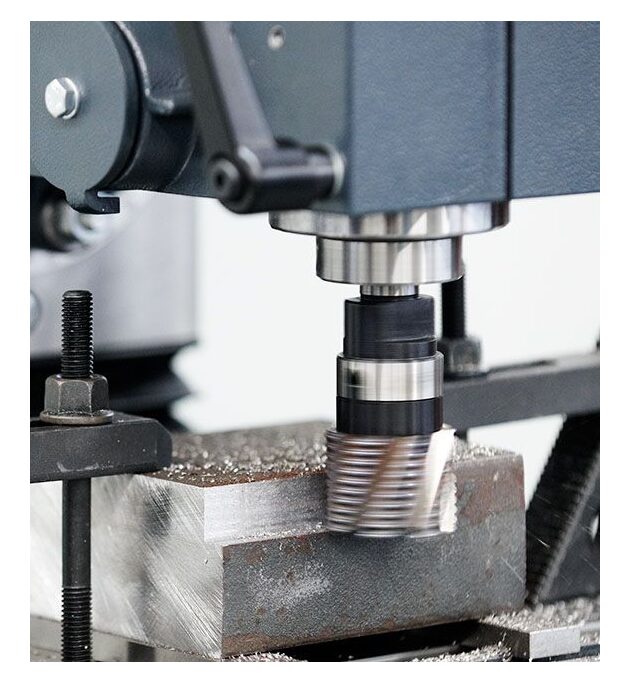

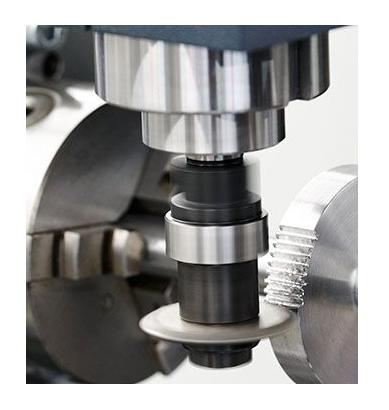

ISO30 Spindle System
The industrial ISO30 spindle taper provides superior tool holding strength and increased rigidity during machining operations.
- ISO30 spindle taper (DIN 2080)
- M12 drawbar thread
- Spindle runout accuracy: 0.01 mm
- Optional spindle reverse for thread cutting operations
- Excellent compatibility with professional tooling systems

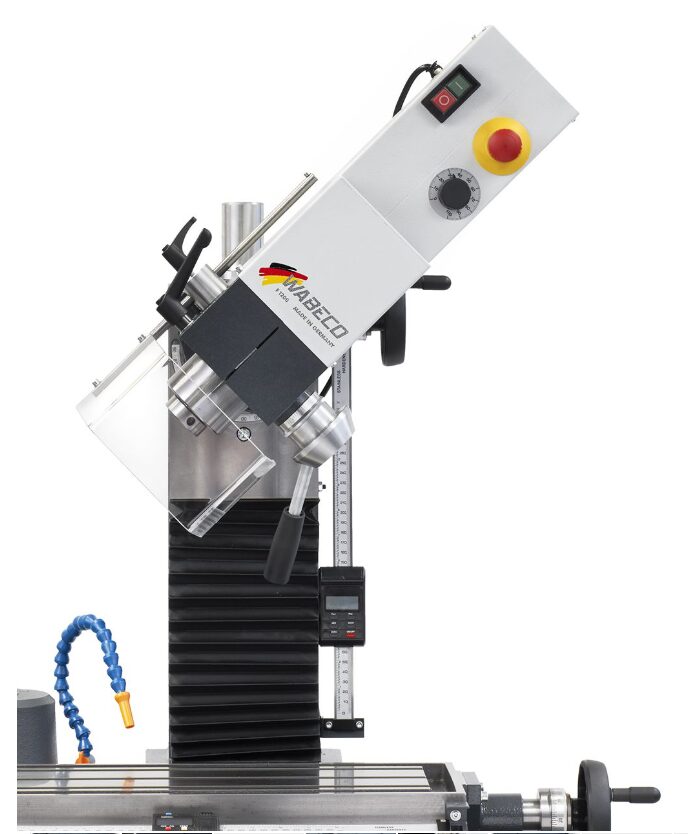

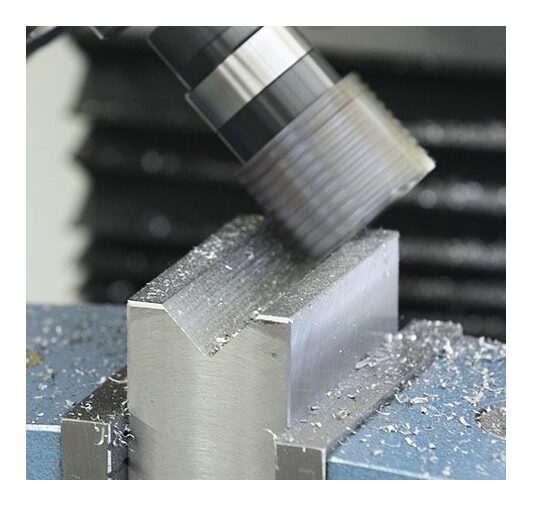

Milling Head
- Head swivels from -90° to +90°
- Large angle scale for accurate positioning
- Precision indexing system
- Integrated safety guard

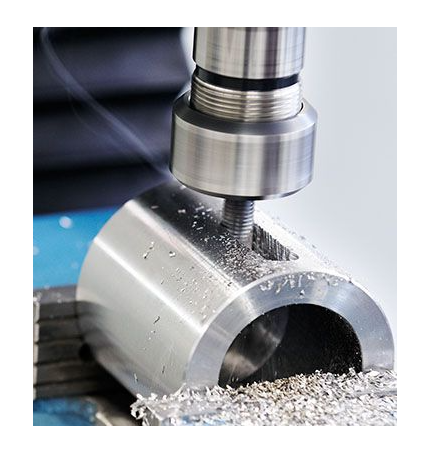

Quill & Fine Feed System
The integrated quill assembly allows the machine to perform accurate drilling and milling operations.
- 55 mm quill stroke
- Built-in drilling depth stop
- Full-surface quill clamping system
- Fine Z-axis feed control
- Quill scale accuracy: 0.1 mm
Machine Construction
The machine is built around a robust grey cast iron structure that minimises vibration and maximises machining stability.
- Ribbed cast iron column and base
- Precision spindle bearing arrangement
- Wide toothed belt drive system
- Smooth and quiet operation
- Axis locking system for improved surface finish quality
Machine Accuracy
- Manufactured to DIN 8615 standards
- Spindle runout accuracy: 0.01 mm
- Feed scale accuracy: 0.05 mm
- Quill scale accuracy: 0.1 mm
Dimensions & Weight
- Machine dimensions: 940 x 890 x 770 mm
- Machine weight: 118 kg
Demonstration Machine
This demonstration machine is approximately four weeks old and has been geometrically measured and supplied with a test report. As demonstration machines are individual units, availability is subject to prior sale.
Warranty & Support
- 5-year manufacturer warranty (excluding wear parts)
- Long-term spare parts availability guaranteed
