Highlights
- Made in Germany precision milling machine
- Maintenance-free linear guideways on all axes
- 1.4 kW electronically controlled drive motor
- Variable spindle speed range from 140 to 3000 rpm
- Extended 200 mm Y-axis travel
- MT2 spindle taper with M10 drawbar thread
- 700 x 180 mm clamping table

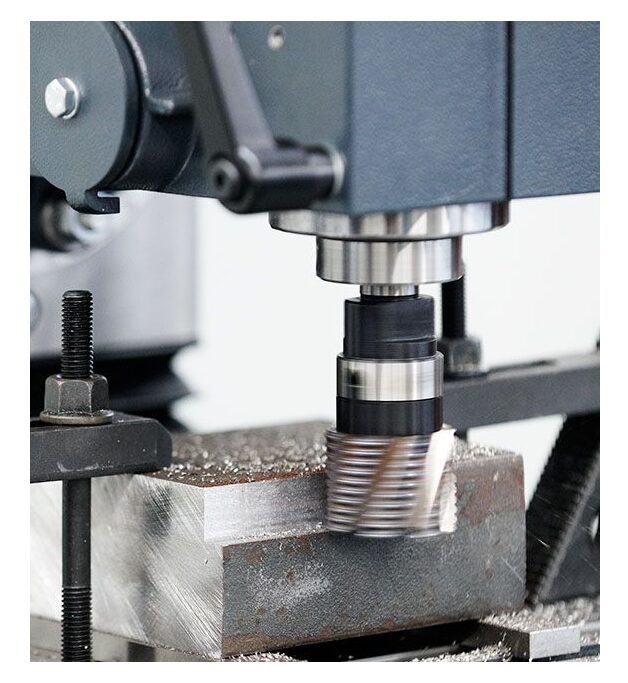

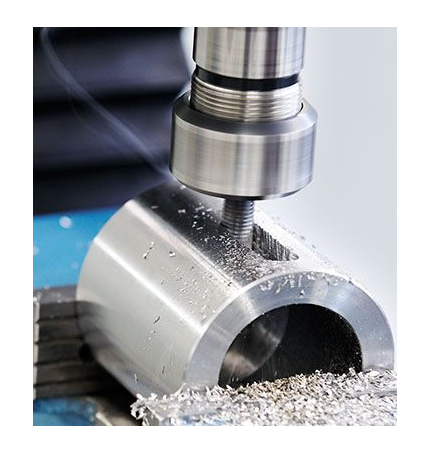

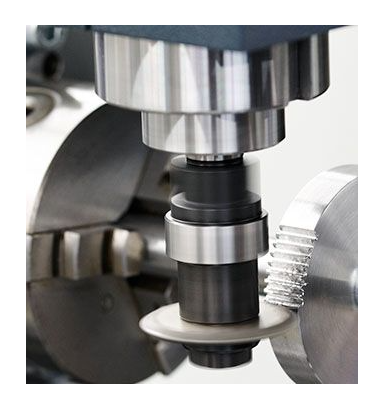

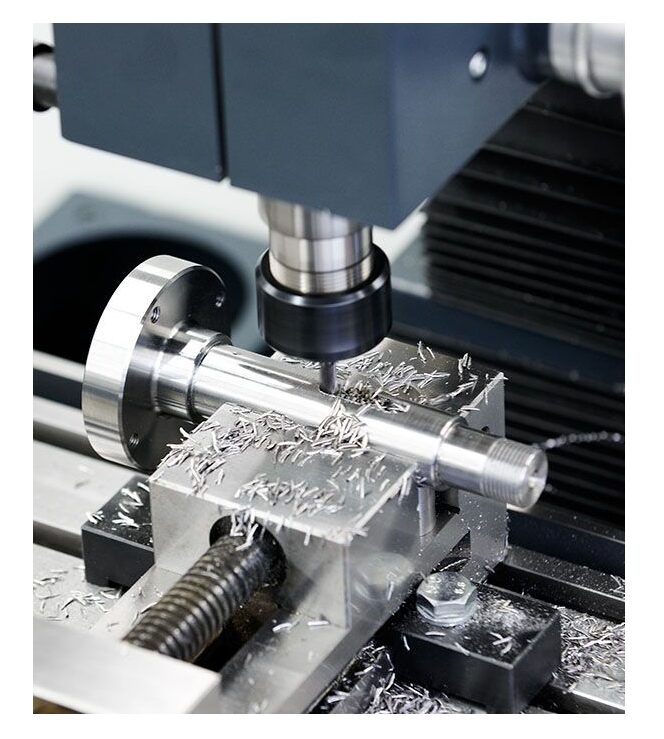

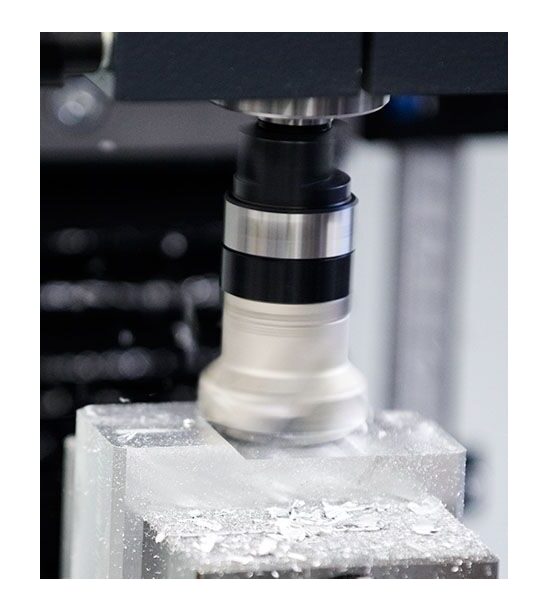

- Ideal for milling, drilling and precision machining
- Optional spindle reverse for thread cutting operations

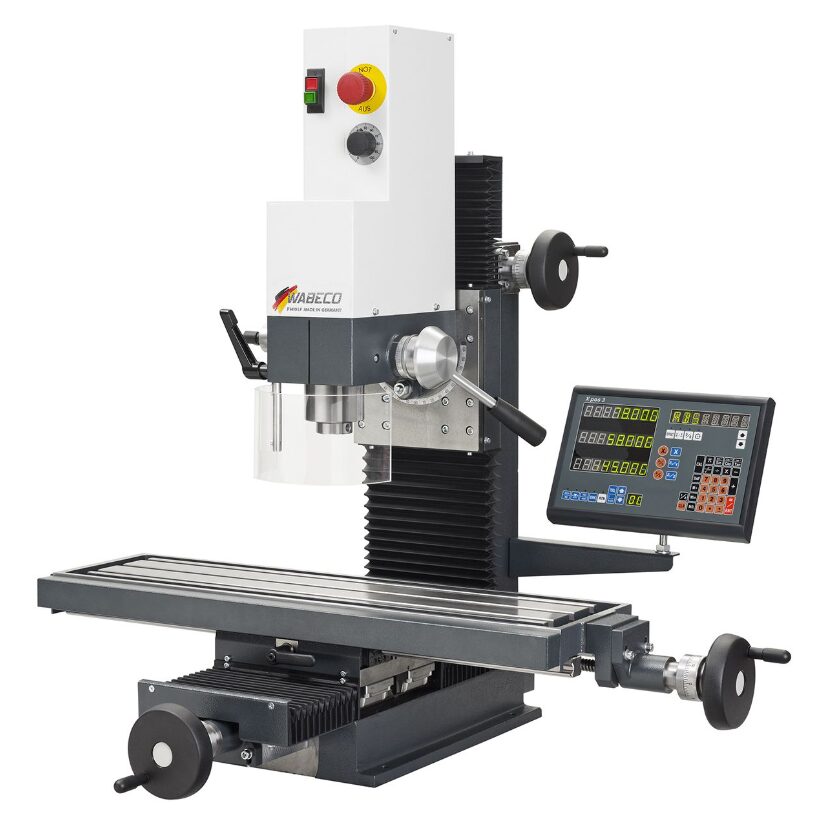

Machine Description
The WABECO F1410 LF MT2 has been developed for users who require increased rigidity, enhanced positioning accuracy and larger machining capacity. The machine features high-precision linear guideways with preloaded ball guide systems, delivering exceptional smoothness and rigidity across all axes.
Combined with WABECO's proven drive technology and German manufacturing standards, the F1410 LF MT2 offers outstanding machining performance and long-term reliability.

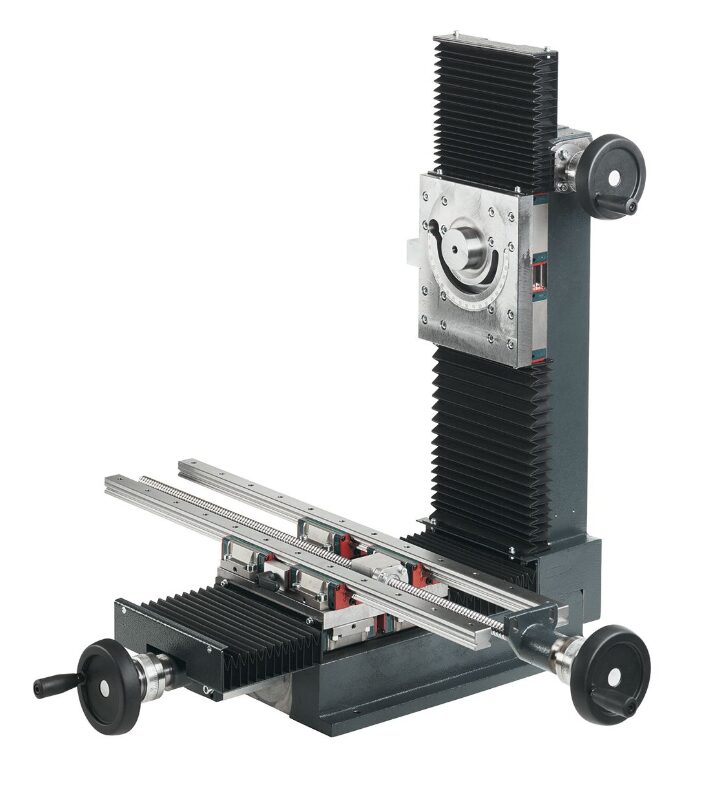

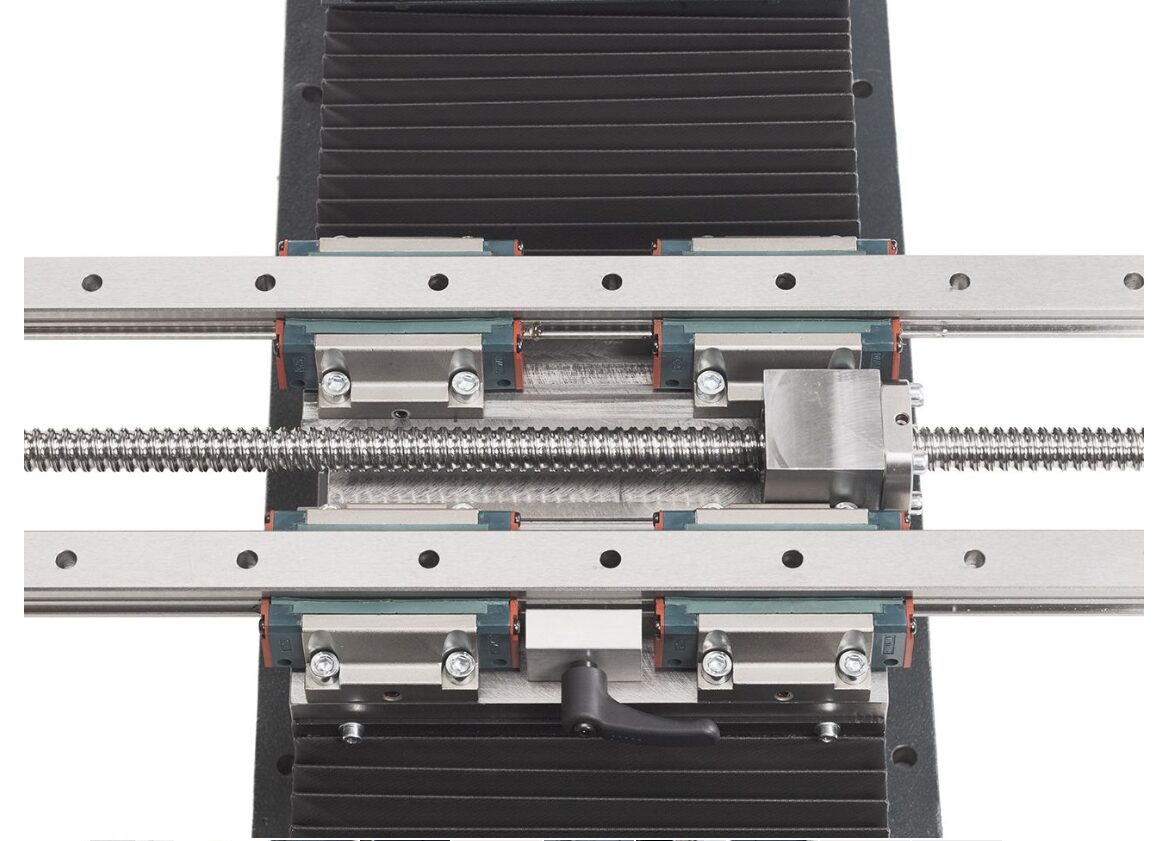

Linear Guideway System
The F1410 LF MT2 features precision linear guideways that provide superior rigidity, accuracy and maintenance-free operation.
- Linear guideways on all axes
- Hardened and ground guide rails
- Preloaded backlash-free ball guides
- Exceptional rigidity and positioning accuracy
- Four protective bellows for guide protection
Feed Screw System
Precision trapezoidal thread spindles ensure accurate positioning and reliable performance.
- Trapezoidal feed screws on all axes
- Adjustable bronze double nuts
- Scale ring accuracy: 0.05 mm
- Z-axis counterbalance adjustment system
Optional ball screw upgrades are available for applications requiring enhanced positioning accuracy, reduced backlash and increased efficiency.
Spindle & Tool Holder
The MT2 spindle system provides excellent versatility for a wide range of tooling applications.
- MT2 spindle taper
- M10 drawbar thread
- Spindle runout accuracy: 0.01 mm
- Optional forward and reverse spindle rotation
- Suitable for thread cutting applications

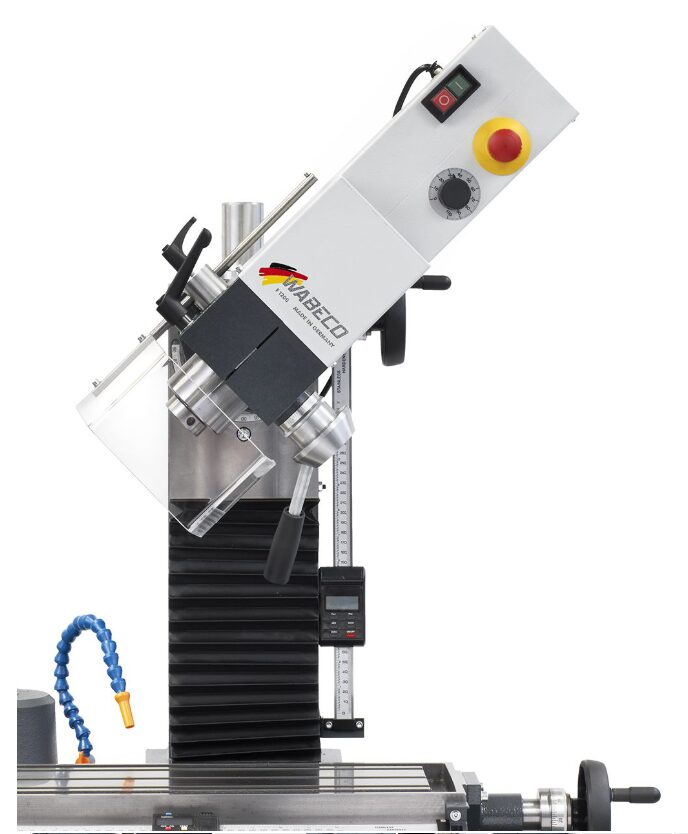

Milling Head

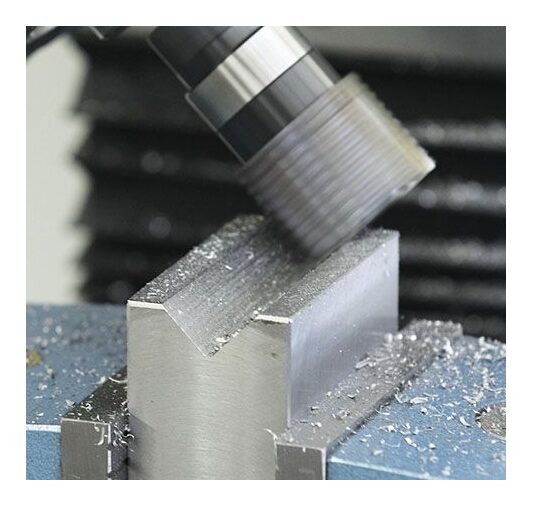

- Head swivels from -90° to +90°
- Large angle scale for precise positioning
- Precision indexing system
- Integrated safety guard
Quill & Fine Feed System
The integrated quill assembly allows the machine to perform both drilling and milling operations efficiently.
- 55 mm quill stroke
- Built-in drilling depth stop
- Full-surface quill clamping system
- Fine feed control in the Z-axis
- Quill scale accuracy: 0.1 mm
Machine Construction
The machine is constructed from ribbed grey cast iron components designed to minimise vibration and maximise machining stability.
- Cast iron column and base assembly
- Precision spindle bearing arrangement
- Wide toothed belt drive system
- Quiet and smooth operation
- Axis locking system for improved surface finish quality
Machine Accuracy
- Manufactured to DIN 8615 standards
- Spindle runout accuracy: 0.01 mm
- Feed scale accuracy: 0.05 mm
- Quill scale accuracy: 0.1 mm
Dimensions & Weight
- Machine dimensions: 940 x 890 x 770 mm
- Machine weight: 118 kg
Demonstration Machine
This demonstration machine is approximately four weeks old and has been geometrically measured and supplied with a test report. As demonstration machines are individual units, availability is subject to prior sale.
Warranty & Support
- 5-year manufacturer warranty (excluding wear parts)
- Long-term spare parts availability guaranteed
