The isel FlatCom® L is a high-performance CNC milling machine designed for large-format panel processing, automation and precision machining applications. Combining a rigid moving gantry design, large machining areas and advanced servo control technology, the FlatCom® L delivers exceptional stability, precision and flexibility for demanding industrial production environments.
Highlights
- Large table clamping surface up to 5.85 m²
- Large processing area up to 2.5 x 1.7 metres
- High gantry clearance up to 470 mm
- Fixed table with movable gantry design
Details
CNC Machine
Universal CNC machine – FlatCom® L
Machine Type
Universal CNC machine
Suitable Materials
- Foams
- EVA foam
- Plastics
Applications
- Automation
- Dosing

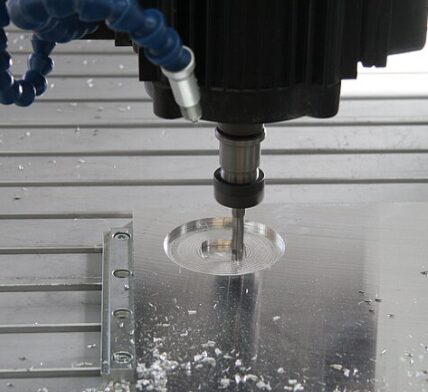

- Milling
Industries & Areas of Application
- Mould and prototype construction
- Medical technology
- Mechanical engineering
- Research & Development
- Automotive
Features
The FlatCom® L is equipped with a powerful isel CNC control system using maintenance-free servo motors for highly precise and reliable operation. Reliable LES linear units with precision steel ball screw drives provide smooth axis movement and excellent positioning accuracy.
The machine includes a height-adjustable CNC operating panel, a network-compatible Windows control PC and a sliding/folding door system for convenient access to the machining area.
Workpieces are securely clamped using a large T-slot plate system, while various gantry clearance options and extended Z-axis configurations allow the machine to support larger and more demanding applications.
Machine Design
The FlatCom® L is designed specifically for large-format panel processing applications involving aluminium, non-ferrous metals, wood and plastics.
With a maximum traverse range of up to 2500 x 1700 mm, the FlatCom® L is the largest standard CNC machine within the isel product range.
The machine uses a proven FlatCom series structure with a movable gantry, fixed machine table and gantry drive system to deliver exceptional rigidity, stability and dynamic machining performance.
The mechanical structure combines stable, low-vibration aluminium-steel connections with backlash-free ball screw drives on all linear axes to ensure highly accurate machining and long-term reliability.
An optional double Z-axis configuration enables parallel machining operations for increased productivity during demanding industrial applications.
Options & Accessories

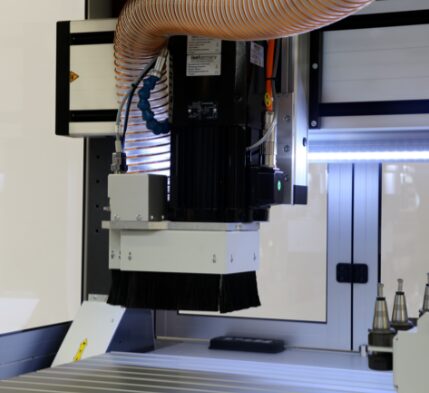

Milling Spindles
A wide range of iSA milling spindles and water-cooled high-frequency milling spindles are available for different machining applications and materials.

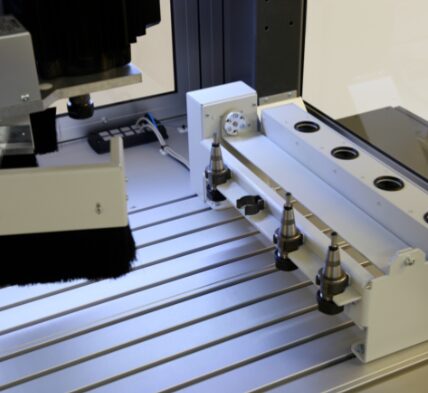

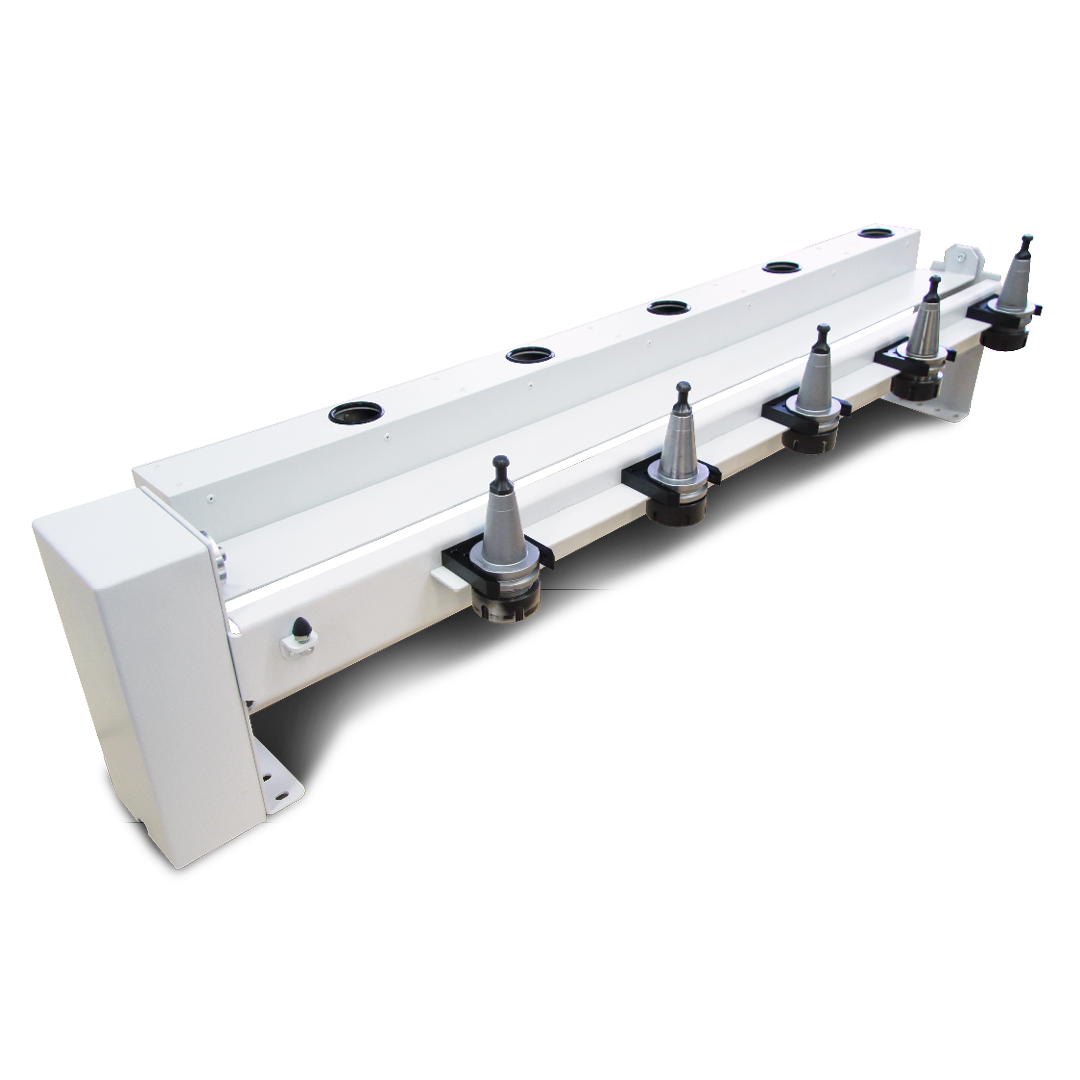

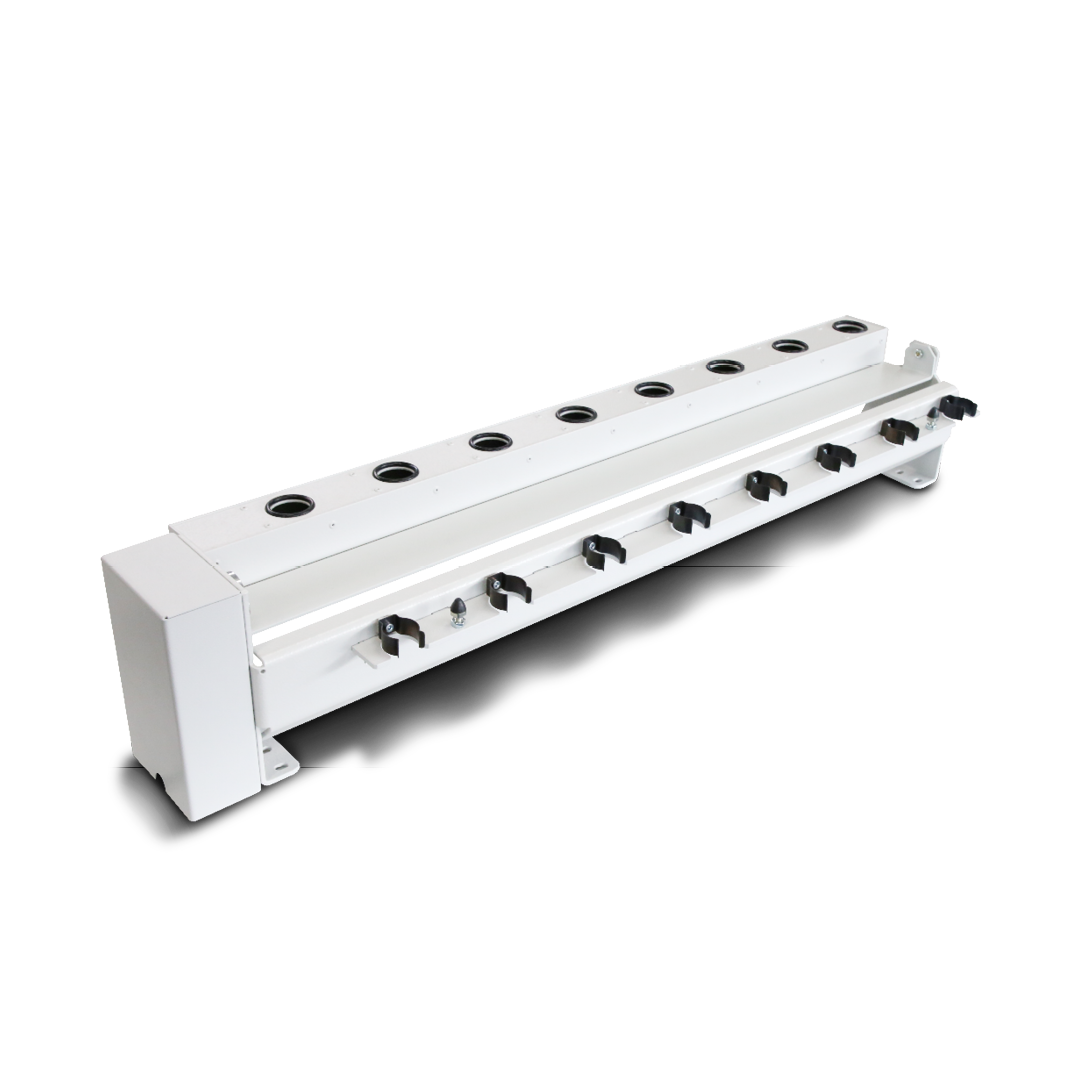

Tool Changing Systems
Optional round and linear tool changing stations support automated multi-tool machining processes.
Cooling Systems
Optional cooling spray systems and Cool-Min cold air cooling systems improve machining performance and tool life.

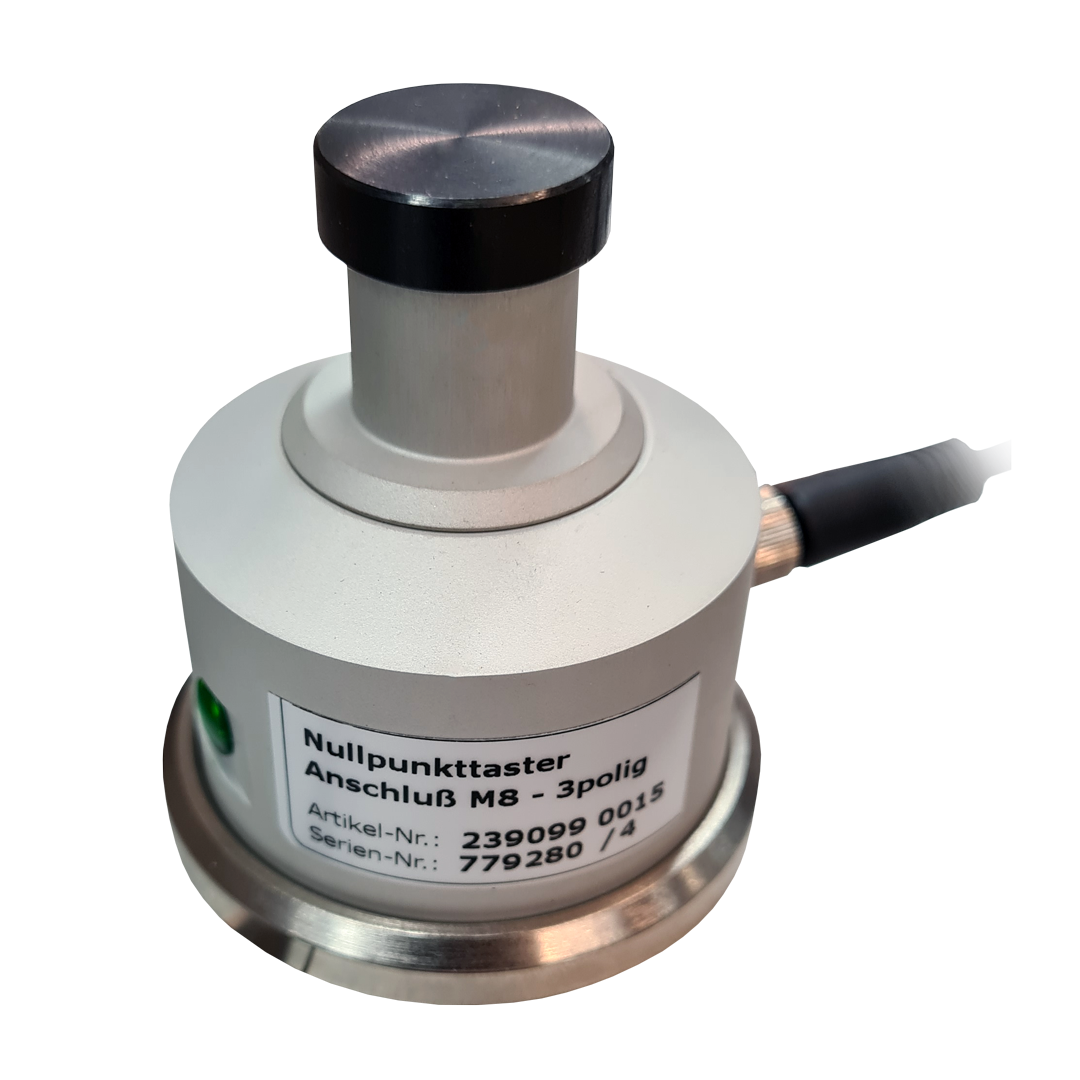

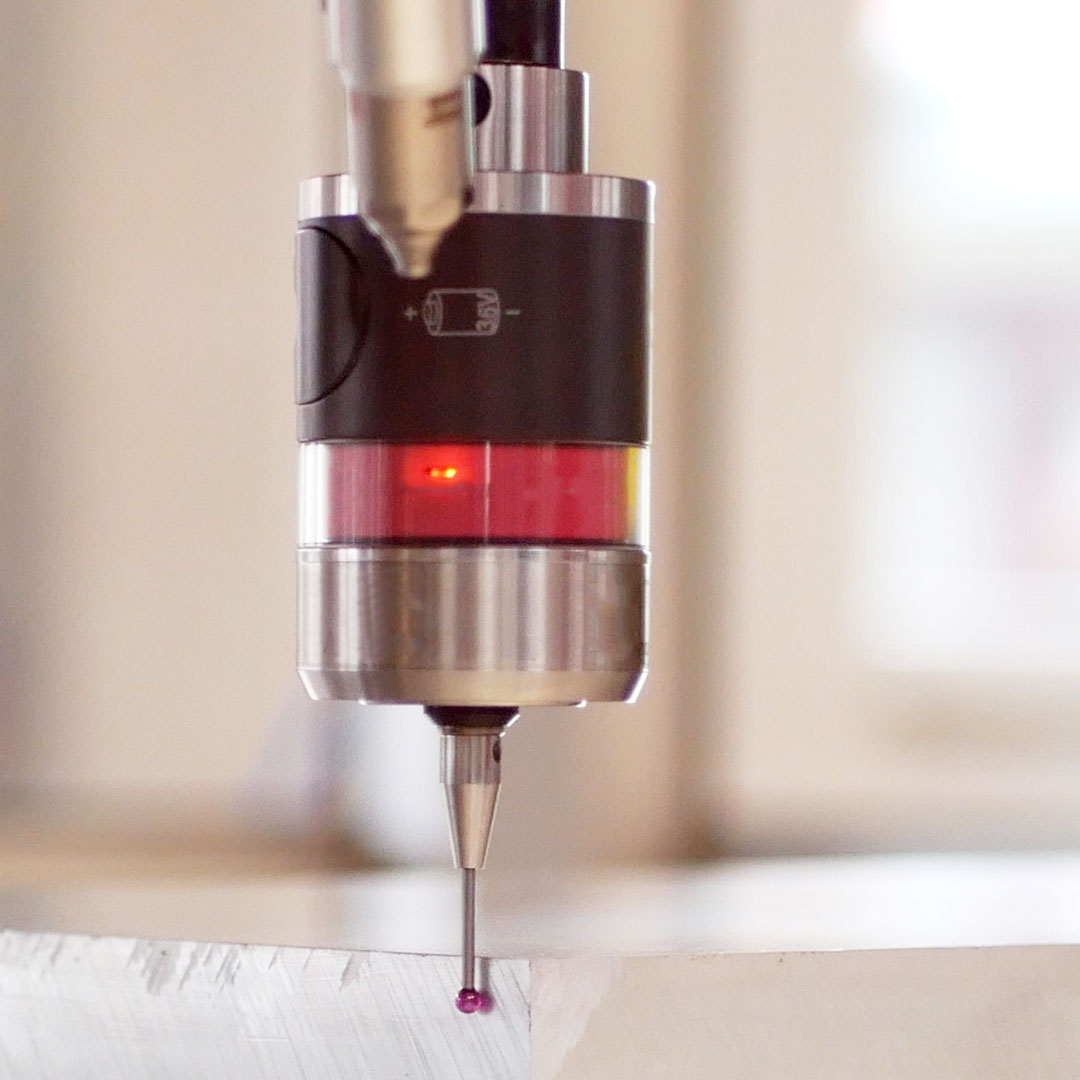

Automatic Tool Length Measurement
An optional automatic tool measurement system improves setup accuracy and machining efficiency.
Milling Cutter Breakage Control
An optional tool breakage monitoring system improves process reliability and production safety.

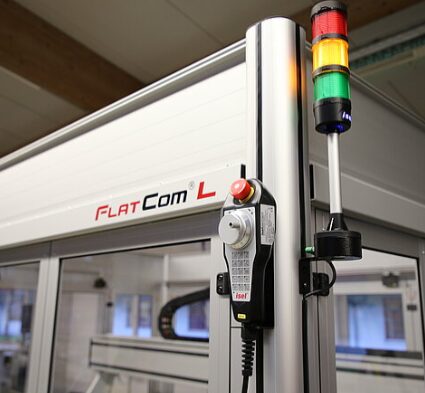

Electronic Handwheel
An optional electronic handwheel allows manual axis movement and precise setup adjustments.
Pneumatic Sliding Door
An optional pneumatic sliding door system improves accessibility and supports automated production environments.

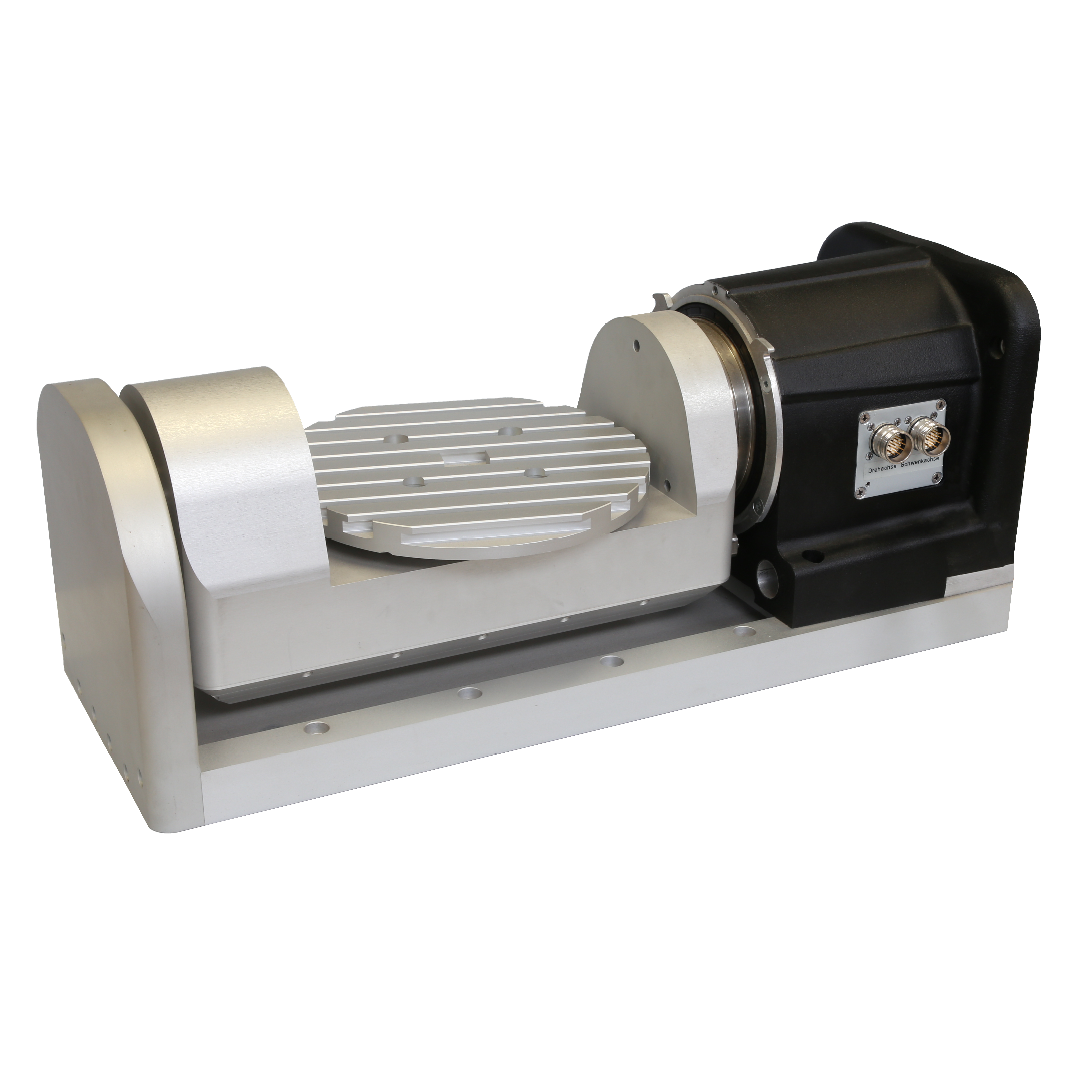

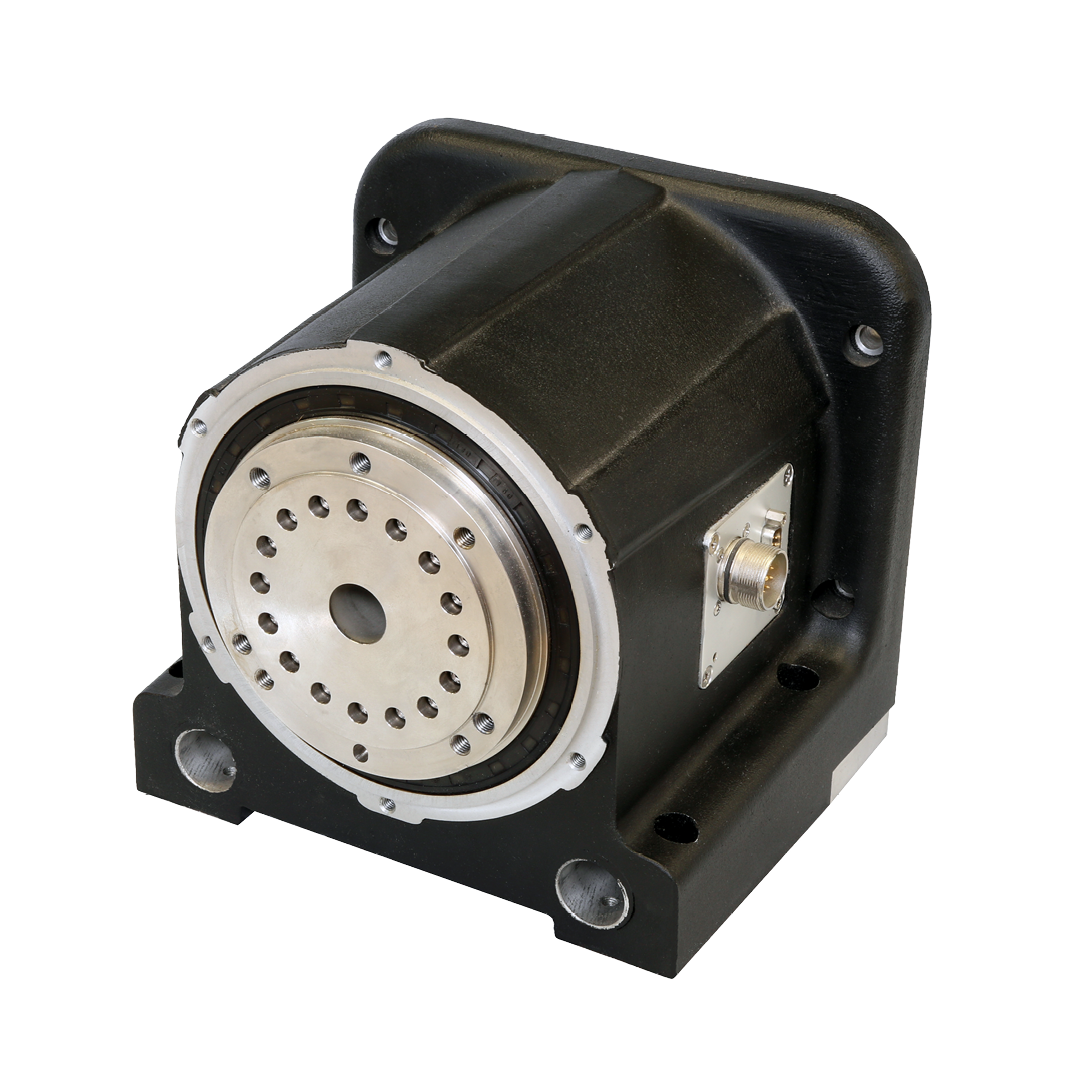

Rotation Units
Optional rotary units enable advanced multi-axis machining applications.
Extended Axis Configuration
The machine can be configured with up to 6 interpolating axes plus 6 additional handling axes for highly specialised automation and production tasks.
Safety Light Curtain
An optional safety light curtain system enhances operator safety during machine operation.
Closed or Light-Tight Bonnet
Optional enclosed or light-tight bonnet systems are available for laser processing applications.
Bonnet Attachment
An optional bonnet extension increases gantry clearance for taller workpieces and specialised applications.

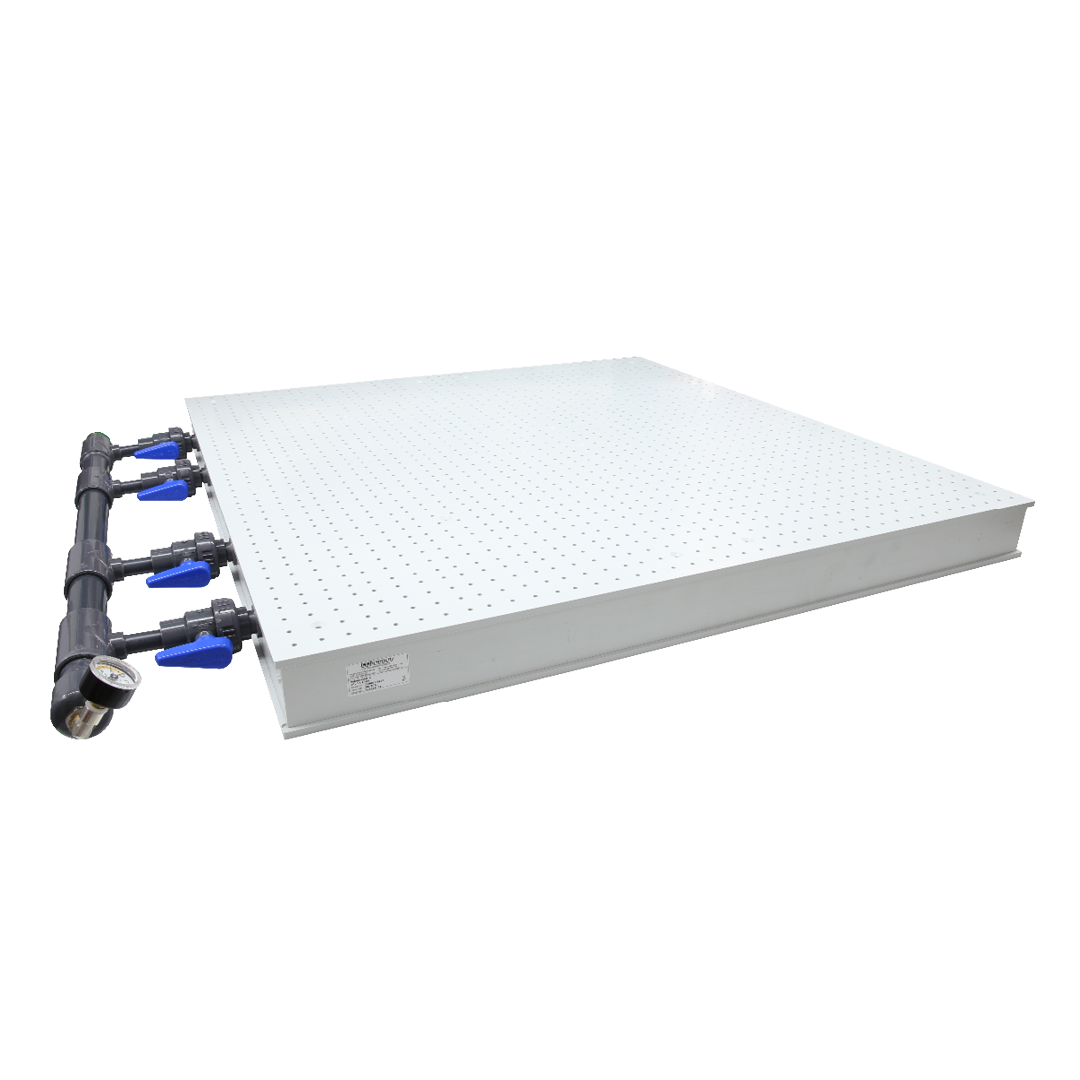

Workpiece Clamping Systems
Various optional clamping systems are available including hand lever fixtures and vacuum clamping tables.
Extraction Systems
Optional extraction systems help maintain a cleaner working environment during machining operations.
LED Machine Room Lighting
Optional LED lighting improves visibility within the machining area.
RAL Colour Selection
Custom RAL colour configurations are available to suit specific workshop or branding requirements.
PC Control Panel
An optional PC control panel with free PCI slots allows integration of additional external PCI hardware systems.
Interface Customisations
Optional interface customisations enable integration with external systems and specialised applications.
CAD/CAM Software
Optional CAD/CAM software solutions are available to support programming and machining workflows.
Applications & Performance
The FlatCom® L is designed for demanding large-format machining applications requiring high precision, flexibility and reliability across industrial production, research and development and automation environments.
The machine is available in multiple configurations and can also be integrated with handling systems from the isel robotics range, allowing highly customised production and automation solutions.
Its large processing area, rigid gantry structure and extensive accessory range make it ideal for large workpieces, panel processing and advanced industrial manufacturing tasks.
