The isel FlatCom® M is a highly versatile CNC machine designed for precision milling, dosing, measuring and testing applications. Combining a rigid machine structure, advanced servo control technology and extensive configuration flexibility, the FlatCom® M delivers exceptional accuracy, reliability and value for demanding industrial, research and educational environments.
Highlights
- Suitable for milling, dosing, measuring and testing applications
- Excellent price-performance ratio
- Ideal entry-level gantry machine solution
- Available in four machine sizes
Details
CNC Machine
Universal CNC machine – FlatCom® M
Machine Type
Universal CNC machine
Suitable Materials
- Foams
- EVA foam
- Plastics
Applications
- Automation
- Dosing
- Milling
Industries & Areas of Application
- Mould and prototype construction
- Education and training
- Research & Development
Features

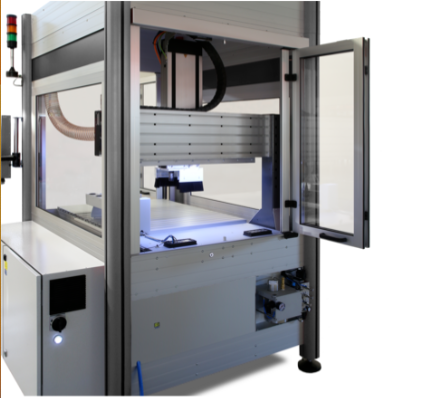

The FlatCom® M features a fully enclosed bonnet design and is equipped with a powerful isel CNC control system using maintenance-free brushless servo motors for precise and reliable operation.
Reliable LES linear units with precision steel ball screw drives provide smooth axis movement and highly accurate positioning performance. The machine also includes a height-adjustable CNC operating panel and a network-compatible Windows control PC.
The sliding and folding door system allows convenient access to the work area, while workpieces are securely clamped using a T-slot plate system.
The machine is prepared for digital and analogue I/O modules, allowing flexible integration into automation and specialised production environments.
Machine Design
The FlatCom® M series is designed as a high-precision gantry machine platform suitable for demanding milling and dosing applications.
All linear axes are mounted on hardened precision steel shafts with linear ball bearings to achieve exceptionally smooth and accurate movement.
Backlash-free ball screw drives ensure maximum positioning accuracy, while the powerful brushless servo motors are integrated into service-friendly drive modules for efficient and reliable machine operation.
The machine is available with a standard gantry aperture of 250 mm, with an optional 350 mm gantry clearance available for larger workpieces and applications.
Advanced Servo Control
The FlatCom® M uses isel’s own advanced servo control system with integrated look-ahead path functionality. This technology enables highly precise contour movement and allows customised machine solutions to be developed for specialised customer applications.
Options & Accessories
Milling Spindles
A wide range of iSA milling spindles and water-cooled high-frequency milling spindles are available for different machining applications and materials.

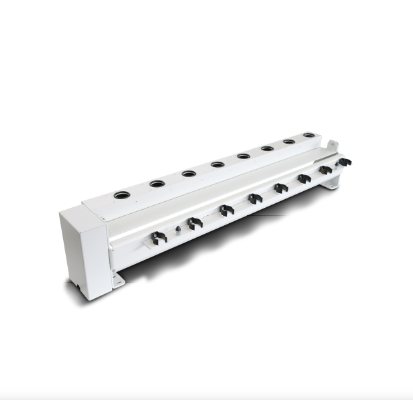

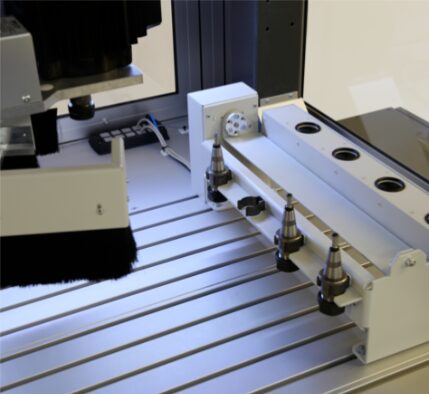

Tool Changing Systems
Optional round and linear tool changing stations support automated multi-tool machining processes.

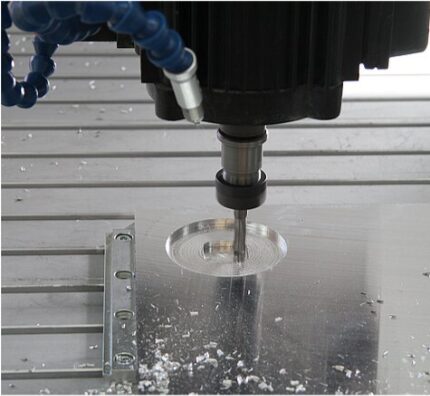

Cooling Systems
Optional cooling spray systems and Cool-Min cold air cooling systems improve machining performance and tool life.

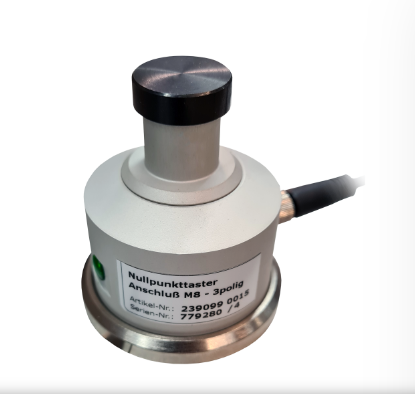

Automatic Tool Length Measurement
An optional automatic tool measurement system improves setup accuracy and machining efficiency.
Milling Cutter Breakage Control
An optional tool breakage monitoring system improves process reliability and production safety.
Electronic Handwheel
An optional electronic handwheel allows manual axis movement and precise setup adjustments.
Pneumatic Sliding Door
An optional pneumatic sliding door system improves accessibility and supports automated production environments.

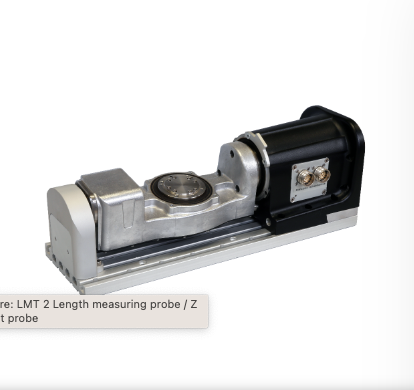

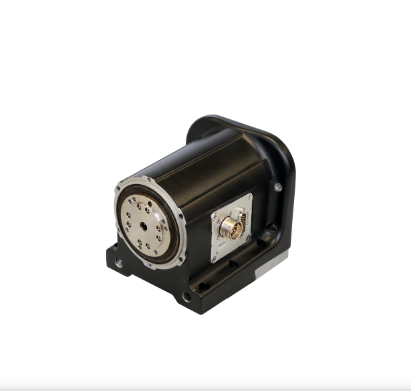

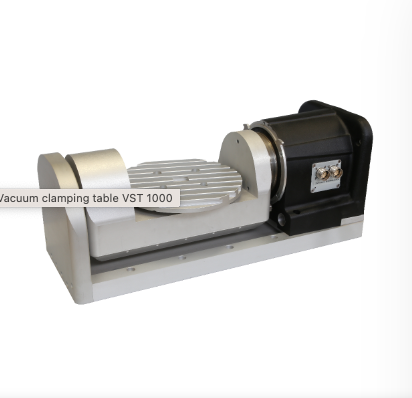

Rotation Units
Optional rotary units enable advanced multi-axis machining applications.
Extended Axis Configuration
The machine can be configured with up to 6 interpolating axes plus 6 additional handling axes for highly specialised automation and production tasks.
Safety Light Curtain
An optional safety light curtain system enhances operator safety during machine operation.
Bonnet Attachment
An optional bonnet extension increases gantry clearance for taller workpieces and specialised applications.

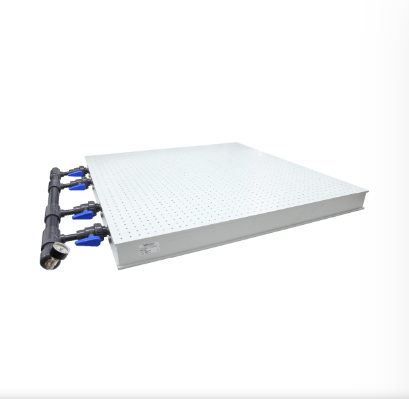

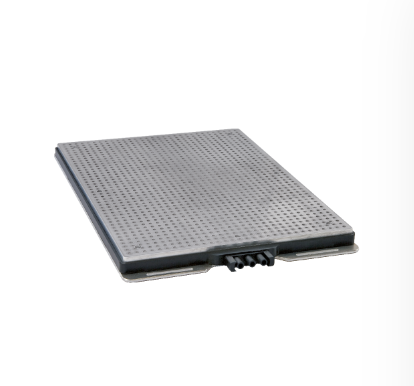

Workpiece Clamping Systems
Various optional clamping systems are available including hand lever fixtures and vacuum clamping tables.

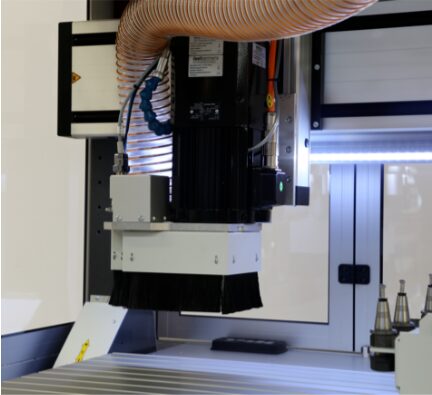

Extraction Systems
Optional extraction systems help maintain a cleaner working environment during machining operations.
LED Machine Room Lighting
Optional LED lighting improves visibility within the machining area.
RAL Colour Selection
Custom RAL colour configurations are available to suit specific workshop or branding requirements.
PC Control Panel
An optional PC control panel with free PCI slots allows integration of additional external PCI hardware systems.
Interface Customisations
Optional interface customisations enable integration with external systems and specialised applications.

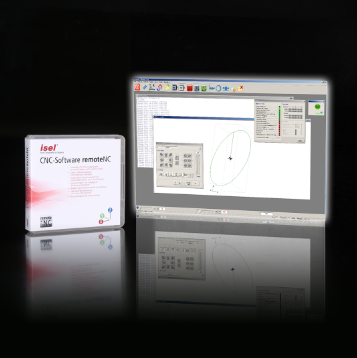

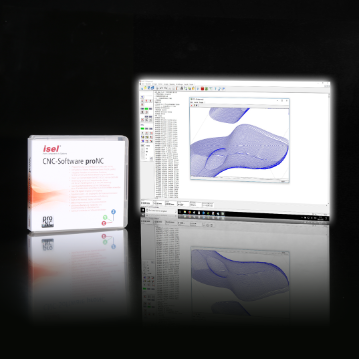

CAD/CAM Software
Optional CAD/CAM software solutions are available to support programming and machining workflows.
Applications & Performance
The FlatCom® M series is ideal for demanding industrial milling, dosing and automation applications requiring high precision, reliability and flexible machine configuration.
Its modular design, advanced servo control technology and extensive accessory range make it suitable for research facilities, educational environments, prototype development and industrial production applications.
