FLATCOM XL

The isel FlatCom XL is a high-performance CNC milling machine designed for demanding heavy-duty machining, automation and large-format production applications. Combining a robust gantry construction, extended traverse ranges and advanced servo control technology, the FlatCom XL delivers exceptional precision, rigidity and reliability for industrial machining environments.
Flatcom XL

Highlights

  • Designed for heavy machining applications
  • Windows-based software platform
  • Gantry drive system with large traverse paths
  • Available in five machine sizes

Details

CNC Machine Universal CNC machine – FlatCom XL Machine Type Universal CNC machine Industries & Areas of Application
  • Automotive
  • Mould and prototype construction
  • Medical technology
  • Mechanical engineering
  • Research & Development
Suitable Materials
  • Foams
  • Plastics
Applications
  • Automation
  • Dosing
  • Milling

Features

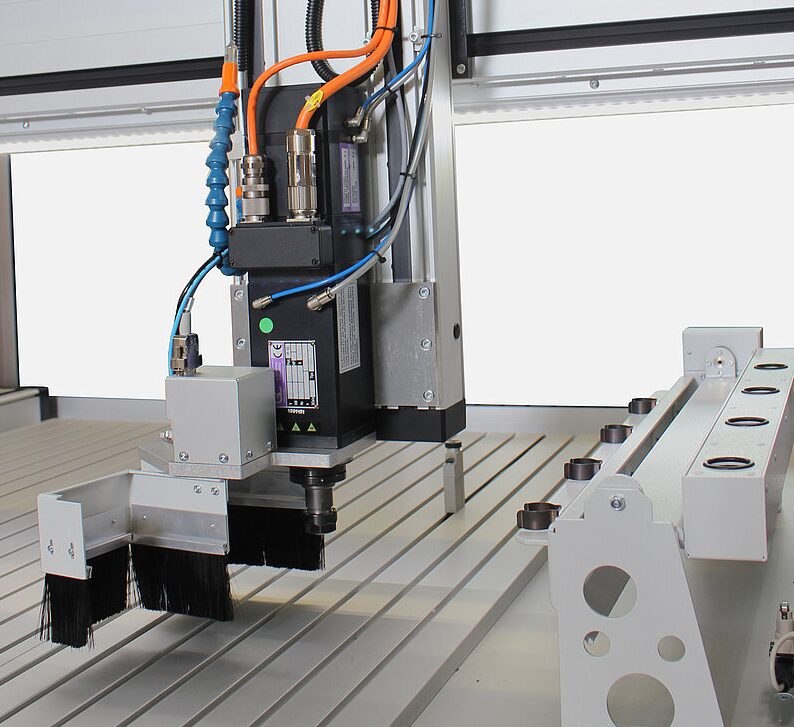

The FlatCom XL is equipped with a powerful isel CNC control system using maintenance-free servo motors for highly accurate and reliable machine operation. Reliable LES linear units with precision steel ball screw drives provide smooth movement and precise positioning across all linear axes. The machine includes a height-adjustable CNC operating panel, a network-compatible Windows control PC and a sliding/folding door system for convenient access to the machining area. Various gantry clearance configurations and extended Z-axis options allow the machine to support a wide range of large-format machining applications. Workpieces are securely clamped using a T-slot plate system designed for stable and flexible workholding.

Machine Design

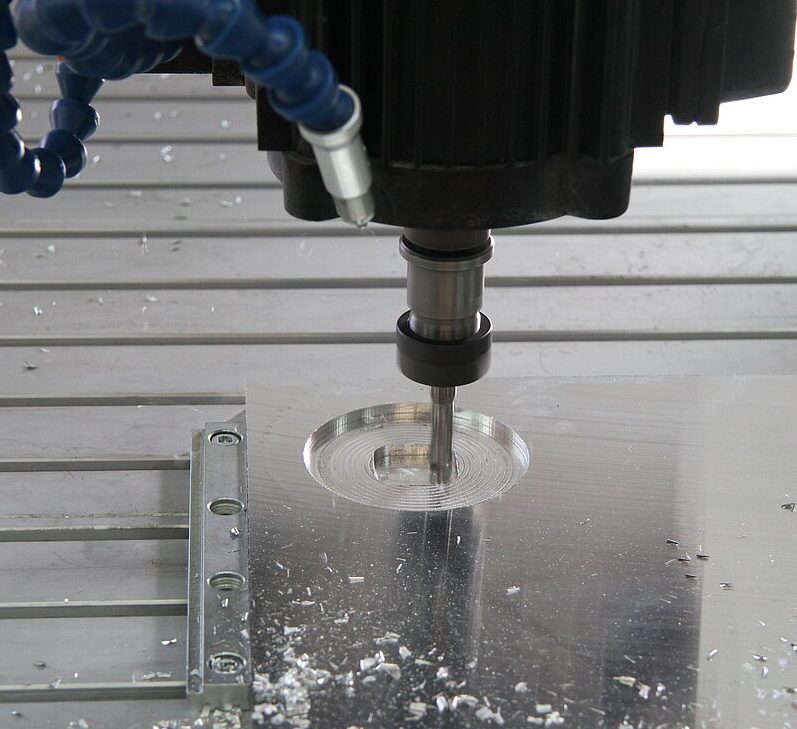

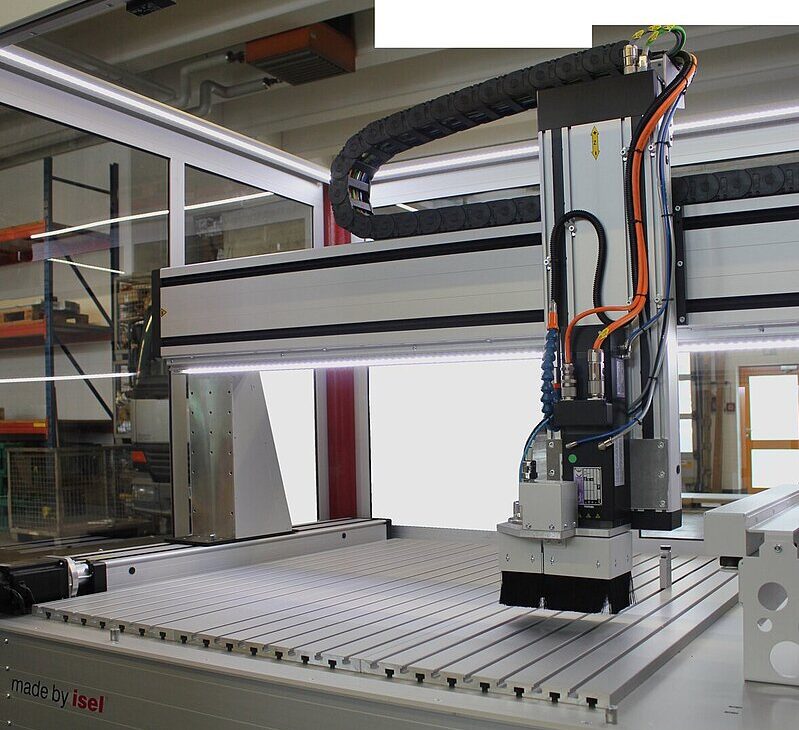

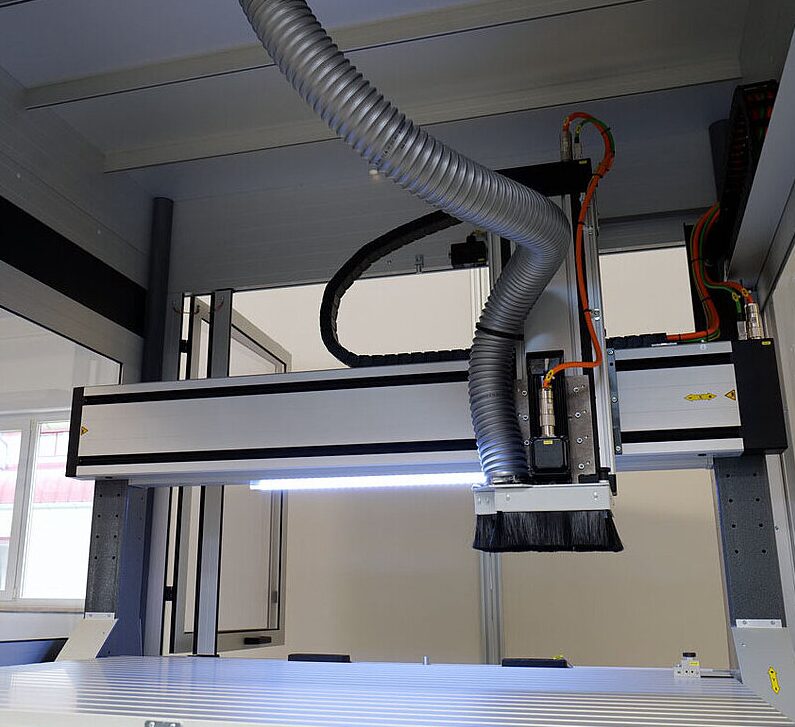

The FlatCom XL CNC milling machine is specifically designed for machining non-ferrous metals including aluminium, brass and bronze, particularly where large traverse distances exceeding 2000 mm are required. The machine uses a robust gantry design where the traversing unit is mounted directly onto the machine table surface. This construction provides exceptional rigidity and a seamless connection to the reinforced machine frame. The stable machine structure ensures low-vibration operation even at high machining speeds, helping to achieve consistently high machining quality and precision. The FlatCom XL combines large working areas, heavy-duty machining capability and highly reliable machine dynamics within a flexible industrial CNC platform.

Options & Accessories

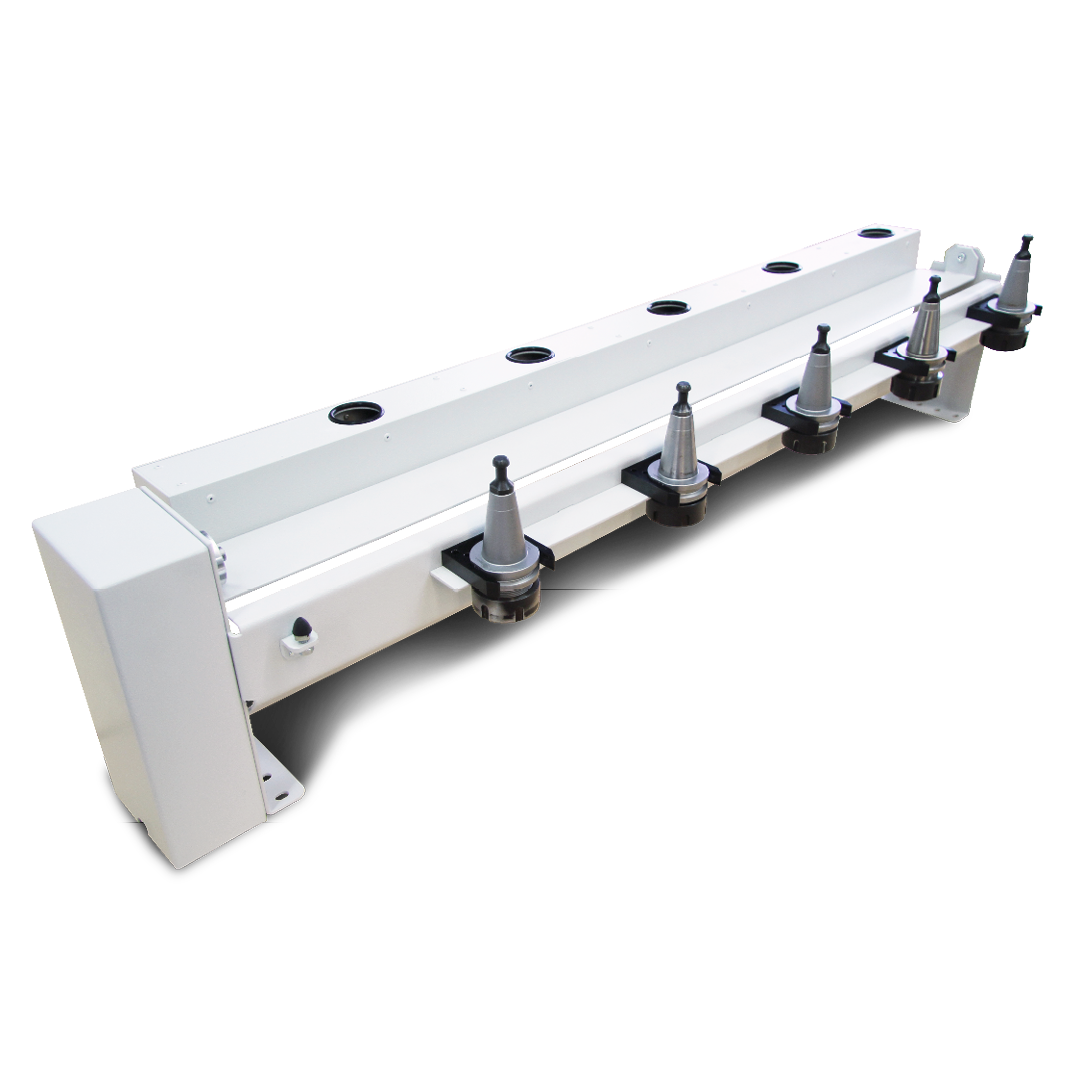

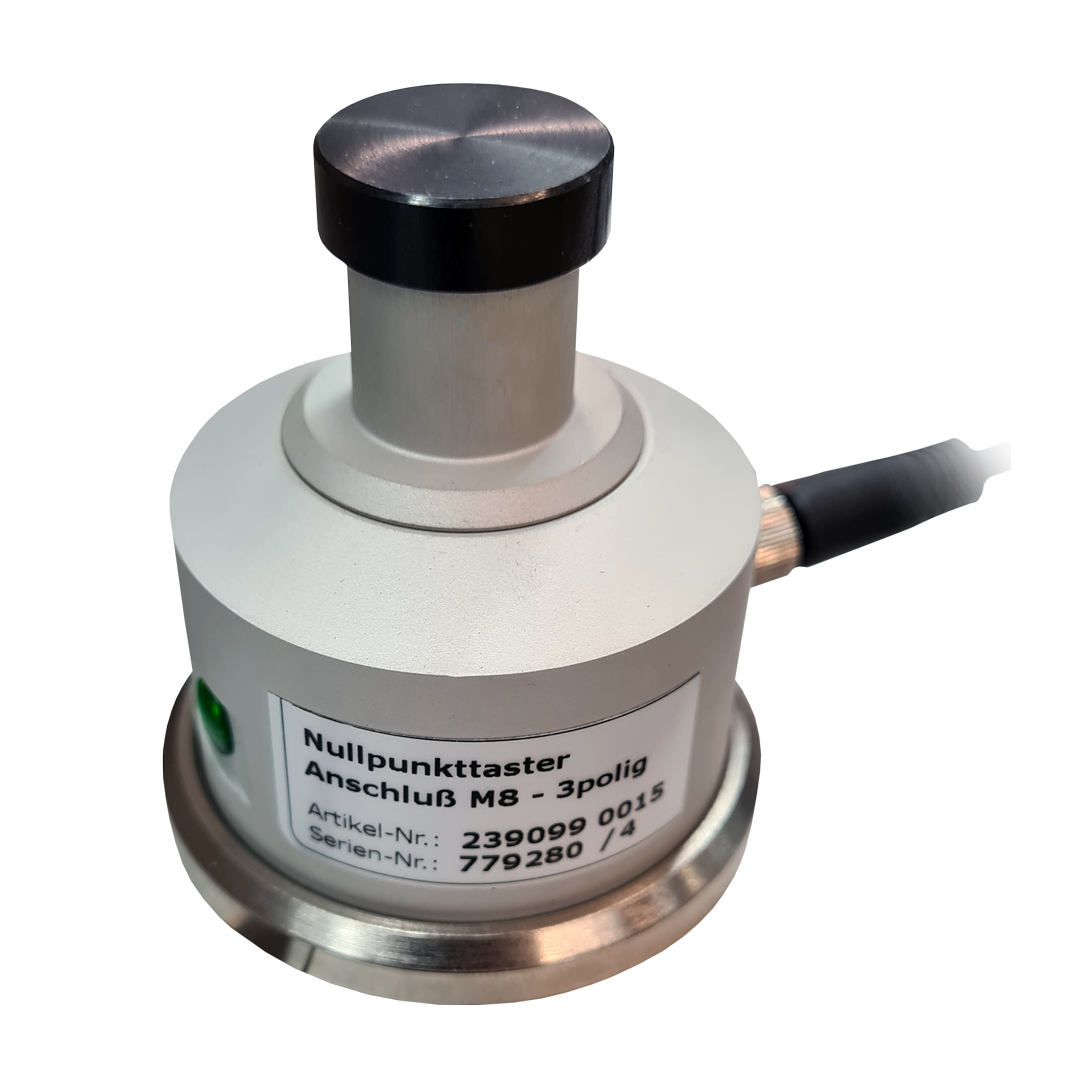

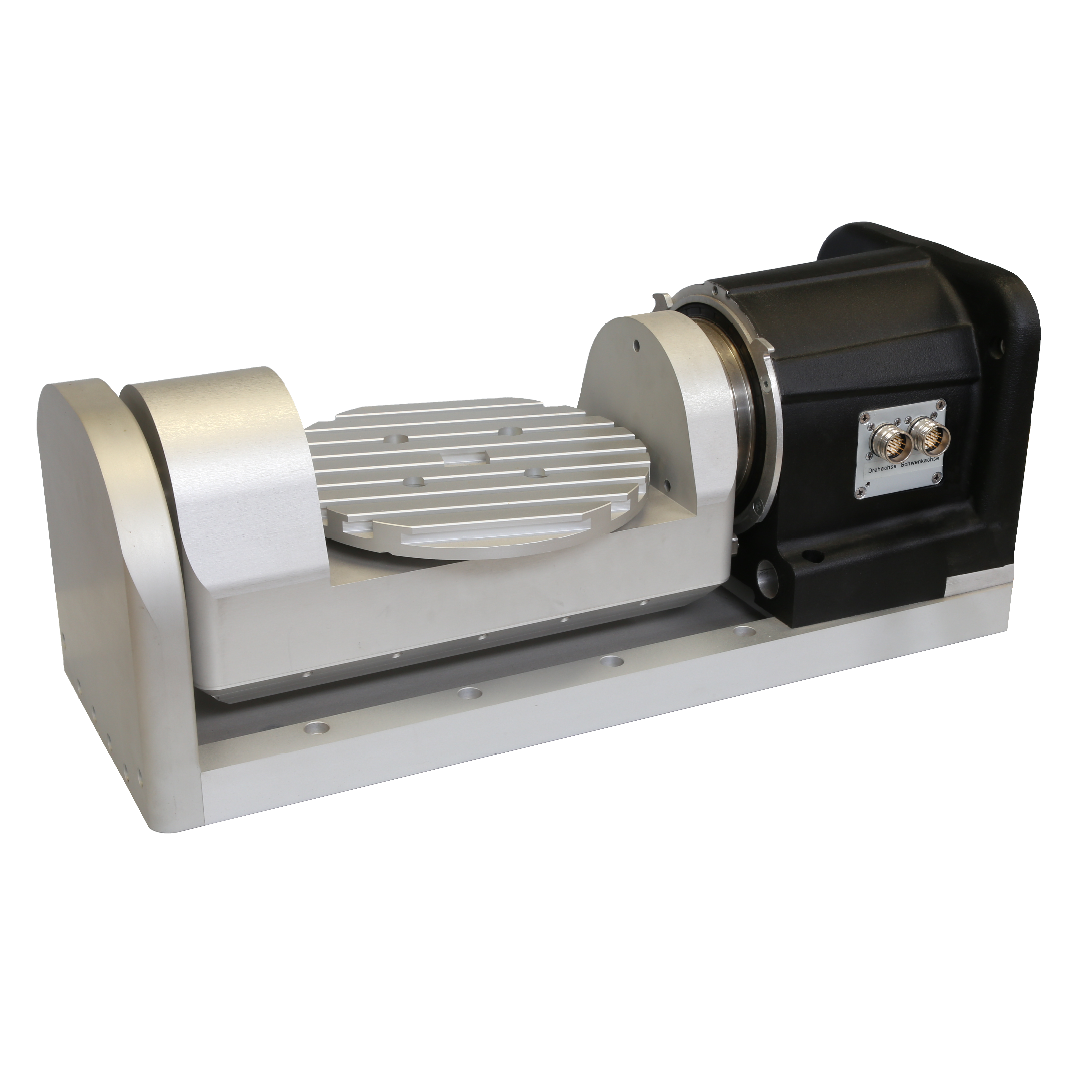

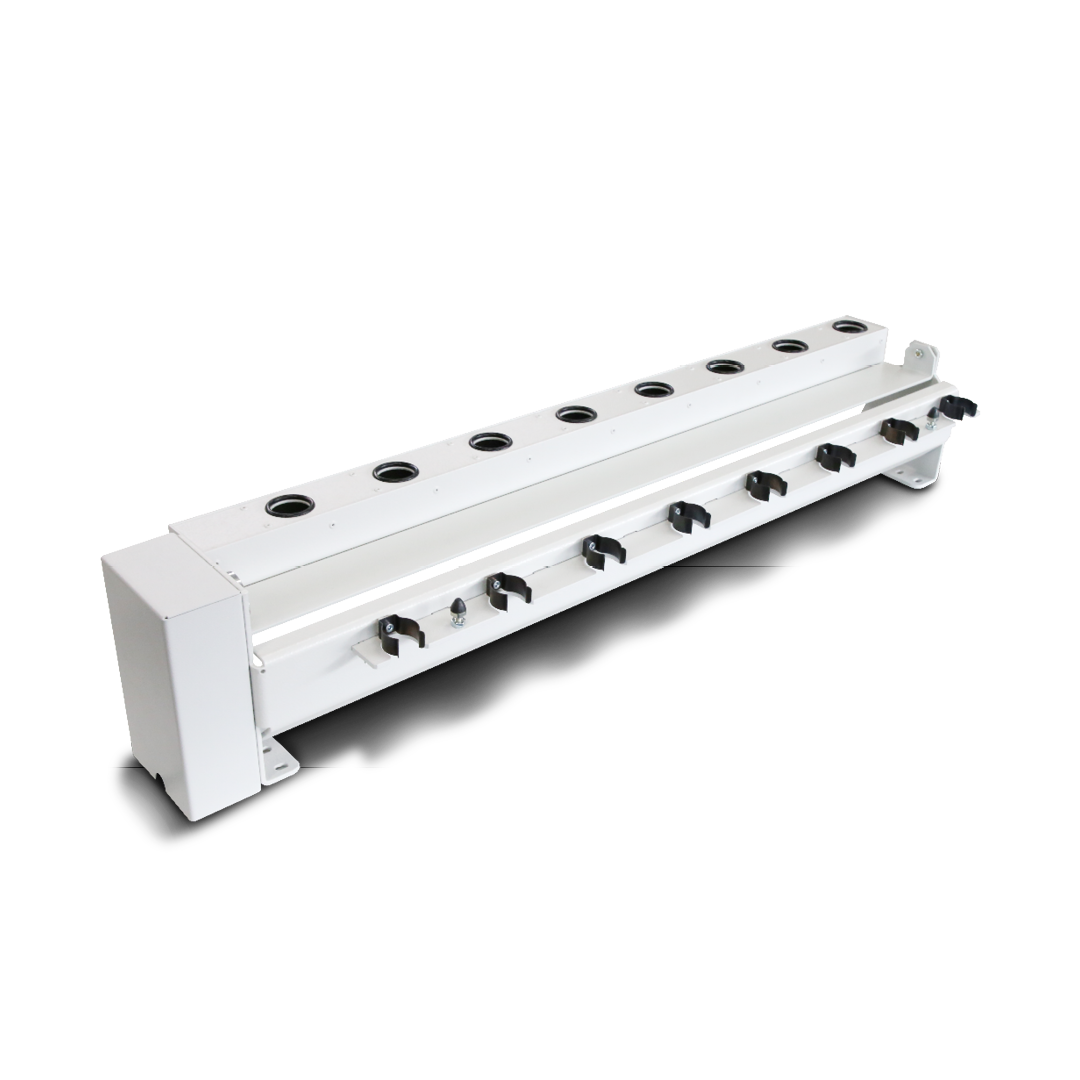

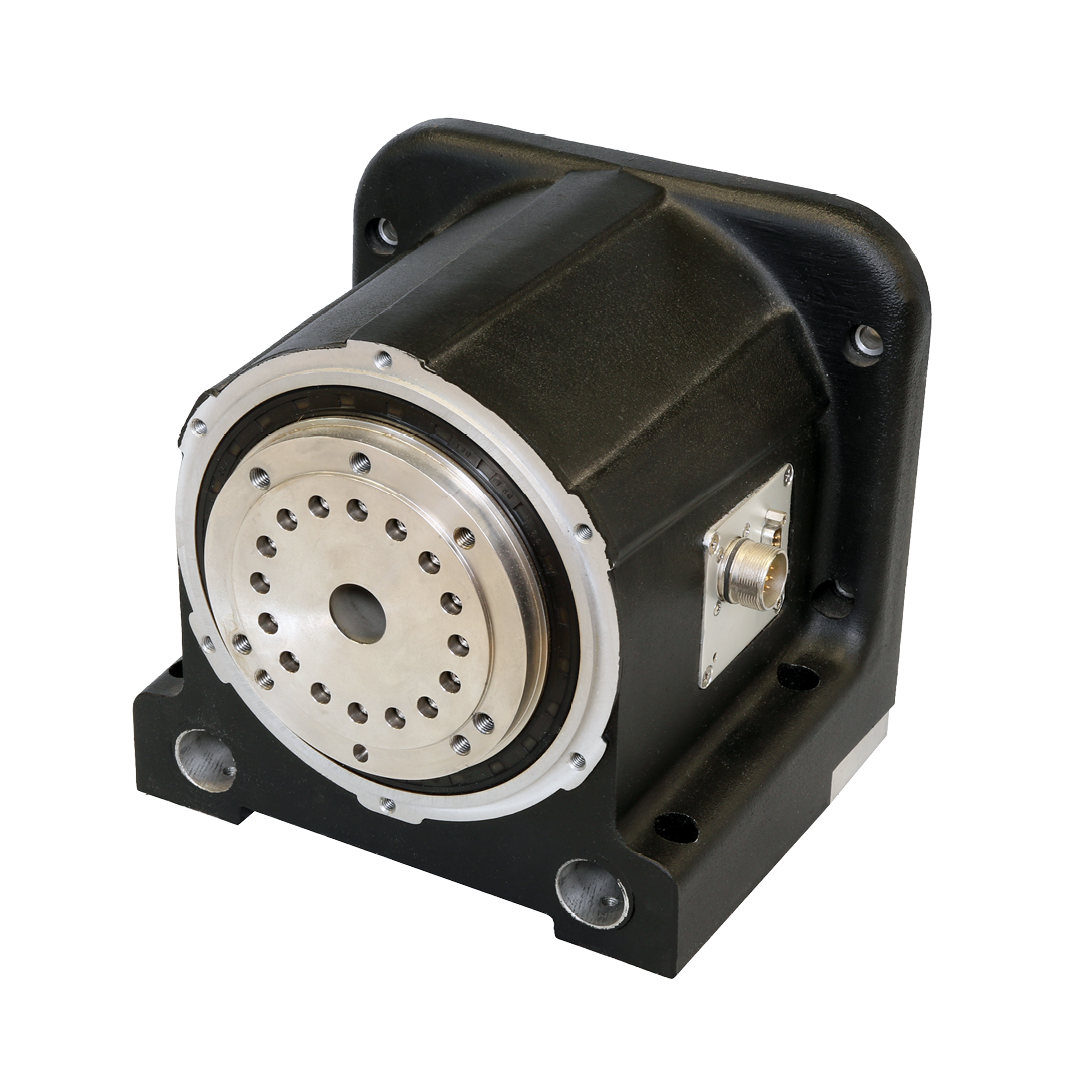

Milling Spindles A wide range of iSA milling spindles and water-cooled high-frequency milling spindles are available for different machining applications and materials. Tool Changing Systems Optional round and linear tool changing stations support automated multi-tool machining processes. Cooling Systems Optional cooling spray systems and Cool-Min cold air cooling systems improve machining performance and tool life. Automatic Tool Length Measurement An optional automatic tool measurement system improves setup accuracy and machining efficiency. Milling Cutter Breakage Control An optional tool breakage monitoring system improves process reliability and production safety. Electronic Handwheel An optional electronic handwheel allows manual axis movement and precise setup adjustments. Pneumatic Sliding Door An optional pneumatic sliding door system improves accessibility and supports automated production environments. Rotation Units Optional rotary units enable advanced multi-axis machining applications. Extended Axis Configuration The machine can be configured with up to 6 interpolating axes plus 6 additional handling axes for highly specialised automation and production tasks. Safety Light Curtain An optional safety light curtain system enhances operator safety during machine operation. Closed or Light-Tight Bonnet Optional enclosed or light-tight bonnet systems are available for laser processing applications. Bonnet Attachment An optional bonnet extension increases gantry clearance for taller workpieces and specialised applications. Workpiece Clamping Systems Various optional clamping systems are available including hand lever fixtures and vacuum clamping tables. Extraction Systems Optional extraction systems help maintain a cleaner working environment during machining operations. LED Machine Room Lighting Optional LED lighting improves visibility within the machining area. RAL Colour Selection Custom RAL colour configurations are available to suit specific workshop or branding requirements. PC Control Panel An optional PC control panel with free PCI slots allows integration of additional external PCI hardware systems. Interface Customisations Optional interface customisations enable integration with external systems and specialised applications. CAD/CAM Software Optional CAD/CAM software solutions are available to support programming and machining workflows.

Applications & Performance

The FlatCom XL is designed for demanding industrial machining applications requiring large traverse ranges, high rigidity and precision machining performance. Its robust gantry structure, heavy-duty machining capability and modular configuration options make it ideal for large-format milling, automation systems, prototype manufacturing and advanced production environments. The machine combines stability, precision and productivity within a highly flexible CNC machining platform capable of meeting complex industrial manufacturing requirements.
