The EMCO Hyperturn 95 is a powerful CNC turning and milling centre engineered for complex complete machining operations, heavy-duty shaft production and large precision components. Featuring dual spindles, dual high-performance tool turrets, advanced C-axis technology and a fully programmable tailstock, the Hyperturn 95 delivers exceptional machining flexibility, precision and productivity for demanding industrial manufacturing applications.
Equipment
The Hyperturn 95 is equipped with main and counter spindles, stable C-axis functionality on both spindles and two powerful tool turrets with driven tooling capability. The machine includes a fully programmable tailstock with MT5 quill for shaft machining applications and is designed for complete machining operations on large and complex components.
Technical Data
Work Area
- Travel with B-axis (X1/X2/Z1/Z2): +540/-10 / 300 / 1300/1900 / 1340/1940 mm
- Travel with tool turret (X1/X2/Z1/Z2): 340 / 300 / 1340/1940 / 1340/1940 mm
- Maximum spindle diameter: 95 mm
- Spindle bore hole: 106 mm
- Maximum turning diameter: 710 mm
- Swing over bed: 720 mm
- Distance between centres: 1700 / 2300 mm
- Rapid traverse speeds X/Y/Z: 1181 / 590 / 1181 ipm
Main Spindle
- Maximum speed: 3500 rpm
- Spindle nose: A2-8
- Maximum drive power: 33 kW
- Maximum torque: 800 Nm
Counter Spindle
- Maximum speed: 3500 rpm
- Spindle nose: A2-8
- Maximum drive power: 33 kW
- Maximum torque: 800 Nm
Tailstock
- Quill diameter: 150 mm
- Inner cone: MT5
- Automatic travel: 1100 / 1600 mm
- Quill travel: 150 mm
Tool Turret
- VDI size: 40 mm
- Number of tools: 12
- Driven tools: 12
- Maximum speed: 4000 rpm
- Maximum drive power: 10.5 kW
- Maximum torque: 40 Nm
Tool Turret 2
- VDI size: 40 mm
- Number of tools: 12
- Driven tools: 12
- Maximum speed: 4000 rpm
- Maximum drive power: 10.5 kW
- Maximum torque: 40 Nm
General Data
- Dimensions (L x W x H): 8705 x 3160 x 2890 mm
- Machine weight: 16500 kg
Highlights
The Hyperturn 95 is designed for advanced complete machining applications with dual spindles, dual turrets and highly accurate C-axis functionality for contour-precise milling and turn-mill operations. The machine features a spacious work area, powerful Y-axis movement, full NC tailstock functionality and spindle diameters up to Ø110 mm for maximum machining flexibility and productivity.

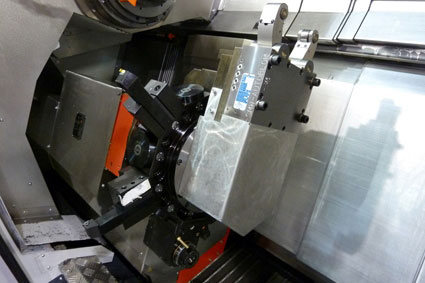

Turret Steady Rest
The hydraulically operated turret steady rest supports workpiece diameters from 8 mm to 125 mm, ensuring maximum flexibility and vibration-free shaft machining performance.

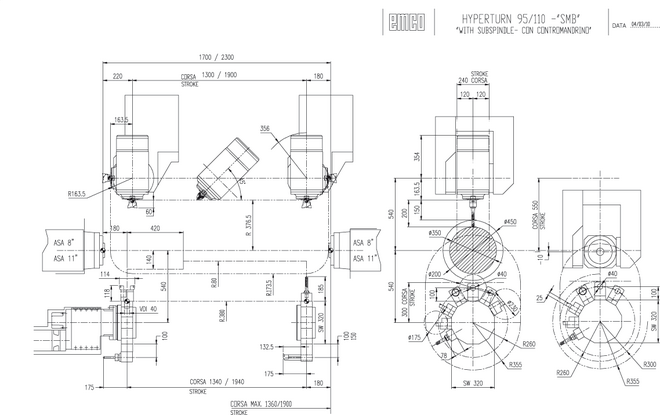

Overall Dimensions & Work Space
The Hyperturn 95 combines a spacious machining envelope with an ergonomically designed work area suitable for large components, shaft machining and demanding complete machining operations.
Versions
Hyperturn 95 SM2
CNC turning centre featuring two spindles, two turrets, five linear axes and two rotational axes with a 2300 mm bed length configuration.

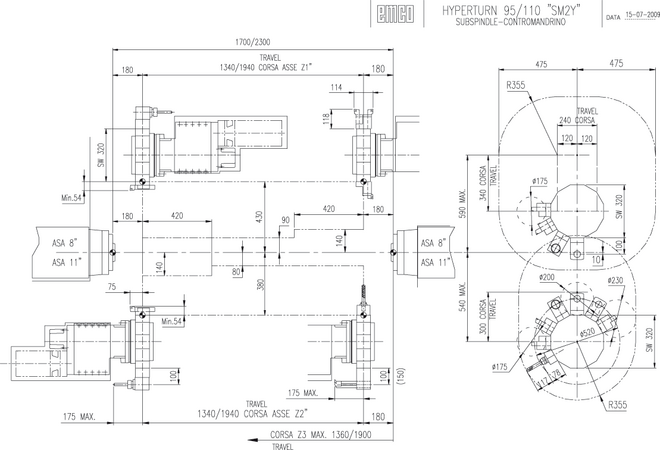

Hyperturn 95 SM2Y
Advanced configuration featuring two spindles, two turrets, six linear axes and two rotational axes with integrated Y-axis functionality and 2300 mm bed length.
Options & Accessories

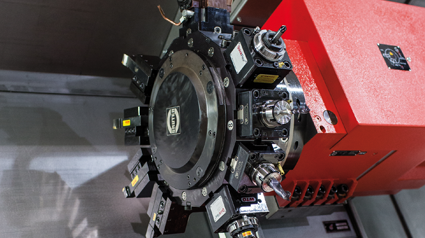

BMT Turret
The optional BMT turret with water-cooled direct drive provides enhanced milling and drilling performance with speeds up to 6000 rpm, torque up to 62 Nm and drive power up to 22 kW for demanding turn-mill applications.

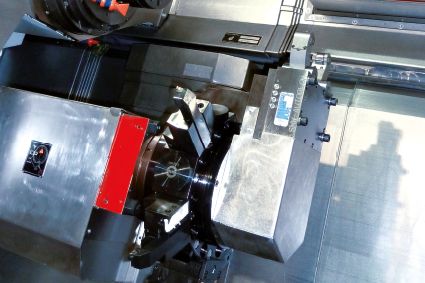

Turret Steady Rest HT 95/110
The lower turret-mounted steady rest system supports long and slender workpieces during machining operations. A live centre can also be mounted to improve shaft stability and machining accuracy.
Software & Control

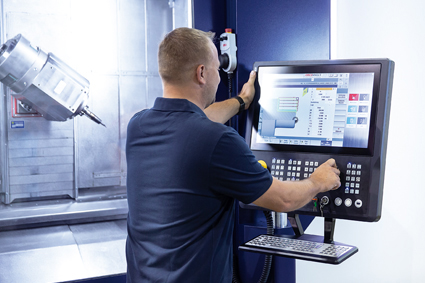

Sinumerik ONE with Operate
The Siemens Sinumerik ONE CNC system combines advanced machining performance with smart manufacturing integration, digital twin technology and highly efficient networking capabilities for modern production environments.
Integrated EMCONNECT functionality allows seamless switching between machine controls and digital production applications while displaying all relevant production data through a full-screen or sidebar interface.

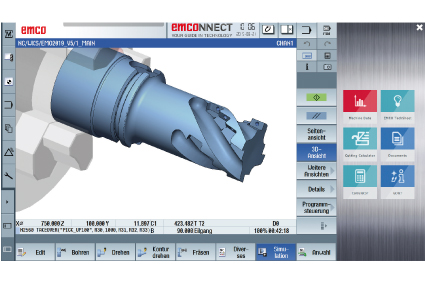

EMCONNECT – Digital Process Assistant
EMCONNECT provides centralised access to machine data, operating modes and production systems through an intuitive 22-inch multi-touch dashboard interface designed to improve productivity and manufacturing efficiency.

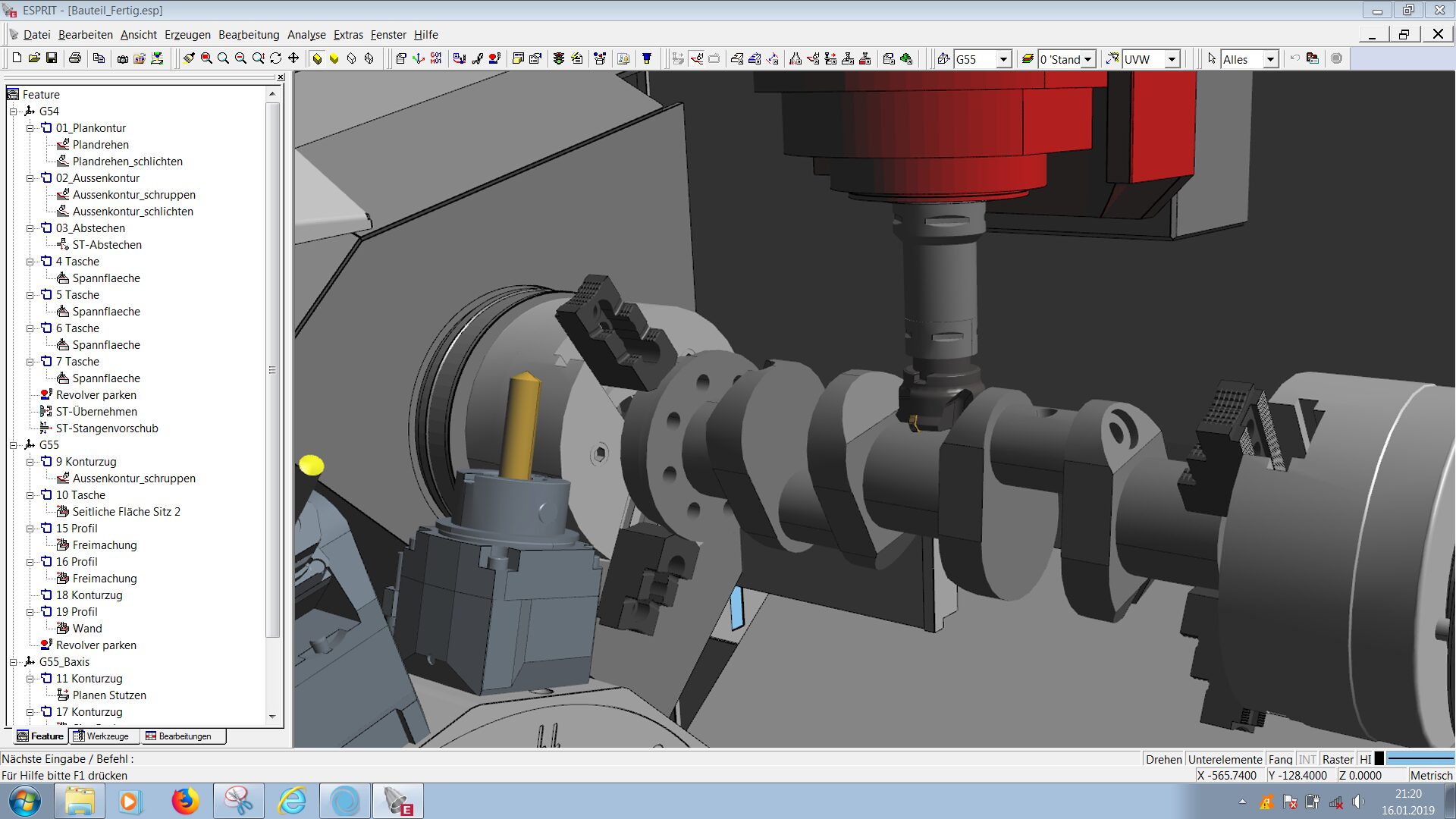

Esprit (Optional)
Esprit CAM software simplifies programming for advanced turn-mill applications through intelligent simulation, collision detection and efficient CNC programming functionality for multi-axis machining environments.

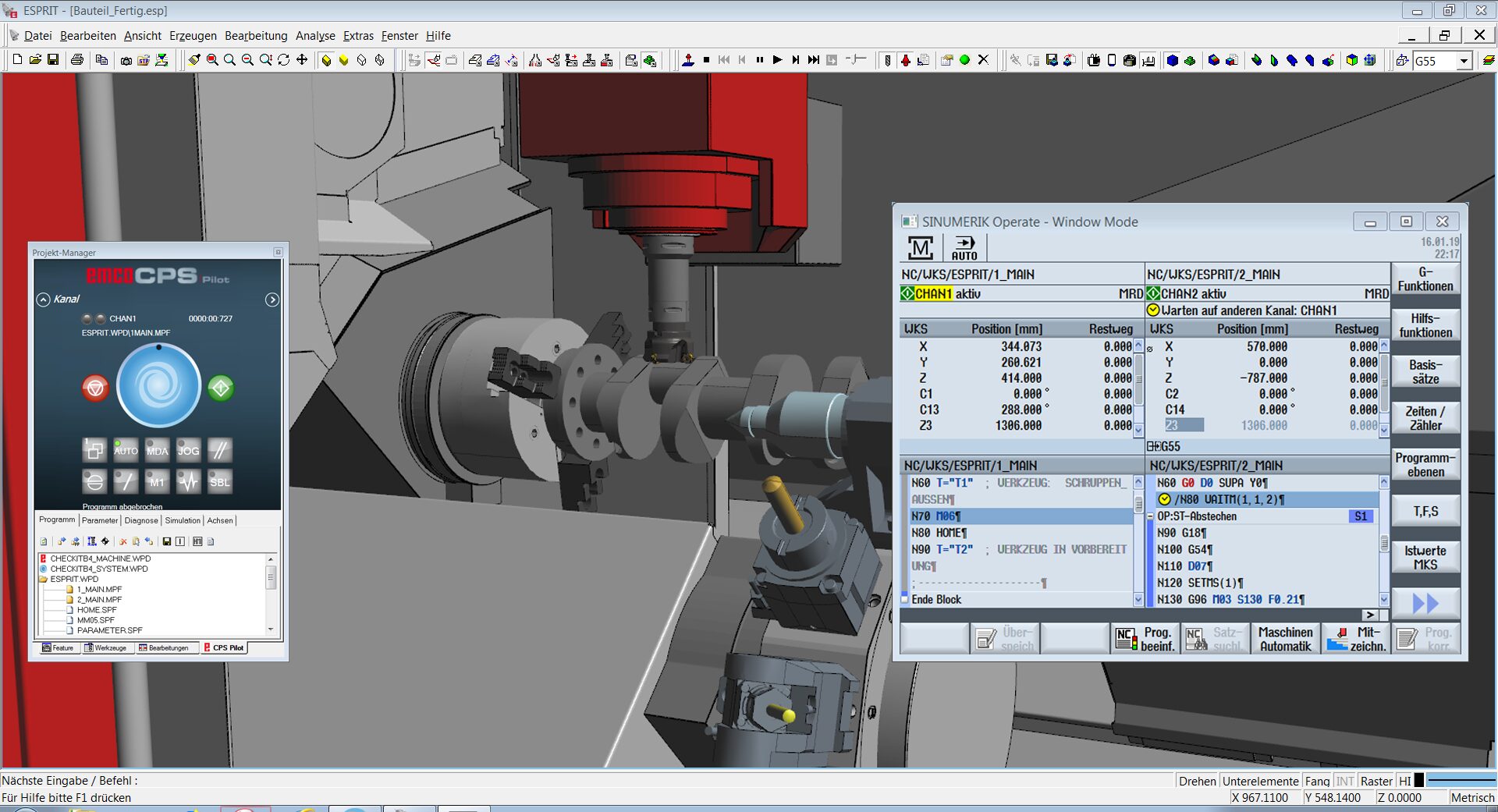

EMCO CPS Pilot (Optional)
EMCO CPS Pilot creates a virtual machine environment for offline programming, simulation and process optimisation, reducing setup times and improving production reliability through advanced collision monitoring and machine simulation.
