ICP 4030P

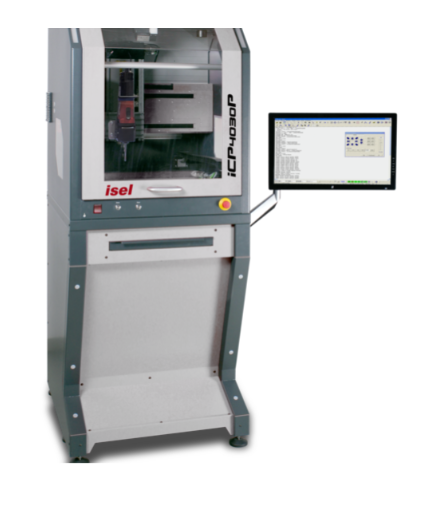

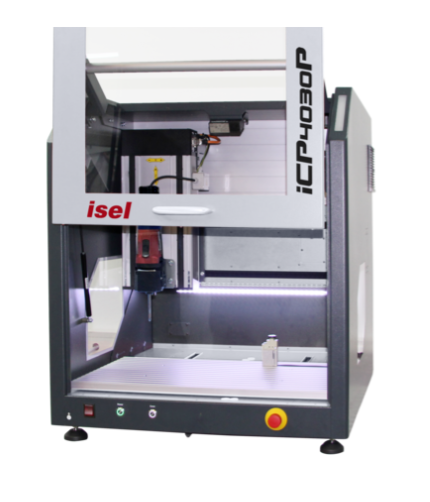

The isel iCP 4030P is a compact and versatile desktop CNC milling machine designed for precision contour machining and educational applications. Featuring advanced 3-axis path control, simultaneous axis movement and an optimised machine structure, the iCP 4030P delivers accurate and efficient machining performance for vocational schools, training centres, prototype development and light production environments.
icp 4030p

Highlights

  • 3-axis stepper motor control with simultaneous path operation
  • Optimised Z-axis design with increased clearance
  • Ideally suited for vocational schools and training environments

Details

CNC Machine Desktop CNC machine – iCP 4030P Machine Type Desktop CNC machine Suitable Materials
  • Wood
  • Foams
  • EVA foam
  • Plastics
Industries & Areas of Application
  • Education and training
  • Mould and prototype construction
Applications
  • Milling

Features

The iCP 4030P is equipped with a powerful 3-axis contouring control system capable of simultaneous path-controlled movement for accurate and smooth machining operations. Reliable LES linear units with precision steel ball screw drives ensure precise axis positioning and repeatability. The machine includes a network-compatible Windows control PC and a user-friendly soft-lift bonnet for safe and convenient access to the machining area. Workpieces are securely clamped using a face-milled T-slot plate system, allowing flexible fixture and workholding solutions.

Machine Design

The iCP 4030P is a further development of the iCP 4030 platform, designed specifically for simultaneous multi-axis movement and contour machining applications. Its optimised contouring control allows the tool to follow programmed machining paths at predefined speeds, resulting in improved milling quality and smoother machining performance. The optimised Z-axis design provides increased working clearance, improving flexibility for a wider range of machining tasks and workpiece sizes.

Options & Accessories

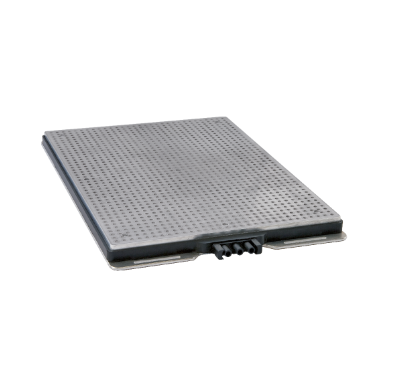

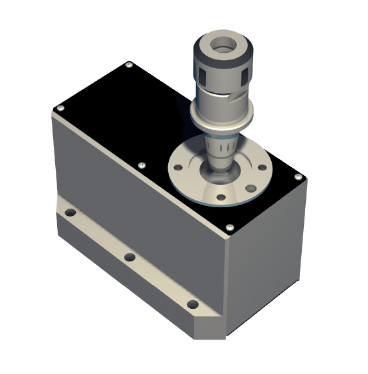

Milling Spindles Optional iFM 1000ER and iFM 1000WS milling spindle systems are available for different machining applications and material requirements. Tool Cooling Systems Optional CoolMin® cooling systems are available in spray or air-cooling versions to improve machining performance and tool life. Length Measuring Probe An optional probe system allows automatic tool length measurement for improved setup accuracy and machining efficiency. Extraction Device An optional extraction system helps maintain a cleaner working environment during machining operations. Quick Clamping System Optional quick clamping systems allow fast and secure workpiece setup for improved production efficiency. Collets A range of optional collets is available to support different tooling and machining applications. Tool Breakage Control An optional tool breakage monitoring system improves machining reliability and production safety. Vacuum Clamping Table An optional vacuum clamping table provides fast and secure workpiece holding for suitable materials and applications. Maintenance Unit with Valve Terminal An optional maintenance unit with integrated valve terminal supports expanded pneumatic and machine functionality. Substructure Table An optional substructure table includes a swivelling screen and integrated keyboard while also providing installation space for vacuum pumps, cooling systems and peripheral equipment. Lightproof Protective Glass Optional lightproof protective glass is available for laser machining applications.

Applications & Performance

The iCP 4030P is particularly suitable for machining plastics, foams, wood and circuit board materials. Its contouring control system and simultaneous axis movement make it ideal for vocational schools, training centres, prototype development, fabLabs and small-series production. The machine combines compact dimensions, ease of use and precise contour machining capability within a flexible desktop CNC platform.
