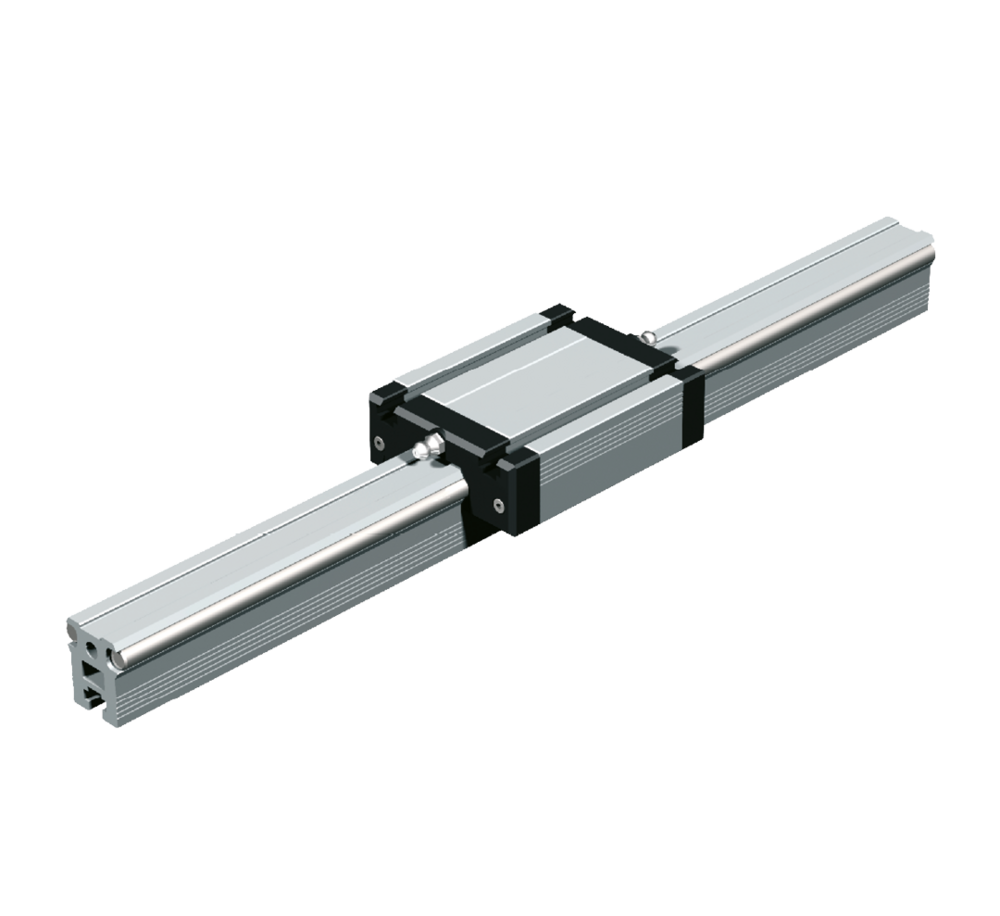

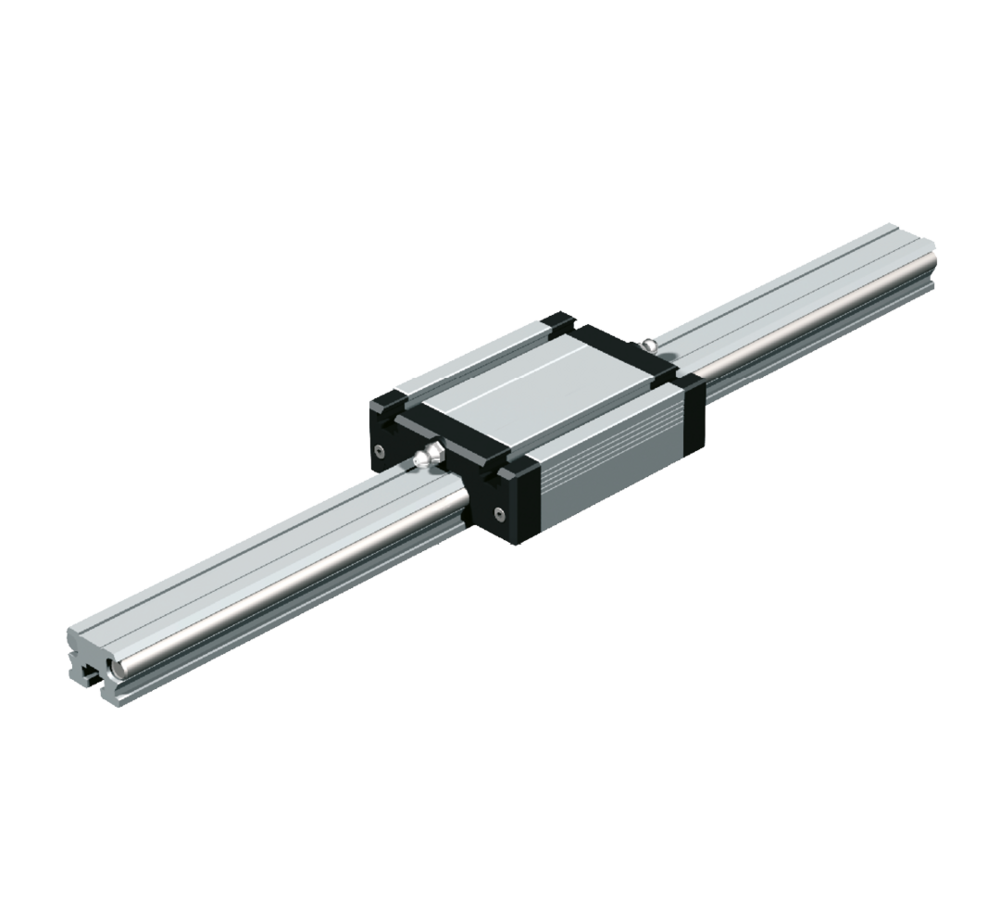

The LFS 12 linear guide is a precision linear guide system designed to provide smooth, accurate and reliable linear motion for handling, positioning and machining applications. Featuring hardened Ø12 mm precision steel shafts mounted within a torsion-resistant aluminium support profile, the LFS 12 offers increased rigidity and load capacity for automation systems, CNC machinery and industrial engineering applications.
The LFS 12 combines precision steel guide shafts with a natural anodised aluminium mounting profile to deliver exceptional accuracy, stability and long service life. The guide is mounted securely from below using M6 threaded rails within the integrated T-slot, allowing straightforward installation and seamless integration into machine frames and automation equipment.
The LFS 12 linear guide delivers precise, repeatable linear motion with enhanced rigidity for demanding positioning and machining applications. Its robust construction and precision steel shafts ensure reliable performance, while the modular design allows the guide to be paired with various carriage options to suit different load and application requirements.
Mounting Options
Available with through-holes for M6 fixings to simplify installation into machine frames and structural assemblies.
Material Options
A stainless steel version is available for applications requiring increased corrosion resistance or use in demanding environments.
Custom Lengths
Special guide lengths can be supplied on request, with compatibility for a variety of aluminium and steel guide carriage configurations.
Ideal for CNC machinery, automation systems, positioning equipment, handling systems, laboratory equipment, assembly machinery and precision engineering applications requiring accurate, low-friction linear guidance.
