The EMCO CNC Machining Center is a highly advanced large-format machining solution designed for high-performance milling, drilling and multi-axis machining applications. Combining powerful motor spindle technology, rigid machine construction and advanced Siemens or Heidenhain control systems, the machine delivers exceptional machining precision, flexibility and productivity for demanding industrial manufacturing environments.
Equipment
The machine is equipped with a high-performance motor spindle delivering up to 15000 rpm, 46 kW output and 170 Nm torque. Precision direct-driven ball screws on the Y and Z axes provide smooth and quiet high-speed operation, while flexible tool magazine systems support capacities from 40 to 120 tools. The machine is available with Siemens Sinumerik ONE or Heidenhain TNC 640 control systems alongside optional EMCONNECT digital process assistant integration.
Technical Data
Work Area
- Travel in X/Y/Z: 6200 / 1000 / 980 mm
- Distance spindle nose: 0 – 980 (950) mm (vertical) / 250 (280) – 1230 mm (horizontal)
- Rapid traverse speeds X/Y/Z: 60 / 50 / 50 m/min
- Clamping area: 6470 x 1050 mm
- Maximum table load: 8000 kg
Tool Change System
- Number of tool stations: 40 (optional 60 / 120)
- Maximum tool diameter: 92 (125) mm
Milling Spindle
- Maximum speed: 50 – 18000 / 50 – 10000 rpm
- Maximum torque: 125 Nm (S1), 170 Nm (S6-40%)
General Data
- Dimensions (L x W x H): 11615 x 5350 x 3580 mm
- Machine weight: 36000 kg
Highlights
The machine features a flexible modular construction with an ergonomic and modern machine design and is available in both 4-axis and full 5-axis configurations. High-performance motor spindle technology, rigid linear roller guides and direct-driven ball screw systems provide exceptional machining precision, smooth operation and dynamic performance.
The machine incorporates an integrated rotary table and highly dynamic B-axis torque motor system for advanced multi-axis machining operations. Advanced Siemens Sinumerik ONE or Heidenhain TNC 640 control systems provide cutting-edge CNC functionality alongside optional EMCONNECT digital production integration.
Tool Magazine

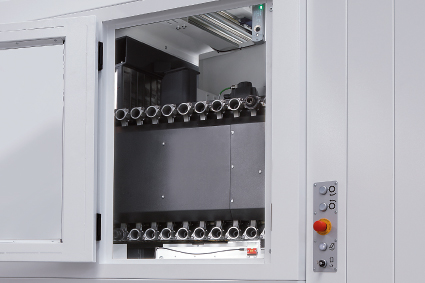

The tool magazine system is available in multiple configurations including fixed-position magazines for 3-axis, 4-axis and 5-axis versions, alongside optional moving chain magazine systems for enhanced tooling flexibility and productivity.
Control Unit

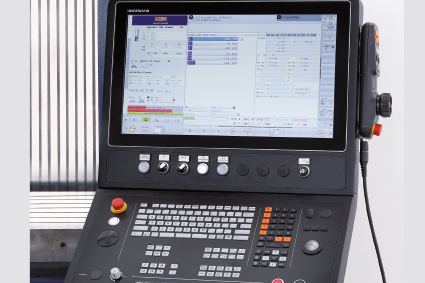

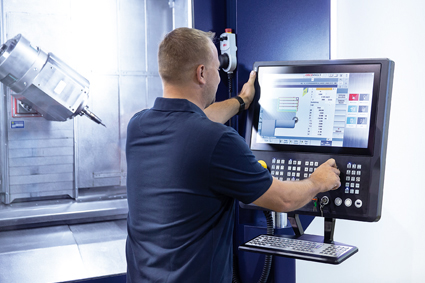

The ergonomic operator panel can travel, rotate and reposition toward the work area, providing ideal working conditions and excellent accessibility for machine operators during setup and machining operations.
Machine Structure
The machine bed is manufactured from a stable welded steel construction designed to provide exceptional rigidity and vibration damping for highly accurate and stable machining performance over long production periods.
B-Axis

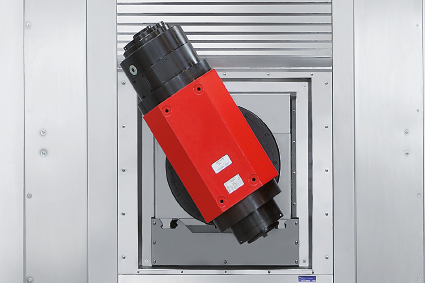

The B-axis is powered by a highly dynamic torque motor system delivering precise positioning and smooth movement throughout a wide pivoting range of +/-120°.
Y-Axis

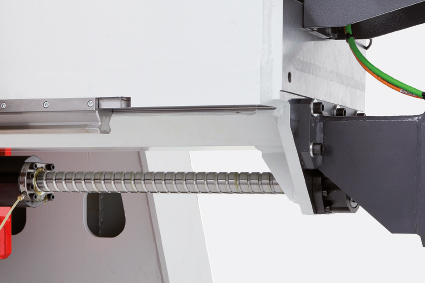

The ram-style Y-axis design uses extended guide ways to maximise rigidity and machining stability. High positioning accuracy is achieved through a direct-driven screw system.
Milling Spindle

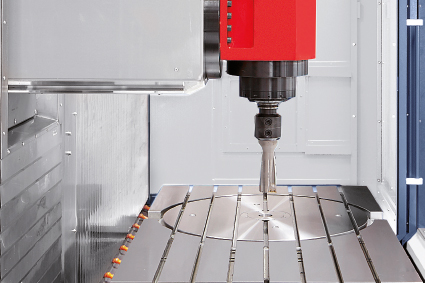

The liquid-cooled motor spindle delivers outstanding performance with spindle speeds up to 15000 rpm, power outputs up to 46 kW and torque up to 170 Nm. An optional 18000 rpm HSK-A63 spindle configuration is available for high-speed machining applications, while the HSK-A100 version provides up to 270 Nm torque for heavy-duty machining operations.
Z-Axis Travel

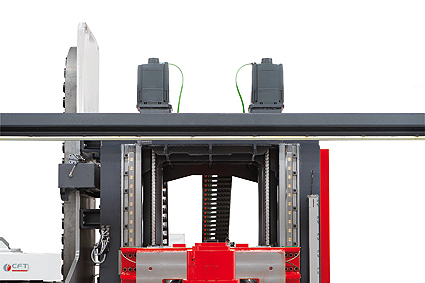

The Z-axis uses a dual ball screw and dual motor master-slave drive configuration to achieve highly precise rapid traverse movement despite the large axis mass, ensuring smooth operation and excellent positioning accuracy.
Axis Drives

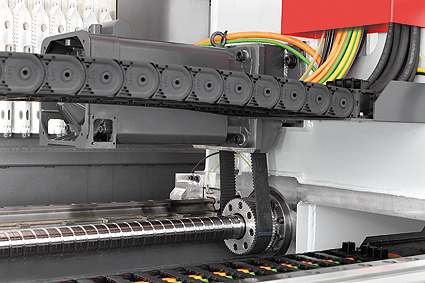

The machine uses rotating nut ballscrew technology with fixed screw systems to provide highly accurate positioning and smooth axis movement. Linear scales are fitted as standard on all three linear axes (X, Y and Z).
X-Axis Drives

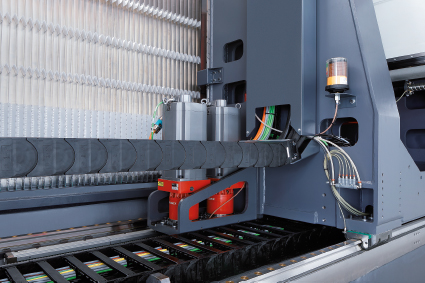

The X-axis uses a precision rack and pinion drive system to guarantee maximum positioning precision, smooth movement and long-term reliability across the large machine travel range.

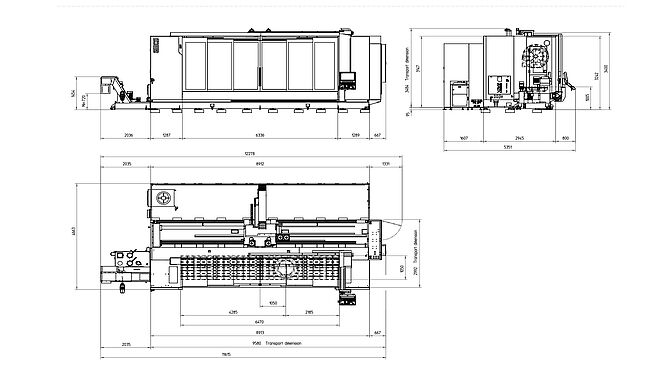

Overall Dimensions & Work Space

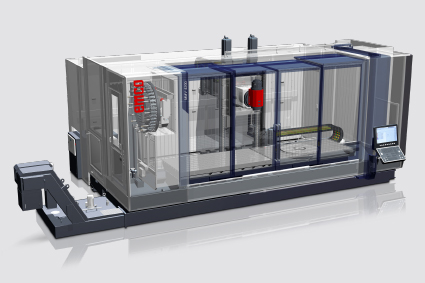

The machine combines a spacious machining envelope with a rigid and highly accessible machine structure suitable for large workpieces and advanced multi-axis machining applications.
Options & Accessories
Measurement Systems

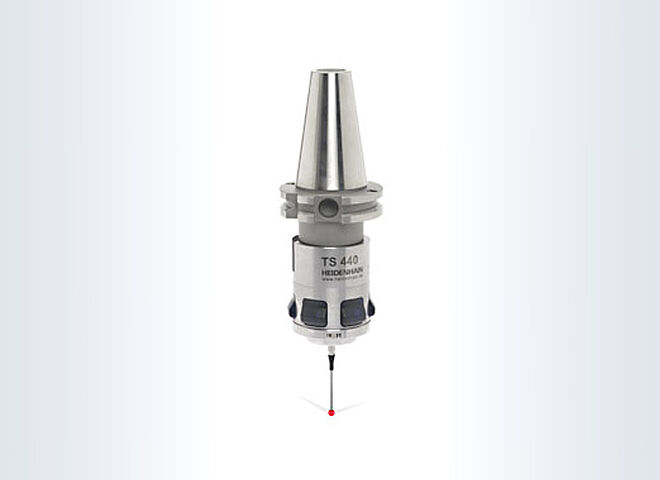

Optional tool and workpiece measuring systems reduce setup times and improve machining precision. Workpiece measurement is performed using radio probe technology for highly accurate in-machine inspection.
Large Work Area

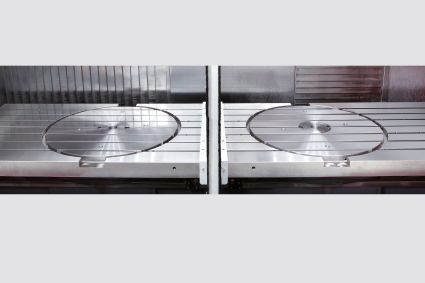

The spacious machining area allows extensive customisation options including pendulum operation partitions, rotary tables, tailstocks and additional workholding systems.
Automatic Workpiece Measuring

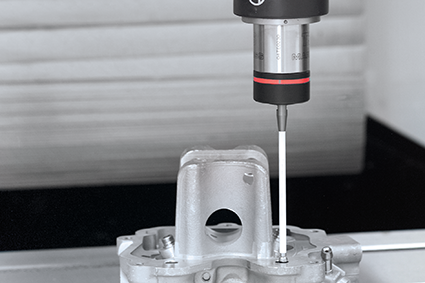

The workpieces are automatically measured using an infrared measuring probe mounted on the main spindle. Integrated measuring cycles automatically transfer measured values into the CNC control system.
Band Filter System with High-Pressure Coolant Pumps

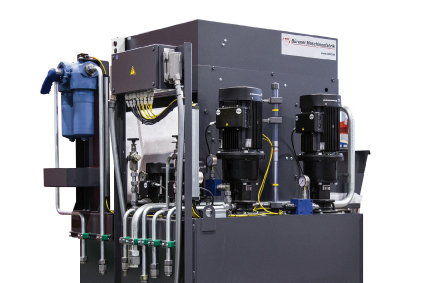

Coolant pressures of 25, 40, 60 or 80 bar can be configured to optimise the performance of coolant-fed drilling and milling tools during demanding machining operations.
Software & Control

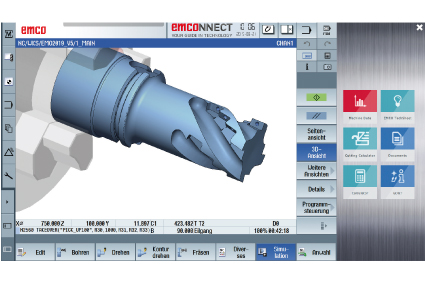

Sinumerik ONE with Operate
The Siemens Sinumerik ONE CNC system combines advanced machining performance with smart manufacturing integration, digital twin technology and highly efficient networking capabilities for modern production environments.
Integrated EMCONNECT functionality allows seamless switching between machine controls and digital production applications while displaying all relevant production data through a full-screen or sidebar interface.
The system delivers exceptional CNC performance, reduced commissioning times through virtual preparation and seamless integration into digital manufacturing workflows using integrated SIMATIC S7-1500F PLC technology.
Heidenhain TNC 640 (MMV Series)
The Heidenhain TNC 640 control system supports both milling and combined milling-turning operations and is particularly suited for high-speed cutting, multi-axis machining and complex Mill-Turn applications on machines with up to 18 axes.
Features include a 19-inch TFT colour display, optimised user interface, advanced machining cycles, innovative graphical simulation and highly responsive motion control.
EMCONNECT – Digital Process Assistant
EMCONNECT provides centralised access to machine data, operating modes and production systems through an intuitive 22-inch multi-touch dashboard interface designed to improve productivity, efficiency and workflow management.
The familiar CNC control environment remains unchanged while operators gain immediate access to machine status information, operating modes and production-relevant data through a touchscreen-optimised interface.
