The isel OverHead is a highly versatile CNC milling machine designed for applications requiring maximum machining travel within a compact machine footprint. Featuring an overhead gantry drive design, fully accessible work area and advanced servo control technology, the OverHead machine delivers exceptional flexibility, precision and accessibility for demanding industrial and technical applications.
img 2793 overhead

Highlights

  • Optimised space utilisation with a completely free machining area
  • Excellent chip protection through overhead axis configuration
  • Particularly suitable for high and bulky workpieces
  • Available in five machine sizes

Details

CNC Machine Universal CNC machine – OverHead Machine Type Universal CNC machine Industries & Areas of Application
  • Automotive
  • Research & Development
  • Education and training
  • Mould and prototype construction
  • Medical technology
Suitable Materials
  • Brass
  • Foams
  • EVA foam
  • Aluminium
  • Plastics
  • Wood
Applications
  • Automation
  • Dosing
  • Milling
  • Laser processing

Features

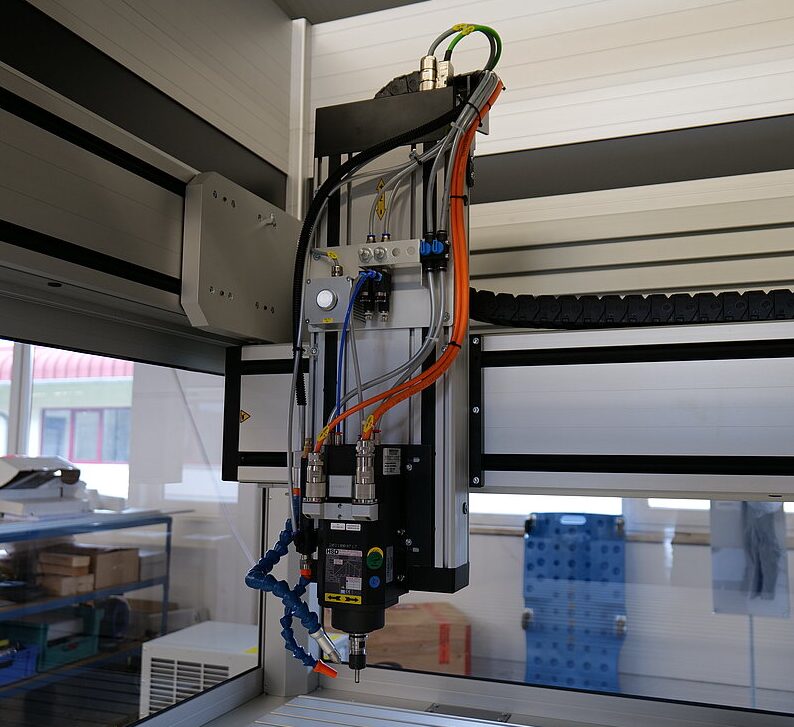

The OverHead machine is equipped with a powerful isel CNC control system using maintenance-free servo motors for precise and reliable machine operation. Reliable LES linear units with precision steel ball screw drives provide smooth movement and highly accurate positioning across all axes. The machine includes a height-adjustable CNC operating panel, a network-compatible Windows control PC and a parallel sliding door system for convenient access to the work area. The machine table provides a completely free clamping surface, allowing flexible workpiece positioning and customised fixture integration for specialised applications. Variable gantry opening configurations are available depending on customer-specific machining and production requirements.

Machine Design

The OverHead CNC machine series is specifically designed to maximise machining travel distances while maintaining a compact installation footprint. All drive systems are positioned within the upper section of the machine structure, leaving the entire machine table area completely unobstructed for workpieces, fixtures and automation systems. This overhead design also provides excellent protection against chips and debris contamination, improving machine reliability and simplifying maintenance. The free and accessible machining area makes the machine particularly suitable for machining high, bulky or unusually shaped components that would be difficult to process on conventional gantry systems.

Options & Accessories

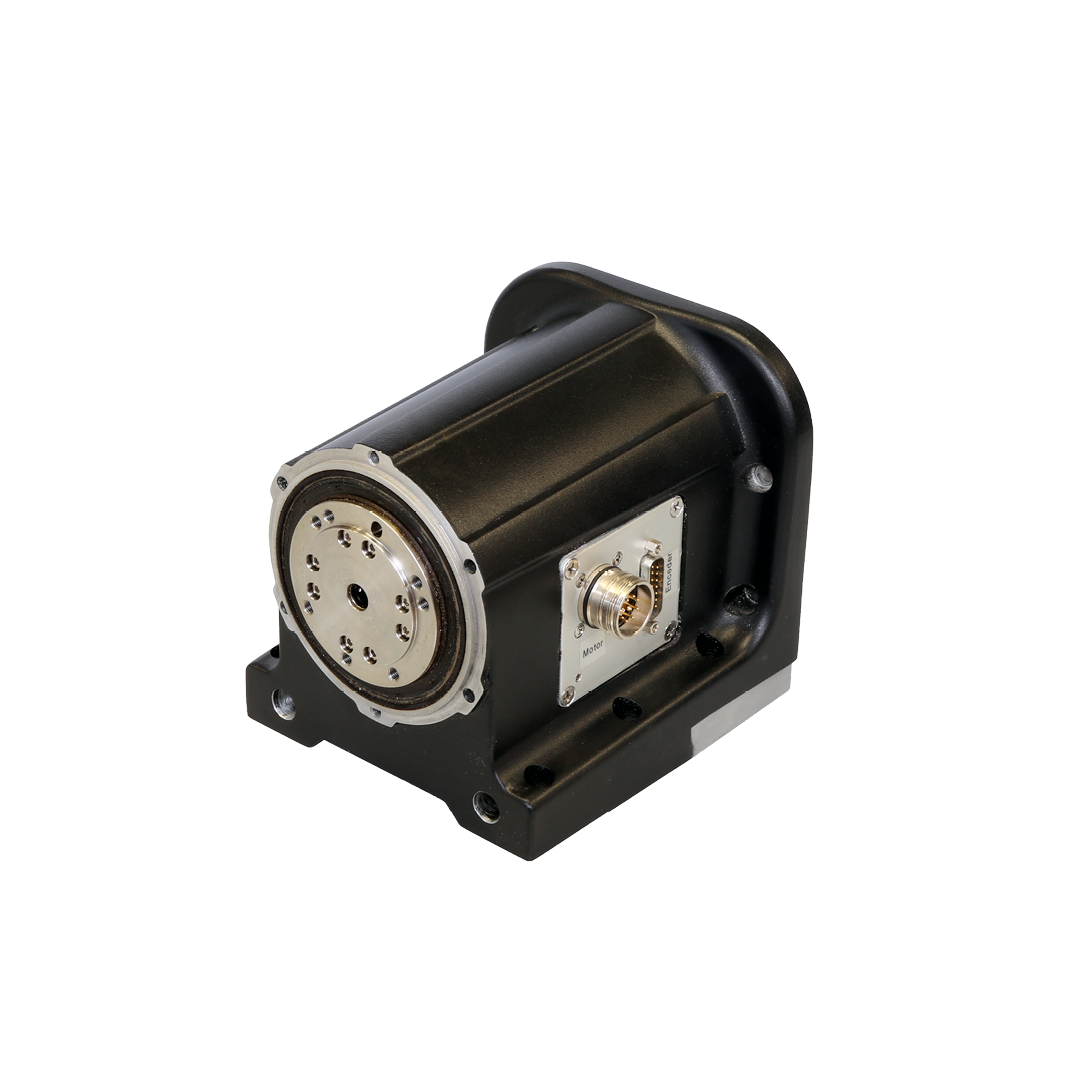

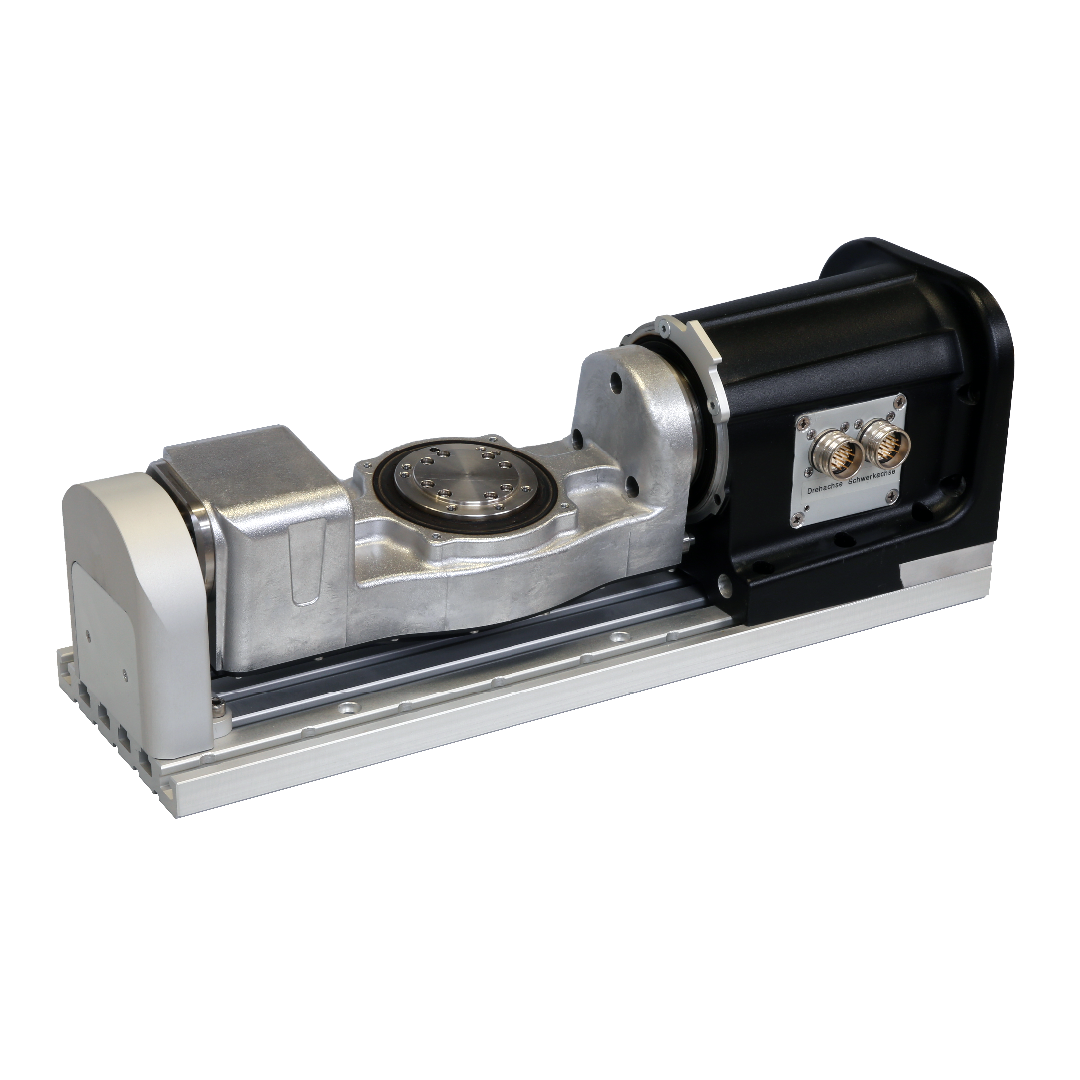

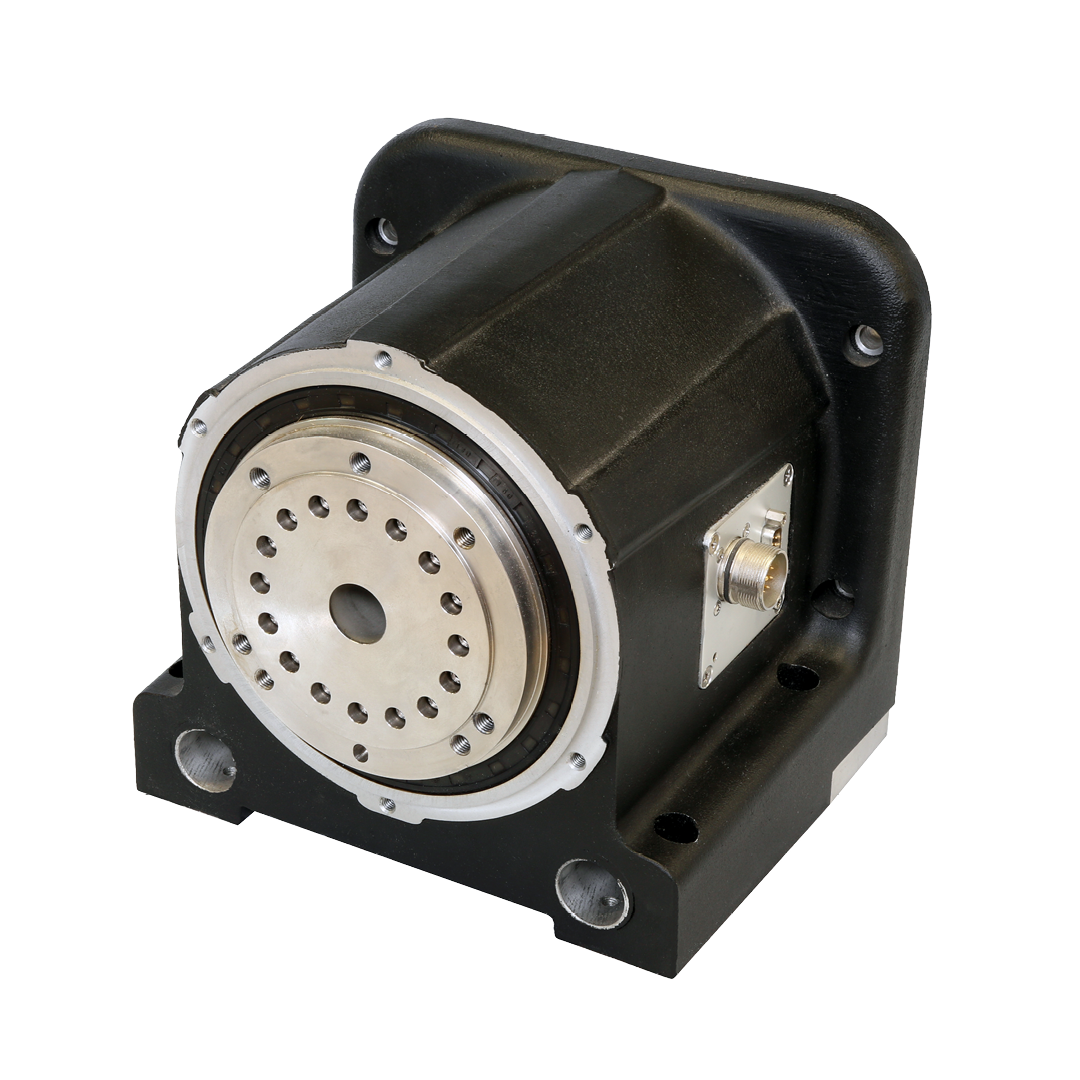

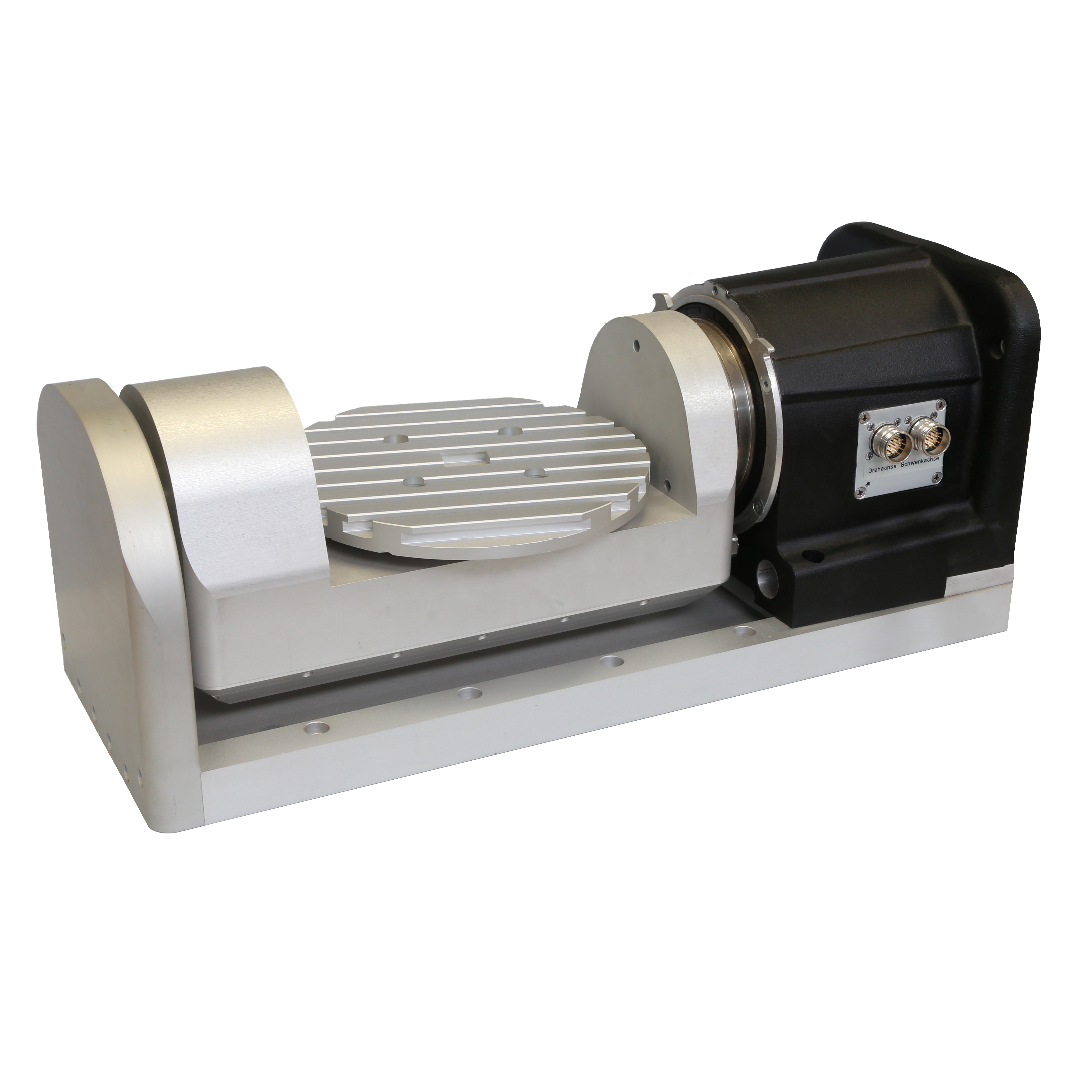

Milling Spindles A wide range of iSA milling spindles and water-cooled high-frequency milling spindles are available for different machining applications and materials. Tool Changing Systems Optional round and linear tool changing stations support automated multi-tool machining processes. Cooling Systems Optional cooling spray systems and Cool-Min cold air cooling systems improve machining performance and tool life. Automatic Tool Length Measurement An optional automatic tool measurement system improves setup accuracy and machining efficiency. Milling Cutter Breakage Control An optional tool breakage monitoring system improves process reliability and production safety. Electronic Handwheel An optional electronic handwheel allows manual axis movement and precise setup adjustments. Pneumatic Sliding Door An optional pneumatic sliding door system improves accessibility and supports automated production environments. Rotation Units Optional rotary units enable advanced multi-axis machining applications. Extended Axis Configuration The machine can be configured with up to 6 interpolating axes plus 6 additional handling axes for highly specialised automation and production tasks. Safety Light Curtain An optional safety light curtain system enhances operator safety during machine operation. Closed or Light-Tight Bonnet Optional enclosed or light-tight bonnet systems are available for laser processing applications. Bonnet Attachment An optional bonnet extension increases gantry clearance for taller workpieces and specialised applications. Workpiece Clamping Systems Various optional clamping systems are available including hand lever fixtures and vacuum clamping tables. Extraction Systems Optional extraction systems help maintain a cleaner working environment during machining and laser processing operations. Lateral Loading System Optional lateral loading systems allow integration into automated production lines and material handling environments. LED Machine Room Lighting Optional LED lighting improves visibility within the machining area. PC Control Panel An optional PC control panel with free PCI slots allows integration of additional external PCI hardware systems. Interface Adaptations Optional interface customisations enable integration with external systems and specialised applications. CAD/CAM Software Optional CAD/CAM software solutions are available to support programming and machining workflows.

Applications & Performance

The OverHead CNC machine series is ideal for applications requiring large machining travel ranges, unrestricted table access and flexible automation integration. Its overhead gantry concept, compact footprint and fully accessible work area make it particularly suitable for bulky components, specialised fixtures and automated production systems. The machine combines precision, flexibility and efficient space utilisation within a highly adaptable CNC platform suitable for industrial production, research, training and advanced prototype manufacturing.
