Highlights
- Repeatability of 0.003 mm and absolute accuracy of 0.01 mm
- Steel and granite machine structure with linear motor technology
- High-frequency spindle with up to 6 kW power and 45,000 rpm
- Heidenhain® TNC 640 CNC control system
- Compact footprint with large machining travel distances
- Rapid changeover between 3-axis and 5-axis machining
Details
CNC Machine

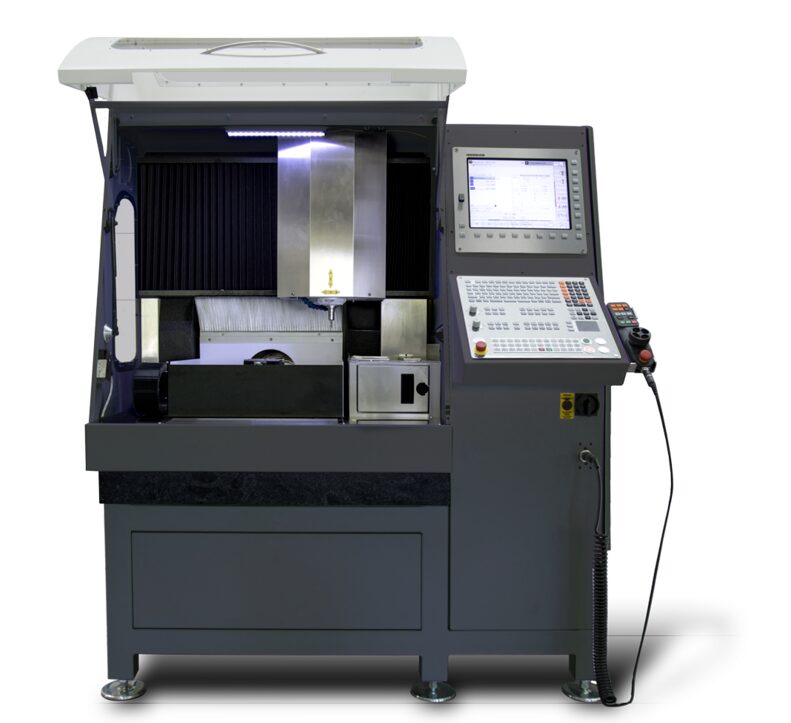

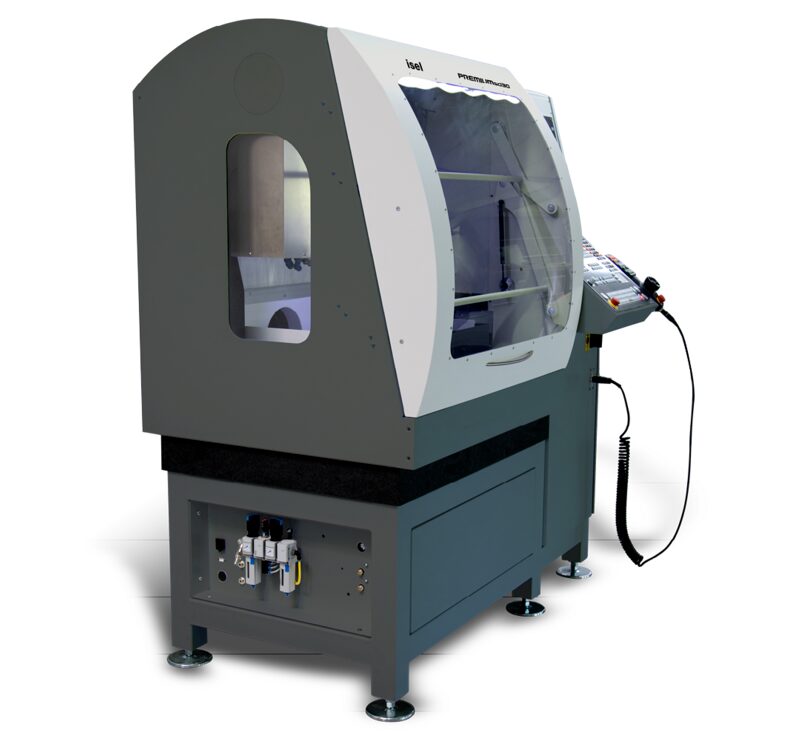

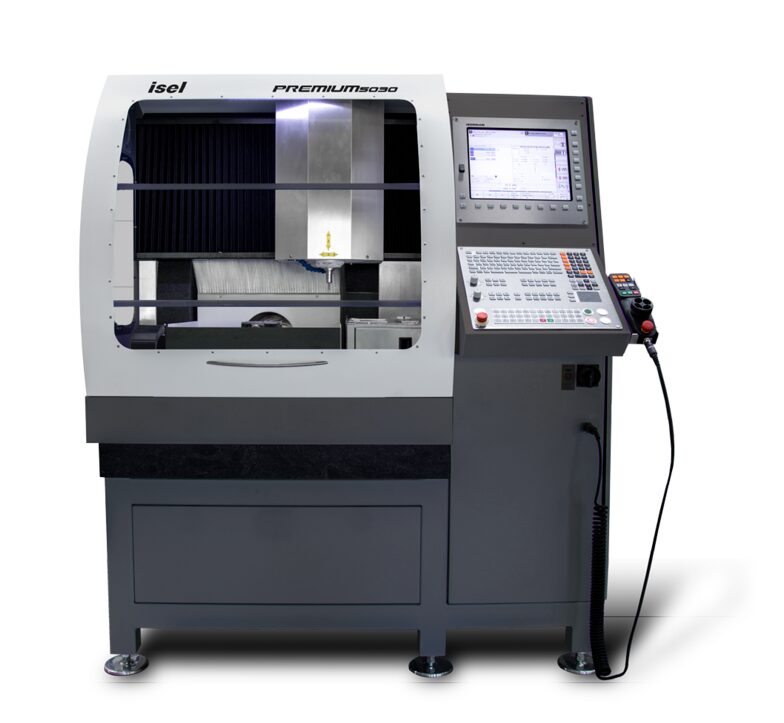

Premium CNC machine – Premium 5030
Machine Type
Special-purpose CNC machining centre
Suitable Materials
- Brass
- Aluminium
- Ceramics
- Copper
Industries & Areas of Application
- Watchmaking and eyewear manufacturing
- Medical technology
- Micromachining
- Precision engineering
Applications
Features
The Premium 5030 features a highly rigid machine construction based on polished granite components, providing exceptional stability, vibration damping and long-term machining accuracy.
Its compact machine footprint allows efficient use of workshop space while still offering generous machining travel ranges for demanding applications.
The machine is equipped with a high-frequency spindle delivering up to 6 kW power and spindle speeds up to 45,000 rpm, making it ideally suited to high-speed machining and precision milling operations.
An HSK-E25 tool interface system supports rapid and accurate tool changes, while advanced HSC control technology provides real-time block processing times of less than 1 millisecond for smooth and highly accurate toolpath execution.
Digital length measurement systems, heavy-duty linear guideways and low-maintenance linear motors on the X, Y and Z axes ensure exceptional positioning accuracy and dynamic performance.
Machine Design
The Premium 5030 is a flexible 3-axis to 5-axis HSC milling system developed specifically for precision machining of small and delicate components.
The machine base incorporates a natural granite gantry structure with a decoupled Y-axis arrangement, delivering outstanding rigidity and long-term dimensional stability.
All granite components are manufactured to DIN 876 Grade 00 precision standards, providing an exceptionally stable foundation for high-accuracy machining operations.
Advanced linear motor technology combined with incremental measuring systems enables highly dynamic feed rates while maintaining exceptional positioning precision and repeatability.

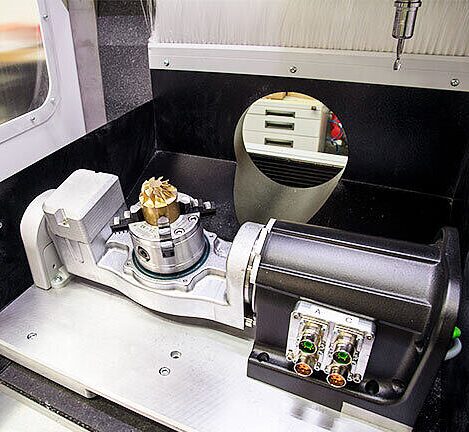

The machine incorporates a zero-point clamping system integrated directly into the granite table, allowing rapid conversion between 3-axis and 5-axis machining configurations.
