The EMCO Universal Machining Center is a highly advanced 5-axis CNC milling machine designed for simultaneous multi-axis machining of complex precision components. Combining high-speed motor spindle technology, exceptional thermal stability and advanced Siemens or Heidenhain control systems, the machine delivers outstanding machining precision, flexibility and productivity for demanding industrial applications.
Equipment
The machine is equipped with a high-performance motor spindle available in 15000 rpm or 24000 rpm configurations and an automatic tool changer with 30 tool positions, expandable to 60 or 90 positions. The universal machining centre is available with Siemens or Heidenhain CNC controls and includes optional EMCONNECT digital process assistant integration with Siemens Sinumerik ONE systems.
Technical Data
Work Area
- Travel in X/Y/Z: 500 / 460 / 450 mm
- Distance spindle nose: 150 – 600 mm
- Rapid traverse speeds X/Y/Z: 50 / 50 / 50 m/min
- Feed force in X/Y/Z: 5000 / 5000 / 5000 N
- Table size: 630 x 500 mm
- Maximum table load: 300 kg
Motor Spindle
- Maximum speed: 50 – 15000 / 24000 rpm
- Drive power: 26 / 46.5 kW
- Maximum torque: 110 Nm
Tool Changer
- Number of tools: 30 (optional 60 / 90)
General Data
- Dimensions (L x W x H): 2570 x 3680 x 2900 mm
- Machine weight: 6800 kg
Highlights
The machine delivers full 5-axis simultaneous machining capability with exceptional thermal stability and machining precision. Its modern moving-column design provides optimal accessibility, while the solid swivel-rotary table with torque motors, direct measuring systems and front support ensures high rigidity and accuracy during demanding machining operations.
Standard linear scales in the X, Y and Z axes improve positional accuracy, while the wide swivelling range of +/-100° allows highly flexible multi-axis machining. Advanced Siemens or Heidenhain control systems provide cutting-edge CNC functionality alongside optional EMCONNECT digital production integration.

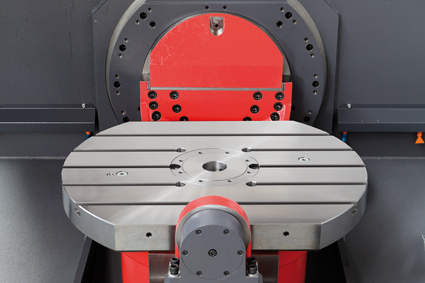

Swivel-Rotary Table with Torque Motors
The integrated swivel-rotary table uses high-performance torque motors on the C-axis to deliver smooth, precise and highly dynamic 5-axis machining performance with maximum rigidity and stability.

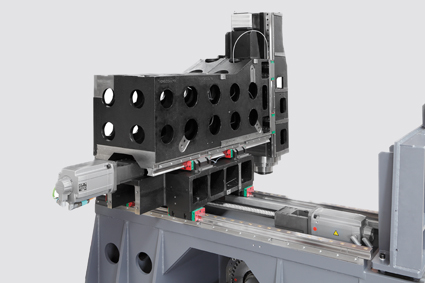

Direct Drives
Direct drive technology provides highly dynamic axis movement, reduced mechanical wear and exceptional machining precision for high-speed milling applications.

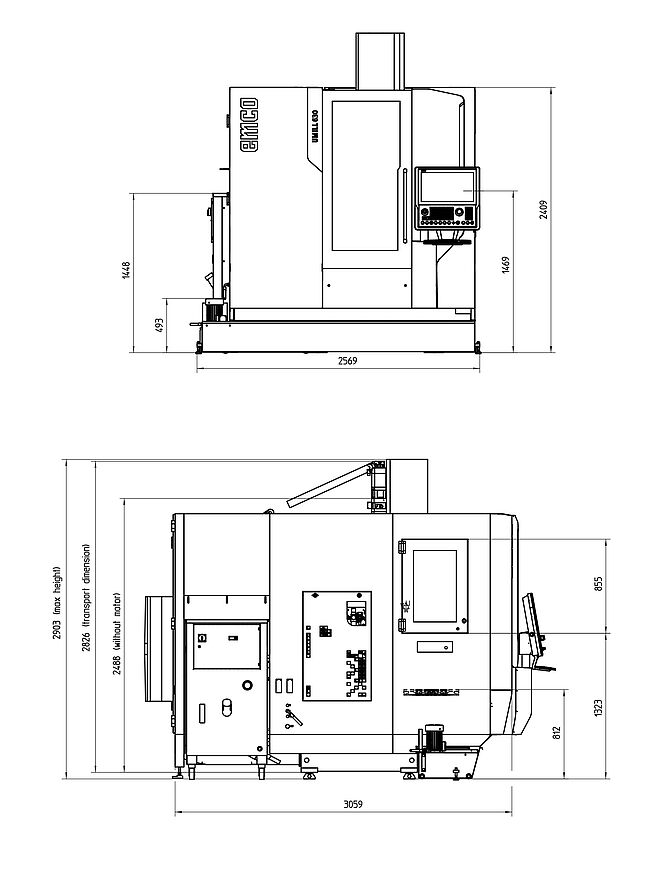

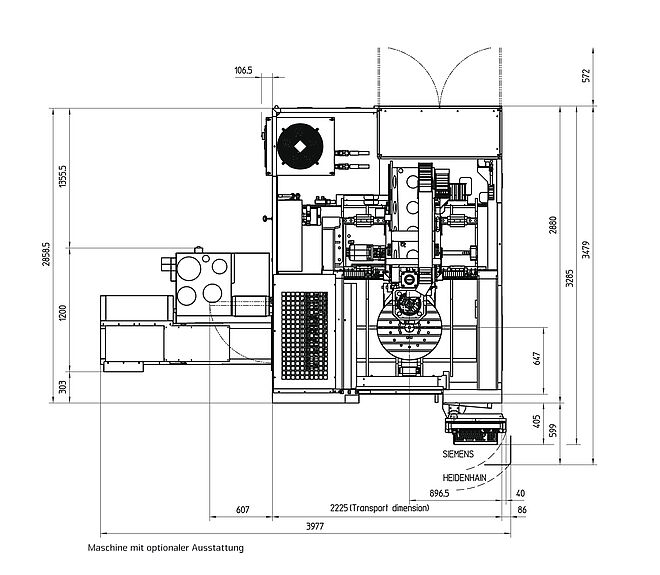

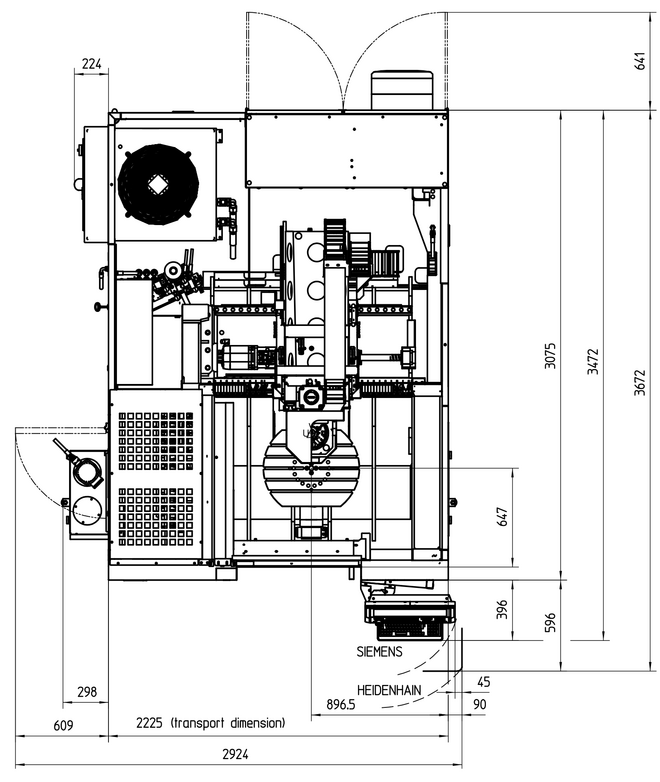

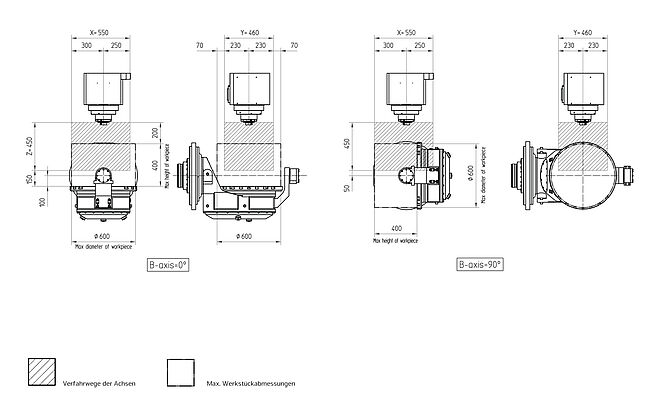

Overall Dimensions & Work Space
The machine combines a compact footprint with a spacious and highly accessible work area suitable for precision machining of complex workpieces and advanced multi-axis applications.

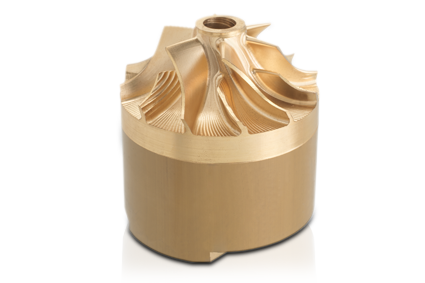

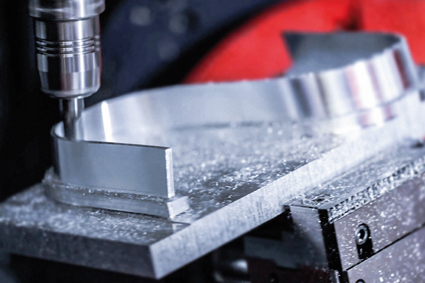

Workpieces
The machine is designed for high-precision production of complex components across industries including aerospace, medical engineering, mould and die manufacturing and advanced industrial machining applications.
Software & Control
Sinumerik ONE with Operate
The Siemens Sinumerik ONE CNC system combines advanced machining performance with smart manufacturing integration, digital twin technology and highly efficient networking capabilities for modern production environments.

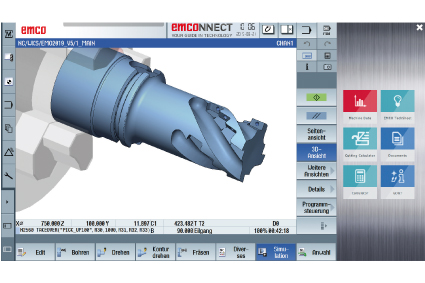

Integrated EMCONNECT functionality allows seamless switching between machine controls and digital production applications while displaying all relevant production data through a full-screen or sidebar interface.
The system delivers exceptional CNC performance, reduced commissioning times through virtual preparation and seamless integration into digital manufacturing workflows using integrated SIMATIC S7-1500F PLC technology.
EMCONNECT – Digital Process Assistant
EMCONNECT provides centralised access to machine data, operating modes and production systems through an intuitive 22-inch multi-touch dashboard interface designed to improve productivity, efficiency and workflow management.
The familiar CNC control environment remains unchanged while operators gain immediate access to machine status information, operating modes and production-relevant data through a touchscreen-optimised interface.
