The EMCO Universal Machining Center is a highly advanced 5-axis CNC milling machine designed for simultaneous machining of complex precision components. Combining high-speed motor spindle technology, exceptional thermal stability and advanced Siemens or Heidenhain control systems, the machine delivers outstanding machining precision, flexibility and productivity for demanding industrial applications.
Equipment
The machine is equipped with a high-performance motor spindle available in 15000 rpm or 24000 rpm configurations and an automatic tool changer with 40 tool positions, expandable to 60 or 90 positions. The universal machining centre is available with Siemens or Heidenhain CNC controls and includes optional EMCONNECT digital process assistant integration with Siemens Sinumerik ONE systems.
Technical Data

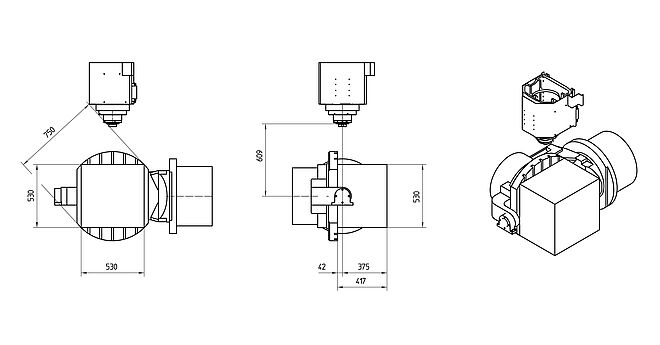

Work Area
- Travel in X/Y/Z: 750 / 610 / 500 mm
- Distance spindle nose: 150 – 650 mm
- Rapid traverse speeds X/Y/Z: 50 / 50 / 50 m/min
- Feed force in X/Y/Z: 5000 / 5000 / 5000 N
- Table size: 750 x 600 mm
- Maximum table load: 400 kg
Motor Spindle
- Maximum speed: 50 – 15000 / 24000 rpm
- Drive power: 26 / 46 kW
- Maximum torque: 110 Nm
Tool Changer
- Number of tools: 40 (optional 60 / 90)
General Data
- Dimensions (L x W x H): 2850 x 3680 x 3060 mm
- Machine weight: 9000 kg
Highlights
The machine delivers full 5-axis simultaneous machining capability with exceptional thermal stability and machining precision. Its modern moving-column design provides optimal accessibility, while the solid swivel-rotary table with torque motors, direct measuring systems and front support ensures high rigidity and accuracy during demanding machining operations.
The wide swivelling range of +/-100° allows highly flexible multi-axis machining, while standard linear scales in the X, Y and Z axes improve positional accuracy and repeatability. Advanced Siemens or Heidenhain control systems provide cutting-edge CNC functionality alongside optional EMCONNECT digital production integration.

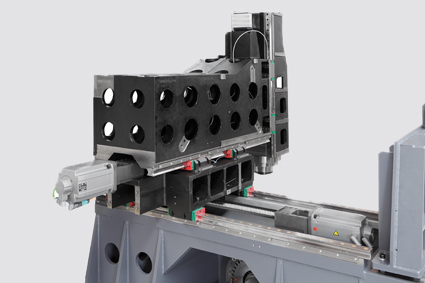

Direct Drives in X & Y Axis
The integrated direct drive technology in the X and Y axes provides highly dynamic movement, exceptional positioning accuracy and reduced mechanical wear for high-speed machining applications.

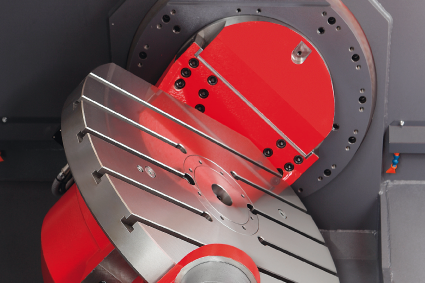

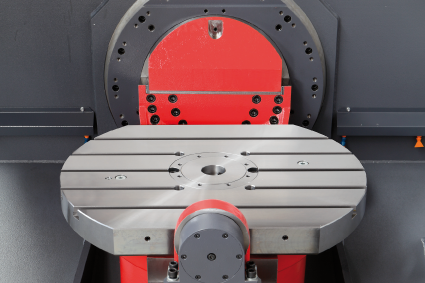

Swivel-Rotary Table with Torque Motors
The high-precision swivel-rotary table uses integrated encoders and torque motors to provide smooth and highly accurate 5-axis simultaneous machining performance.
B-Axis Travel +/-100°
The wide B-axis swivelling range enables highly flexible machining angles and complex multi-sided component production within a single setup.

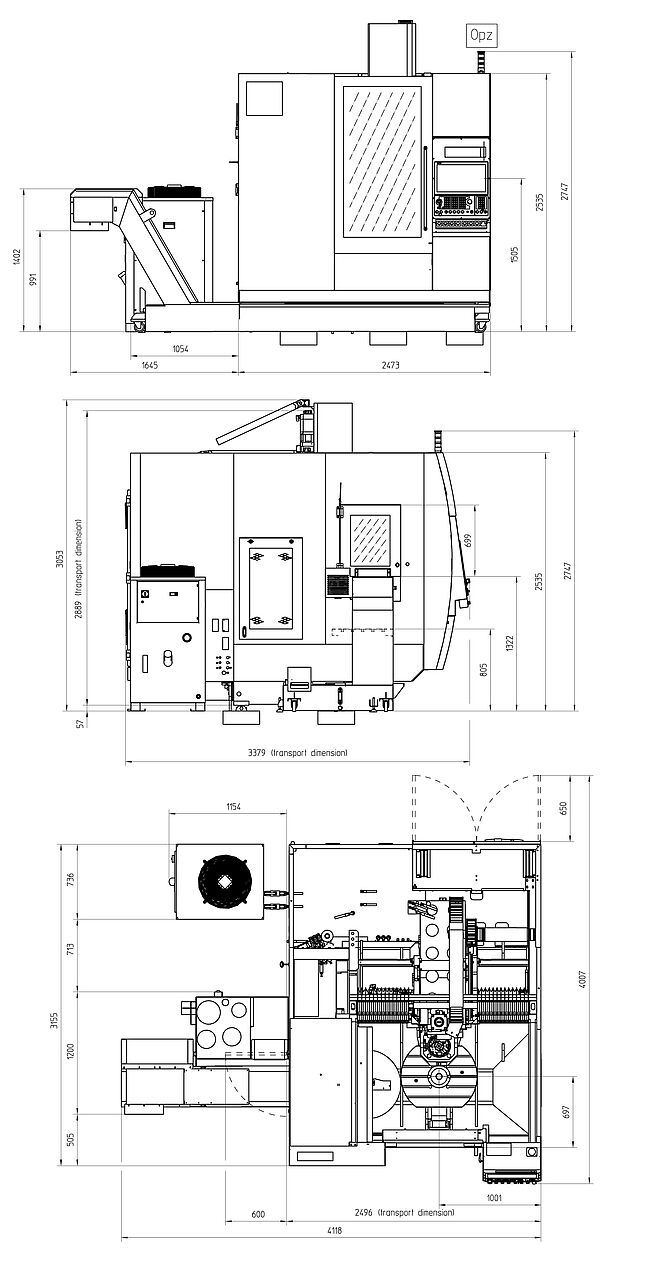

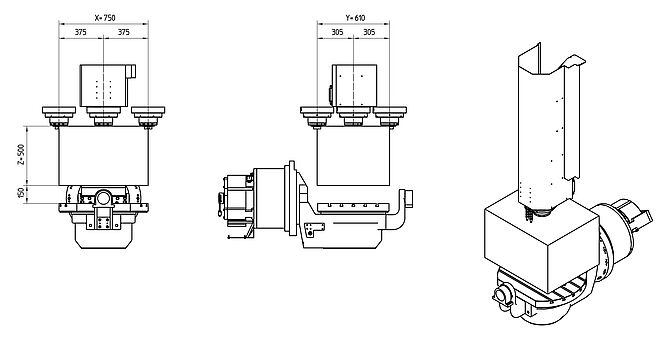

Overall Dimensions & Work Space
The machine combines a compact footprint with a spacious and highly accessible work area suitable for precision machining of complex components and advanced 5-axis applications.
Workpieces
The machine is ideal for machining complex precision components across industries including aerospace, medical engineering, mould and die manufacturing and advanced industrial machining applications.

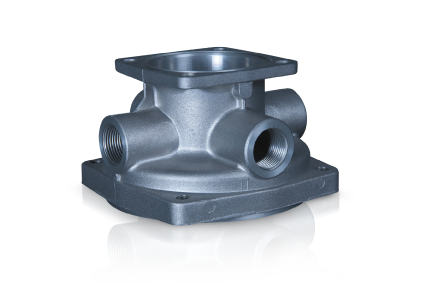

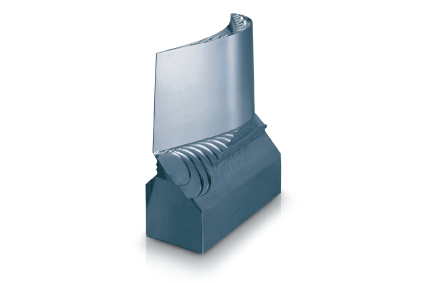

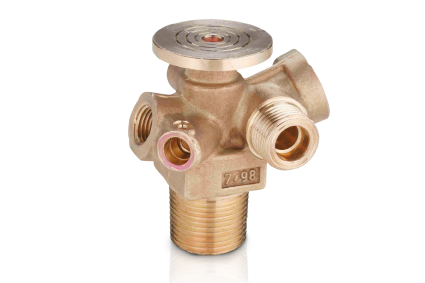

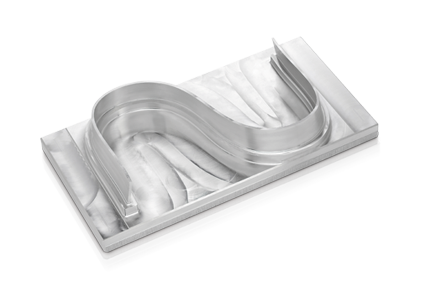

Typical workpieces include pump housings, distributors, turbine inserts and complex multi-angle components with inclined surfaces.
Software & Control
Sinumerik ONE with Operate

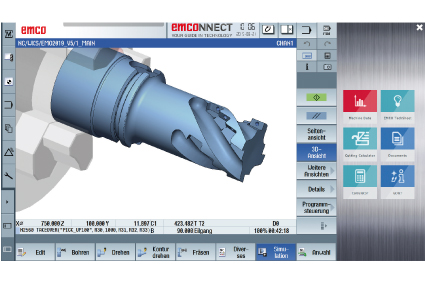

The Siemens Sinumerik ONE CNC system combines advanced machining performance with smart manufacturing integration, digital twin technology and highly efficient networking capabilities for modern production environments.
Integrated EMCONNECT functionality allows seamless switching between machine controls and digital production applications while displaying all relevant production data through a full-screen or sidebar interface.
The system delivers exceptional CNC performance, reduced commissioning times through virtual preparation and seamless integration into digital manufacturing workflows using integrated SIMATIC S7-1500F PLC technology.
EMCONNECT – Digital Process Assistant

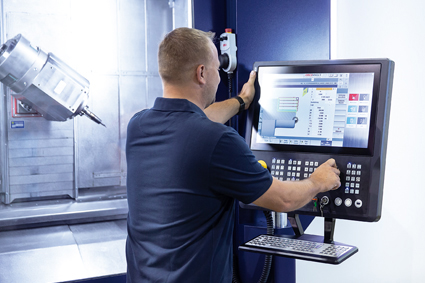

EMCONNECT provides centralised access to machine data, operating modes and production systems through an intuitive 22-inch multi-touch dashboard interface designed to improve productivity, efficiency and workflow management.
The familiar CNC control environment remains unchanged while operators gain immediate access to machine status information, operating modes and production-relevant data through a touchscreen-optimised interface.
