ICV 4030EC

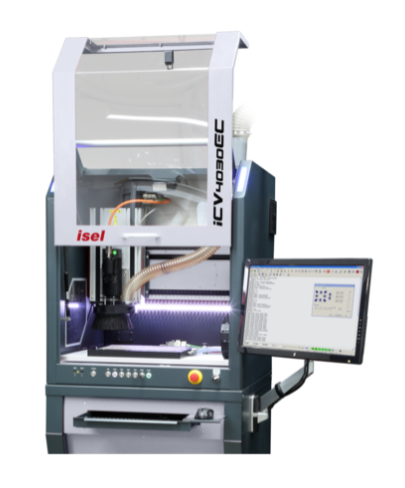

The isel iCV 4030 EC is a compact and versatile desktop CNC milling machine designed for precision machining applications within workshops, laboratories, education environments and research facilities. Combining a modular machine structure, maintenance-free servo motor technology and a user-friendly operating concept, the iCV 4030 EC delivers reliable and accurate machining performance across a wide range of materials and applications.
iCV 4030EC

Highlights

  • CNC machine supplied ready for mains connection
  • Low-noise operation through maintenance-free servo motors
  • Compact and ergonomic slimline machine design

Details

CNC Machine Desktop CNC machine – iCV 4030 EC Suitable Materials
  • Wood
  • Foams
  • EVA foam
  • Plastics
Industries & Areas of Application
  • Research & Development
  • Education and training
  • Medical technology
Machine Type Desktop CNC machine Applications
  • Milling

Features

The iCV 4030 EC is equipped with a powerful isel CNC control system using maintenance-free servo motors for precise and reliable machine operation. High-quality linear units with precision steel ball screw drives ensure accurate and smooth axis movement. The machine features a height-adjustable display for comfortable operation alongside a network-compatible control PC running Windows software. A user-friendly soft-lift bonnet provides safe and convenient access to the machining area. The machine table uses a face-milled T-slot plate system, allowing flexible and secure workpiece clamping using customised fixtures and clamping devices.

Machine Design

The iCV 4030 EC uses a compact and modular chassis design with all CNC control components and the control computer mounted at the rear of the machine for easy service access and maintenance. All linear axes use precision isel linear units running on linear ball bearings and hardened precision steel shafts. Backlash-free ball screw drives are fitted to provide highly accurate positioning and repeatability.

Options & Accessories

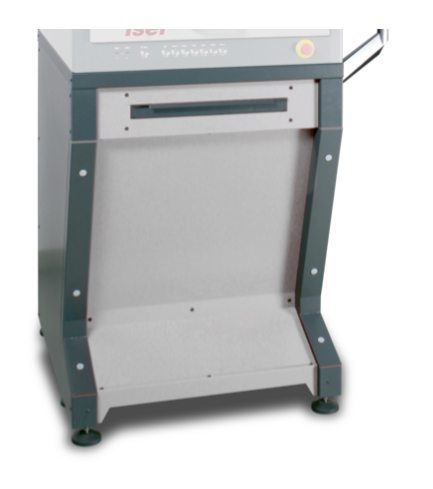

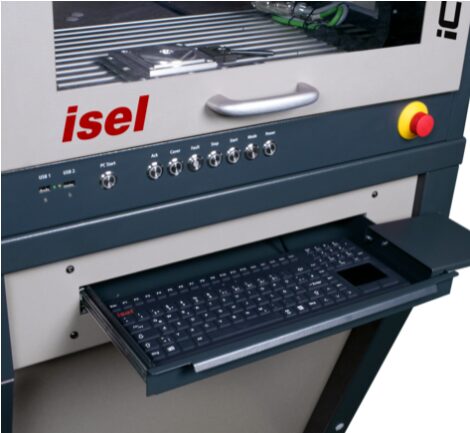

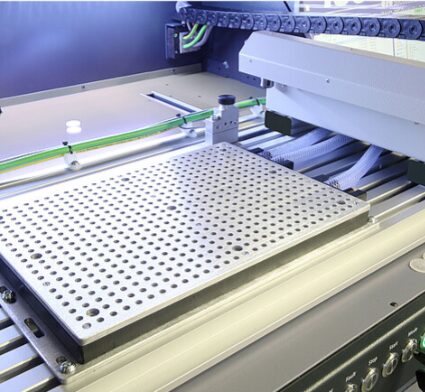

Milling Spindle Options Optional milling spindle configurations are available ranging from 500W to 1200W to suit different machining applications and material requirements. Linear Tool Changing Station An optional linear tool changing station increases machining flexibility and supports automated multi-tool production processes. Tool Cooling Systems Optional CoolMin® cooling systems are available in spray or air-cooling versions to improve machining performance and tool life. Length Measuring Probe An optional probe system allows automatic tool length measurement for improved setup accuracy and efficiency. Vacuum Clamping Table An optional vacuum clamping table provides fast and secure workpiece holding for suitable materials and machining applications. Maintenance Unit with Valve Terminal An optional maintenance unit with integrated valve terminal supports expanded pneumatic and machine functionality. Substructure Table An optional substructure table includes a swivelling screen and integrated keyboard while also providing space for installation of vacuum pumps, cooling systems and additional peripheral equipment. Automatic Bonnet Opening An optional automatic bonnet opening system improves accessibility and supports automated production processes. Safety Light Curtain An optional safety light curtain system enhances operator safety during machine operation.

Applications & Performance

The iCV 4030 EC is suitable for a wide range of machining applications and industries, particularly for precision milling operations in educational, development and light industrial environments. Its compact footprint, modular design and extensive range of optional accessories allow the machine to be configured for highly specialised applications and customised production requirements.
