The PT25 T-slot plate is a precision-machined aluminium clamping plate designed to provide a rigid, accurate and versatile workholding surface for machining, assembly and inspection applications. Manufactured to DIN EN 12020-2 standards and face-milled on both sides, the PT25 offers excellent dimensional stability and is ideal for use on CNC machines, milling machines, workstations and production environments.
The PT25 is manufactured from natural anodised aluminium and features a precision 25 mm T-slot grid for flexible workpiece positioning. The plate is available in multiple widths and lengths up to 3 metres, with custom cut lengths available on request.
The PT25 provides a universal precision clamping and machining surface suitable for a wide range of manufacturing applications. Its thick-walled aluminium construction delivers excellent rigidity while remaining lightweight, and the face-milled finish ensures a flat, accurate working surface. The natural anodised finish provides additional durability and corrosion resistance.
Custom Lengths
Profiles can be supplied cut to size to suit individual applications.
Drainage Channel
An optional drainage channel is available for applications involving small quantities of coolant or other liquids.
Accessories
A comprehensive range of compatible clamping accessories is available to expand the versatility of the PT25 system.
Custom Finishes
Alternative RAL colour coatings are available on request for bespoke installations.

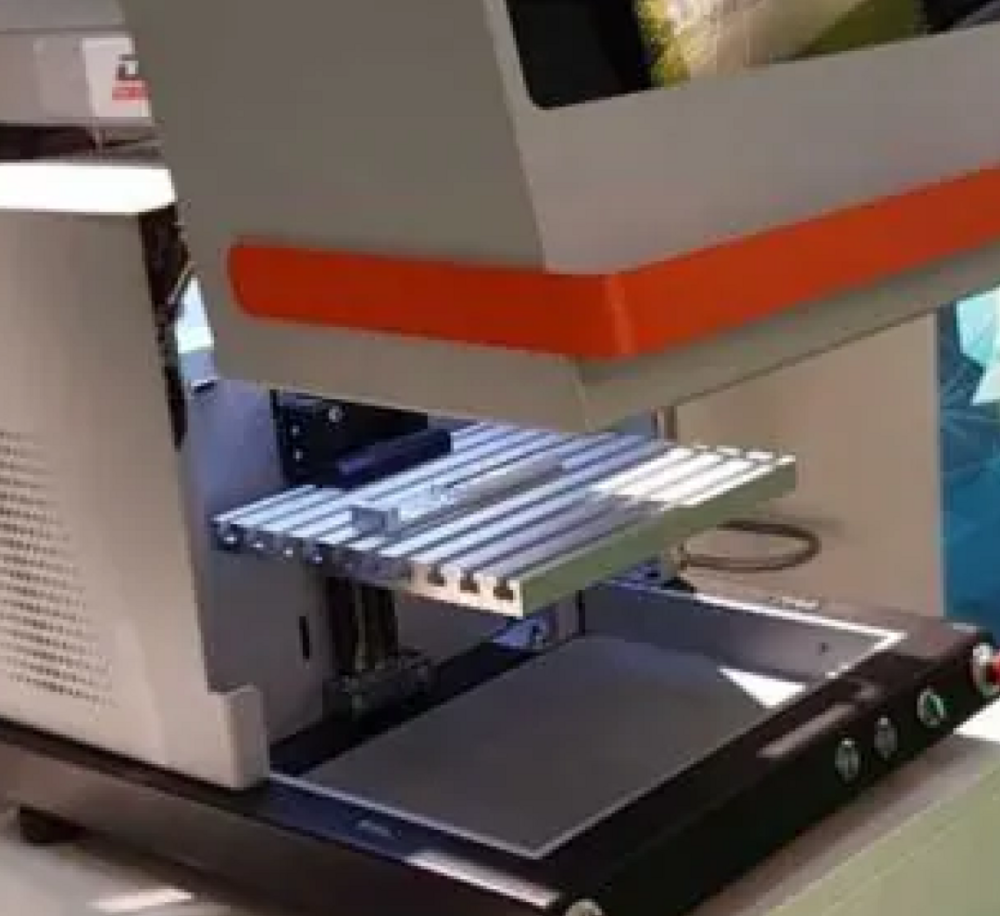

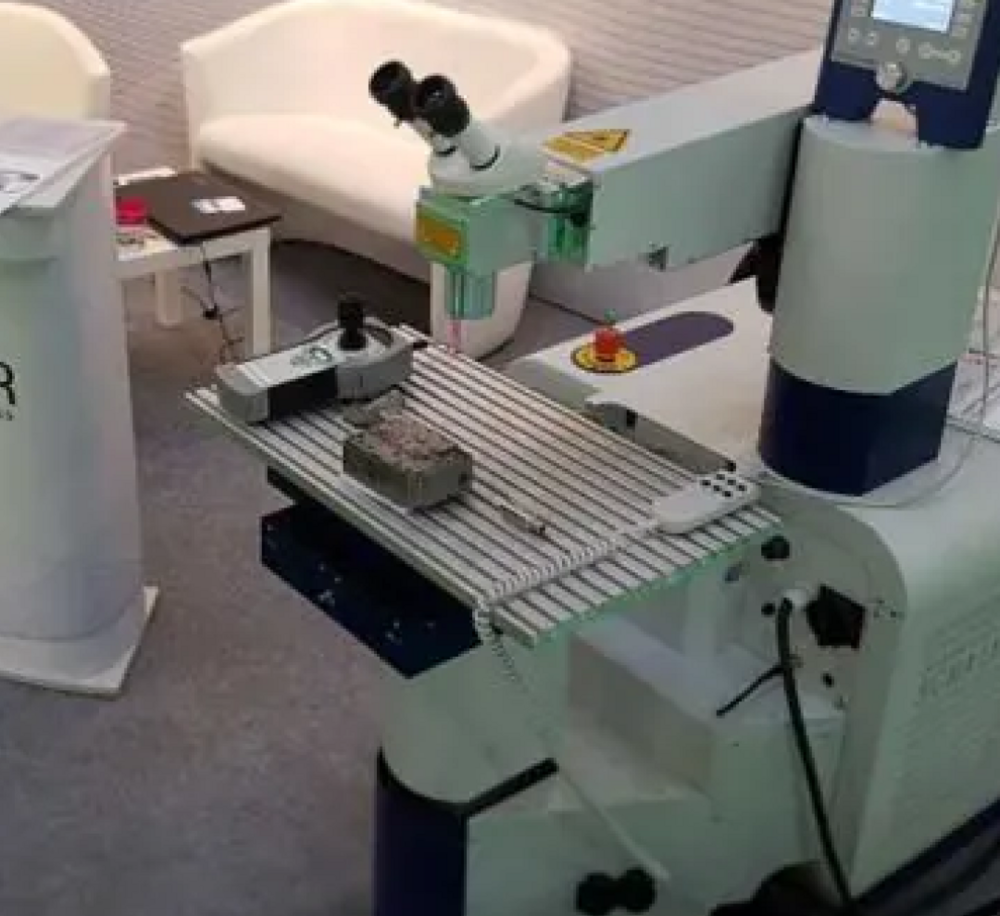

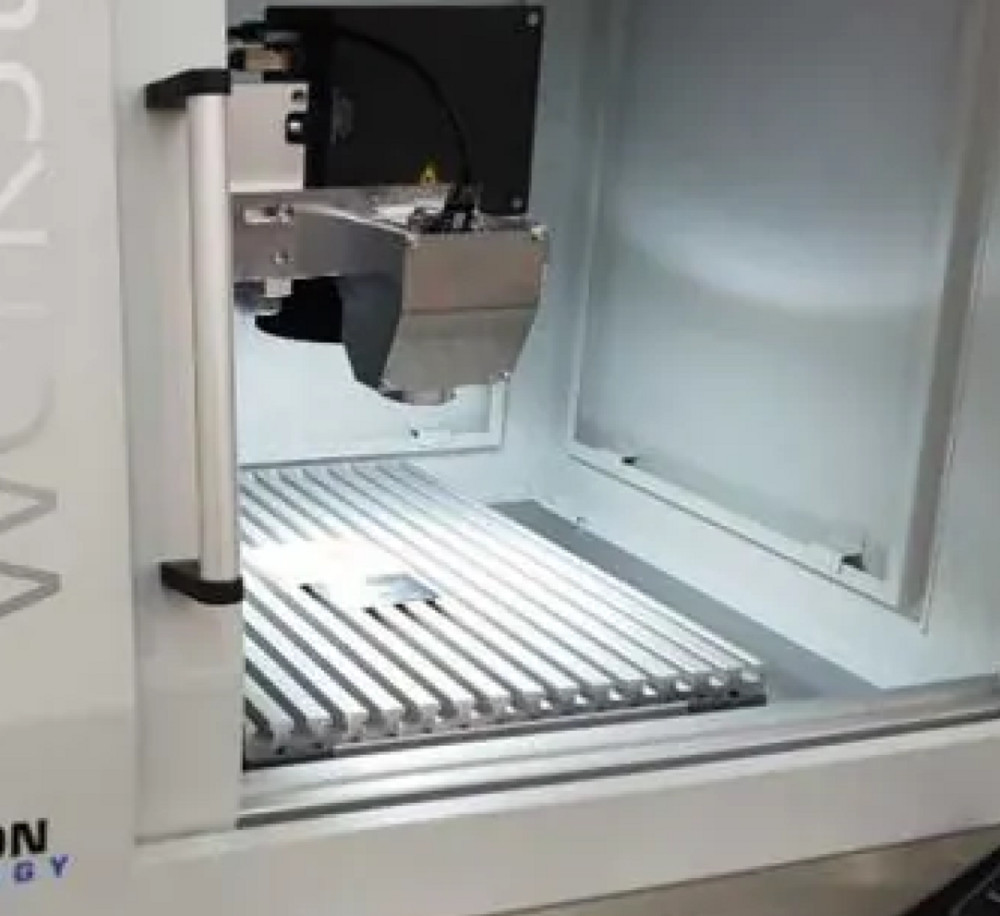

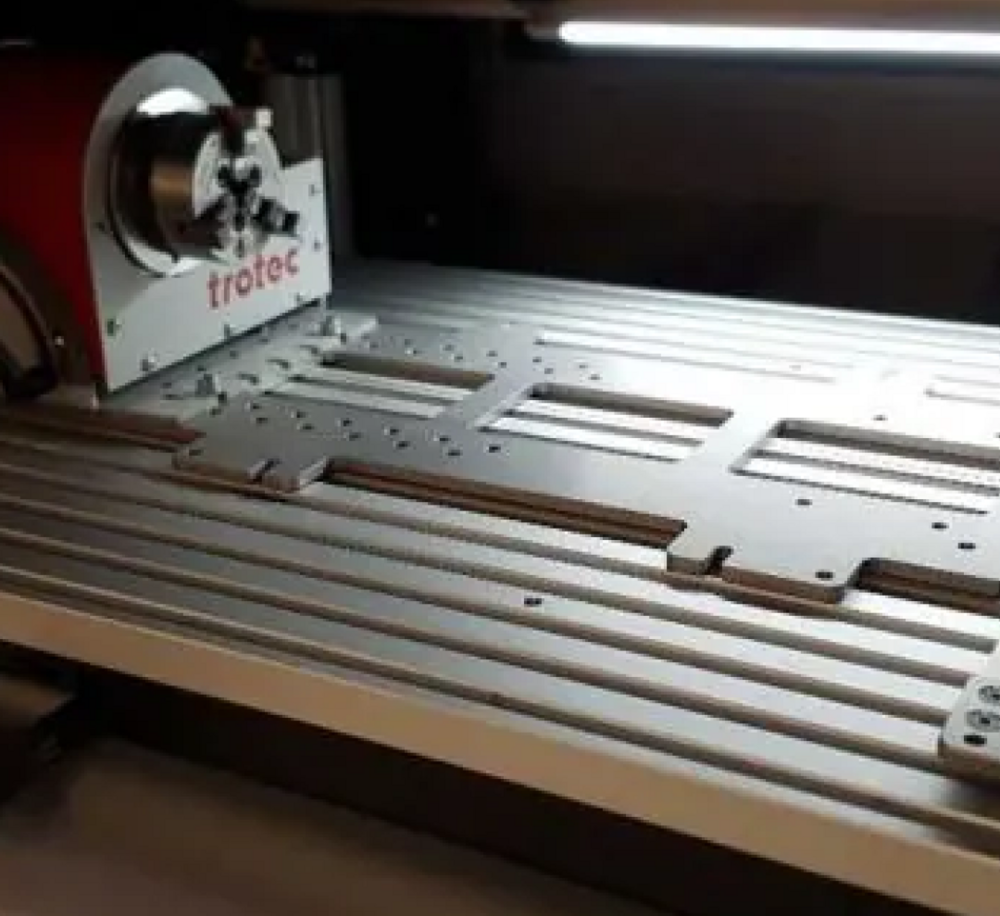

The PT25 T-slot plate is ideally suited for securely clamping workpieces during machining, assembly, inspection and prototype manufacture. It can be used on CNC machining centres, milling machines, workbenches and custom fixtures where flexible workholding is required.
Dimensions
Construction
Weight
CAD models are available for download through the TraceParts portal, making it easy to integrate the PT25 T-slot plate into machine layouts, fixture designs and engineering projects.
