The EMCO Emcoturn E65 is a high-performance CNC turning centre engineered for precision machining, heavy-duty applications and flexible production environments. Combining advanced drive technology, powerful spindle performance and intelligent automation options, the E65 is ideal for industries including general engineering, hydraulic systems, motorsport, medical engineering and drive technology.

Equipment

The Emcoturn E65 features a main spindle with a wide speed range, a 12-station VDI 30 or optional VDI 40 tool turret, driven tools and a C-axis for the main spindle. The machine is equipped with a fully automatic tailstock without quill for centre punch MT4 applications. Control options include Siemens Sinumerik 828D, Heidenhain CNC Pilot 640 and Fanuc 0i-TF systems. The E65 can also be integrated with the EMCO SL 1200 short-bar loader for efficient automated production.

Technical Data

Work Area

Main Spindle

Counter Spindle

Tailstock

Tool Turret

General Data

Highlights

The Emcoturn E65 combines compact machine dimensions with an extremely solid machine bed and thermosymmetric spindle stock for exceptional machining stability and accuracy. Prestressed roller guides in all axes ensure smooth movement and precision performance. The machine is available with axial tool turrets for tailstock versions and radial tool turrets for counter spindle configurations, alongside an integrated part pick-up device for enhanced automation.

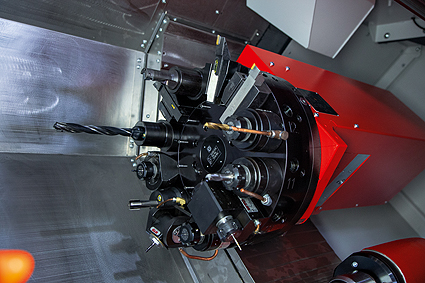

Axial Tool Turret

The axial tool turret configuration is designed specifically for tailstock machine versions, providing stable and accurate tooling performance.

Tool Measurement

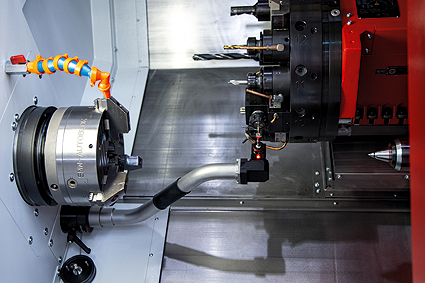

Optional in-machine tool measurement systems allow automatic tool measurement directly within the work area for improved accuracy and reduced setup times.

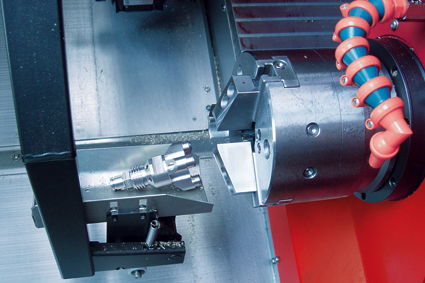

Part Pick-Up Device

The integrated part pick-up device improves automation and supports efficient handling of finished components.

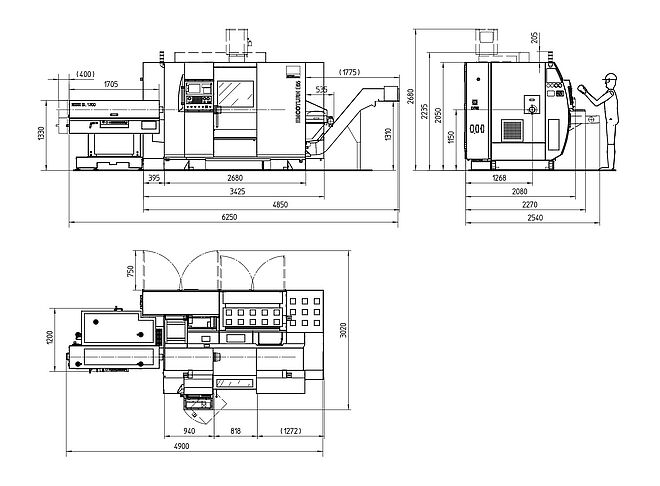

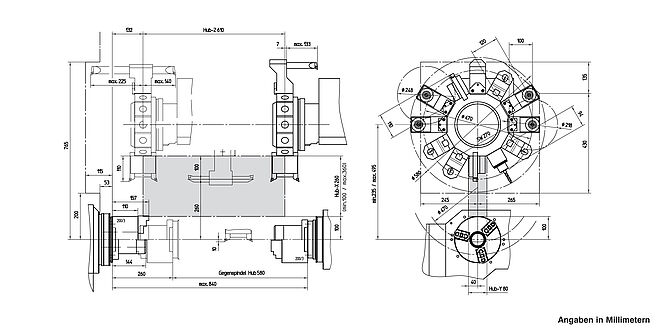

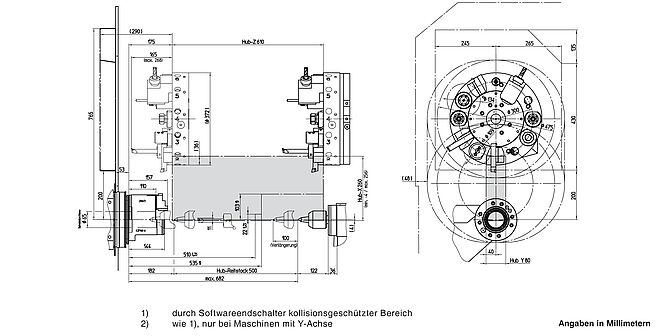

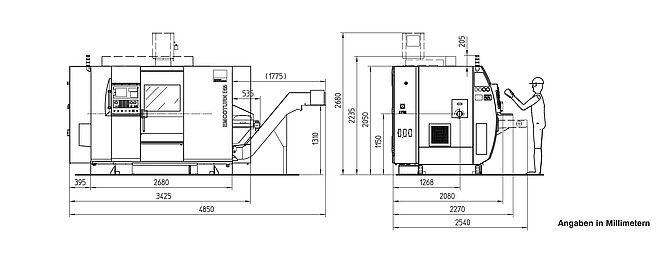

Overall Dimensions & Work Space

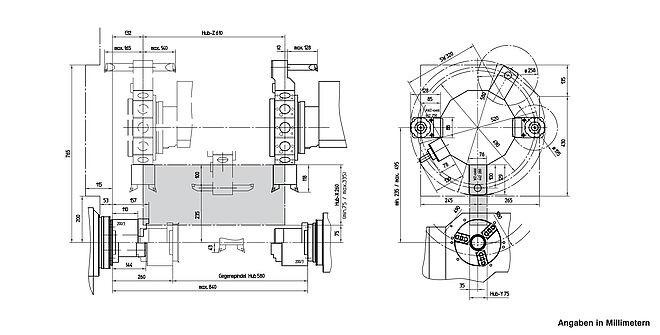

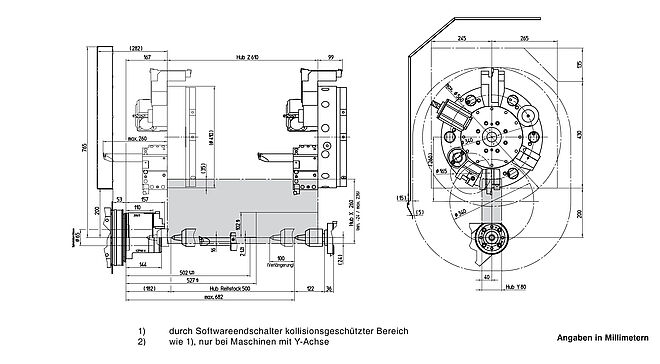

The Emcoturn E65 provides a spacious machining area while maintaining a compact footprint suitable for modern production environments. Multiple work area configurations are available for both tailstock and counter spindle models.

Workpieces

The Emcoturn E65 is suitable for a wide range of applications including general engineering, hydraulic systems, pneumatic components, medical engineering, motorsport and drive technology.

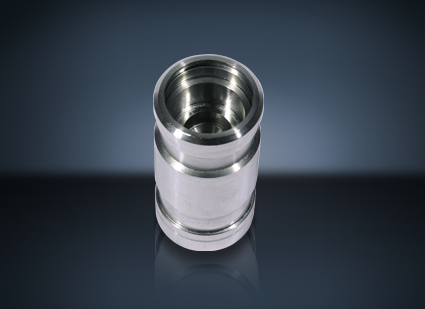

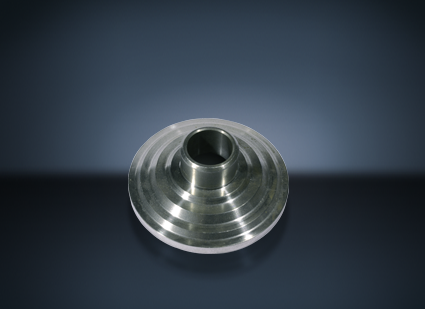

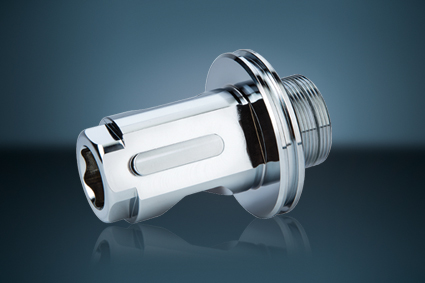

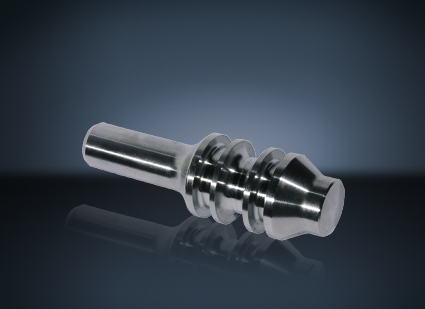

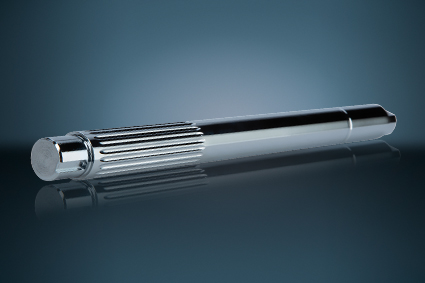

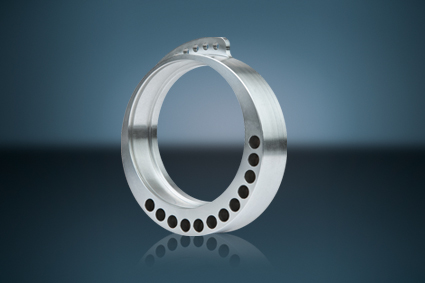

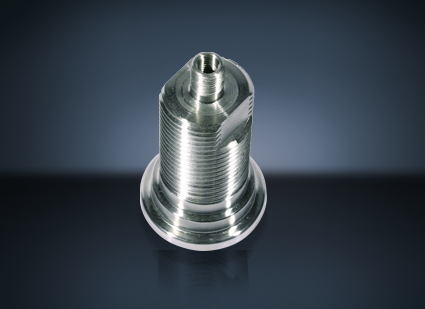

Typical workpieces include drive hubs, hydraulic pistons, drilling hammer rams, screw fittings, eccentric discs, axle stubs and sun gear shafts manufactured from materials including steel, aluminium, hardened steel and cast iron.

Versions

Emcoturn E65 – SIEMENS / FANUC / HEIDENHAIN

Version for stationary tools including tailstock.

Emcoturn E65 M – SIEMENS / FANUC / HEIDENHAIN

Includes driven tools, C-axis, Y-axis and tailstock.

Emcoturn E65 MY – SIEMENS / FANUC / HEIDENHAIN

Advanced configuration including driven tools, C-axis, Y-axis and tailstock.

Emcoturn E65 SM – SIEMENS / FANUC / HEIDENHAIN

Includes counter spindle, driven tools and C-axis functionality.

Emcoturn E65 SMY – SIEMENS / FANUC / HEIDENHAIN

Fully equipped version including counter spindle, driven tools, C-axis and Y-axis.

Options & Accessories

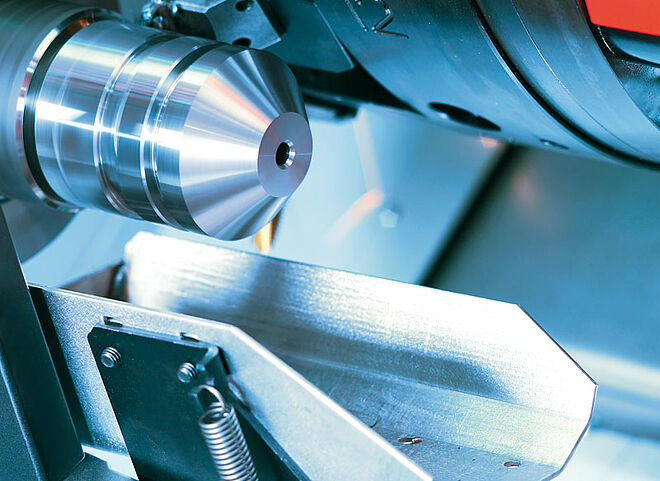

Part Catcher

Integrated parts catcher system designed to safely remove finished components from the machine.

Automatic Door

Automatic door system designed for efficient manual workpiece loading and improved workflow.

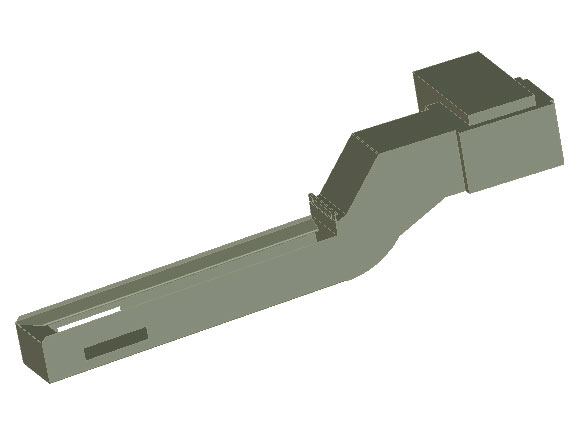

Chip Conveyor

Chain feeding chip conveyor with 1200 mm discharge height suitable for long steel shavings and both wet and dry machining conditions.

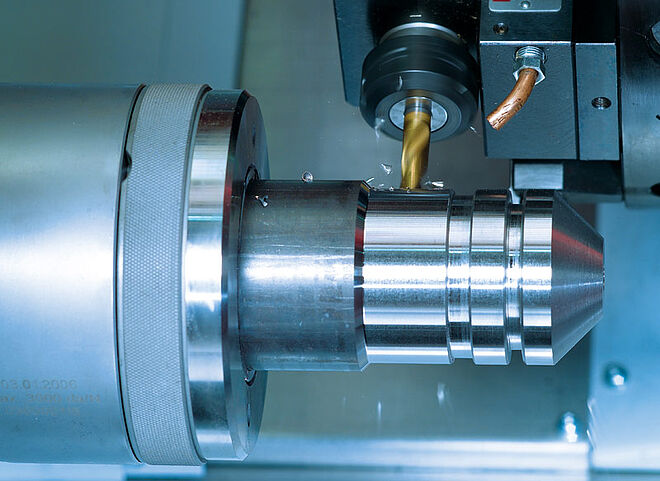

Tool Holder Packages

Various tool holder packages are available for both stationary and driven tooling setups.

Tool Measurement

The integrated tool measurement sensor allows automatic in-machine tool measurement and can be automatically swivelled in and out as required.

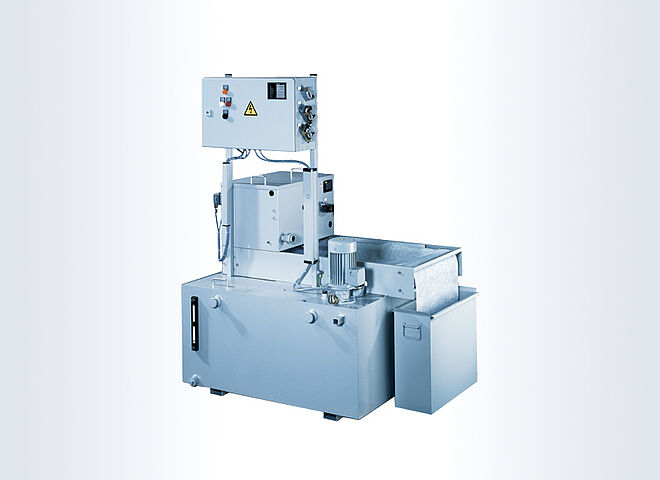

Band Filter with High-Pressure Coolant Pumps

Coolant pressures of 25, 40, 60 or 80 bar can be configured to maximise the performance of coolant-fed drilling and milling tools.

Automation

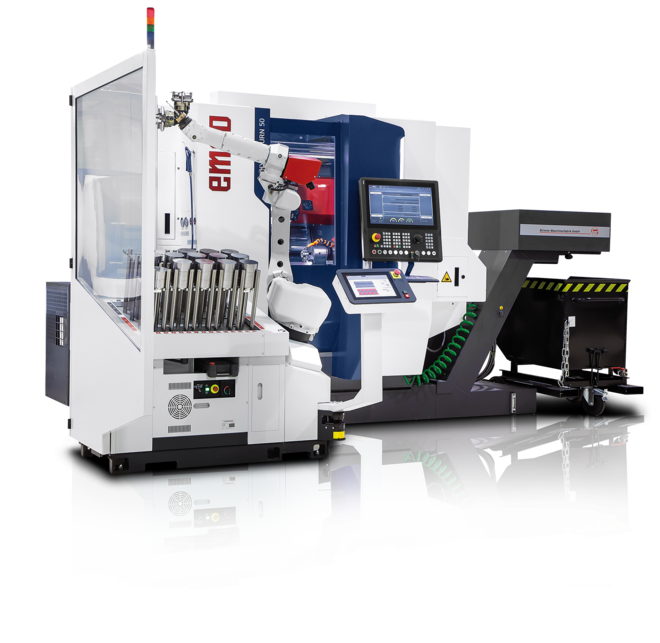

Turn / Mill Assist

Compact automation system designed for small and medium-sized production batches. The system can reduce working hours by up to 70% while providing graphically supported operation, quick setup times and easy machine access without requiring specialist robotic knowledge.

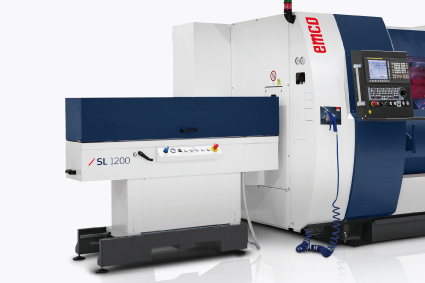

Short-Bar Loader EMCO SL 1200

The EMCO SL 1200 short-bar loader provides automatic loading of pre-cut bars up to 1200 mm long. Its compact footprint and reduced loading stroke help improve production efficiency and minimise cycle times.

Software & Control

Sinumerik 828D with ShopTurn

The Siemens Sinumerik 828D control system combines exceptional machining speed, precision and advanced conversational programming through ShopTurn. Powerful CNC functionality and advanced machining cycles enable efficient production of both simple and highly complex components.

Heidenhain CNC Pilot 640

The Heidenhain CNC Pilot 640 offers intuitive workshop programming, advanced motion control and extensive machining cycle packages. Features include TURN PLUS automatic program creation, 5-axis simultaneous machining, tool wear detection and compatibility with previous CNC program versions for efficient and reliable production.

Fanuc 0i-TF

The Fanuc 0i-TF control system delivers high-speed machining, excellent reliability and user-friendly programming. Features include nano smoothing technology, MANUAL GUIDE i programming, 3D simulation and seamless compatibility with existing Fanuc CNC systems.
